KHA 82

41x82 mm profile rail, perforated

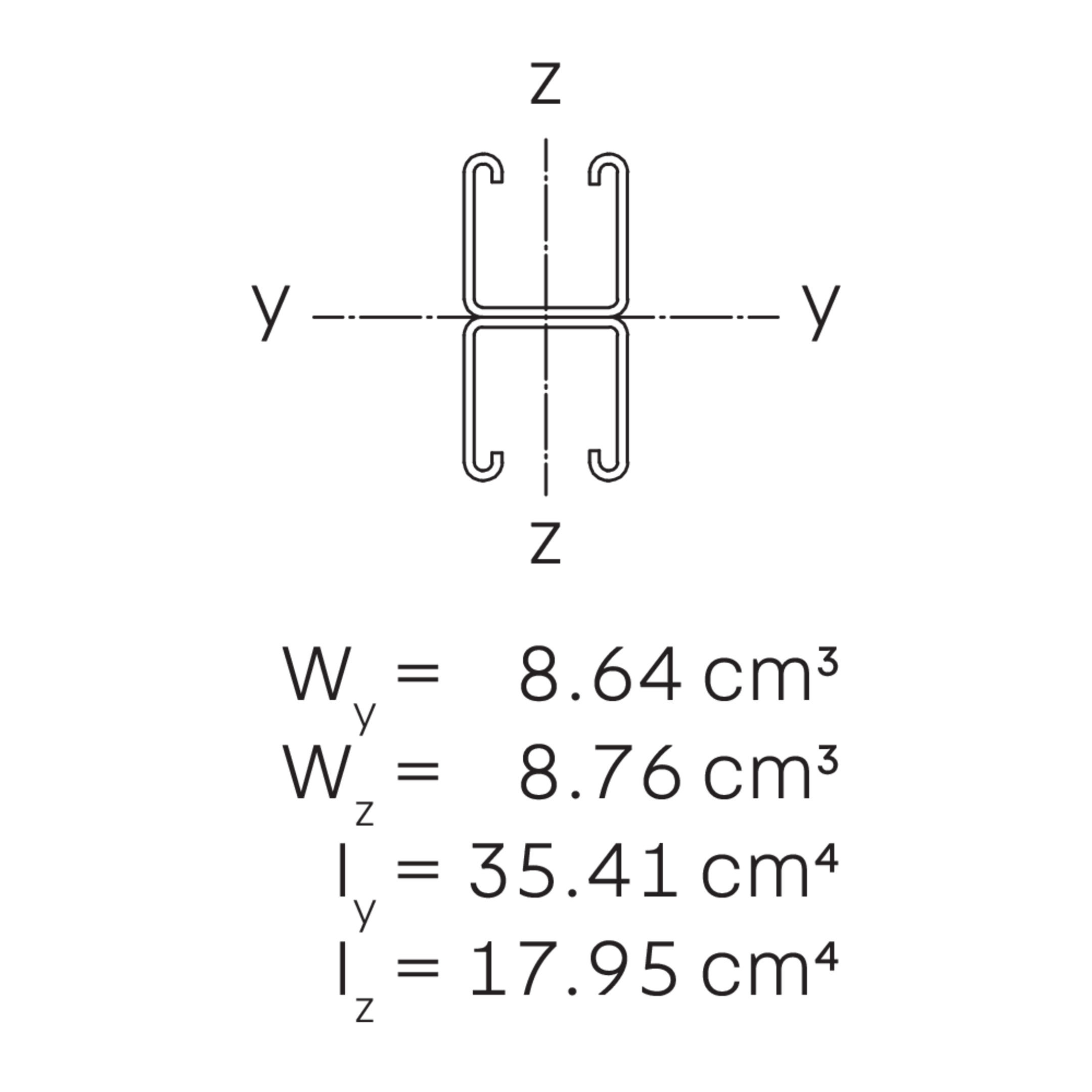

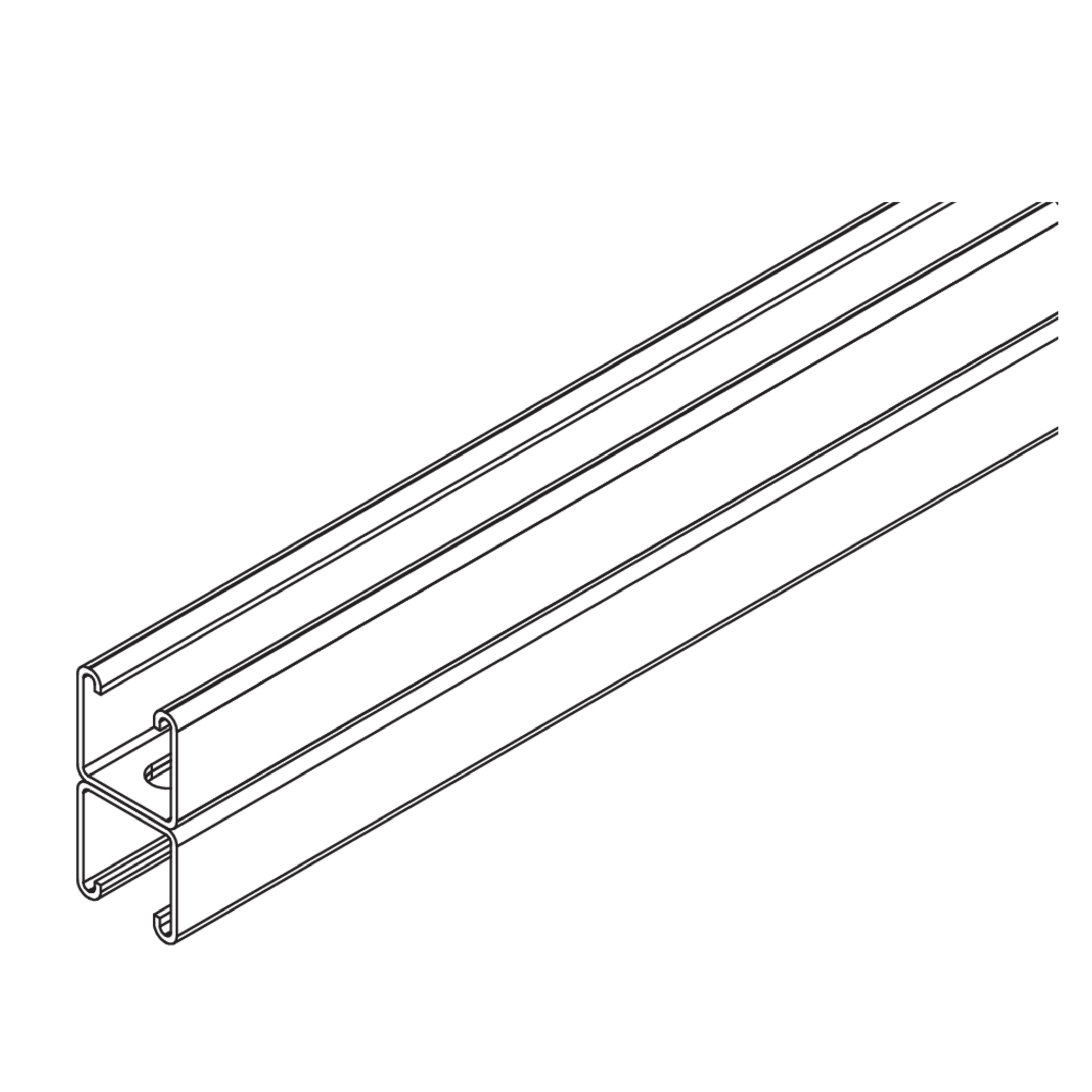

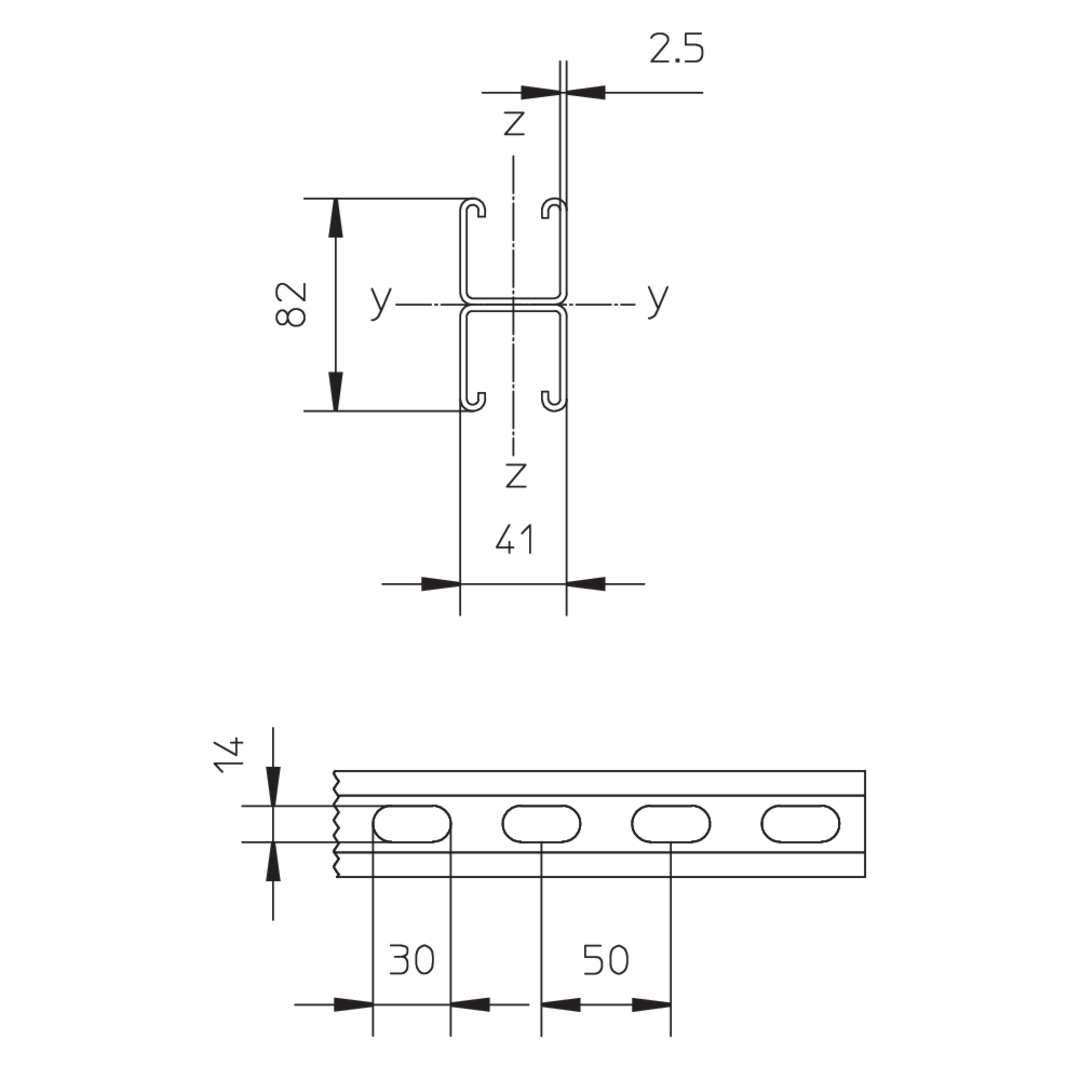

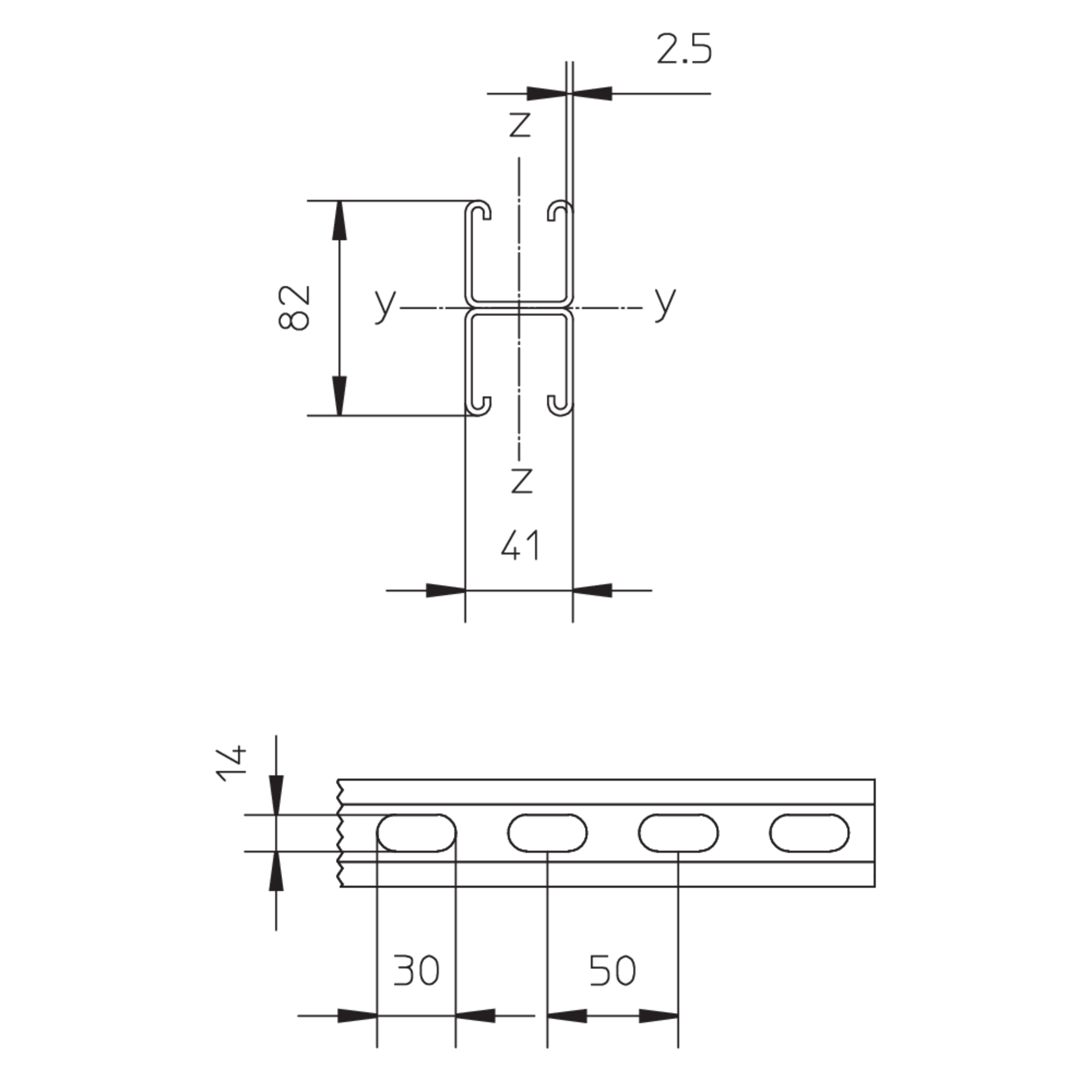

The perforated profile rail KHA 82 consists of two C+ profiles welded together back to back. It is 82 mm high, 41 mm wide and the slot is 22 mm wide (material = 2.5 mm thick). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. It is available in lengths of 3000 or 6000 mm.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • KHA 82-30F
    bracket support KHA 82-30F
    profile height
    82 mm
    profile width
    41 mm
    length
    3000 mm
    material thickness
    2.50 mm
    Weight per storage unit
    15.860 kg
    More information
  • KHA 82-60F
    bracket support KHA 82-60F
    profile height
    82 mm
    profile width
    41 mm
    length
    6000 mm
    material thickness
    2.50 mm
    Weight per storage unit
    31.360 kg
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • KHA 82-30E
    Perforated profile channel 82/41x25
    profile height
    82 mm
    profile width
    41 mm
    length
    3000 mm
    material thickness
    2.50 mm
    Weight per storage unit
    14.870 kg
    More information
  • KHA 82-60E
    Perforated profile channel 82/41x25
    profile height
    82 mm
    profile width
    41 mm
    length
    6000 mm
    material thickness
    2.50 mm
    Weight per storage unit
    29.740 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • KHA 82-30E4
    Perforated profile channel 82/41x25
    profile height
    82 mm
    profile width
    41 mm
    length
    3000 mm
    material thickness
    2.50 mm
    Weight per storage unit
    15.050 kg
    More information
  • KHA 82-60E4
    Perforated profile channel 82/41x25
    profile height
    82 mm
    profile width
    41 mm
    length
    6000 mm
    material thickness
    2.50 mm
    Weight per storage unit
    30.100 kg
    More information
