Art.-Nr. UNE 260V-155S

levelling unit UNE 260V-155S,

Levelling unit, dummy, 3x, angular

UNE components are square, dummy levelling units consisting of a sheet steel frame, internal level adjusters with levelling bases and earthing clamps. The units are mounted on stainless steel cartridges and used in floor sockets, assembly covers and raised or false floor openings in rooms with high traffic loads. They are made of sendzimir hot-dip galvanised steel (DIN EN 10346) and have installation dimensions of 261 x 261 mm.

Art.-Nr.
UNE 260V-155S
minimum installation height
155 mm
width
258 mm
length
258 mm
levelling range
95 mm
maximum load
10.00 kN
fitting dimension
261 x 261 mm
Weight per storage unit
1.764 kg
Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

Hmin

minimum installation height

B

width

L

length

N

levelling range

Pmax

maximum load

E

fitting dimension

G

Weight per storage unit
  • UNE 260V-100S
    levelling unit UNE 260V-100S,
    minimum installation height
    135 mm
    width
    258 mm
    length
    258 mm
    levelling range
    45 mm
    maximum load
    20.00 kN
    fitting dimension
    261 x 261 mm
    Weight per storage unit
    1.648 kg
    More information
  • UNE 260V-155S
    levelling unit UNE 260V-155S,
    minimum installation height
    155 mm
    width
    258 mm
    length
    258 mm
    levelling range
    95 mm
    maximum load
    10.00 kN
    fitting dimension
    261 x 261 mm
    Weight per storage unit
    1.764 kg
    More information
  • UNE 260V-210S
    dummy levelling unit
    minimum installation height
    212 mm
    width
    258 mm
    length
    258 mm
    levelling range
    100 mm
    maximum load
    10.00 kN
    fitting dimension
    261 x 261 mm
    Weight per storage unit
    2.036 kg
    More information
  • UNE 260V-30S
    levelling unit UNE 260V-30S, angular
    minimum installation height
    65 mm
    width
    258 mm
    length
    258 mm
    levelling range
    25 mm
    maximum load
    20.00 kN
    fitting dimension
    261 x 261 mm
    Weight per storage unit
    1.364 kg
    More information
  • UNE 260V-60S
    levelling unit UNE 260V-60S, angular
    minimum installation height
    90 mm
    width
    258 mm
    length
    258 mm
    levelling range
    45 mm
    maximum load
    20.00 kN
    fitting dimension
    261 x 261 mm
    Weight per storage unit
    1.472 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

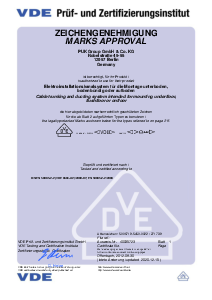

  • VDE Certificate 40035723 Stainless Steel Units
