UGEAV

Snap-in ladder set for stainless steel unit, 3x, angular

UGEAV components are snap-in ladder sets for square stainless steel units. The snap-in ladders can be bolted to the frames of UNE levelling units for square stainless steel cartridges with cable or tube outlets. The cartridges can then be fitted with up to three mounting boxes for installation devices. The snap-in ladder sets are made of sendzimir hot-dip galvanised steel (DIN EN 10346).

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

Höhe

B

Breite

Gerätebecher

max. Anzahl installierbarer Gerätebecher

G

Gewicht je Lagermengeneinheit

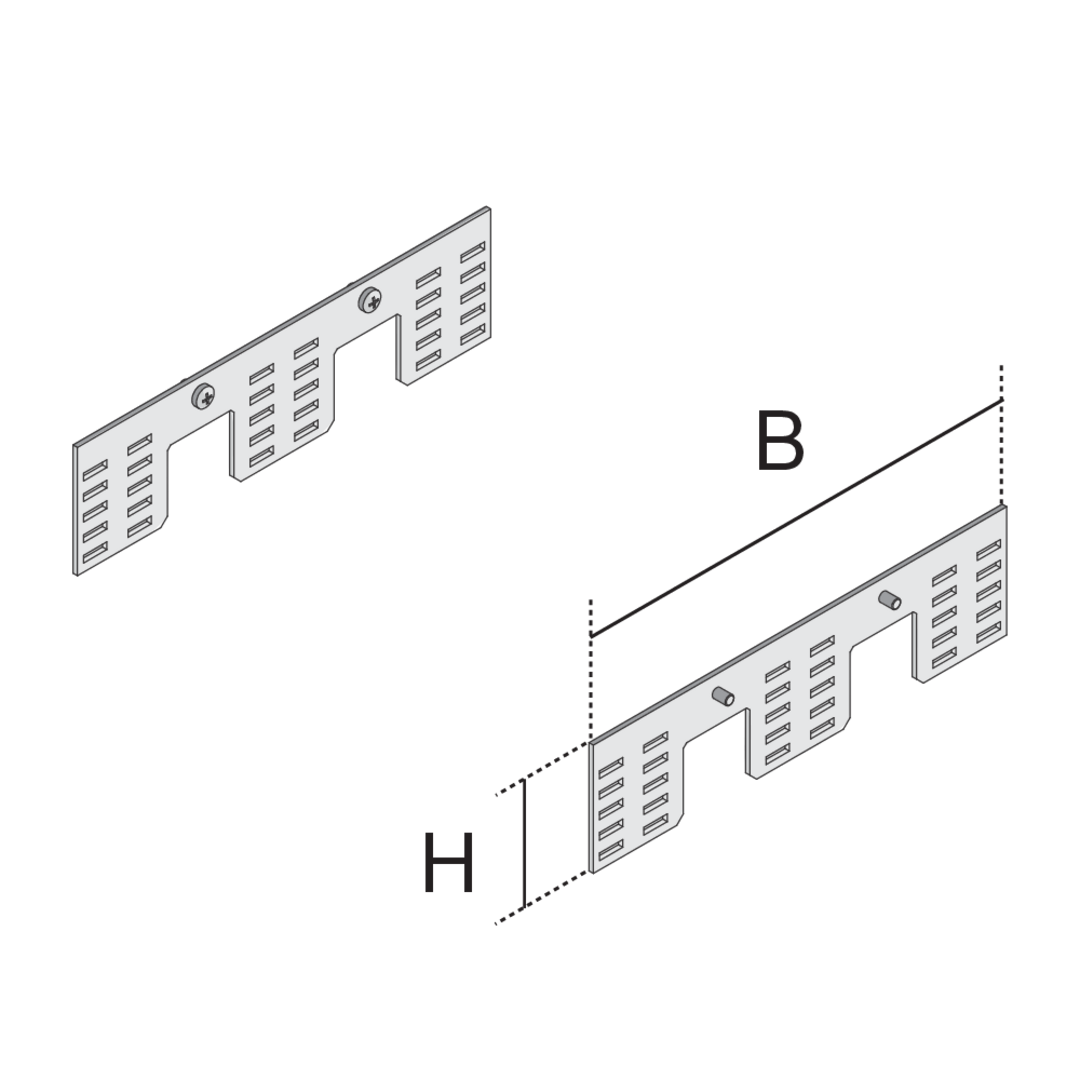

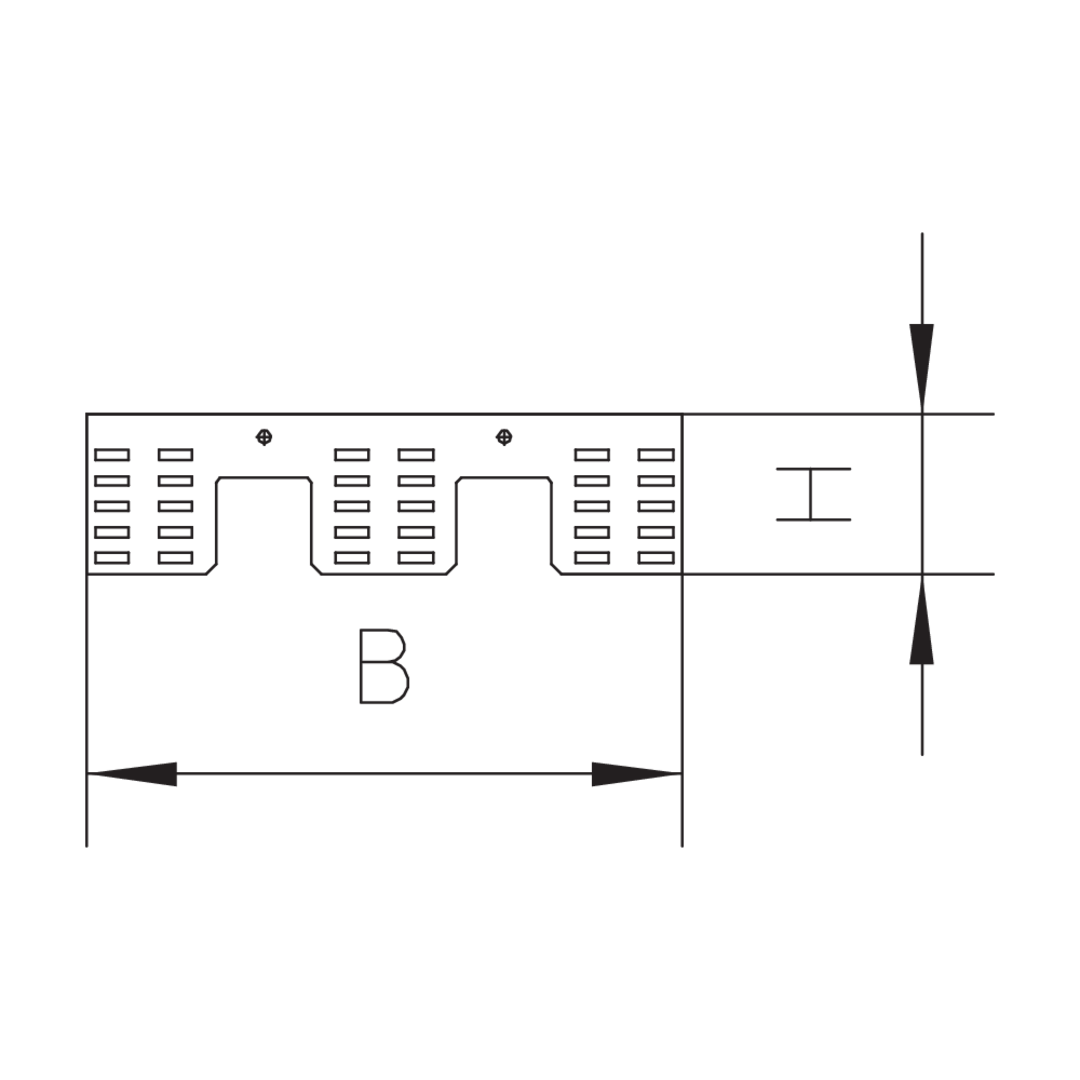

  • UGEAV-50S
    Rastleiterset viereckig, H=50 mm,
    Höhe
    50 mm
    Breite
    186 mm
    max. Anzahl installierbarer Gerätebecher
    3
    Gewicht je Lagermengeneinheit
    0.208 kg
    More information

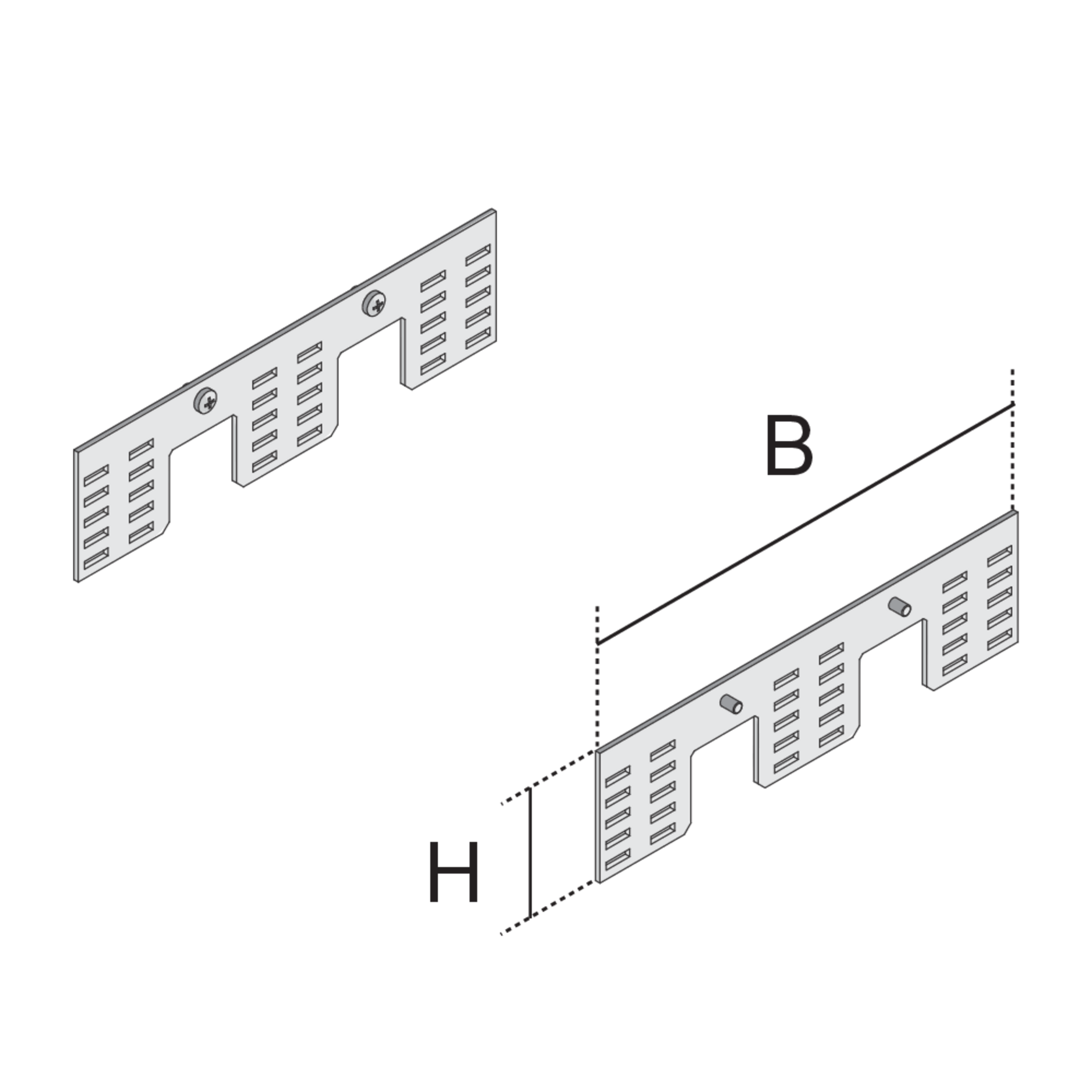

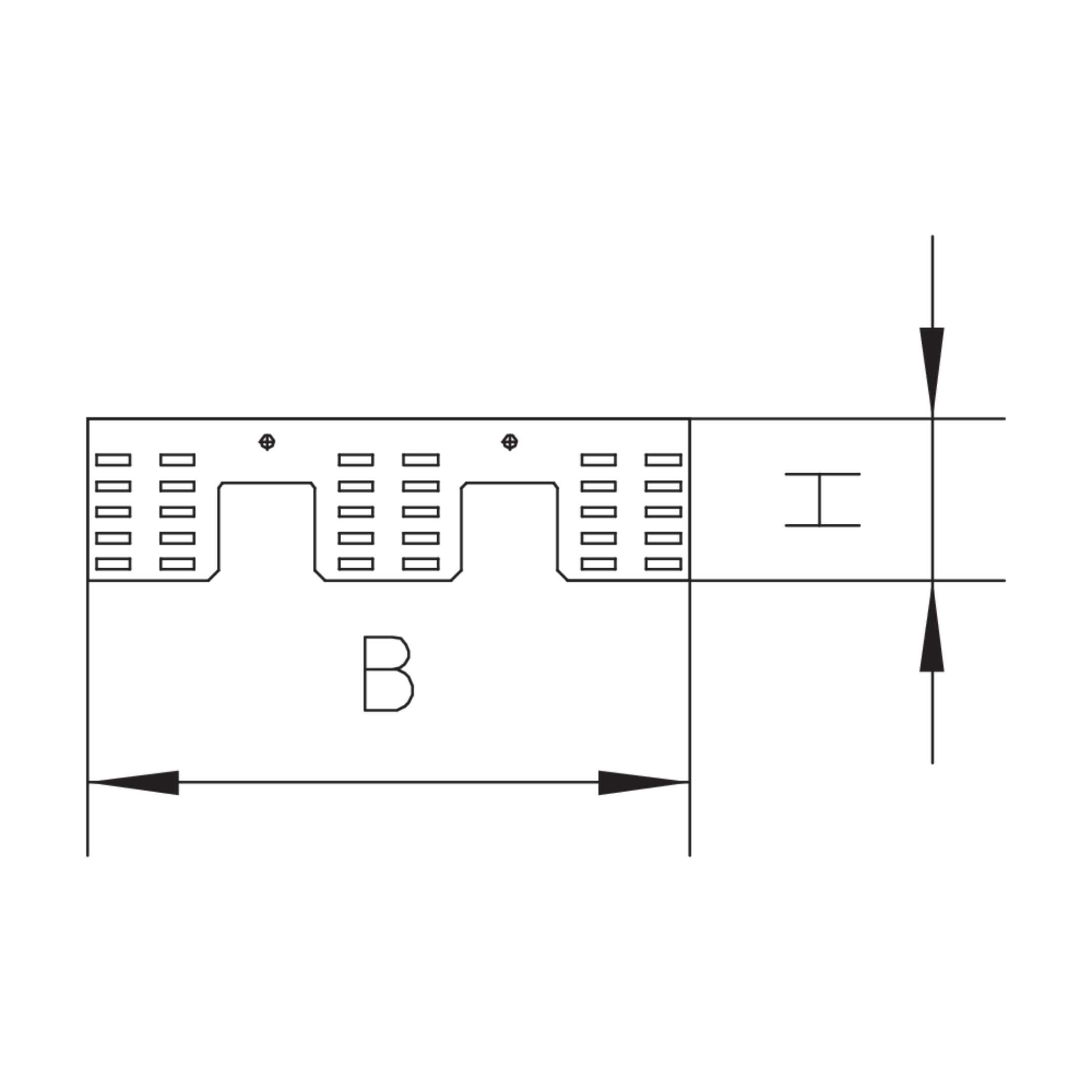

  • UGEAV-80S
    Rastleiterset viereckig, H=80 mm,
    Höhe
    77 mm
    Breite
    186 mm
    max. Anzahl installierbarer Gerätebecher
    3
    Gewicht je Lagermengeneinheit
    0.378 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
