UEKDD2 V E

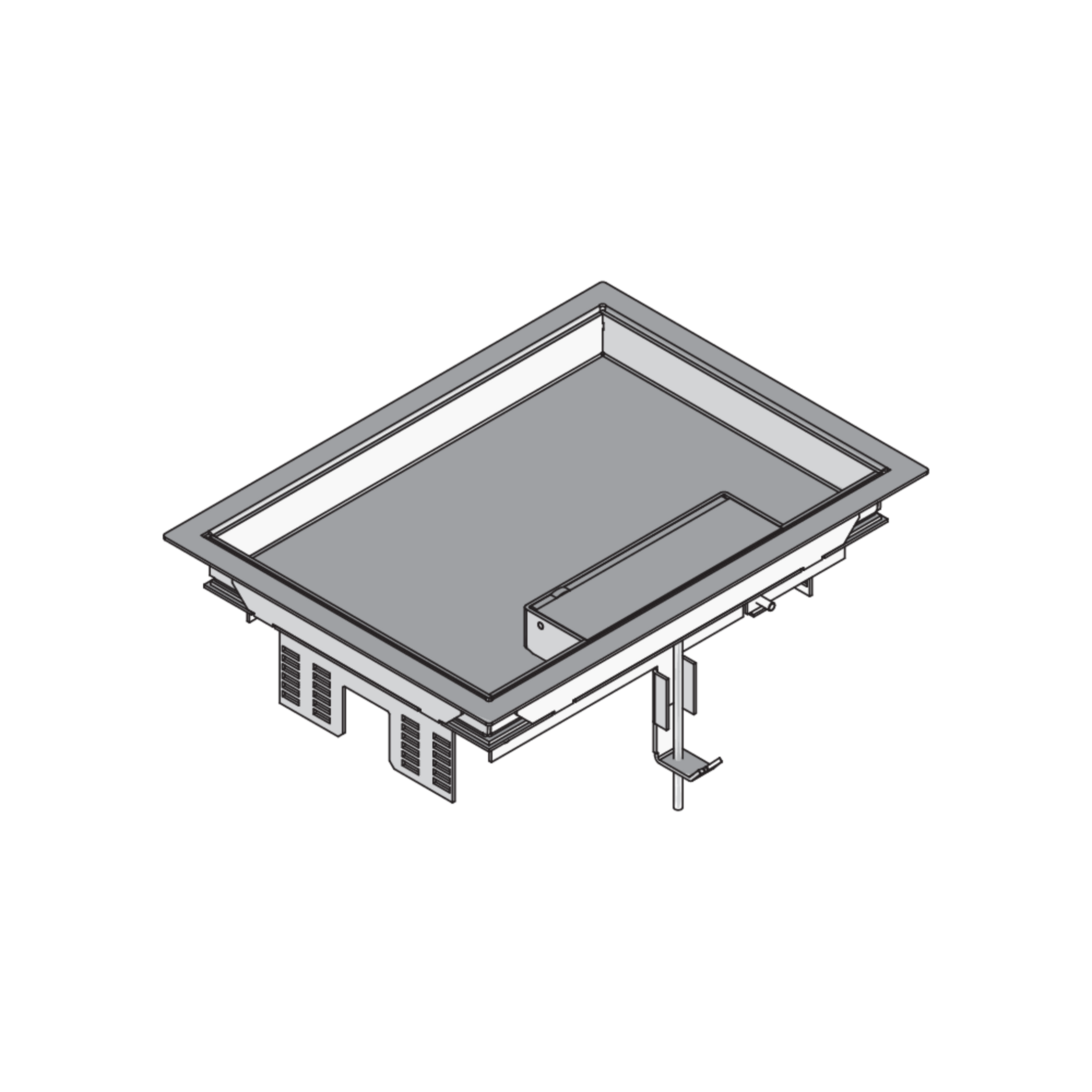

Stainless steel hinged cover cartridge, 2x, angular

UEKDD2 V E product solutions are square hinged cover cartridges for gradually lowering up to two mounting boxes by max. 30 mm. The installation units consist of a carpet protection frame with snap-in ladders, a hinged cover with floor-level cable outlet, rubber seal and universal claw set. They are suitable for floor sockets, assembly covers and raised or false floor openings in dry-cleaned or damp-cleaned rooms with office traffic loads. The cartridges are made of stainless steel V2A and have an IP protection class of IP 30 in an unused condition and an IP protection class of IP 20 when used. They are 284 mm wide with a minimum installation height of 90 or 100 mm, an installation dimension of 261 x 186 mm and a max. load of 1.5 kN.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

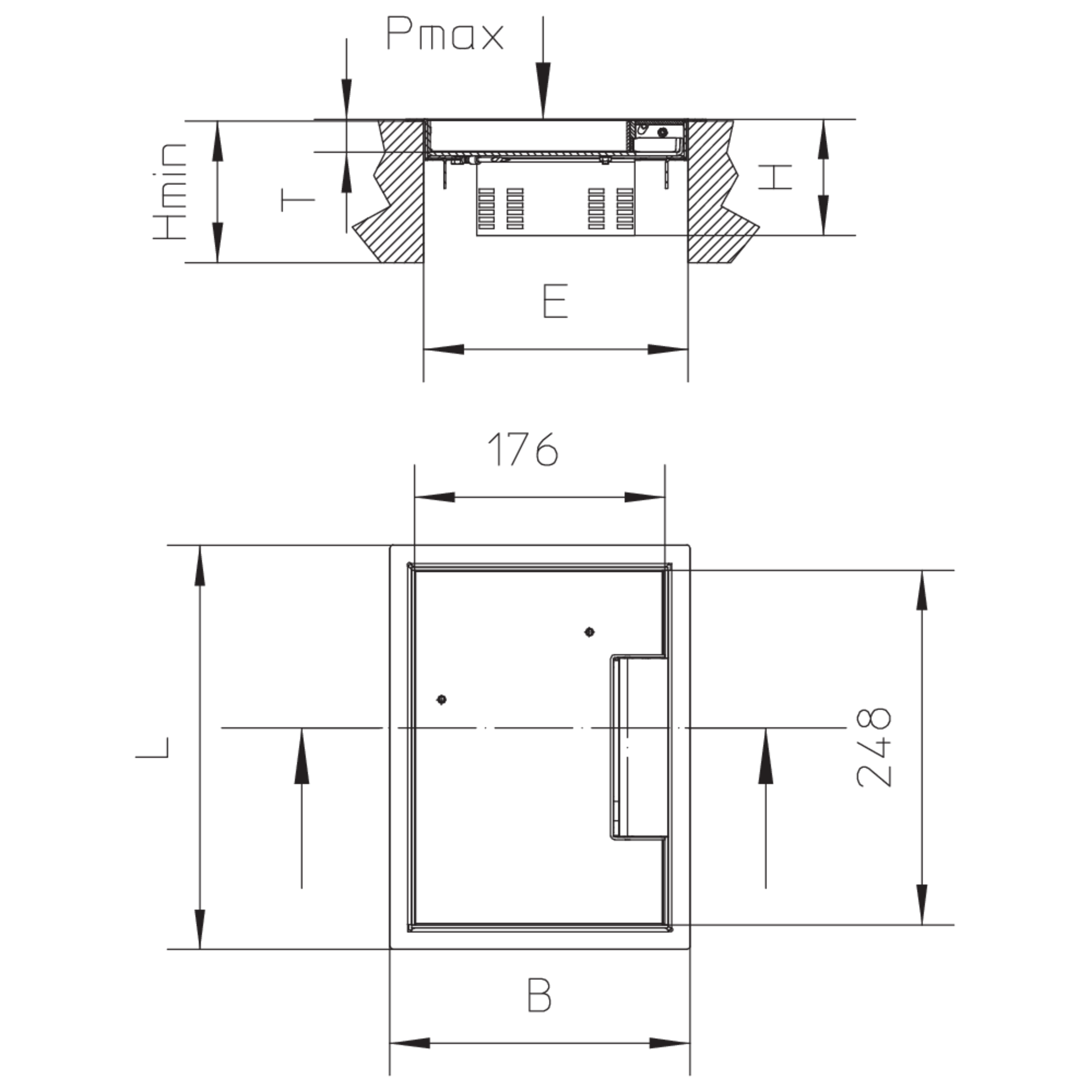

H

height

Hmin

minimum installation height

B

width

L

length

Pmax

maximum load

mounting box

maximum number of installable device casings

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit
  • UEKDD2 15-V E
    cartridge installation unit,
    72 mm
    90 mm
    210 mm
    283 mm
    1.50 kN
    2
    261 x 186 mm
    IP 20
    IP 30
    12 mm
    1.708 kg
    Included accessories
    More information
  • UEKDD2 25-V E
    cartridge installation unit,
    82 mm
    100 mm
    210 mm
    283 mm
    1.50 kN
    2
    261 x 186 mm
    IP 20
    IP 30
    22 mm
    1.965 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • VDE Certificate 40035723 Stainless Steel Units

    Zertifikat

    PDF, 316 KB

    de en

  • Usage Note for Stainless Steel Built-In Units

    Montageanleitung

    PDF, 123 KB

    de
    Download

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • Cartridge installation units made of stainless steel
