UEKD1-2 V E

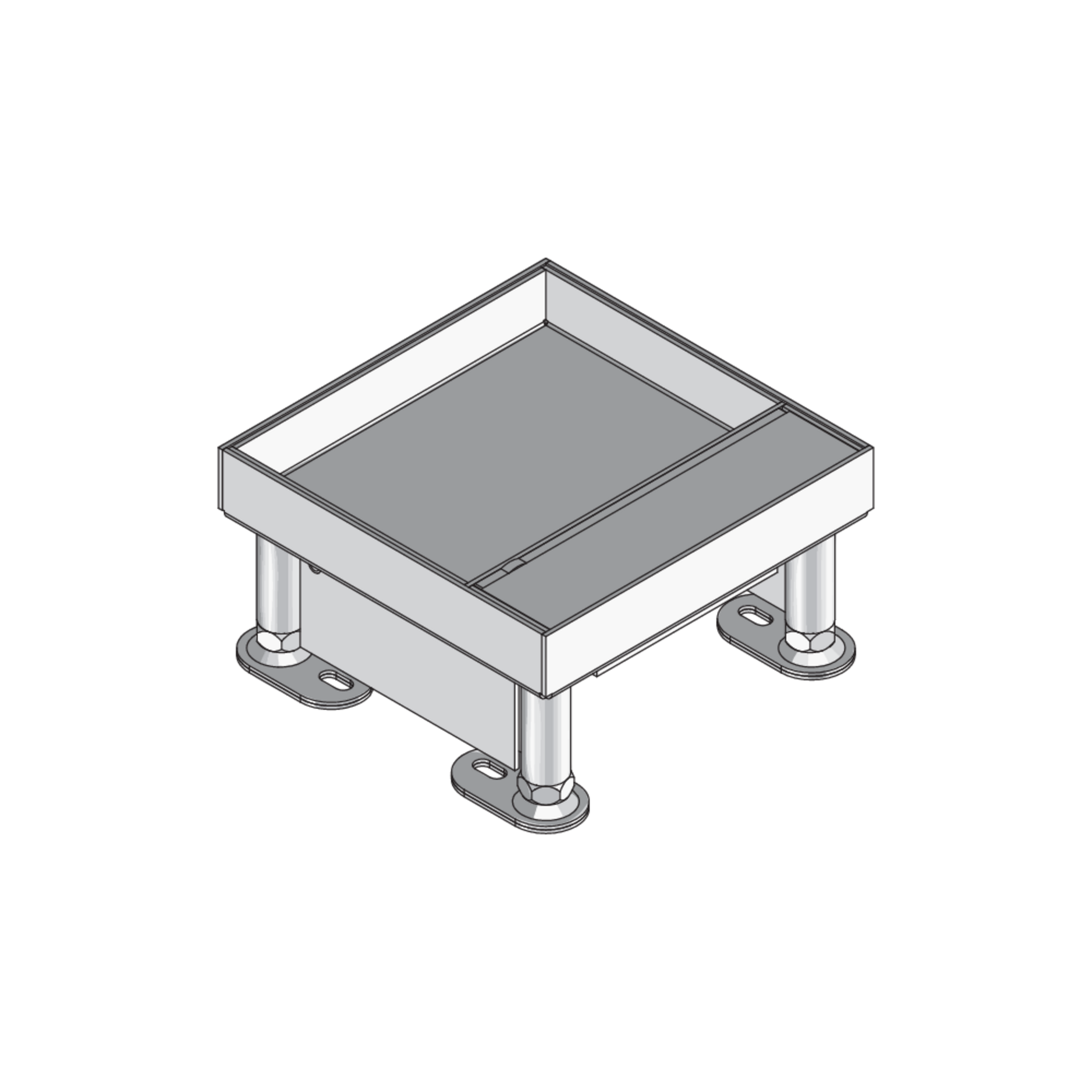

Stainless steel hinged cover single outlet cartridge, 2x, angular

UEKD1-2 V E components are square hinged cover single outlet cartridges with abutting edges. The floor installation units consist of height-adjustable cartridge mounting frames with a cable outlet cartridge and floor-level cable outlets and are used to accommodate two installation devices. They are suitable for installation in floor sockets and raised or false floor openings in dry-cleaned rooms with office traffic loads. The cartridges and frames are made of stainless steel, material no. 1.4301 (V2A), and the substructures of hot-dip galvanised sheet steel. They have installation dimensions of 164 x 164 mm and an IP protection class of IP 30 in an unused condition.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

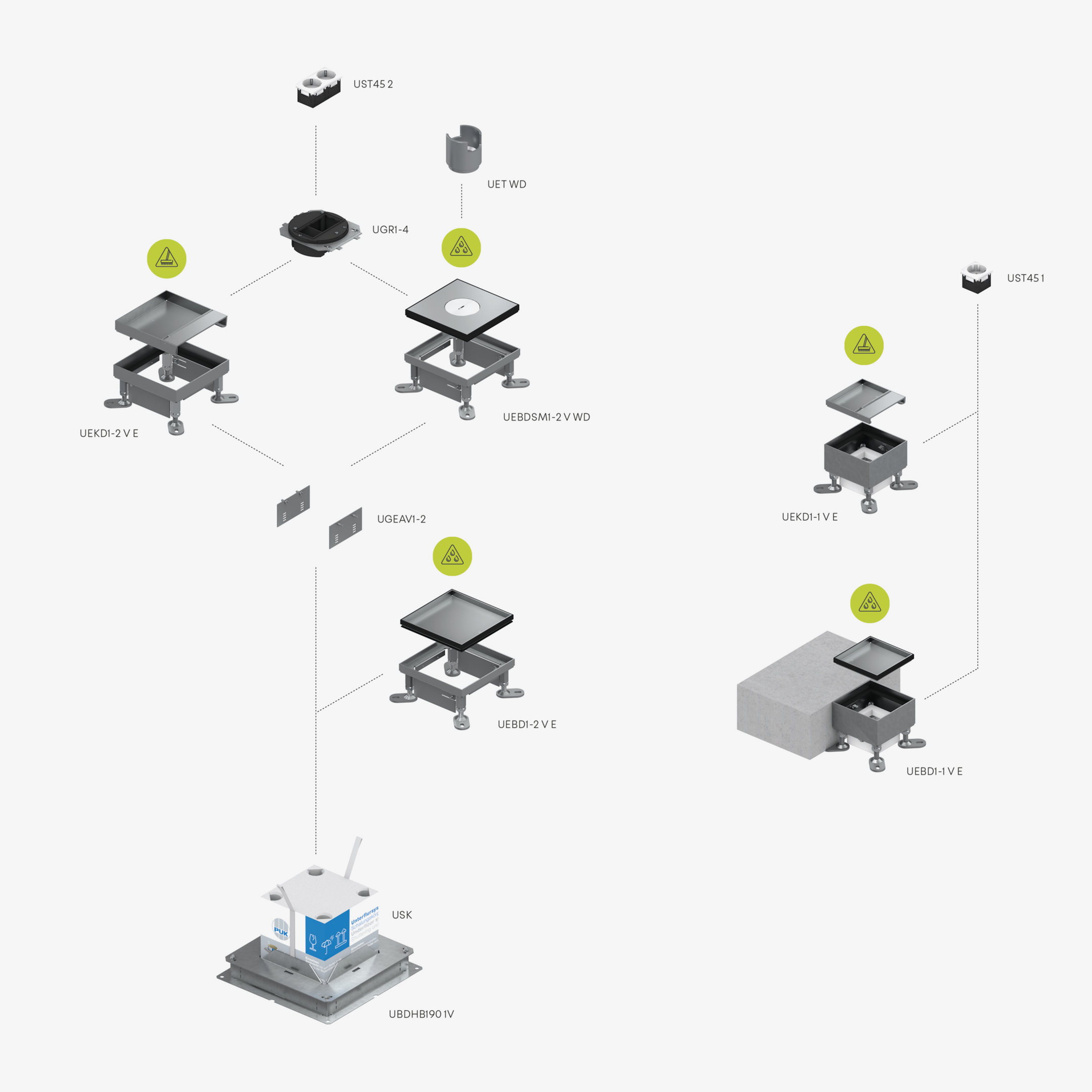

Variants

Article

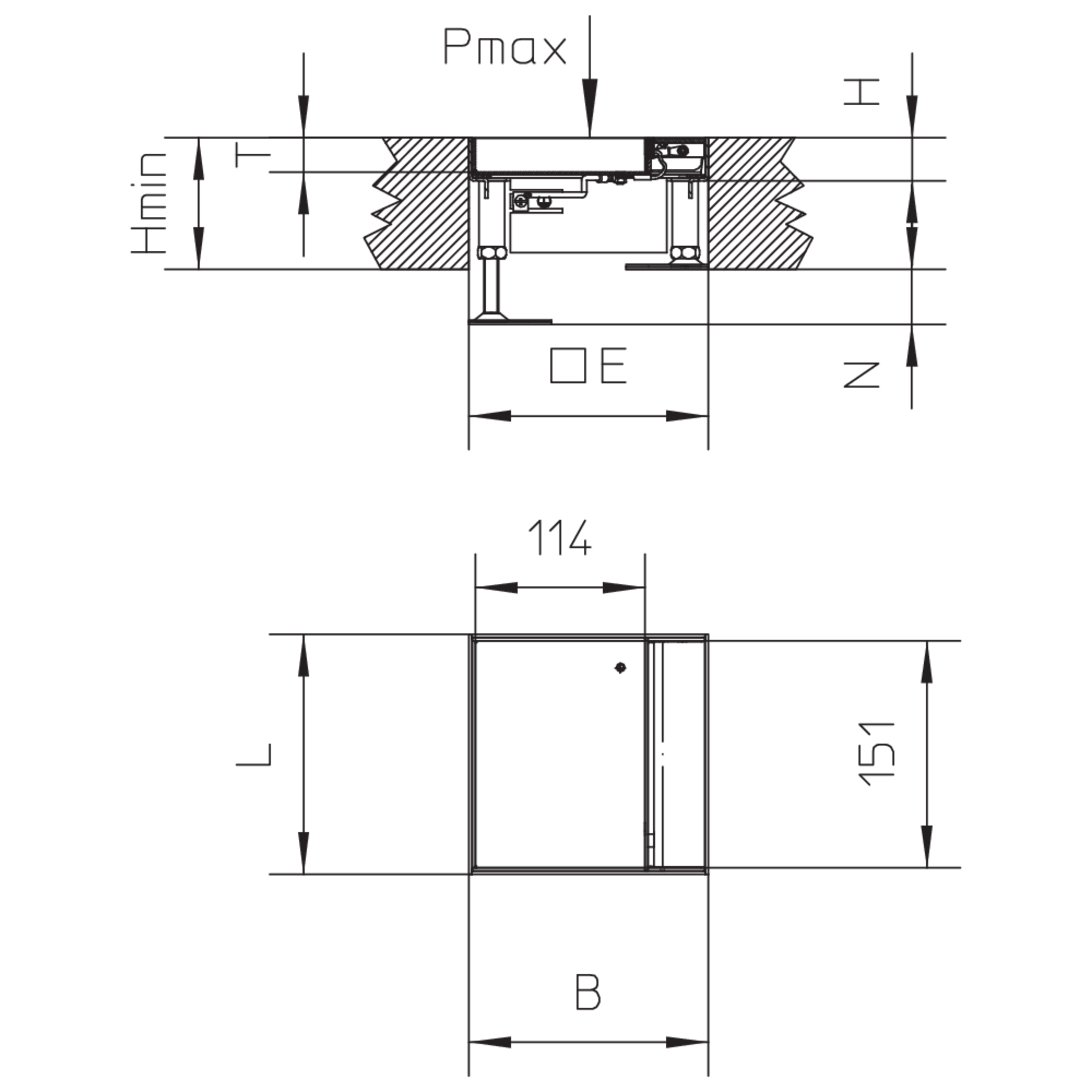

H

height

Hmin

minimum installation height

B

width

L

length

N

levelling range

Pmax

maximum load

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit

  • UEKD1-2 15-V E
    single outlet,
    height
    19 mm
    minimum installation height
    80 mm
    width
    160 mm
    length
    160 mm
    levelling range
    45 mm
    maximum load
    2.00 kN
    fitting dimension
    164 x 164 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Weight per storage unit
    1.555 kg
    More information
  • UEKD1-2 25-V E
    single outlet,
    height
    29 mm
    minimum installation height
    90 mm
    width
    160 mm
    length
    160 mm
    levelling range
    45 mm
    maximum load
    2.00 kN
    fitting dimension
    164 x 164 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Weight per storage unit
    1.781 kg
    More information
  • UEKD1-2 25-V MS
    Cable single-outlet cartridge,
    height
    minimum installation height
    90 mm
    width
    160 mm
    length
    160 mm
    levelling range
    45 mm
    maximum load
    2.00 kN
    fitting dimension
    164 x 164 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Weight per storage unit
    2.306 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Declaration

    PDF, 106.06 KB

    • de

    Download

    EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    • de

    • en

    Units for screed and hollow floors - Technical information

    Technical Information

    • de

    • en

    Underfloor Systems - Catalogue

    Catalogue

    • de

    • en

    Notice for types of protection and floor maintenance

    Notice for installation units

    • de

    • en

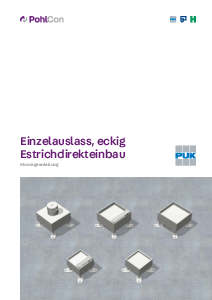

    Installation Instruction Single Outlet Angular Screed Direct Installation

    Assembly Instructions

    PDF, 319.89 KB

    • de

    Download

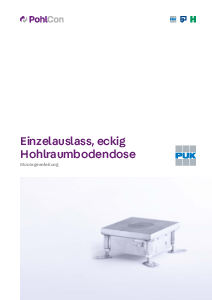

    Installation Instruction Single Outlet Angular Raised Floor Boxes
