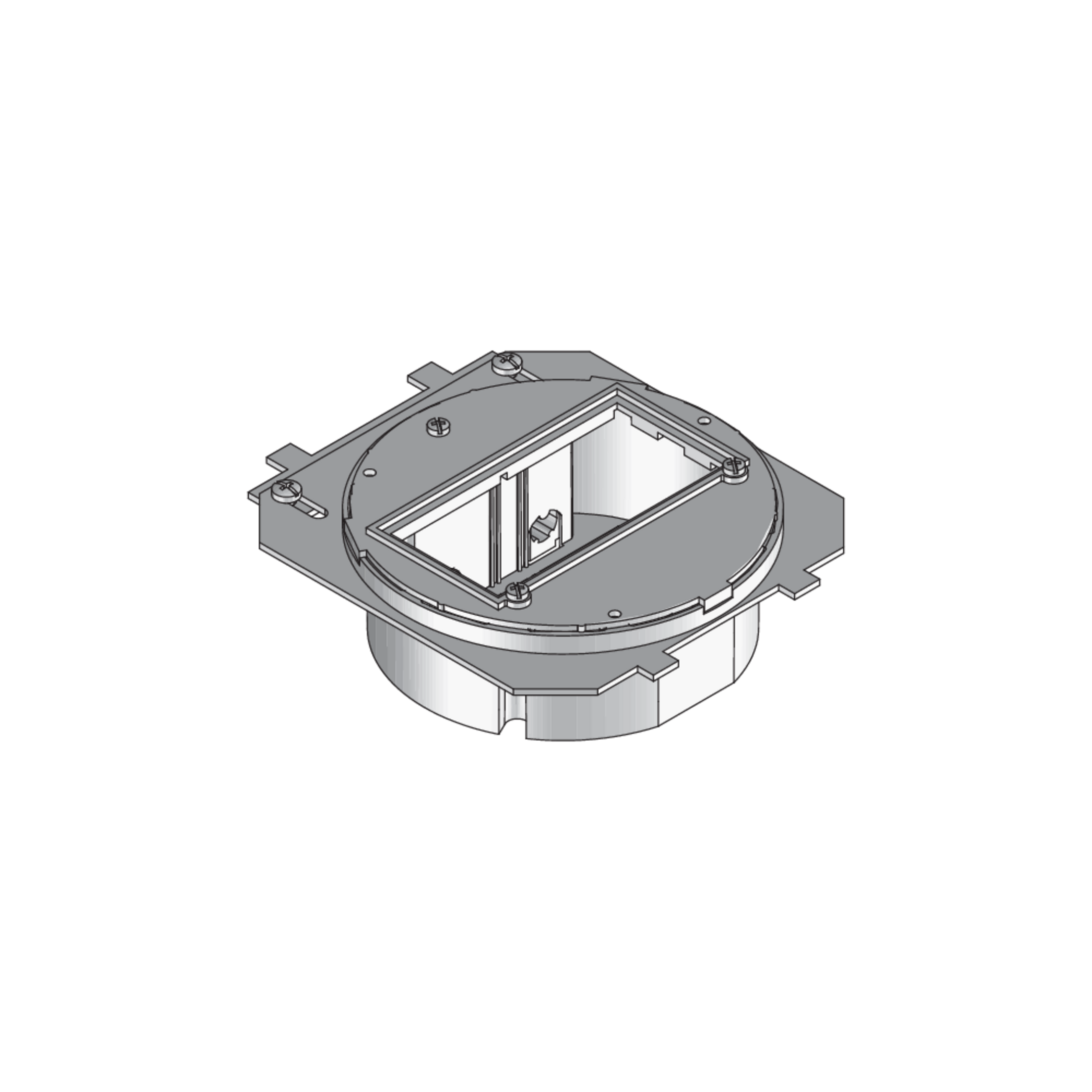

UGR1-4

Mounting box, round, pre-assembled

UGR1-4 components are round mounting boxes. They are pre-assembled from a UGET1-2 UG-R board, UG-R mounting box with strain relief device and a UARM-4-1 118 cover plate. The products are snapped into single outlets for mounting in false floor sockets regardless of their height. They are used to install up to two installation devices. The boards of the mounting boxes are made of sheet steel and the mounting boxes and cover plates are made of high-quality plastic. The UGR1-4 has a minimum installation height of 70 mm. It is 125 mm wide, 128 mm long and is made from material 2.0 mm thick.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

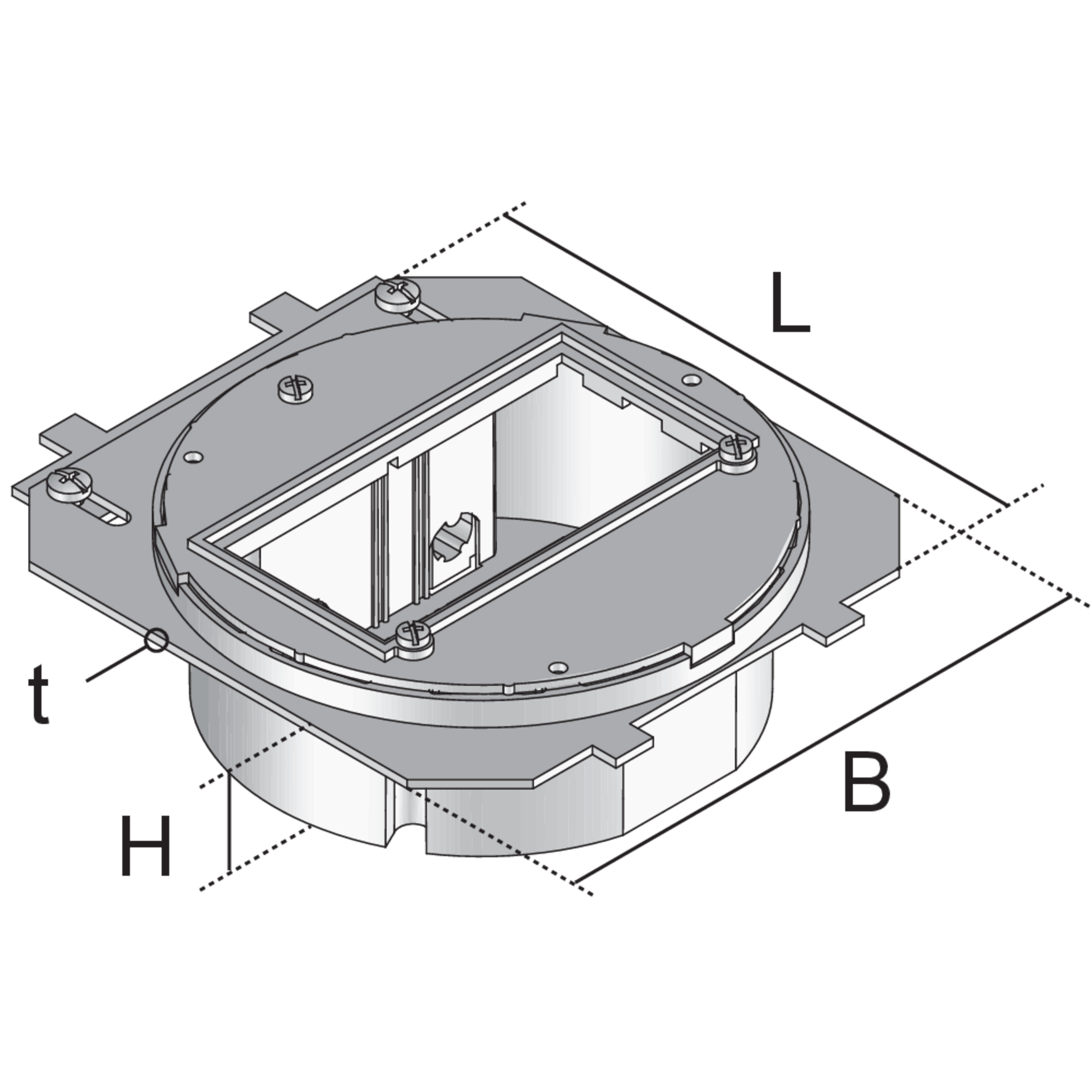

Variants

Article

H

Hmin

B

L

t

W

  • UGR1-4
    device cup UGR1-4, round consisting of
    43 mm
    70 mm
    125 mm
    128 mm
    2.00 mm
    0.240 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
