UEKD1-1 V E

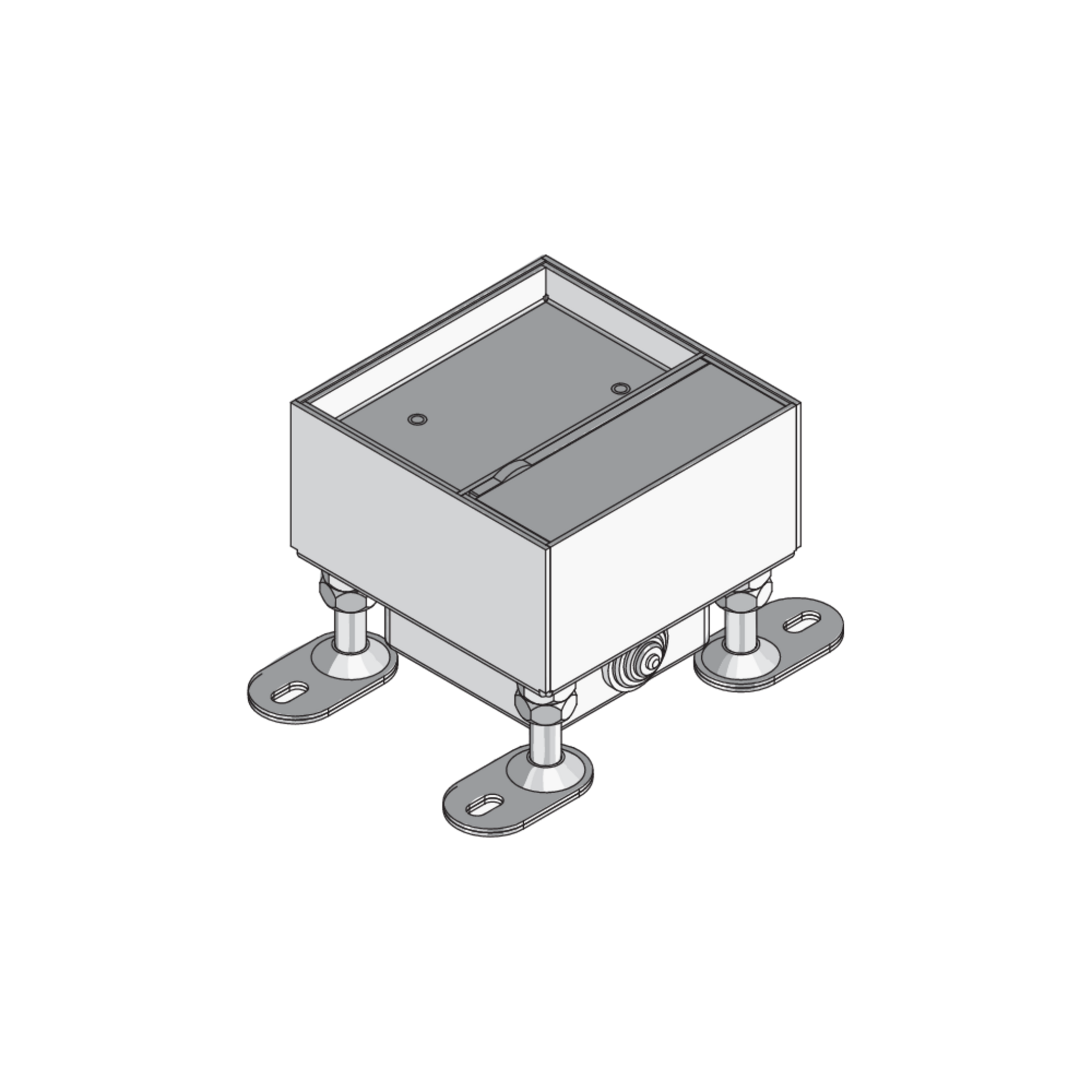

Stainless steel hinged cover single outlet cartridge, 1x, angular

UEKD1-1 V E components are square hinged cover single outlet cartridges with abutting edges. The installation units consist of a height-adjustable cartridge mounting frame with cable outlet cartridge, floor-level cable outlet and a housing for an installation device. They are installed in screed or false floors of dry-cleaned or damp-cleaned rooms with office traffic loads. The cartridges and frames are made of stainless steel, material no. 1.4301 (V2A), and the substructures of hot-dip galvanised sheet steel. They have installation dimensions of 115 x 115 mm, an IP protection class of IP 30 in an unused condition and a levelling range of 20 mm.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

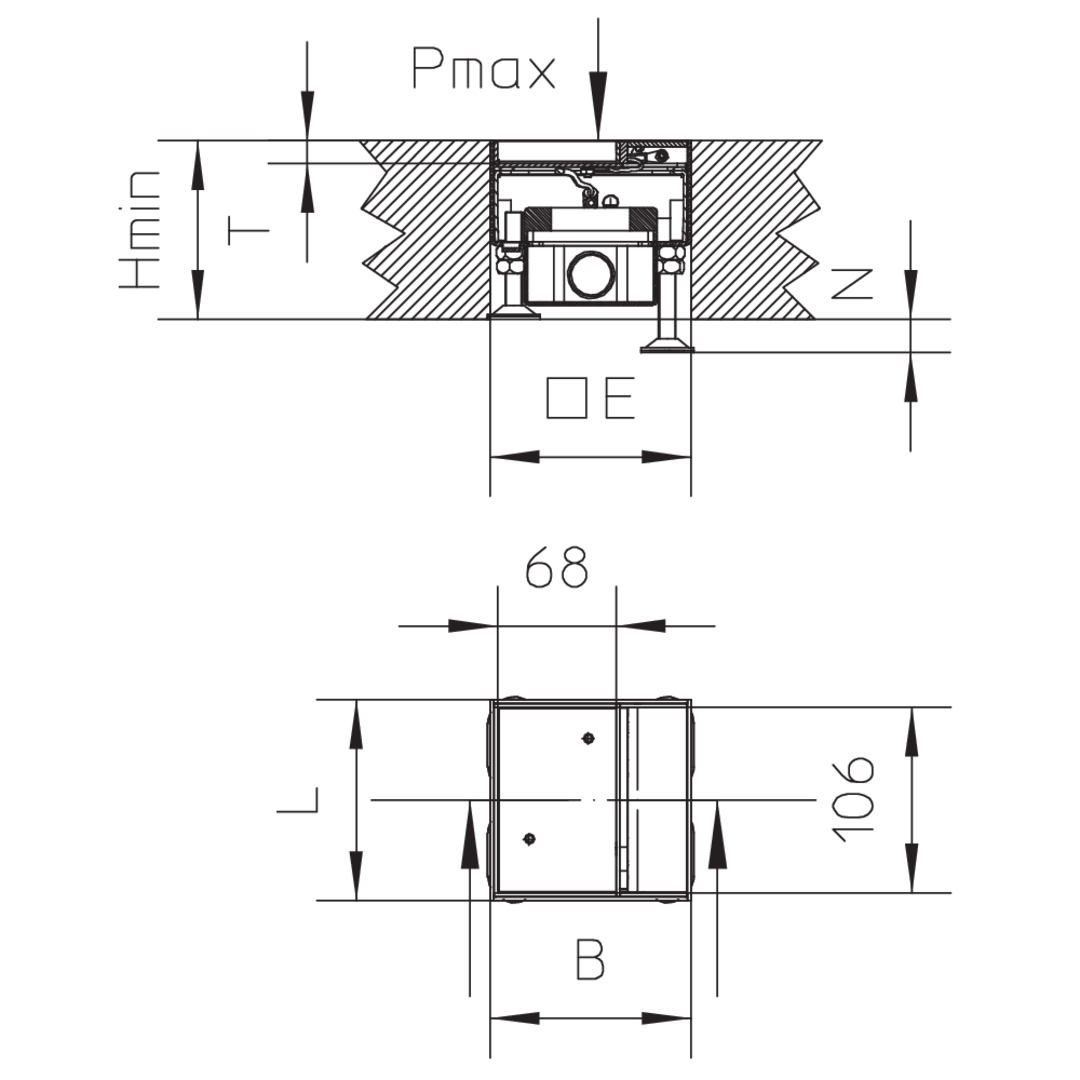

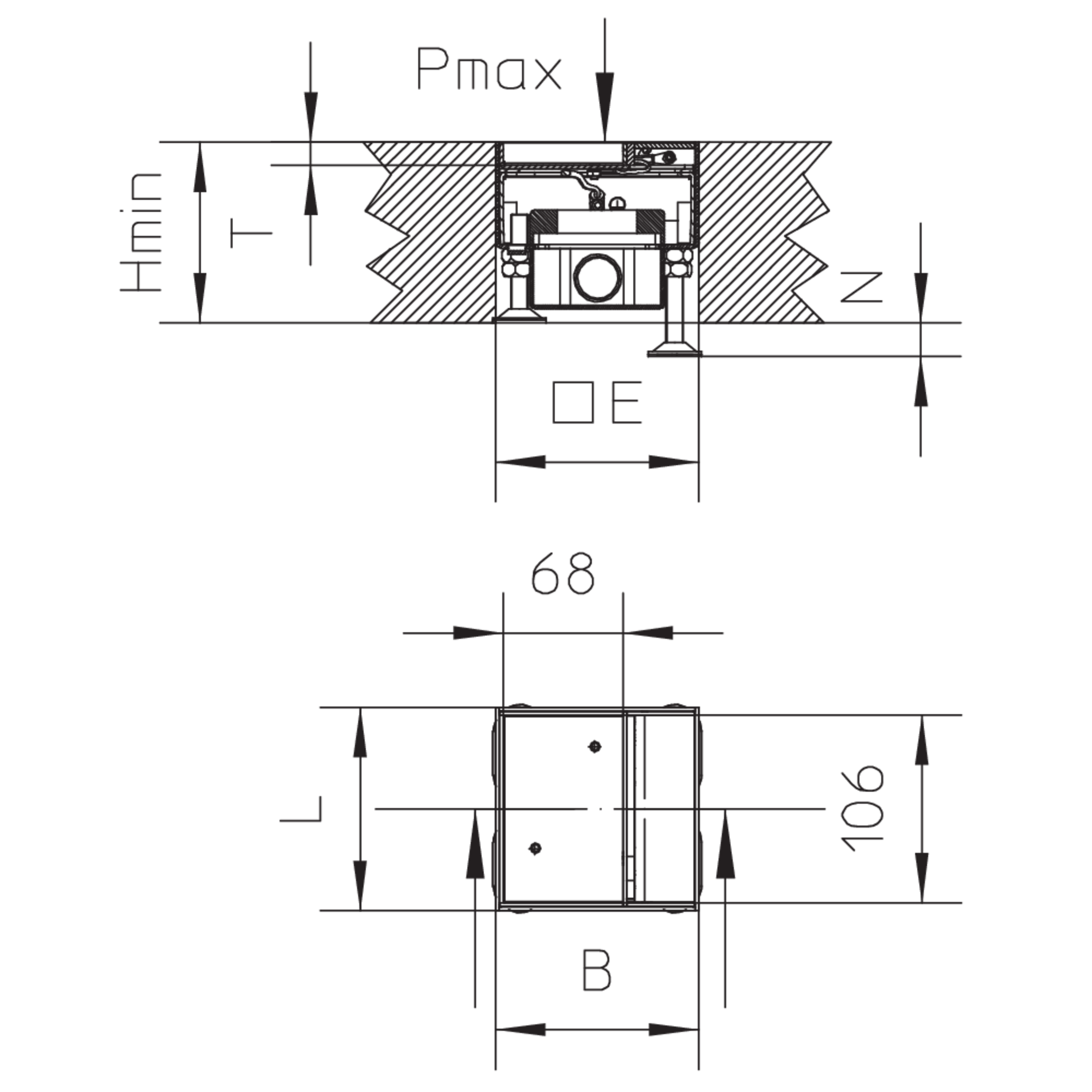

Hmin

minimum installation height

B

width

L

length

N

levelling range

Pmax

maximum load

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

G

Weight per storage unit

  • UEKD1-1 15-V E
    single outlet,
    minimum installation height
    100 mm
    width
    115 mm
    length
    115 mm
    levelling range
    20 mm
    maximum load
    2.00 kN
    fitting dimension
    115 x 115 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Weight per storage unit
    1.599 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
