UST45 1

Socket, 1x

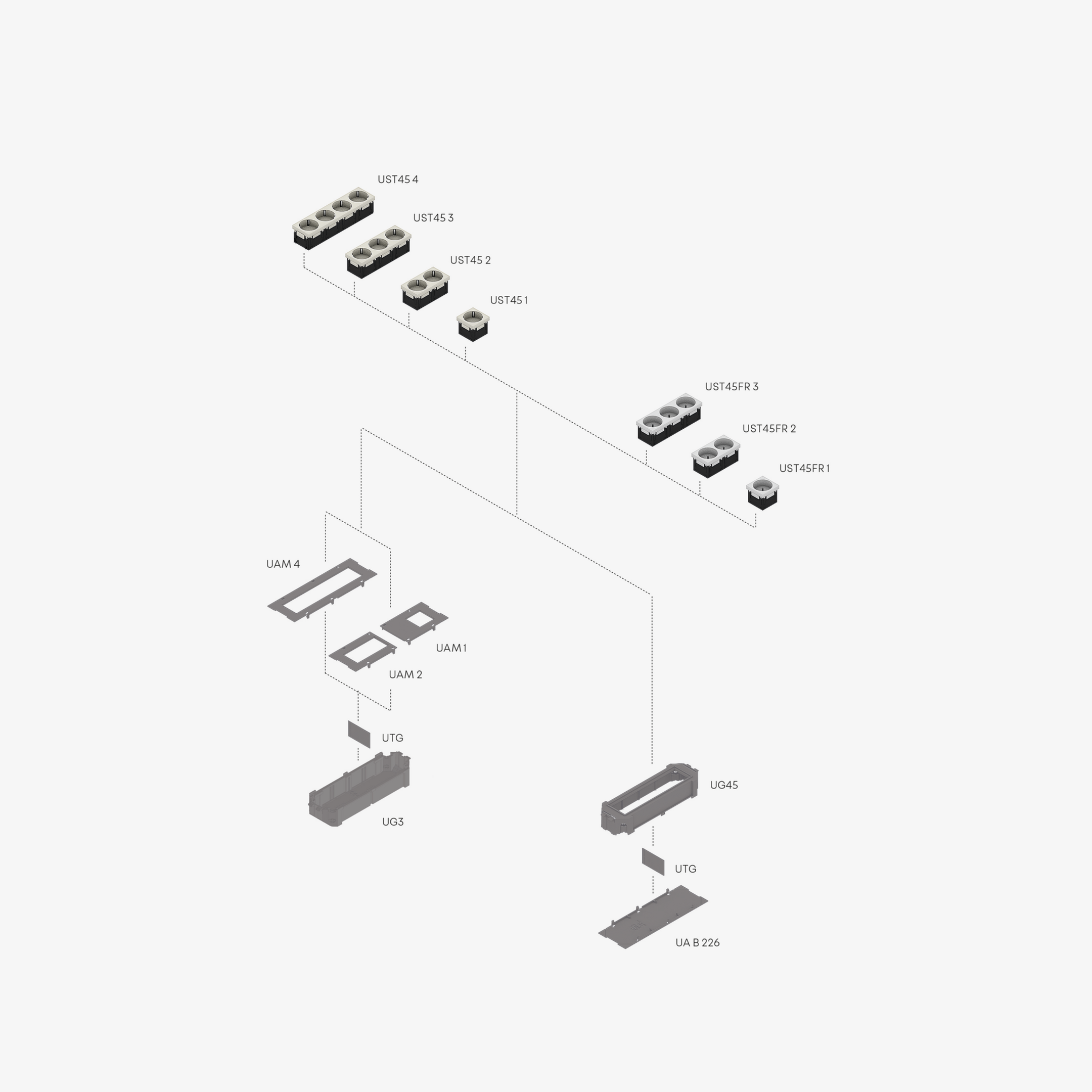

The UST45 1 components are one-piece, 1-way protective sockets in a 45x45 mm design. They can be inserted into the appropriate UAM cover plates using plug-in terminals. The sockets are made of high-quality polycarbonate and are available in different colours. The protective sockets have increased protection against accidental contact and are suitable for a rated voltage/current of AC 250 V, 10/16 A.

Get in touch Download datasheet

Variants

Article

H

B

L

colour

plug angle

W

  • UST45-G 01
    shockproof socket,
    42 mm
    40 mm
    45 mm
    green (similar to RAL 6029)
    - °
    0.038 kg
    More information
  • UST45-G 1
    shockproof socket,
    42 mm
    40 mm
    45 mm
    green (similar to RAL 6029)
    33 °
    0.036 kg
    More information
  • UST45-O 01
    shockproof socket,
    42 mm
    40 mm
    45 mm
    orange (similar to RAL 2004)
    - °
    0.038 kg
    More information
  • UST45-O 1
    shockproof socket,
    42 mm
    40 mm
    45 mm
    orange (similar to RAL 2004)
    33 °
    0.036 kg
    More information
  • UST45-R 01
    shockproof socket,
    42 mm
    40 mm
    45 mm
    red (similar to RAL 3003)
    - °
    0.038 kg
    More information
  • UST45-R 1
    shockproof socket,
    42 mm
    40 mm
    45 mm
    red (similar to RAL 3003)
    33 °
    0.036 kg
    More information
  • UST45-S 01
    shockproof socket,
    42 mm
    40 mm
    45 mm
    black (similar to RAL 7021)
    - °
    0.038 kg
    More information
  • UST45-W 01
    shockproof socket,
    42 mm
    40 mm
    45 mm
    white (similar to RAL 9010)
    - °
    0.038 kg
    More information
  • UST45-W 1
    shockproof socket,
    42 mm
    40 mm
    45 mm
    white (similar to RAL 9010)
    33 °
    0.036 kg
    More information
