UEBDSM R WD

Stainless steel heavy-duty tube cover unit, 3x, round

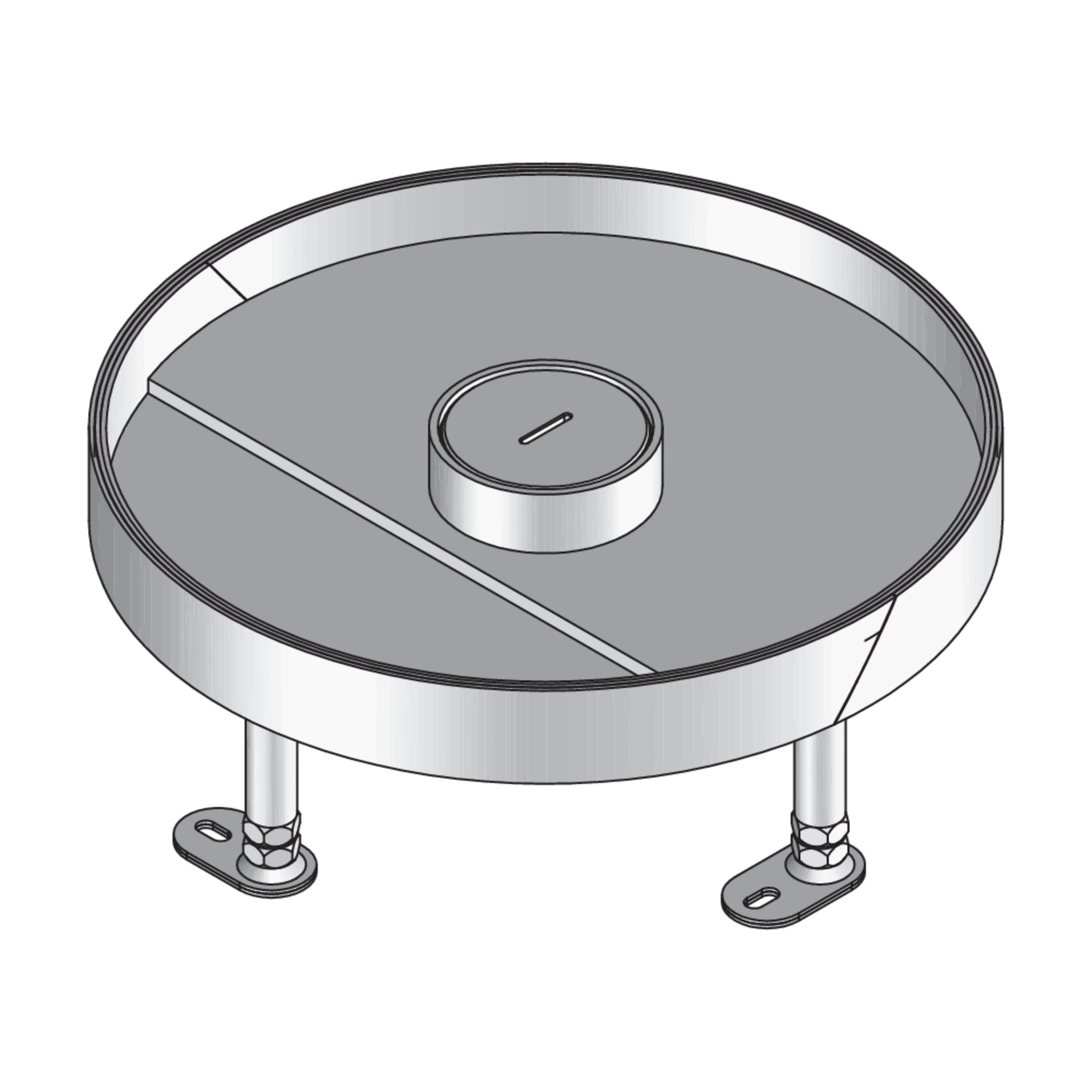

UEBDSM R WD are round heavy-duty tube cover units for holding three mounting boxes. They consist of a height-adjustable cartridge mounting frame with tube outlet cartridge, bolted assembly kit and rubber seal. They are suitable for wet-cleaned rooms with high traffic loads where they are installed in floor sockets, assembly covers and raised or false floor openings. The cartridge, frame and base plate are made of stainless steel, the heavy-duty insert of hot-dip galvanised sheet steel and the tube mounting kit of anodised aluminium. They have an IP protection rating of IP 54 in an unused condition, a max. load capacity of 20 kN, a levelling range of 55 mm and installation dimensions of 307 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

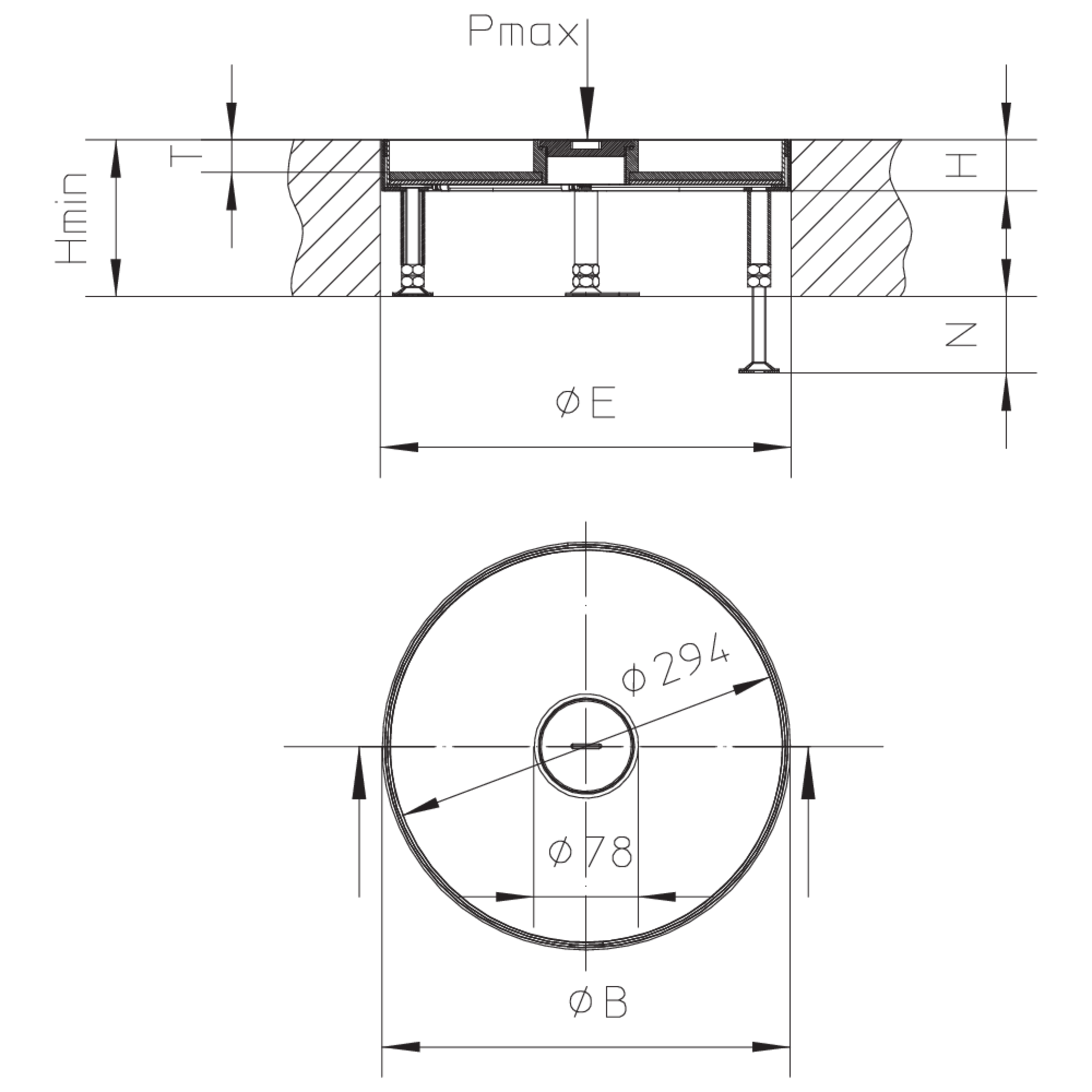

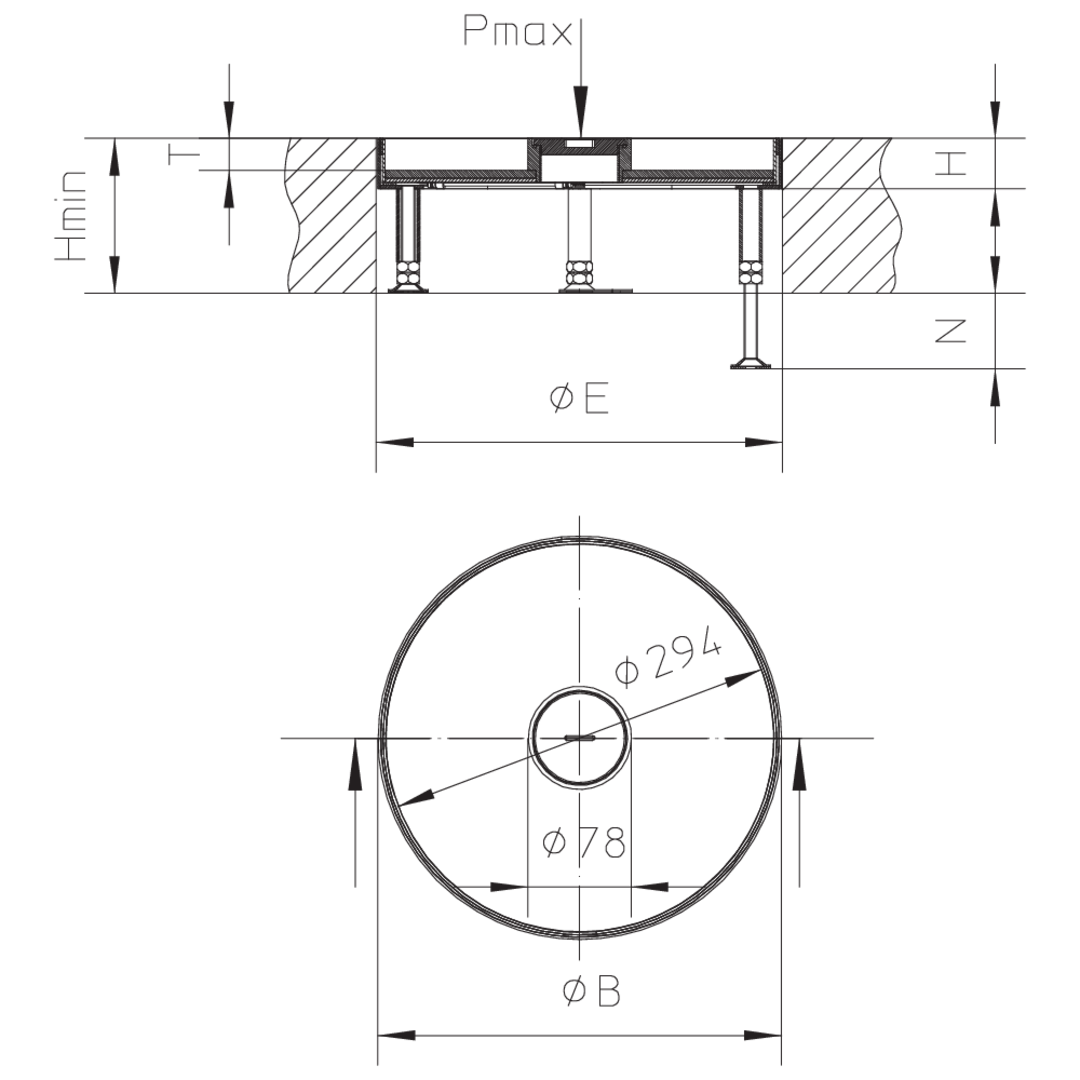

H

Höhe

Hmin

min. Einbauhöhe

N

Nivellierbereich

Pmax

max. Belastung

ØB

Einbaudurchmesser

Gerätebecher

max. Anzahl installierbarer Gerätebecher

ØE

Einbaumaß

IPg

IP-Schutzgrad im genutzten Zustand

IPn

IP-Schutzgrad im nicht genutzten Zustand

T

Tiefe der Bodenbelagaussparung

G

Gewicht je Lagermengeneinheit
  • UEBDSM 35-R6-WD
    Schwerlast-Kassetteneinheit,
    Höhe
    38 mm
    min. Einbauhöhe
    117 mm
    Nivellierbereich
    55 mm
    max. Belastung
    20.00 kN
    Einbaudurchmesser
    305 mm
    max. Anzahl installierbarer Gerätebecher
    3
    Einbaumaß
    307 mm
    IP-Schutzgrad im genutzten Zustand
    IP 22
    IP-Schutzgrad im nicht genutzten Zustand
    IP 54
    Tiefe der Bodenbelagaussparung
    24 mm
    Gewicht je Lagermengeneinheit
    7.087 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
