UET WD

Tube

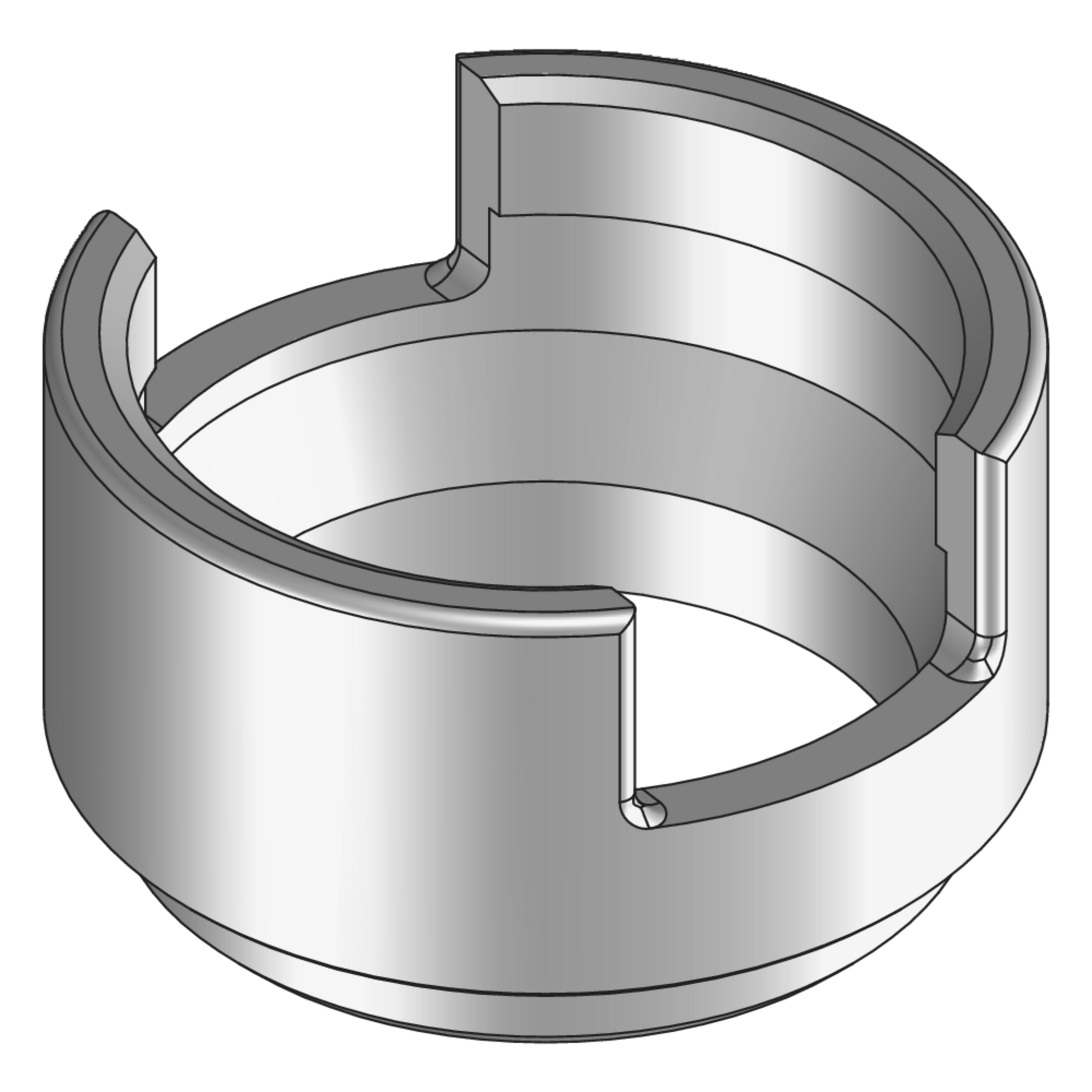

The UET WD component is a tube that serves as a raised cable outlet. It is bolted onto a UEBDM square or round tube outlet cartridge using a tube mounting kit. This product from the underfloor system range is made of solid anodised aluminium or stainless steel in a stainless steel finish and is suitable for use in wet-cleaned rooms with high traffic loads. Both the aluminium and stainless steel items are 30 mm high and have an inner width of 50 mm and an outer width of 70 mm. They weigh 0.12 or 0.36 kg.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

aluminium

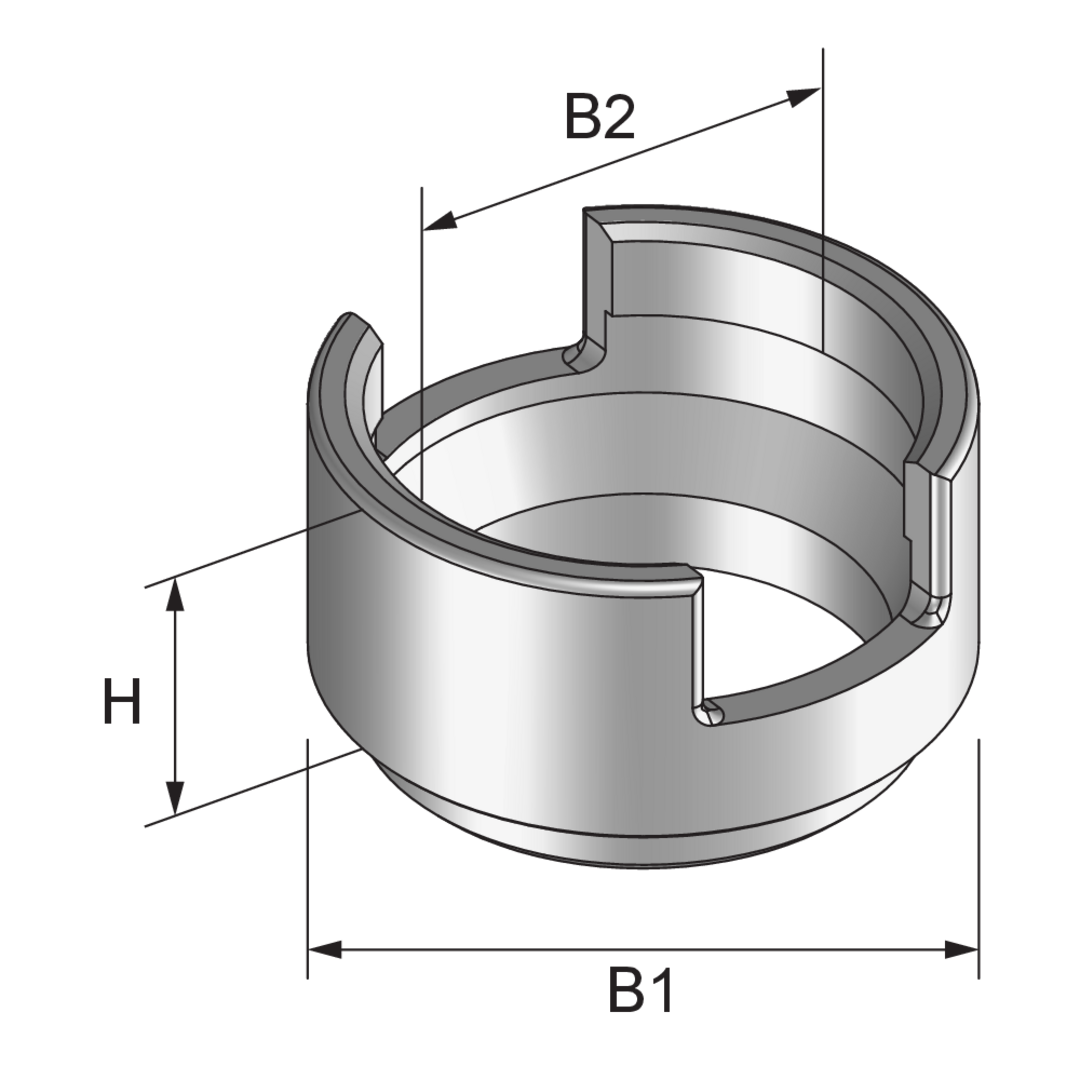

Article

H

height

B1

width 1

B2

width 2

colour

color

G

Weight per storage unit

  • UET-R-WD
    tube cable connection, round D=70mm,
    height
    40 mm
    width 1
    70 mm
    width 2
    52 mm
    color
    aluminium
    Weight per storage unit
    0.097 kg
    More information
  • UET-R-WD-MS
    tube cable connection
    height
    40 mm
    width 1
    70 mm
    width 2
    52 mm
    color
    messing
    Weight per storage unit
    0.097 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B1

width 1

B2

width 2

colour

color

G

Weight per storage unit

  • UET-R-WD E
    tube cable connection UET-R-WD E, round
    height
    40 mm
    width 1
    70 mm
    width 2
    52 mm
    color
    stainless steel, massive
    Weight per storage unit
    0.283 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
