UEBDM RP WD

Stainless steel tube cover unit, 3x, round, flat

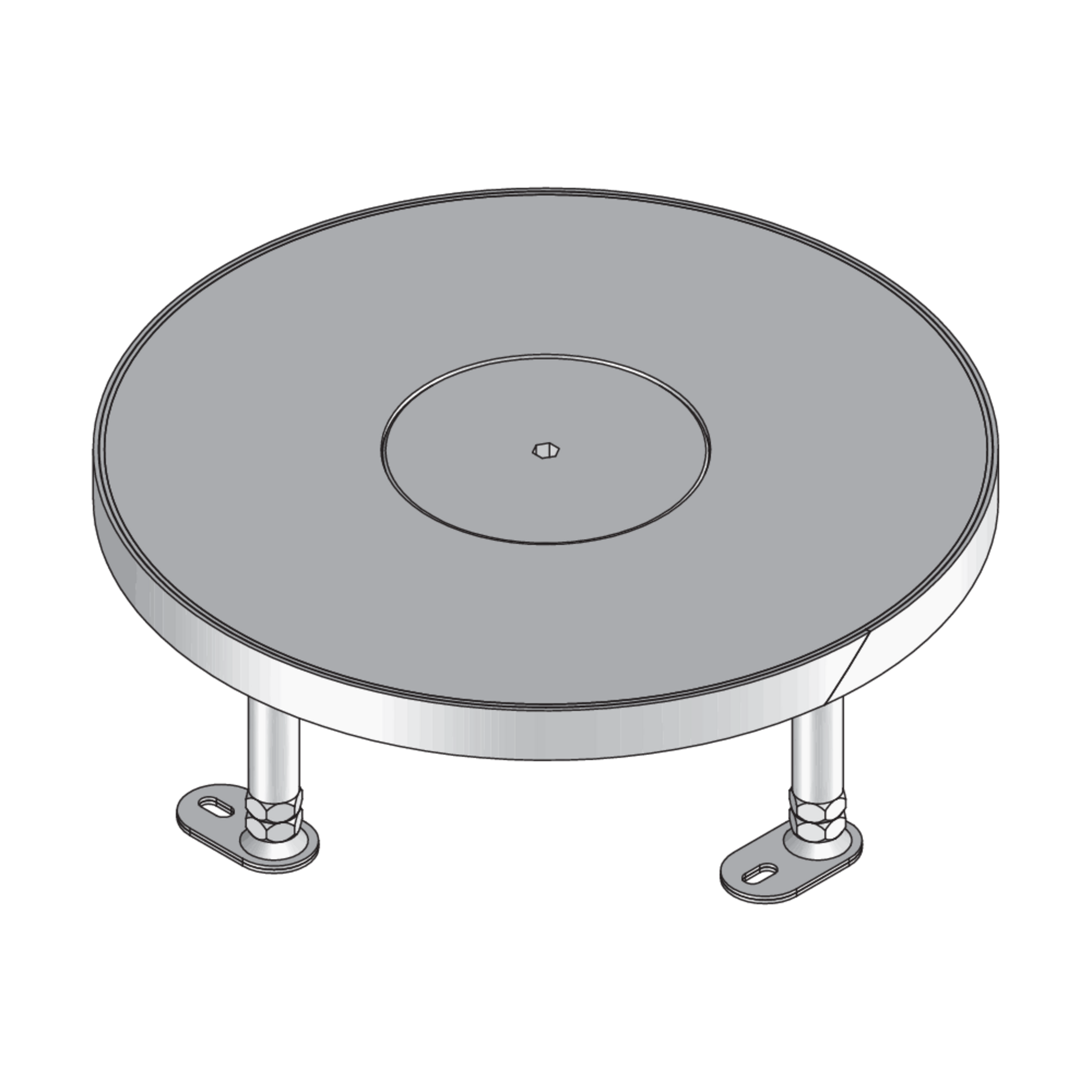

UEBDM RP WD are round tube cover units that accommodate a maximum of three mounting boxes. They consist of a height-adjustable cartridge mounting frame with a tube outlet cartridge, a bolted tube mounting kit and a rubber seal. The units are suitable for installation in UBDHB floor sockets, assembly covers and raised or false floor openings in wet-cleaned rooms with office traffic loads. Both the cartridges and the tube covers and frames are made of stainless steel V2A. The units have an IP protection class of IP 54 in an unused condition. They have a maximum load capacity of 4 kN, an adjustment range of 55 mm, an installation dimension of 307 mm and a minimum installation height of 100 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

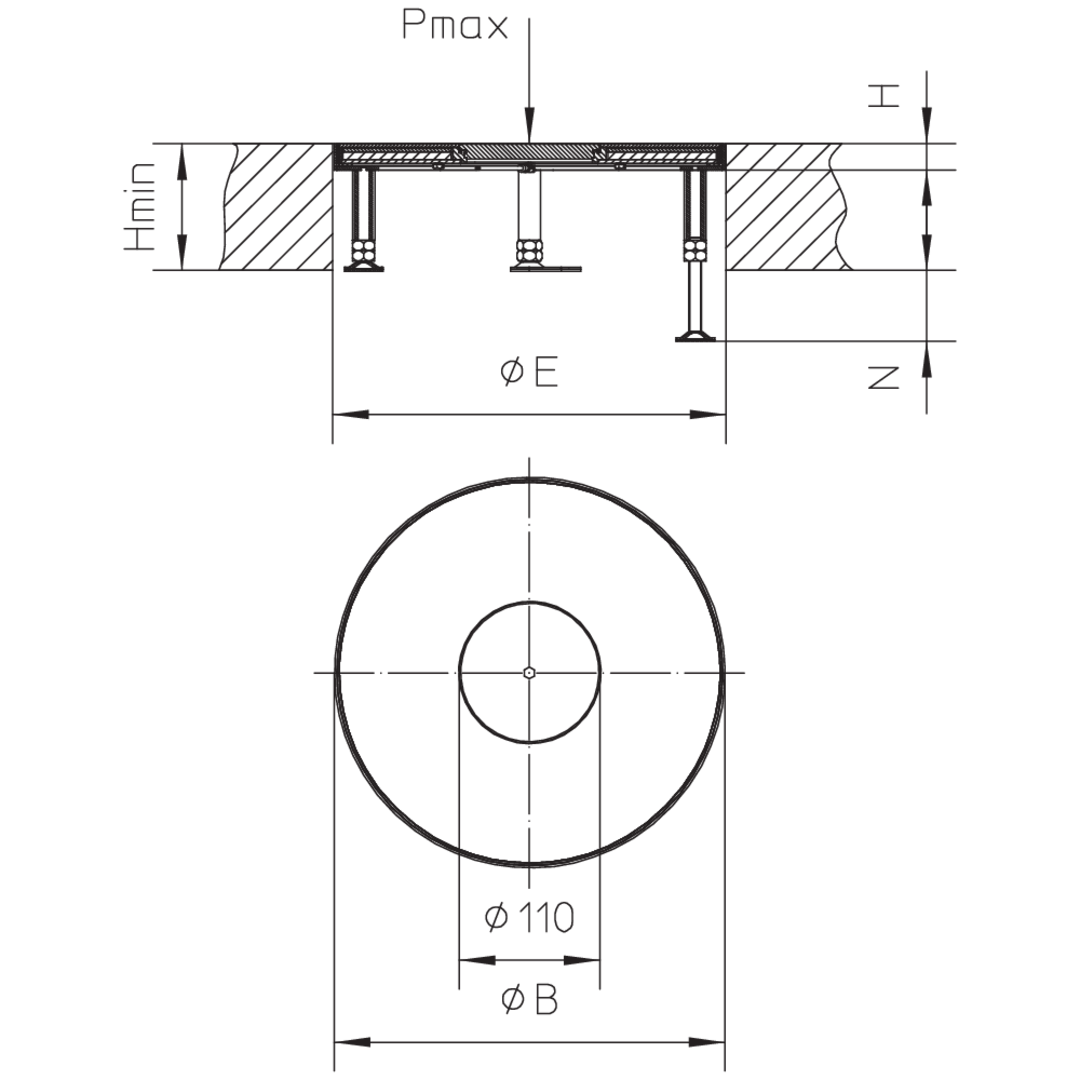

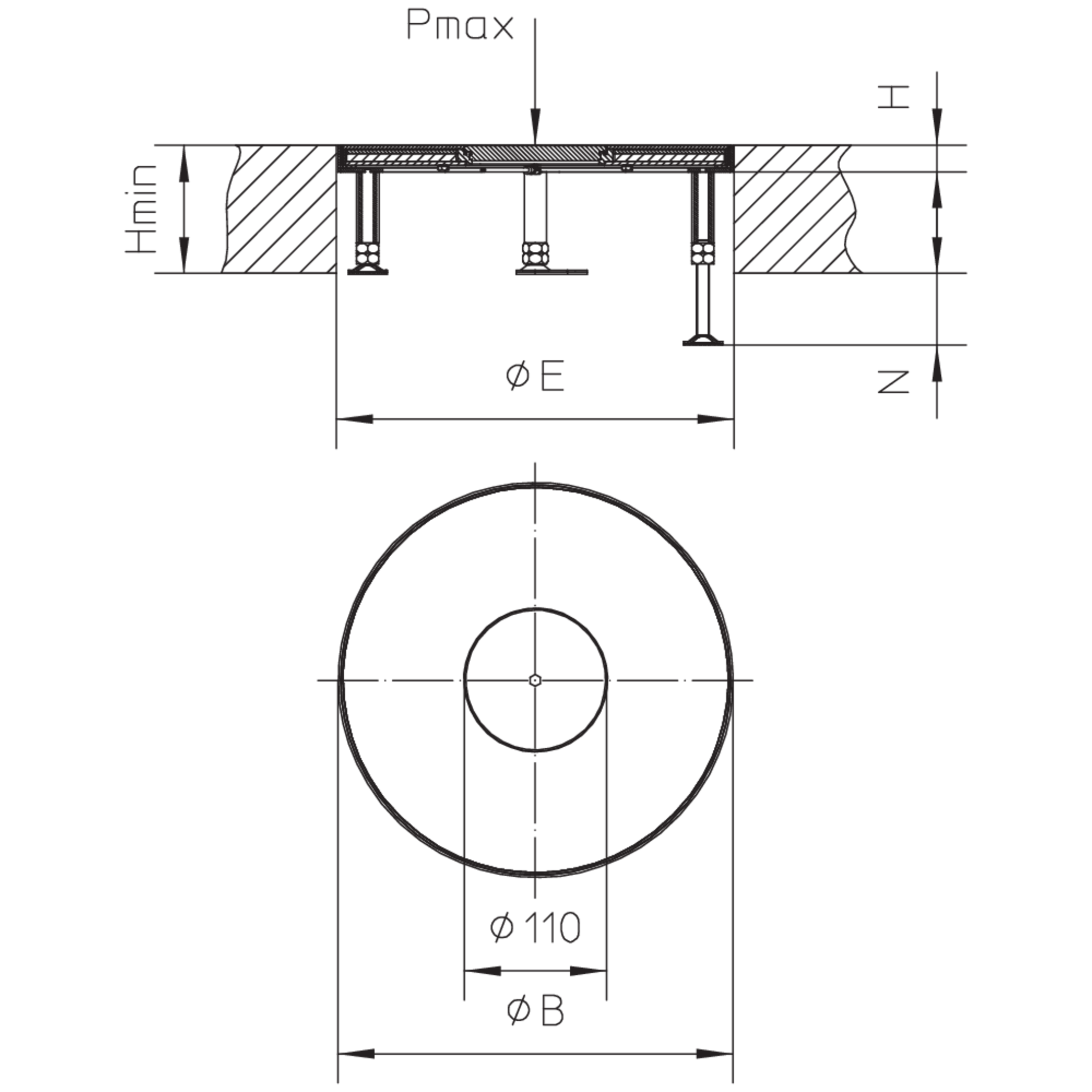

H

Höhe

Hmin

min. Einbauhöhe

N

Nivellierbereich

Pmax

max. Belastung

ØB

Einbaudurchmesser

Gerätebecher

max. Anzahl installierbarer Gerätebecher

ØE

Einbaumaß

IPg

IP-Schutzgrad im genutzten Zustand

IPn

IP-Schutzgrad im nicht genutzten Zustand

G

Gewicht je Lagermengeneinheit
  • UEBDM 15-RP-WD
    Kassetteneinheit,
    Höhe
    19 mm
    min. Einbauhöhe
    100 mm
    Nivellierbereich
    55 mm
    max. Belastung
    4.00 kN
    Einbaudurchmesser
    304 mm
    max. Anzahl installierbarer Gerätebecher
    3
    Einbaumaß
    307 mm
    IP-Schutzgrad im genutzten Zustand
    IP 22
    IP-Schutzgrad im nicht genutzten Zustand
    IP 54
    Gewicht je Lagermengeneinheit
    6.124 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
