UET112 WD

Tube

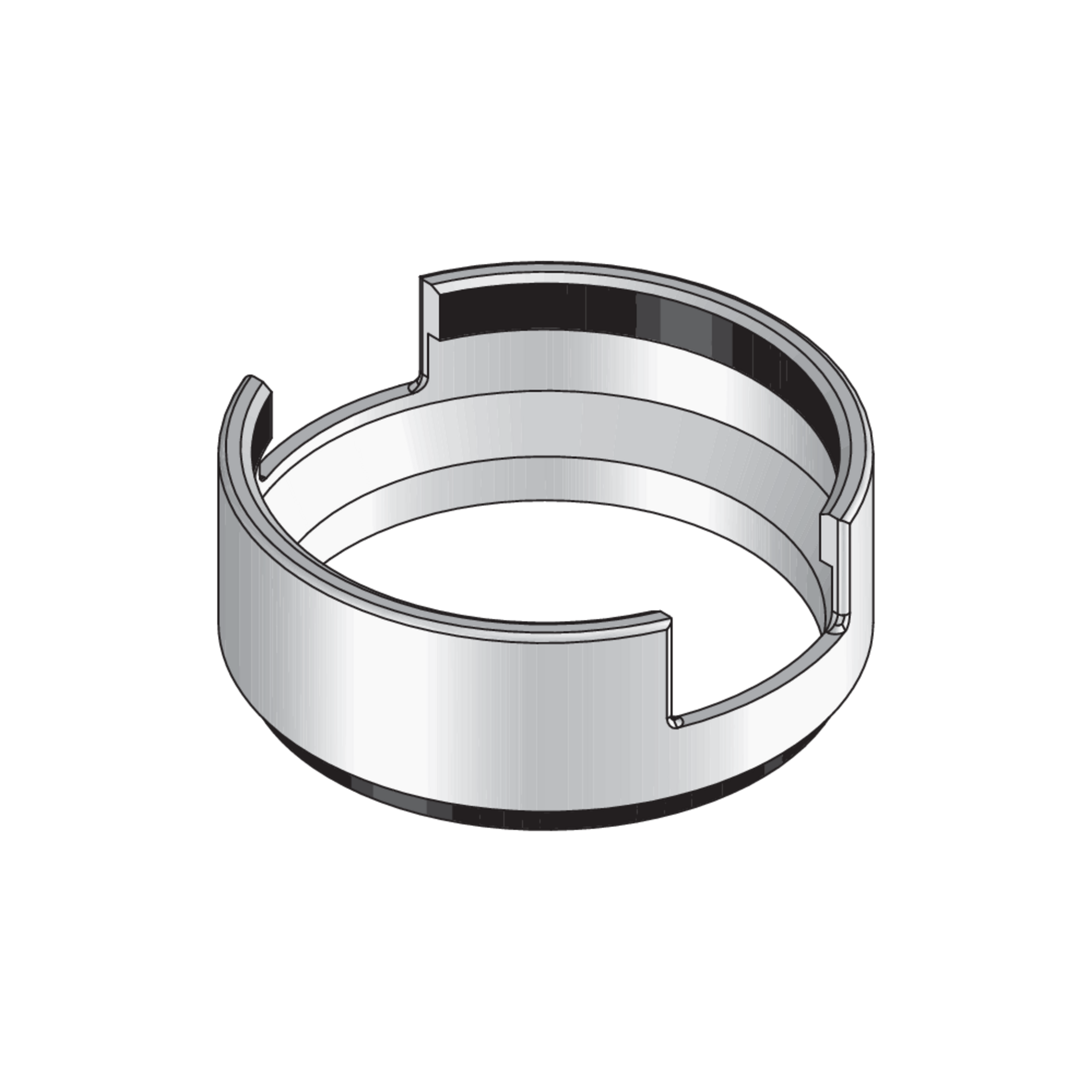

The UET112 WD component is a tube that serves as a raised cable outlet. It is bolted onto a UEBDM P square or round tube outlet cartridge using a tube mounting kit.. This product from the underfloor system range is made of anodised aluminium or stainless steel with an aluminium finish and is suitable for use in wet-cleaned rooms with high traffic loads. This accessory from the range of installation units is made of stainless steel, is 44 mm high, has an inner width of 94 mm, an outer width of 112 mm and weighs 0.15 kg.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

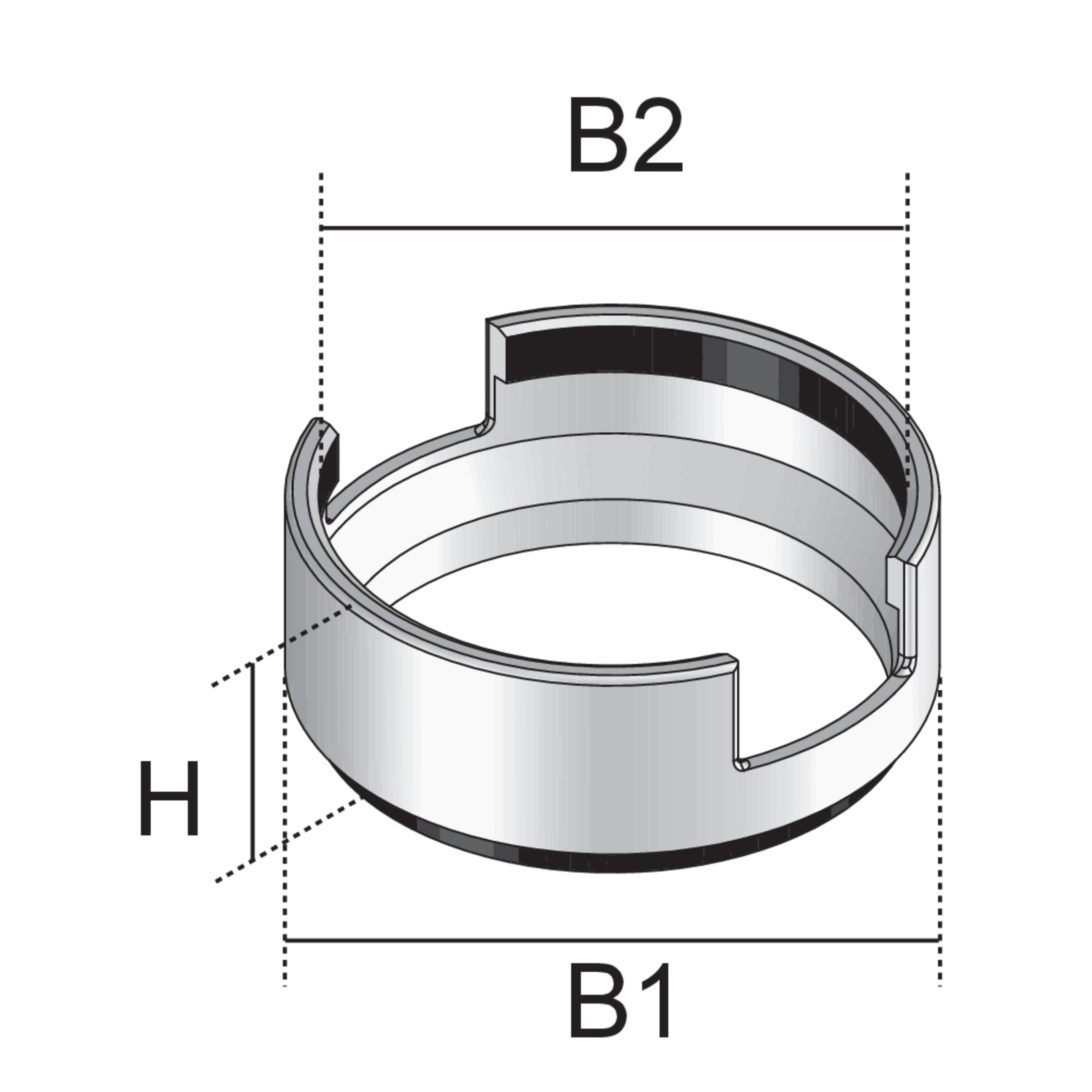

Variants

Article

H

B1

B2

colour

W

  • UET112-R-WD
    tube cable connection
    44 mm
    110 mm
    94 mm
    aluminium
    0.183 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
