UEBD1-2 V E

Stainless steel dummy cover single outlet cartridge, 2x, angular

UEBD1-2 V E components are square dummy cover individual outlet cartridges with abutting edges. The installation units consist of a height-adjustable cartridge mounting frame and a dummy cartridge and are used to accommodate two installation devices. They are suitable for installation in floor sockets and raised or false floor openings in wet-cleaned rooms with office traffic loads. The cartridges and frames are made of stainless steel, material no. 1.4301 (V2A), and the substructures of hot-dip galvanised sheet steel. They have installation dimensions of 164 x 164 mm, an IP protection class of IP 54 in an unused condition and a levelling range of 45 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

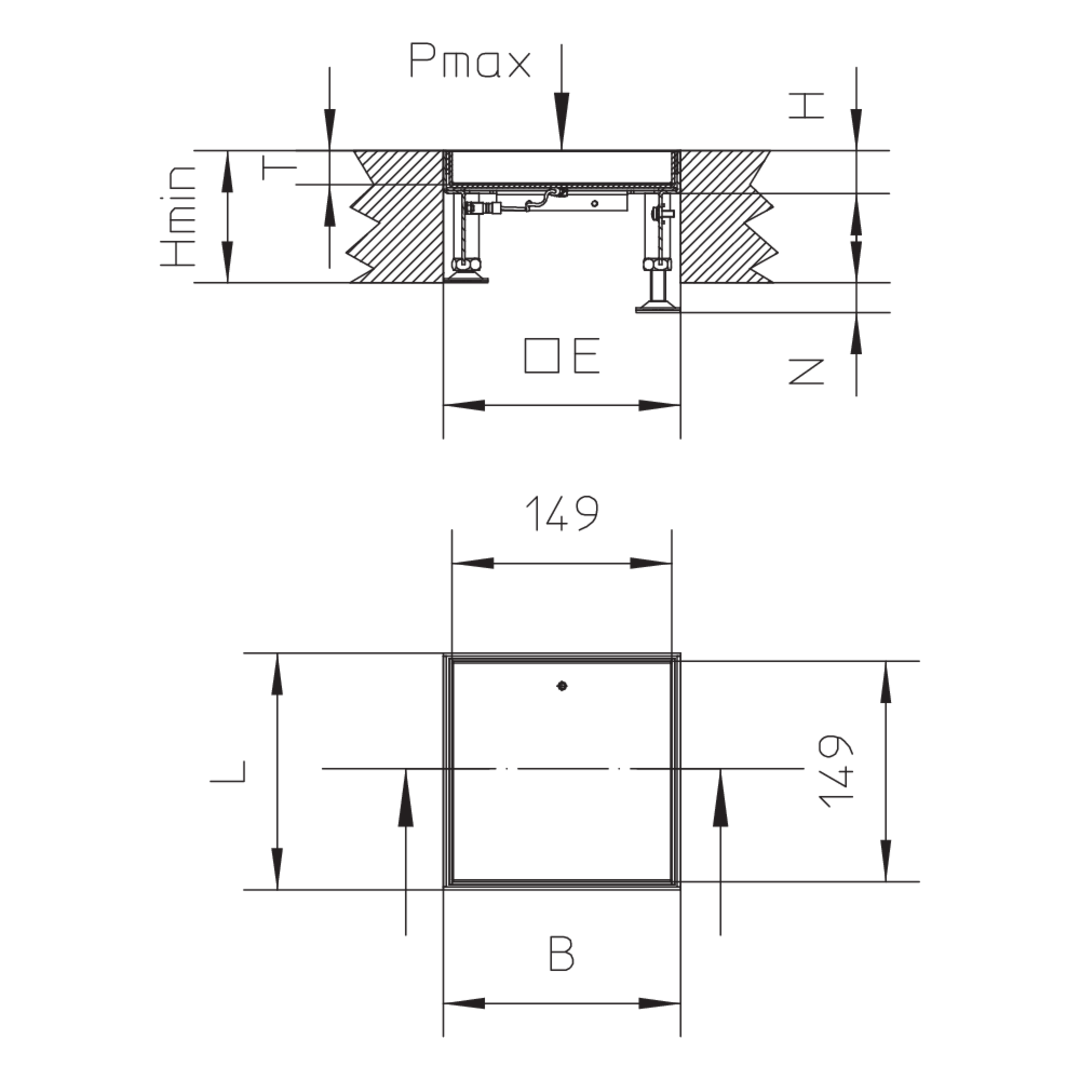

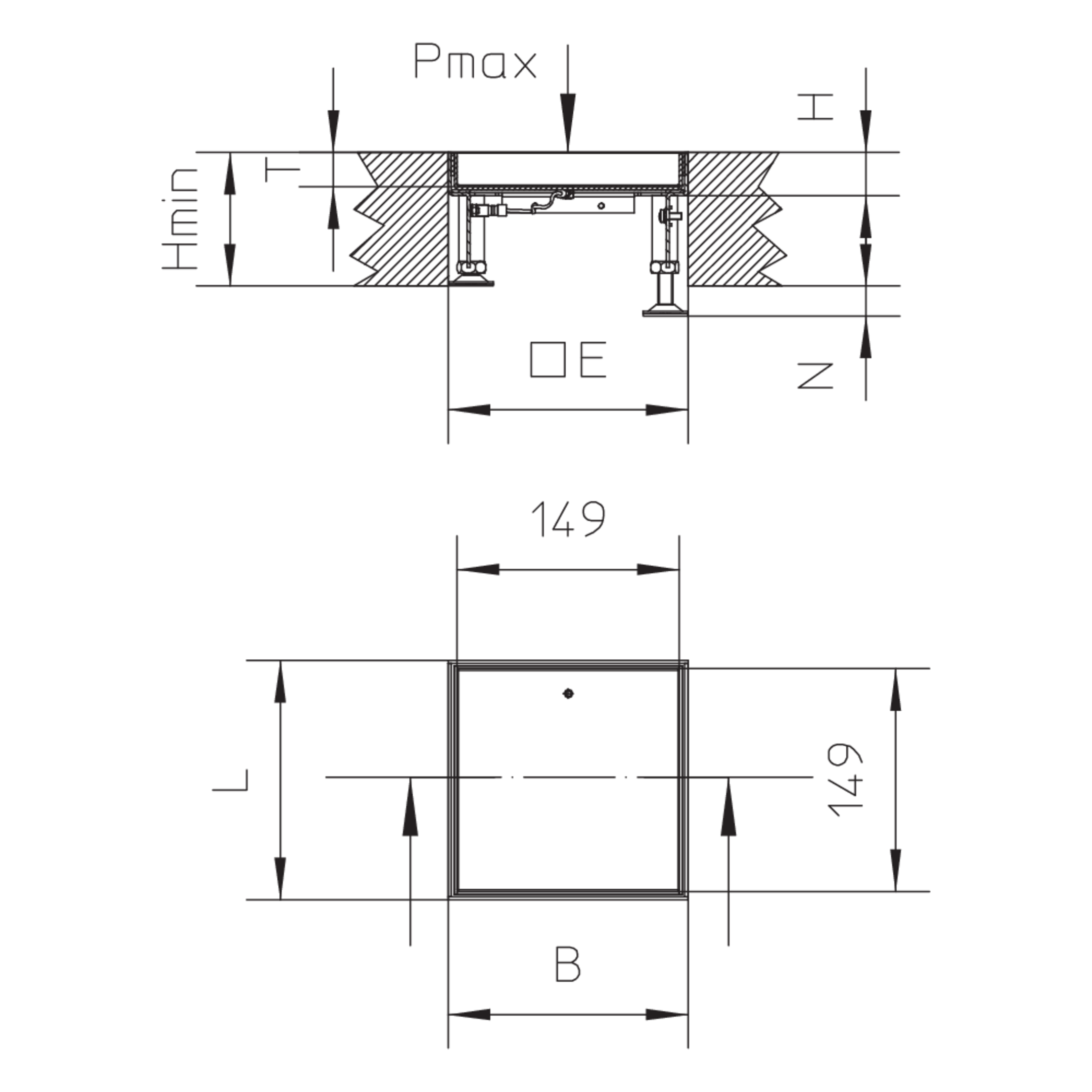

Variants

Article

H

height

Hmin

minimum installation height

B

width

L

length

N

levelling range

Pmax

maximum load

E

fitting dimension

IPn

IP protection level in unused condition

G

Weight per storage unit
  • UEBD1-2 15-V E
    single outlet,
    height
    19 mm
    minimum installation height
    80 mm
    width
    160 mm
    length
    160 mm
    levelling range
    45 mm
    maximum load
    2.00 kN
    fitting dimension
    164 x 164 mm
    IP protection level in unused condition
    IP 54
    Weight per storage unit
    1.483 kg
    More information
  • UEBD1-2 25-V E
    single outlet,
    height
    29 mm
    minimum installation height
    90 mm
    width
    160 mm
    length
    160 mm
    levelling range
    45 mm
    maximum load
    2.00 kN
    fitting dimension
    164 x 164 mm
    IP protection level in unused condition
    IP 54
    Weight per storage unit
    1.666 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
