UDEP LEX

Mounting board, data technology

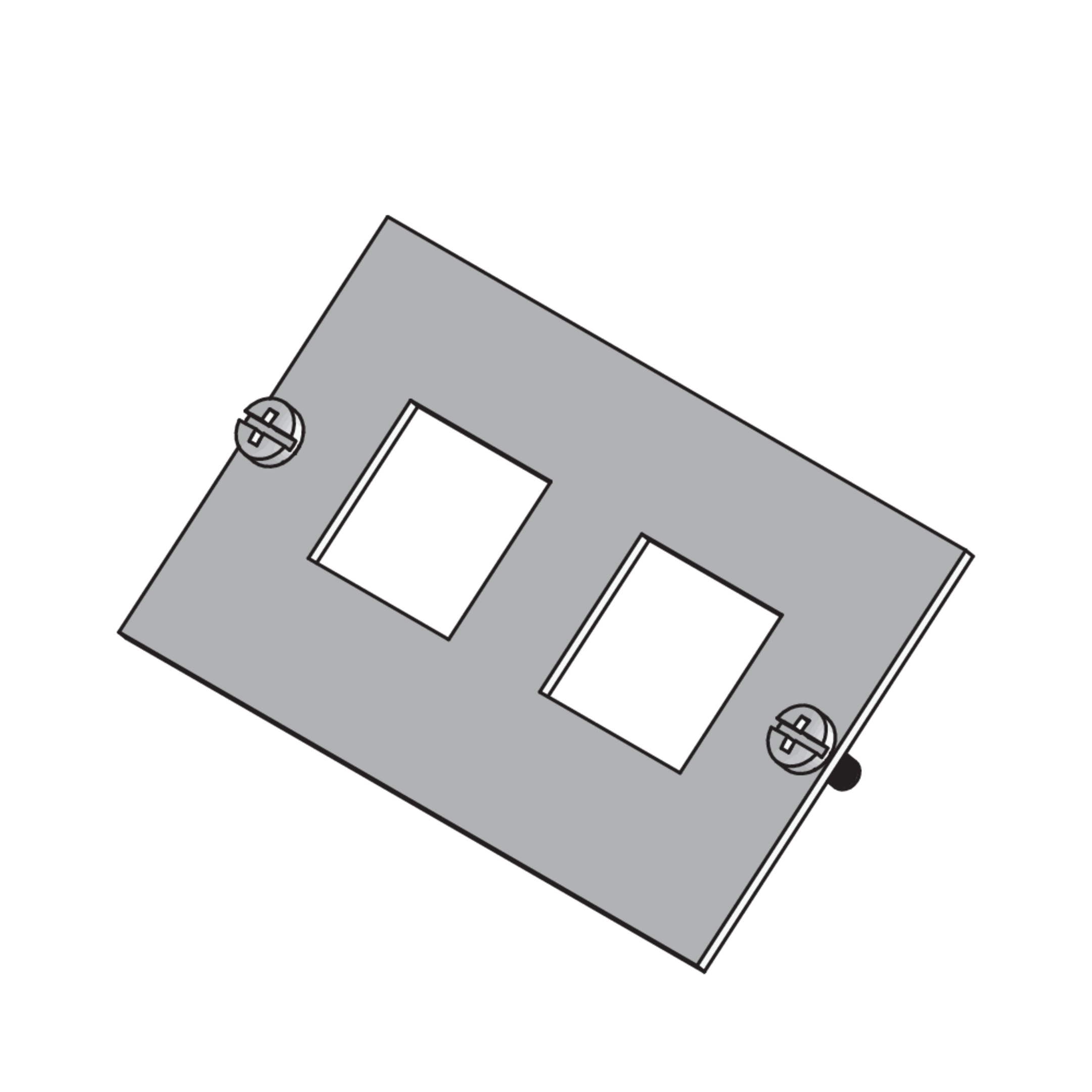

UDEP LEX components are installation boards from the underfloor system range. The boards are bolted into data device carriers and are used to accommodate up to 2 p D-Sub 9 connection sockets made by LexCom. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 17.3 mm and E2 18.2 mm. A LexCom mounting frame must be used to mount the data jacks.

Get in touch Download datasheet

Variants

Article

H

B

data jacks

E1

E2

colour

W
