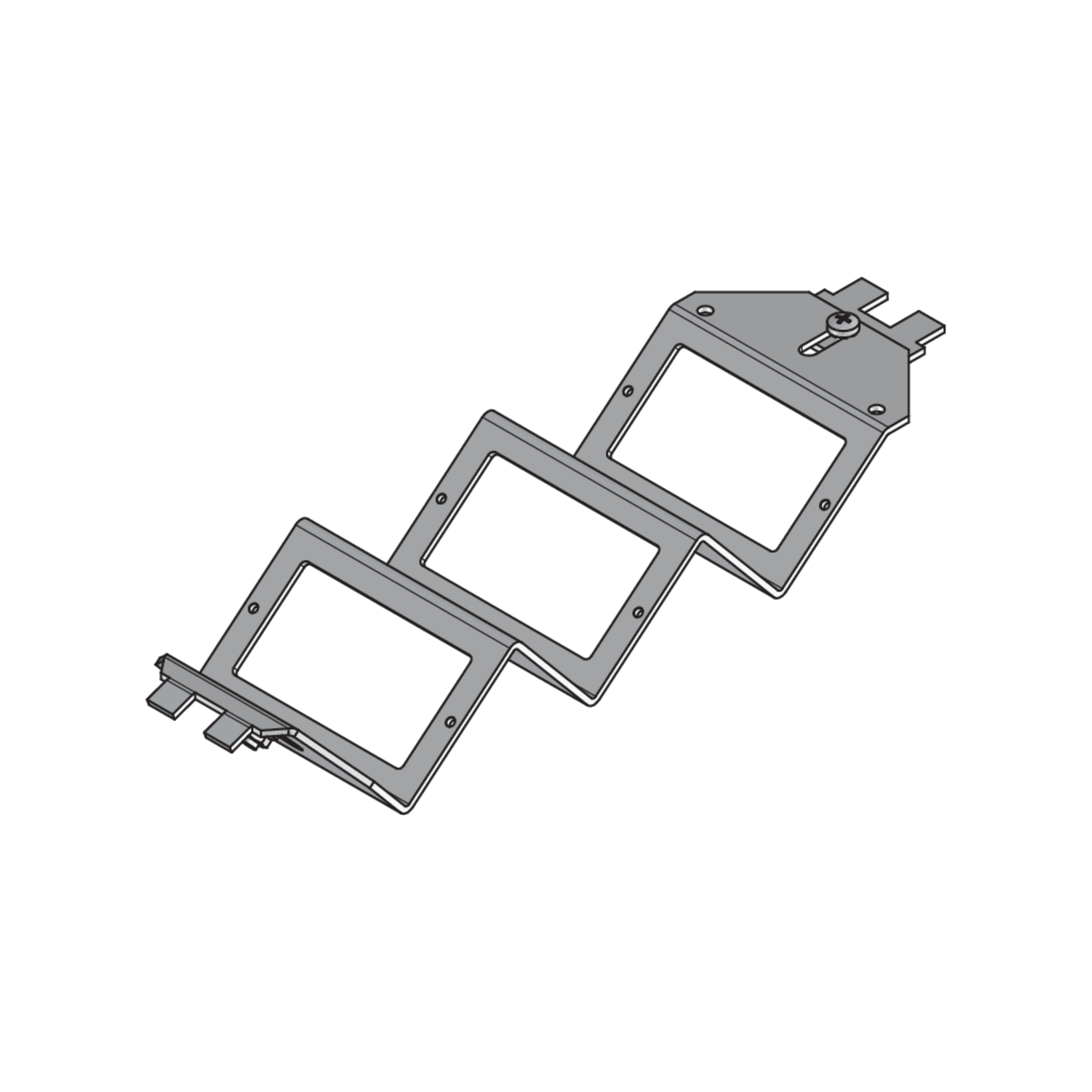

UGETD

Device carrier, data, 3x UDEP

UGETD components are data device carriers from the underfloor systems range. The device carriers can be snapped into installation units with a precise fit. They can then be fitted with up to three UDEP installation boards for data, audio and video technology. The data device carriers are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 in black (similar to RAL 9011) and are available with installation dimensions of E1 33.5 mm and E2 59.5 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

Hmin

min. Einbauhöhe

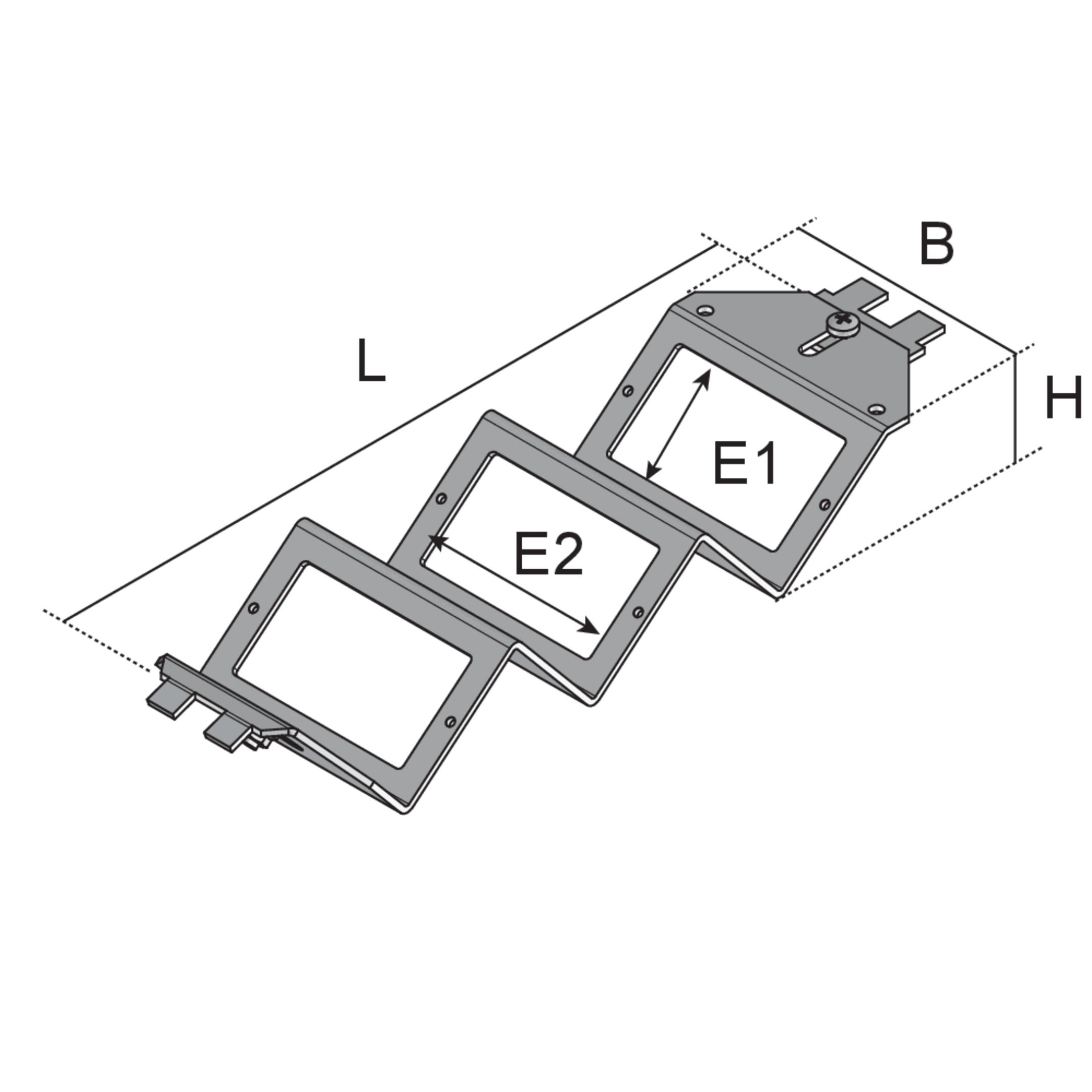

B

Breite

L

Länge

E1

Einbaumaß E1

E2

Einbaumaß E2

Farbe

Farbe

G

Gewicht je Lagermengeneinheit
  • UGETD-3 226
    Geräteträger für Daten-,
    Höhe
    33 mm
    min. Einbauhöhe
    96 mm
    Breite
    75 mm
    Länge
    227 mm
    Einbaumaß E1
    33.5 mm
    Einbaumaß E2
    59.5 mm
    Farbe
    RAL 9011 (Graphitschwarz)
    Gewicht je Lagermengeneinheit
    0.274 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Technical Information Device Sockets and Installation Devices

    Technische Information

    PDF, 14 MB

    de en

Included accessories
