UDEP 5PCOM

Mounting board, plug-in systems

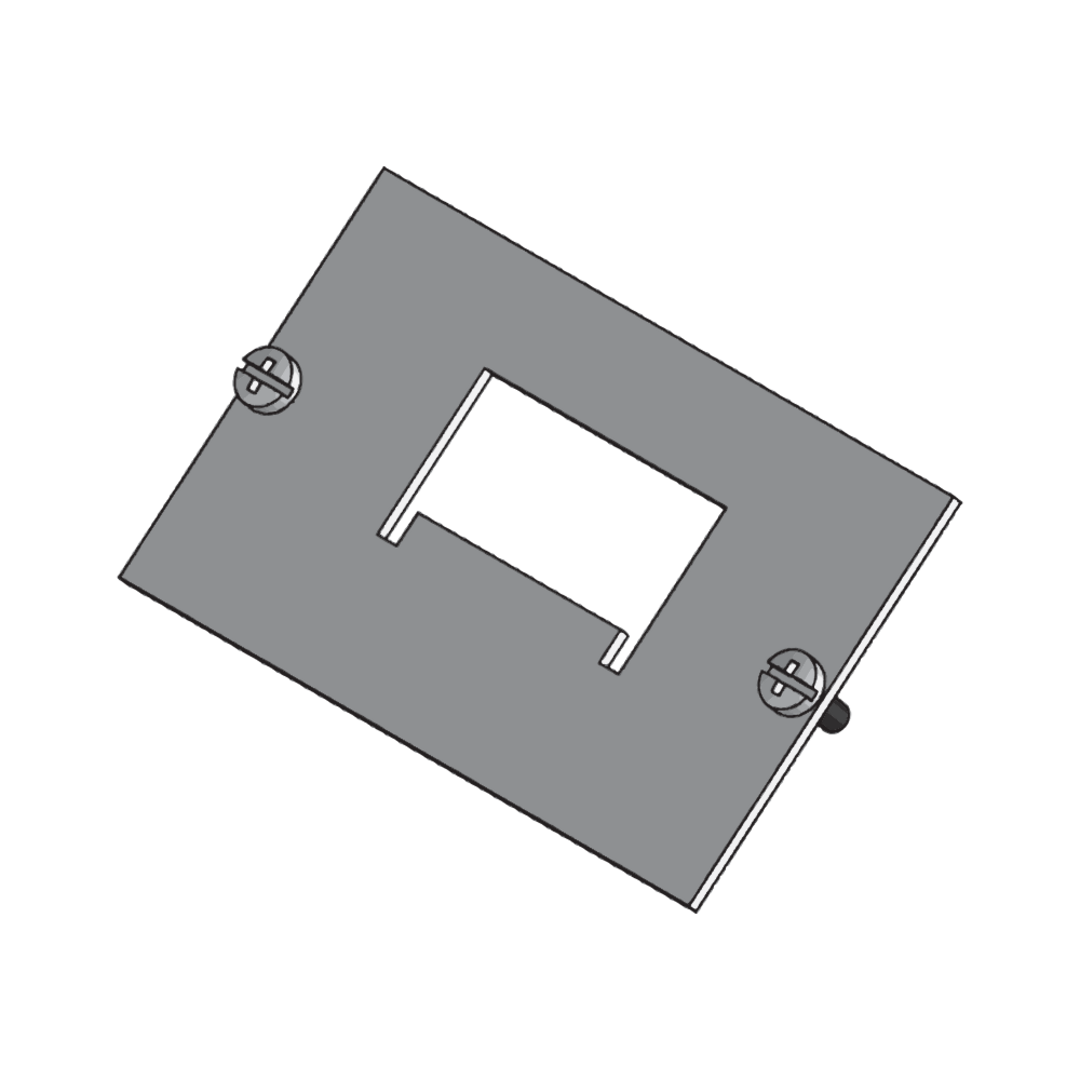

UDEP 5PCOM components are installation boards from the underfloor system range. The boards are bolted into data device carriers and are used to accommodate a 5-pin snap-in connector socket or a snap-in plug with 400 V and 32 A. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 18.5 mm and E2 31.8 mm.

Get in touch Download datasheet

Variants

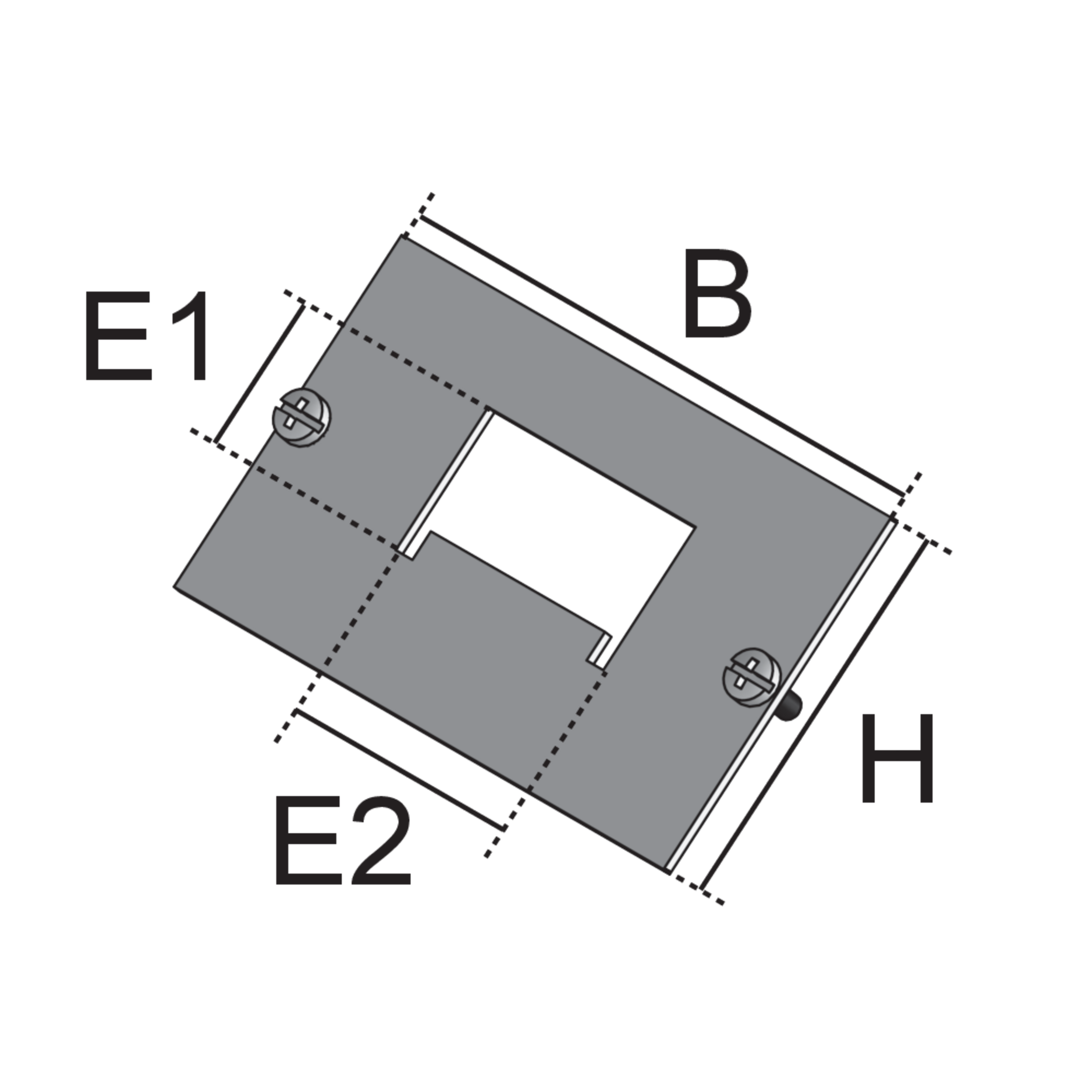

Article

H

B

E1

E2

colour

max. Anzahl installierbarer Snap-In-Buchsen

W

  • UDEP-5PCOM 1
    adapter board,
    46 mm
    75 mm
    18.5 mm
    31.8 mm
    black
    1x 5-polig X-COM, 400 V, 32 A
    0.016 kg
