UDEP 3PK

Mounting board, plug-in systems

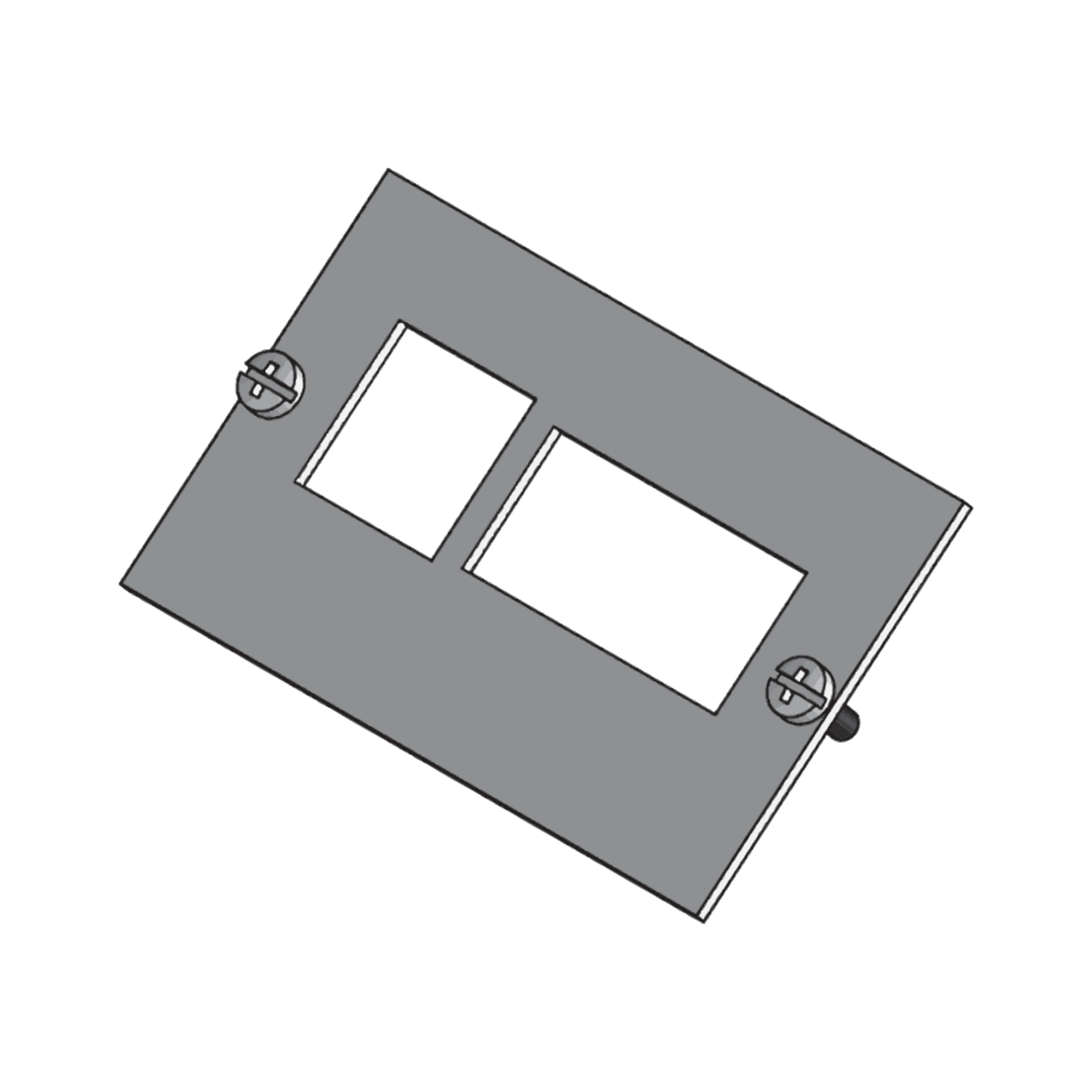

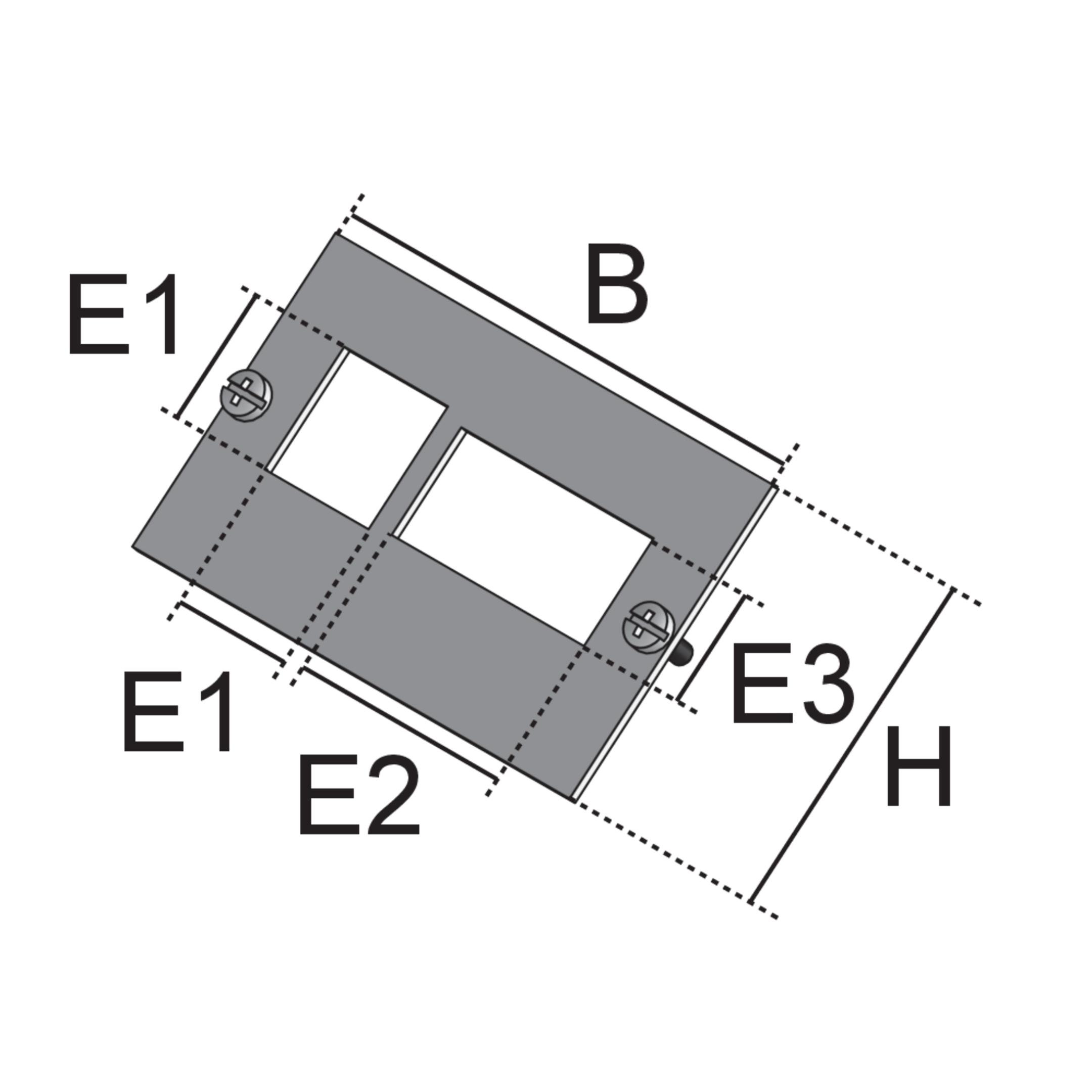

UDEP 3PK components are installation boards from the underfloor system range. The boards are bolted into the data device carrier and are used to accommodate up to three Wieland 2-pin snap-in connector sockets with 250 V and 16 A. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 17.8 mm, E2 33 mm and E3 15.6 mm.

Variants

Article

H

Höhe

B

Breite

E1

Einbaumaß E1

E2

Einbaumaß E2

E3

Einbaumaß E3

Farbe

Farbe

max. Anzahl installierbarer Snap-In-Buchsen

G

Gewicht je Lagermengeneinheit

  • UDEP-3PK 2
    Einbauplatine,
    Höhe
    46 mm
    Breite
    75 mm
    Einbaumaß E1
    17.8 mm
    Einbaumaß E2
    33 mm
    Einbaumaß E3
    15.6 mm
    Farbe
    Schwarz
    max. Anzahl installierbarer Snap-In-Buchsen
    1x 2-polig Bus, 1x 3-polig, 250V, 16 A
    Gewicht je Lagermengeneinheit
    0.014 kg
