ST 82

Vertical ladder, I profile

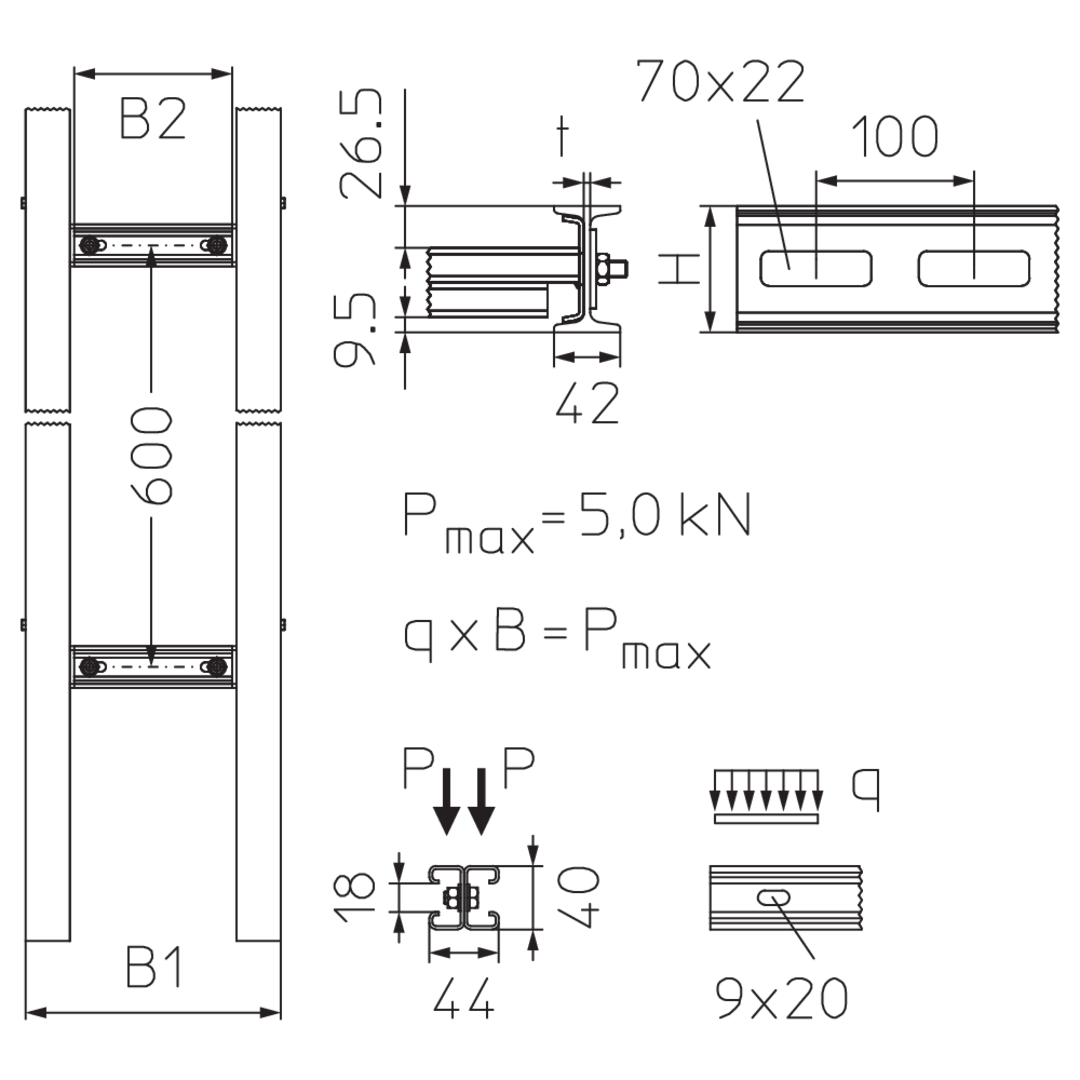

The ST 82 heavy-duty vertical ladders are made from hot-dip galvanised steel. They consist of perforated side rails with I profiles and rungs made of 40x22 mm profile rails. Side rails and rungs are supplied with all required bolts and nuts and assembled on site. The ladders are designed for a maximum load of up to 5.00 kN, are 200 to 1200 mm wide and are available in standard lengths of 3000 and 6000 mm.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

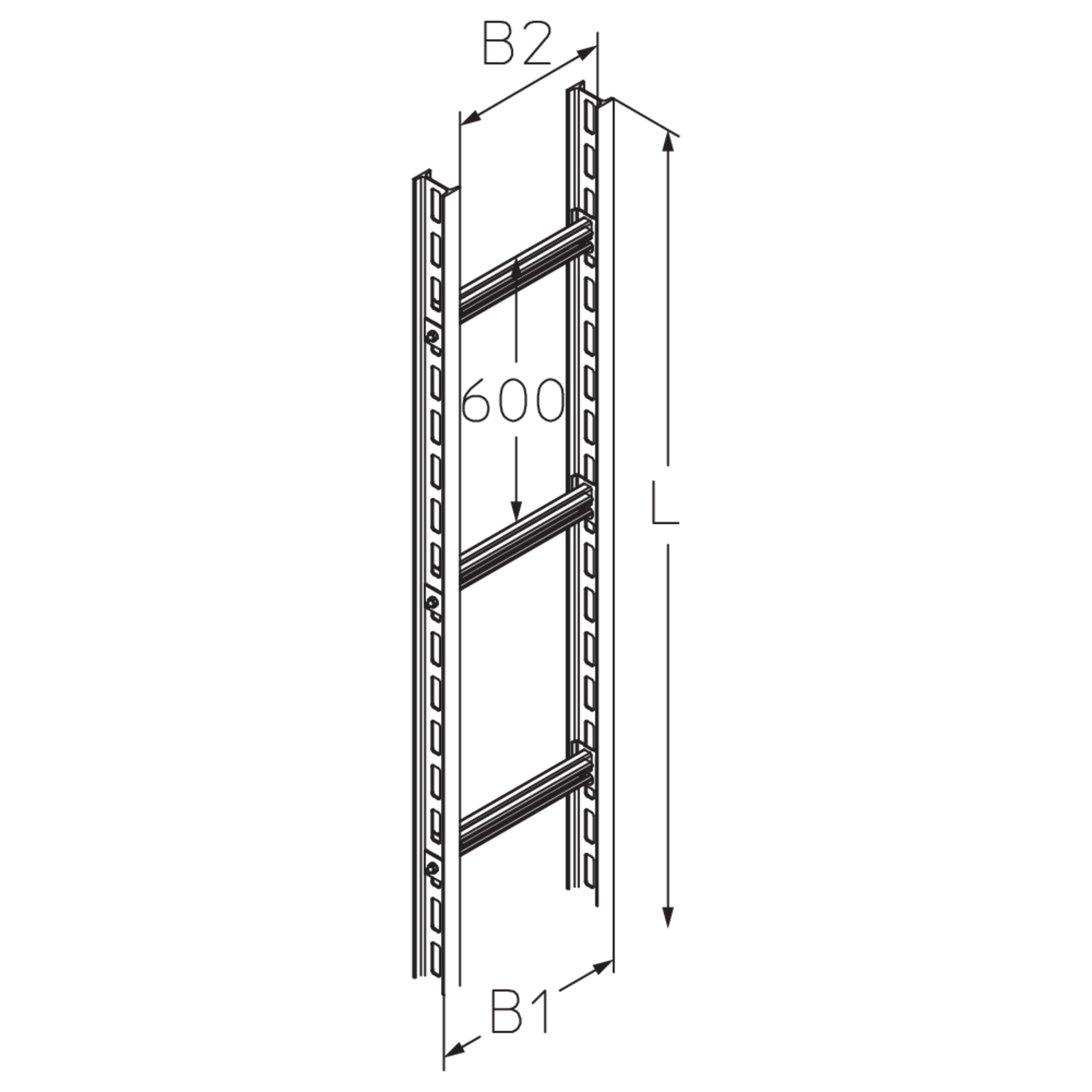

H

height

B1

width 1

B2

width 2

L

length

Pmax

maximum load

G

Weight per storage unit

Geeignet für Funktionserhalt

  • ST 82-02-3F
    Steigetrasse
    height
    80 mm
    width 1
    242 mm
    width 2
    158 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    41.342 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-03-3F
    Steigetrasse
    height
    80 mm
    width 1
    342 mm
    width 2
    258 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    42.917 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-04-3F
    Steigetrasse
    height
    80 mm
    width 1
    442 mm
    width 2
    358 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    44.507 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-05-3F
    Steigetrasse
    height
    80 mm
    width 1
    542 mm
    width 2
    458 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    46.067 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-06-3F
    Steigetrasse
    height
    80 mm
    width 1
    642 mm
    width 2
    558 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    46.942 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-07-3F
    Steigetrasse
    height
    80 mm
    width 1
    742 mm
    width 2
    658 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    49.262 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-08-3F
    Steigetrasse
    height
    80 mm
    width 1
    842 mm
    width 2
    758 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    50.887 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-09-3F
    Steigetrasse
    height
    80 mm
    width 1
    942 mm
    width 2
    858 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    52.462 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-10-3F
    Steigetrasse
    height
    80 mm
    width 1
    1042 mm
    width 2
    958 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    54.087 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-11-3F
    Steigetrasse
    height
    80 mm
    width 1
    1142 mm
    width 2
    1058 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    55.662 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-12-3F
    Steigetrasse
    height
    80 mm
    width 1
    1242 mm
    width 2
    1158 mm
    length
    3000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    57.257 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-02F
    Vertical ladder ST 82-02F
    height
    80 mm
    width 1
    242 mm
    width 2
    158 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    82.684 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-03F
    Vertical ladder ST 82-03F
    height
    80 mm
    width 1
    342 mm
    width 2
    258 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    85.834 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-04F
    Vertical ladder ST 82-04F
    height
    80 mm
    width 1
    442 mm
    width 2
    358 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    89.014 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-05F
    Vertical ladder ST 82-05F
    height
    80 mm
    width 1
    542 mm
    width 2
    458 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    92.134 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-06F
    Vertical ladder ST 82-06F
    height
    80 mm
    width 1
    642 mm
    width 2
    558 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    93.884 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-07F
    Vertical ladder ST 82-07F
    height
    80 mm
    width 1
    742 mm
    width 2
    658 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    98.524 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-08F
    Vertical ladder ST 82-08F
    height
    80 mm
    width 1
    842 mm
    width 2
    758 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    101.774 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-09F
    Vertical ladder ST 82-09F
    height
    80 mm
    width 1
    942 mm
    width 2
    858 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    104.924 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-10F
    Vertical ladder ST 82-10F
    height
    80 mm
    width 1
    1042 mm
    width 2
    958 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    108.174 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-11F
    Vertical ladder ST 82-11F
    height
    80 mm
    width 1
    1142 mm
    width 2
    1058 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    111.324 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
  • ST 82-12F
    Vertical ladder ST 82-12F
    height
    80 mm
    width 1
    1242 mm
    width 2
    1158 mm
    length
    6000 mm
    maximum load
    5.00 kN
    Weight per storage unit
    114.514 kg
    Geeignet für Funktionserhalt
    Nein
    Included accessories
    More information
