RS 60

Cable tray, unperforated, heavy, height = 60 mm

RS 60 unperforated cable trays have sides 60 mm high and are available in widths from 100 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Betreten verboten
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit
  • RS 60-10S
    Cable tray, heavy, unperforated RS
    60 mm
    100 mm
    3000 mm
    1.50 mm
    0.09 kN/m
    57 cm2
    9.200 kg
    More information
  • RS 60-20S
    Cable tray, heavy, unperforated RS
    60 mm
    200 mm
    3000 mm
    1.50 mm
    0.18 kN/m
    117 cm2
    12.600 kg
    More information
  • RS 60-30S
    Cable tray, heavy, unperforated RS
    60 mm
    300 mm
    3000 mm
    1.50 mm
    0.27 kN/m
    177 cm2
    15.900 kg
    More information
  • RS 60-40S
    Cable tray, heavy, unperforated RS
    60 mm
    400 mm
    3000 mm
    1.50 mm
    0.36 kN/m
    237 cm2
    18.900 kg
    More information
  • RS 60-50S
    Cable tray, heavy, unperforated RS
    60 mm
    500 mm
    3000 mm
    1.50 mm
    0.45 kN/m
    297 cm2
    22.100 kg
    More information
  • RS 60-60S
    Cable tray, heavy, unperforated RS
    60 mm
    600 mm
    3000 mm
    1.50 mm
    0.54 kN/m
    357 cm2
    25.600 kg
    More information

steel, batch/hot-dip galvanized

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit
  • RS 60-10F
    Cable tray, heavy, unperforated RS
    60 mm
    100 mm
    3000 mm
    1.50 mm
    0.09 kN/m
    57 cm2
    9.573 kg
    More information
  • RS 60-20F
    Cable tray, heavy, unperforated RS
    60 mm
    200 mm
    3000 mm
    1.50 mm
    0.18 kN/m
    117 cm2
    13.319 kg
    More information
  • RS 60-30F
    Cable tray, heavy, unperforated RS
    60 mm
    300 mm
    3000 mm
    1.50 mm
    0.27 kN/m
    177 cm2
    17.066 kg
    More information
  • RS 60-40F
    Cable tray, heavy, unperforated RS
    60 mm
    400 mm
    3000 mm
    1.50 mm
    0.36 kN/m
    237 cm2
    20.812 kg
    More information
  • RS 60-50F
    Cable tray, heavy, unperforated RS
    60 mm
    500 mm
    3000 mm
    1.50 mm
    0.45 kN/m
    297 cm2
    24.559 kg
    More information
  • RS 60-60F
    Cable tray, heavy, unperforated RS
    60 mm
    600 mm
    3000 mm
    1.50 mm
    0.54 kN/m
    357 cm2
    28.305 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Technical information

    Technische Information

    PDF, 3 MB

    de en

  • Kabelbahnen - Katalog

    Gesamtkatalog

    PDF, 29 MB

    de
    Download

  • Cable trays - Assembly instructions

    Montageanleitung

    PDF, 3 MB

    de en

  • Kabelrinne R 60, RG 60 - Kompaktübersicht

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

BIM- and CAD-Data

  • BIM for cable trays

    BIM for cable trays

    Bim data

    ZIP, 10 MB

    de en

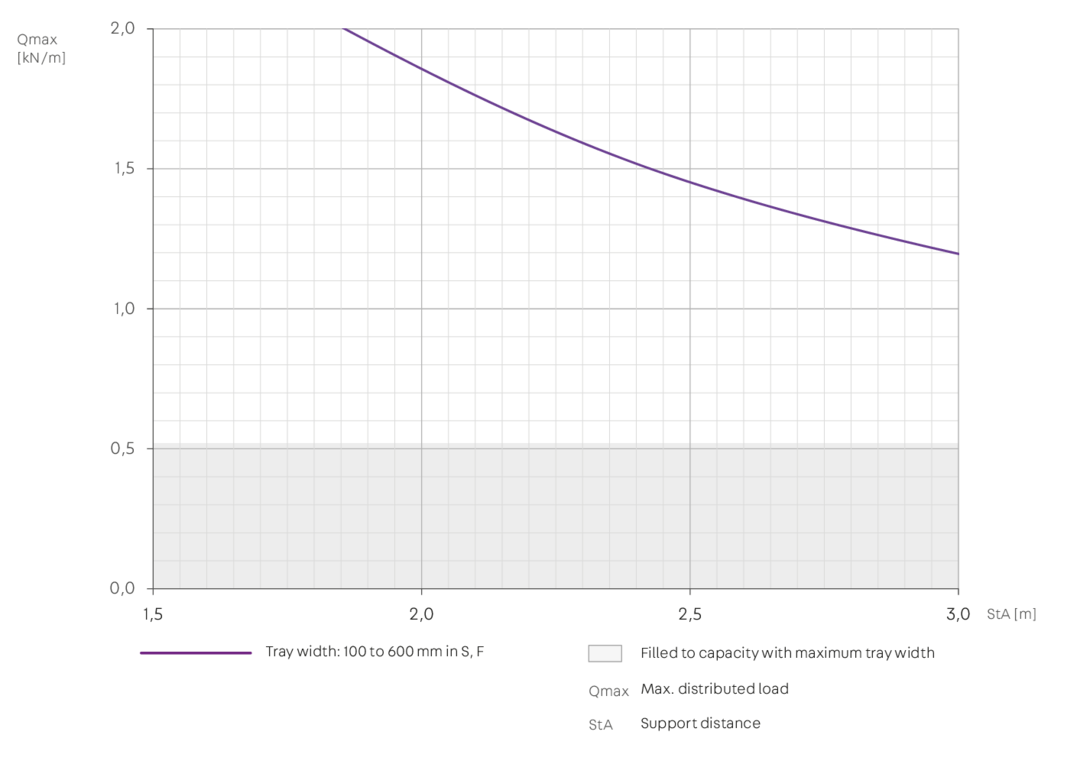

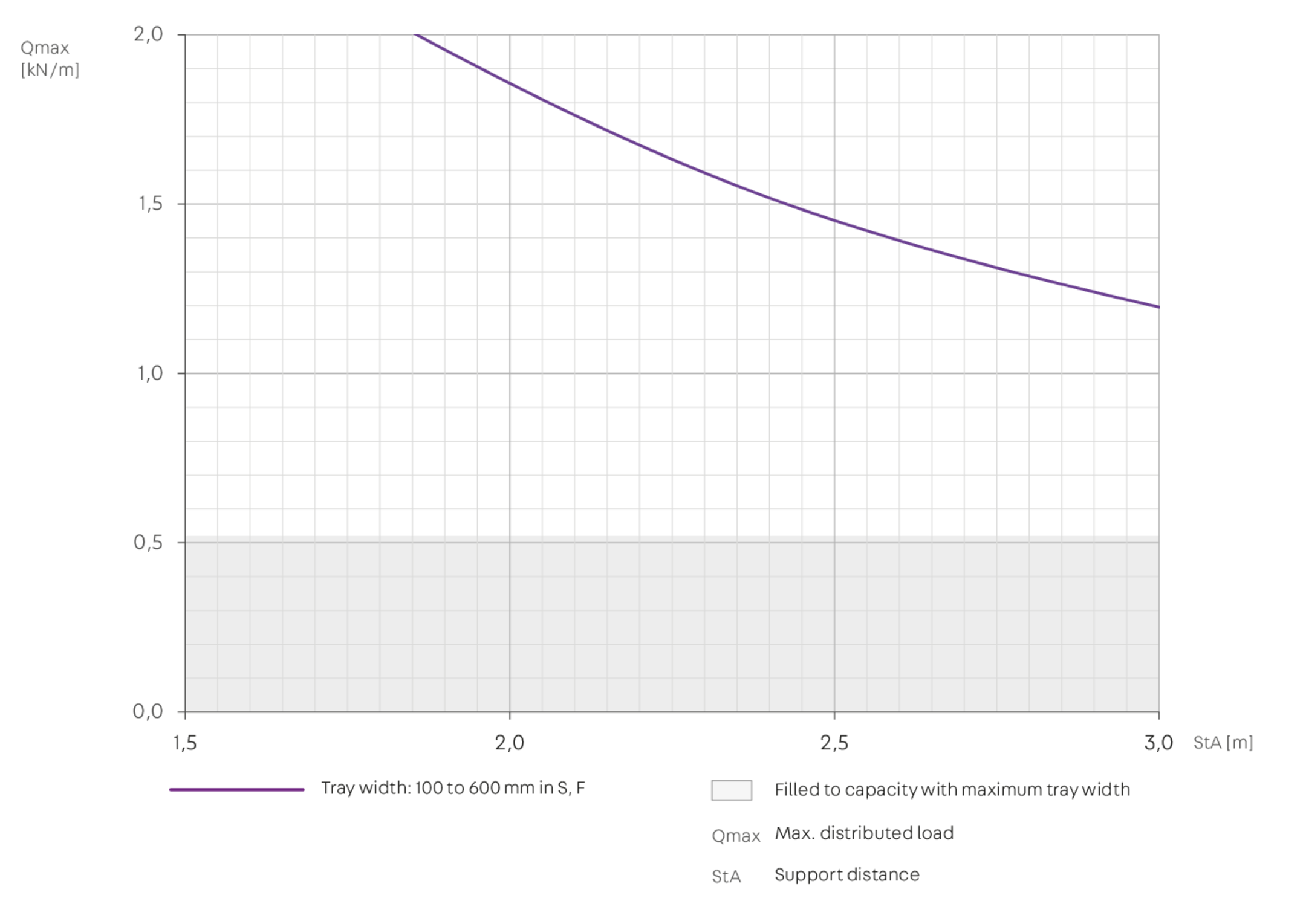

Load diagram
