Art.-Nr. RR 35-20F

Cable tray reducer RR 35-20F

Cable tray reducer, height = 35 mm

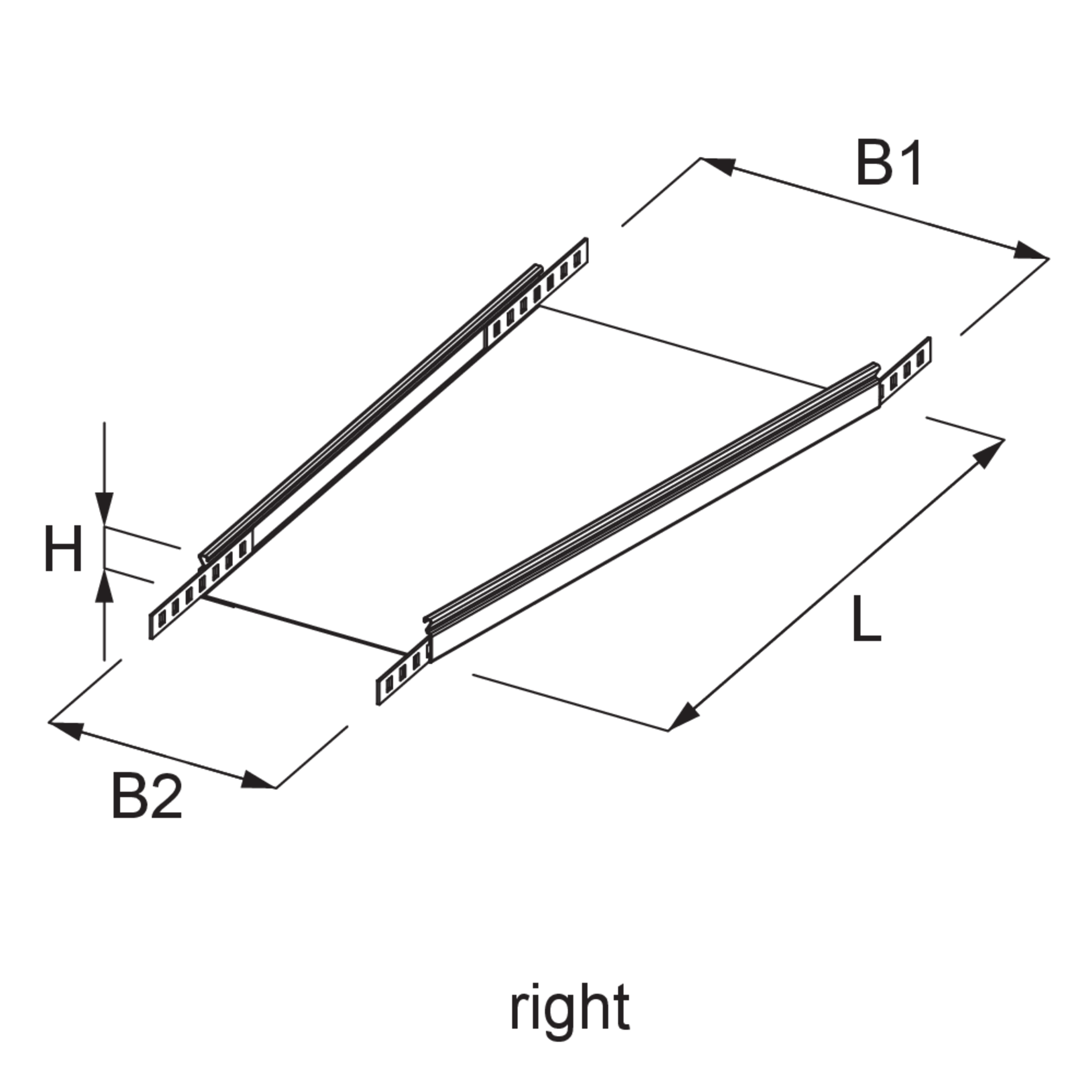

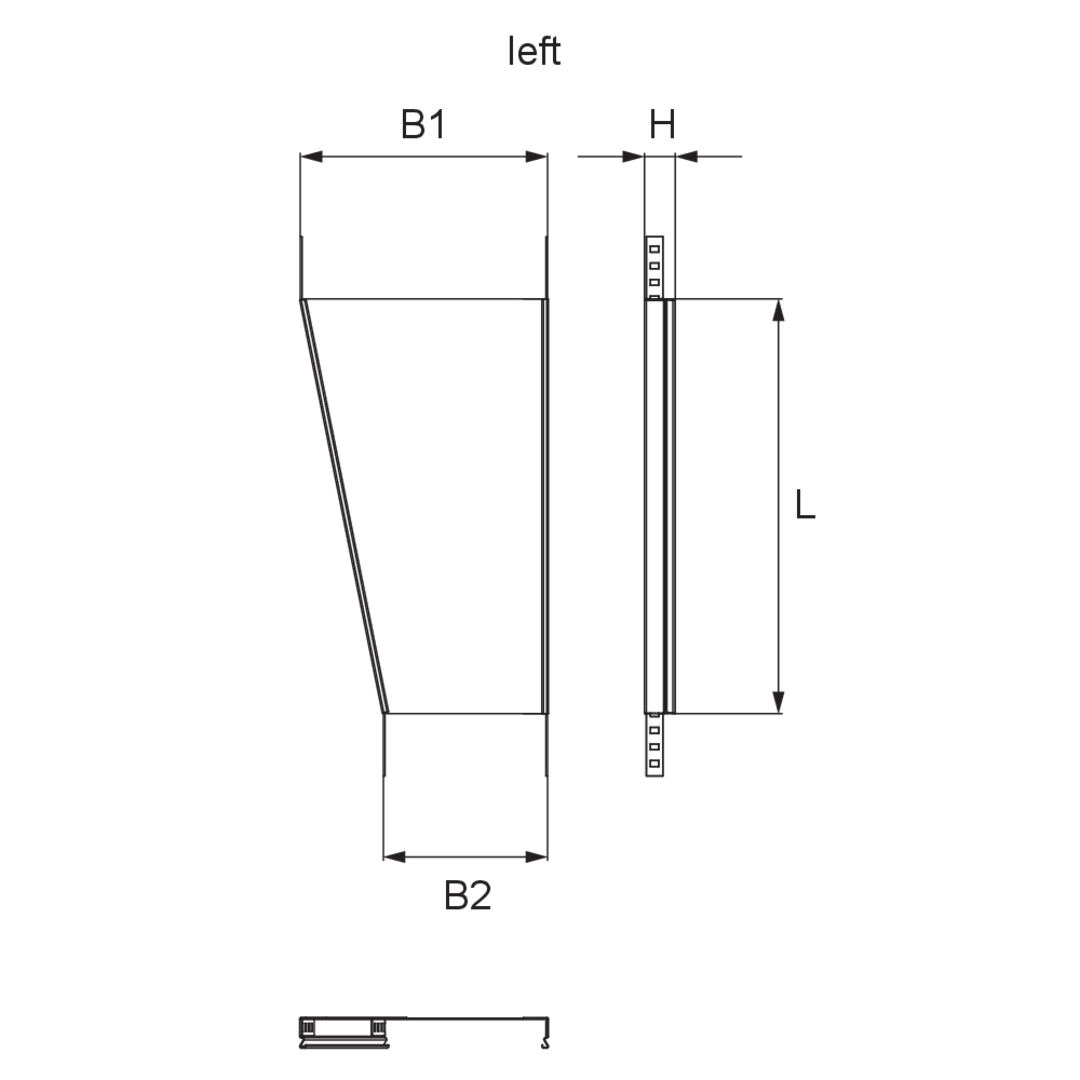

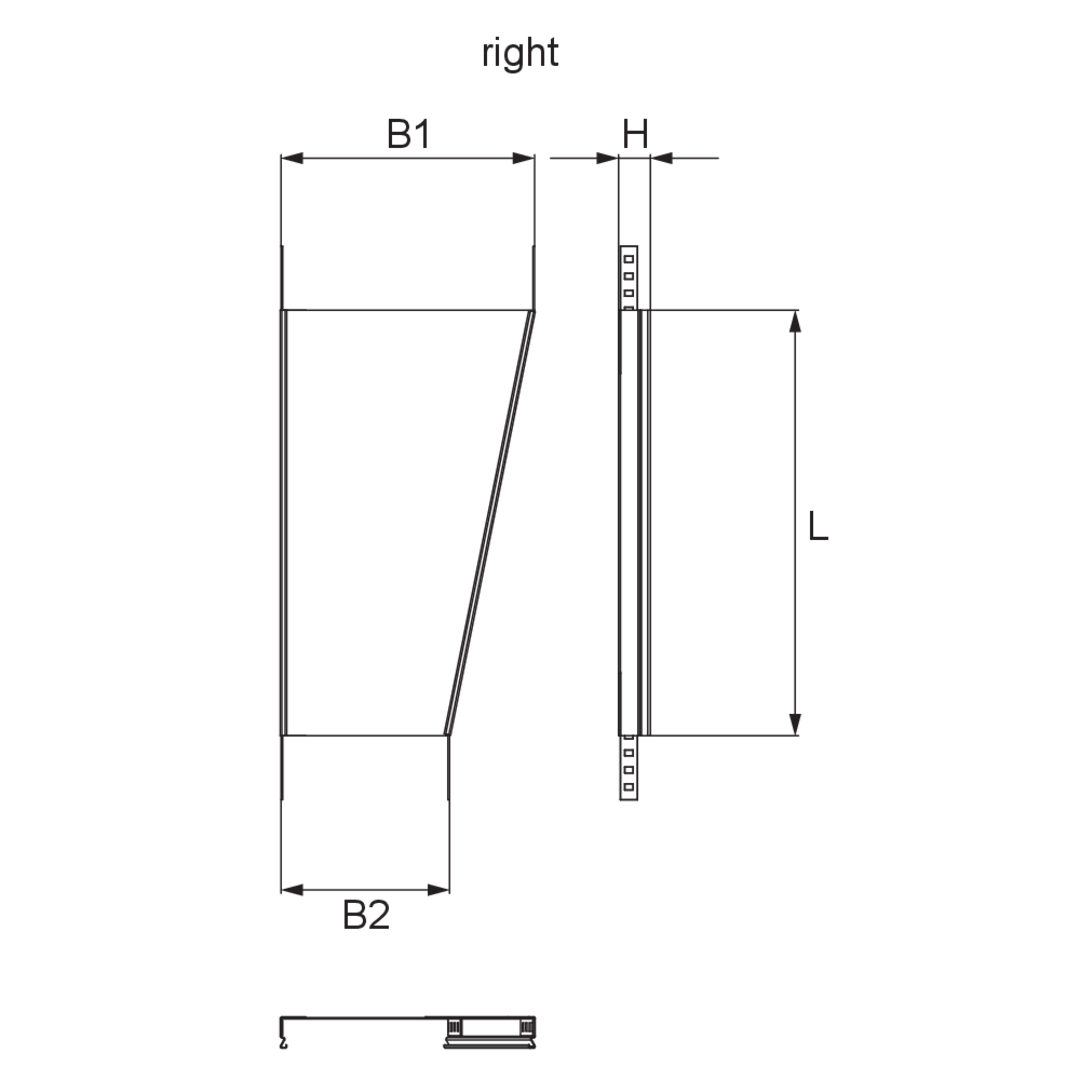

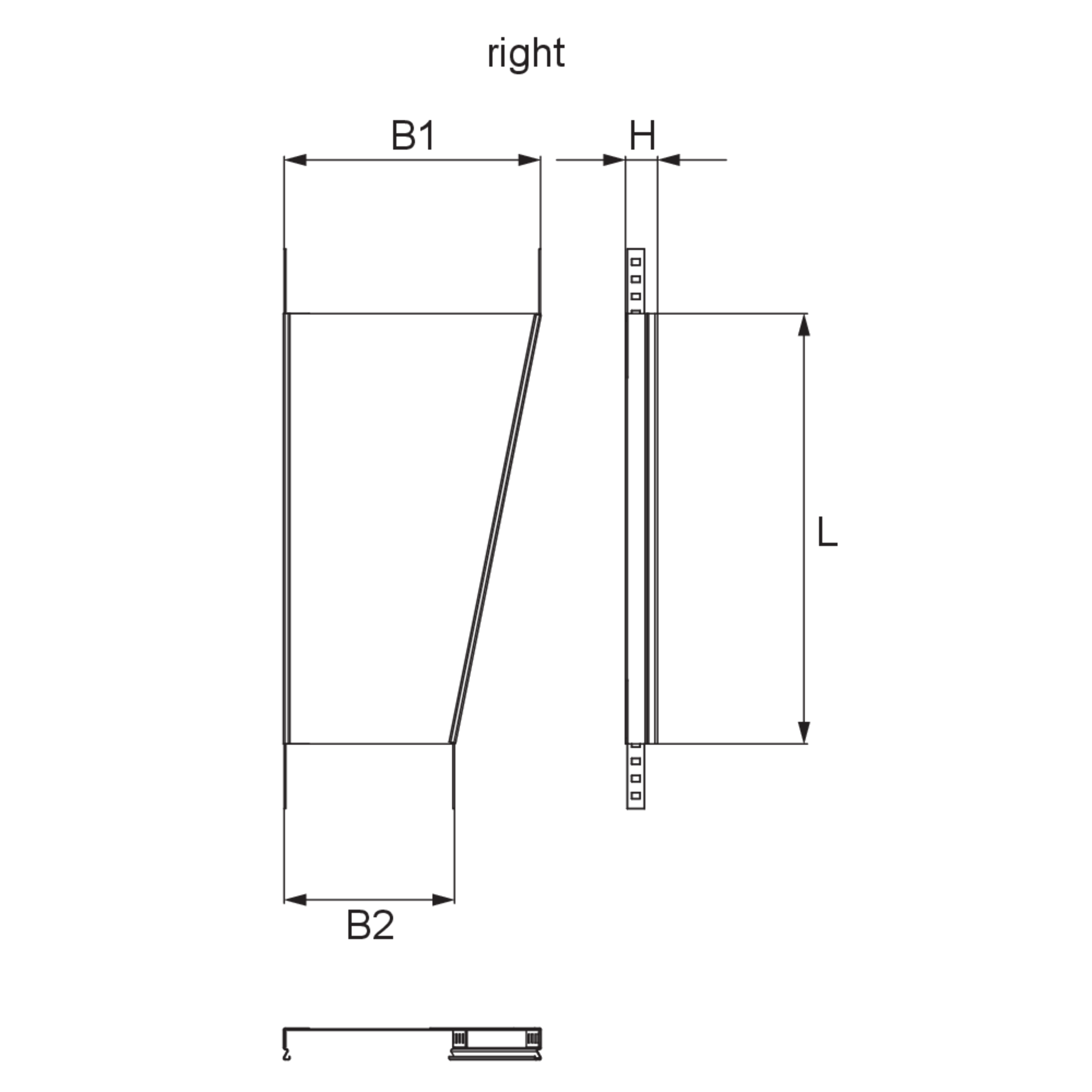

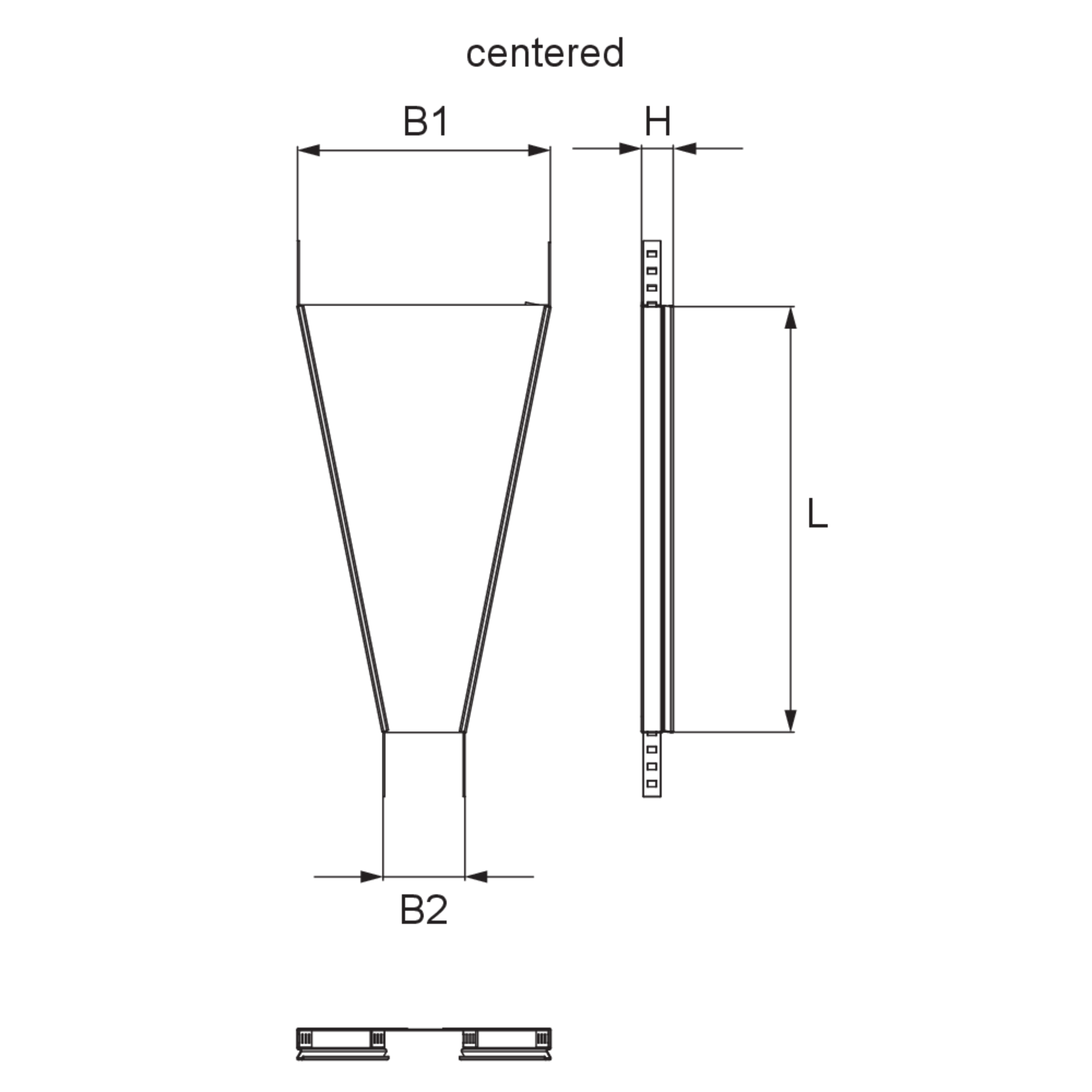

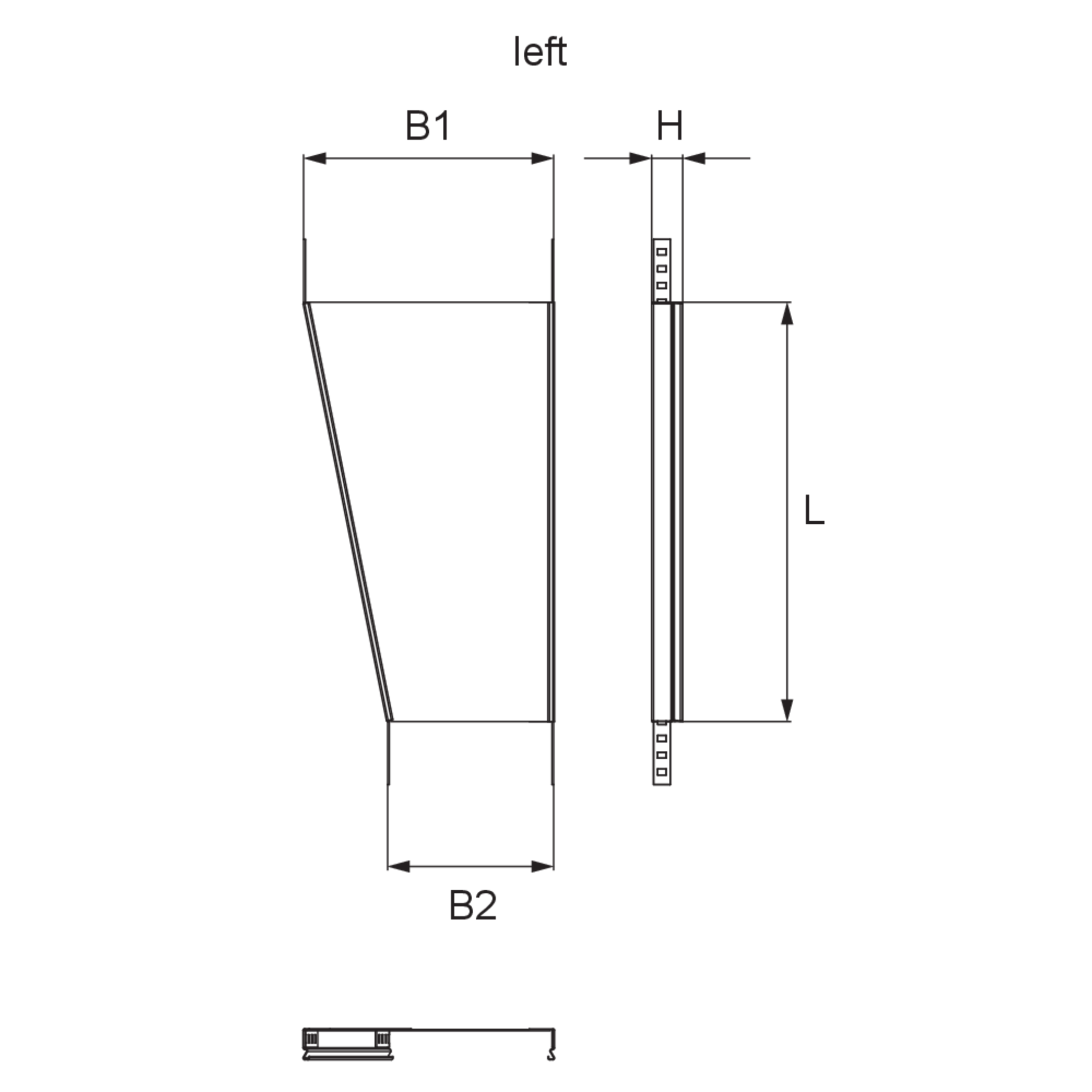

The cable tray reducer RR 35 with integrated side connectors enables the width of the cable tray to be reduced. It is available in three different designs: It can narrow towards the centre or on the left or right side. Specify the desired design (left, centre, right) and width when ordering. The entrance width is always reduced by 100 mm. The cable tray reducer has a standard length of 500 mm and is suitable for cable trays with sides 35 mm high. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Art.-Nr.
RR 35-20F
height
35 mm
width 1
200 mm
width 2
100 mm
length
500 mm
Weight per storage unit
1.372 kg
Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B1

width 1

B2

width 2

L

length

G

Weight per storage unit
  • RR 35-20S
    Cable tray reducer RR 35-20S
    height
    35 mm
    width 1
    200 mm
    width 2
    100 mm
    length
    500 mm
    Weight per storage unit
    1.248 kg
    Included accessories
    More information
  • RR 35-30S
    Cable tray reducer RR 35-30S
    height
    35 mm
    width 1
    300 mm
    width 2
    200 mm
    length
    500 mm
    Weight per storage unit
    1.638 kg
    Included accessories
    More information

Steel, hot-dip galvanised

Article

H

height

B1

width 1

B2

width 2

L

length

G

Weight per storage unit
  • RR 35-20F
    Cable tray reducer RR 35-20F
    height
    35 mm
    width 1
    200 mm
    width 2
    100 mm
    length
    500 mm
    Weight per storage unit
    1.372 kg
    Included accessories
    More information
  • RR 35-30F
    Cable tray reducer RR 35-30F
    height
    35 mm
    width 1
    300 mm
    width 2
    200 mm
    length
    500 mm
    Weight per storage unit
    1.802 kg
    Included accessories
    More information

Details

  • Reduces the width of the cable tray
