Cable tray, unperforated R 60-50E

Cable tray, unperforated, height = 60 mm

The unperforated cable trays R 60 have sides 60 mm high and are available in widths from 50 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Art.-Nr.
R 60-50E
height
60 mm
width
500 mm
length
3000 mm
material thickness
1.00 mm
distributed load control cable
0.45 kN/m
cross section area
297 cm<sup>2</sup>
Weight per storage unit
15.600 kg
Betreten verboten
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

B

L

t

QSK

A

W

  • R 60-05S
    Cable tray, unperforated
    60 mm
    50 mm
    3000 mm
    0.75 mm
    0.04 kN/m
    27 cm2
    3.730 kg
    More information
  • R 60-10S
    Cable tray, unperforated R 60-10S
    60 mm
    100 mm
    3000 mm
    0.75 mm
    0.09 kN/m
    57 cm2
    4.601 kg
    More information
  • R 60-20S
    Cable tray, unperforated R 60-20S
    60 mm
    200 mm
    3000 mm
    0.75 mm
    0.18 kN/m
    117 cm2
    6.368 kg
    More information
  • R 60-30S
    Cable tray, unperforated R 60-30S
    60 mm
    300 mm
    3000 mm
    0.75 mm
    0.27 kN/m
    177 cm2
    8.134 kg
    More information
  • R 60-40S
    Cable tray, unperforated R 60-40S
    60 mm
    400 mm
    3000 mm
    0.88 mm
    0.36 kN/m
    237 cm2
    11.595 kg
    More information
  • R 60-50S
    Cable tray, unperforated R 60-50S
    60 mm
    500 mm
    3000 mm
    1.00 mm
    0.45 kN/m
    297 cm2
    15.508 kg
    More information
  • R 60-60S
    Cable tray, unperforated R 60-60S
    60 mm
    600 mm
    3000 mm
    1.00 mm
    0.54 kN/m
    357 cm2
    17.863 kg
    More information

steel, batch/hot-dip galvanized

Article

H

B

L

t

QSK

A

W

  • R 60-05F
    Cable tray, unperforated
    60 mm
    50 mm
    3000 mm
    0.75 mm
    0.04 kN/m
    27 cm2
    4.180 kg
    More information
  • R 60-10F
    Cable tray, unperforated R 60-10F
    60 mm
    100 mm
    3000 mm
    0.75 mm
    0.09 kN/m
    57 cm2
    5.159 kg
    More information
  • R 60-20F
    Cable tray, unperforated R 60-20F
    60 mm
    200 mm
    3000 mm
    0.75 mm
    0.18 kN/m
    117 cm2
    7.139 kg
    More information
  • R 60-30F
    Cable tray, unperforated R 60-30F
    60 mm
    300 mm
    3000 mm
    0.75 mm
    0.27 kN/m
    177 cm2
    9.119 kg
    More information
  • R 60-40F
    Cable tray, unperforated R 60-40F
    60 mm
    400 mm
    3000 mm
    0.88 mm
    0.36 kN/m
    237 cm2
    12.793 kg
    More information
  • R 60-50F
    Cable tray, unperforated R 60-50F
    60 mm
    500 mm
    3000 mm
    1.00 mm
    0.45 kN/m
    297 cm2
    16.917 kg
    More information
  • R 60-60F
    Cable tray, unperforated R 60-60F
    60 mm
    600 mm
    3000 mm
    1.00 mm
    0.54 kN/m
    357 cm2
    19.486 kg
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

B

L

t

QSK

A

W

  • R 60-05E
    Cable tray, unperforated
    60 mm
    50 mm
    3000 mm
    0.80 mm
    0.04 kN/m
    27 cm2
    4.000 kg
    More information
  • R 60-10E
    Cable tray, unperforated R 60-10E
    60 mm
    100 mm
    3000 mm
    0.80 mm
    0.09 kN/m
    57 cm2
    4.900 kg
    More information
  • R 60-20E
    Cable tray, unperforated R 60-20E
    60 mm
    200 mm
    3000 mm
    0.80 mm
    0.18 kN/m
    117 cm2
    6.800 kg
    More information
  • R 60-30E
    Cable tray, unperforated R 60-30E
    60 mm
    300 mm
    3000 mm
    0.80 mm
    0.27 kN/m
    177 cm2
    8.800 kg
    More information
  • R 60-40E
    Cable tray, unperforated R 60-40E
    60 mm
    400 mm
    3000 mm
    0.80 mm
    0.36 kN/m
    237 cm2
    10.600 kg
    More information
  • R 60-50E
    Cable tray, unperforated R 60-50E
    60 mm
    500 mm
    3000 mm
    1.00 mm
    0.45 kN/m
    297 cm2
    15.600 kg
    More information
  • R 60-60E
    Cable tray, unperforated R 60-60E
    60 mm
    600 mm
    3000 mm
    1.00 mm
    0.54 kN/m
    357 cm2
    17.900 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

B

L

t

QSK

A

W

  • R 60-10E4
    Cable tray
    60 mm
    100 mm
    3000 mm
    0.80 mm
    0.09 kN/m
    57 cm2
    5.002 kg
    More information
  • R 60-20E4
    Cable tray, unperforated
    60 mm
    200 mm
    3000 mm
    0.80 mm
    0.18 kN/m
    117 cm2
    6.835 kg
    More information
  • R 60-30E4
    Cable tray, unperforated
    60 mm
    300 mm
    3000 mm
    0.80 mm
    0.27 kN/m
    177 cm2
    8.731 kg
    More information
  • R 60-40E4
    Cable tray
    60 mm
    400 mm
    3000 mm
    0.80 mm
    0.36 kN/m
    237 cm2
    10.790 kg
    More information
  • R 60-50E4
    Cable tray
    60 mm
    500 mm
    3000 mm
    1.00 mm
    0.45 kN/m
    297 cm2
    15.840 kg
    More information
  • R 60-60E4
    Cable tray
    60 mm
    600 mm
    3000 mm
    1.00 mm
    0.54 kN/m
    357 cm2
    20.568 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Technical information

    Technische Information

    PDF, 3 MB

    de en

  • Kabelbahnen - Katalog

    Gesamtkatalog

    PDF, 29 MB

    de
    Download

  • Cable trays - Assembly instructions

    Montageanleitung

    PDF, 3 MB

    de en

  • Kabelrinne R 60, RG 60 - Kompaktübersicht

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

BIM- and CAD-Data

  • BIM for cable trays

    BIM for cable trays

    Bim data

    ZIP, 10 MB

    de en

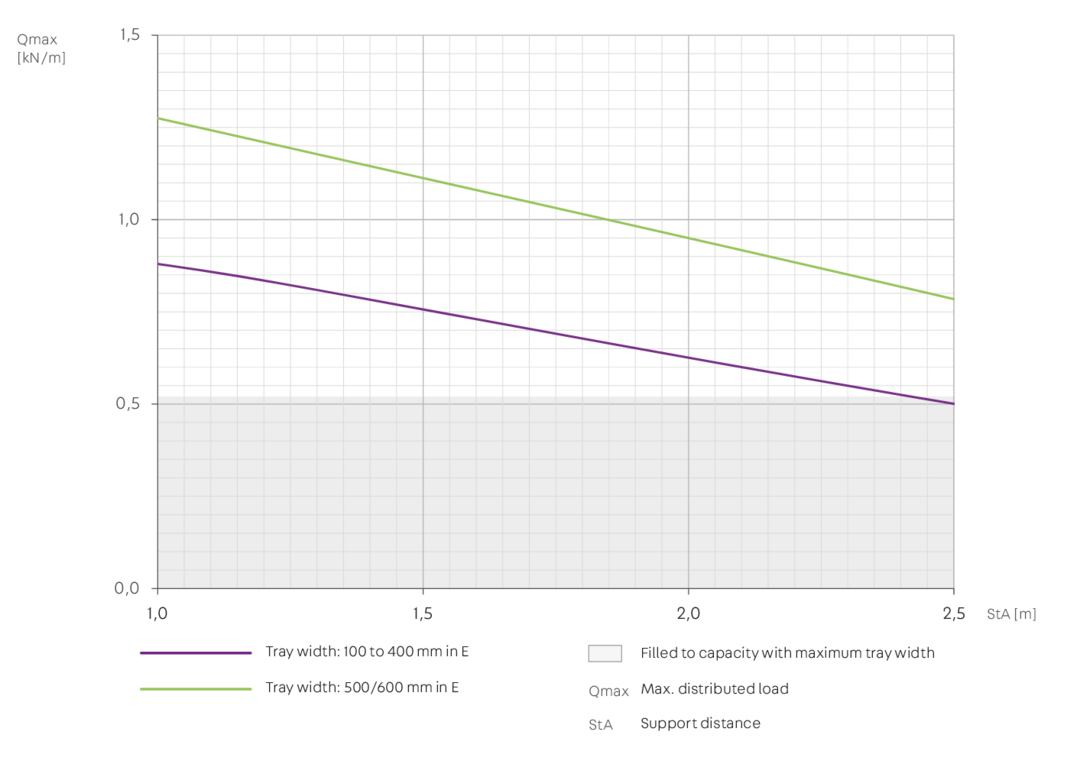

Load diagram
