KWF

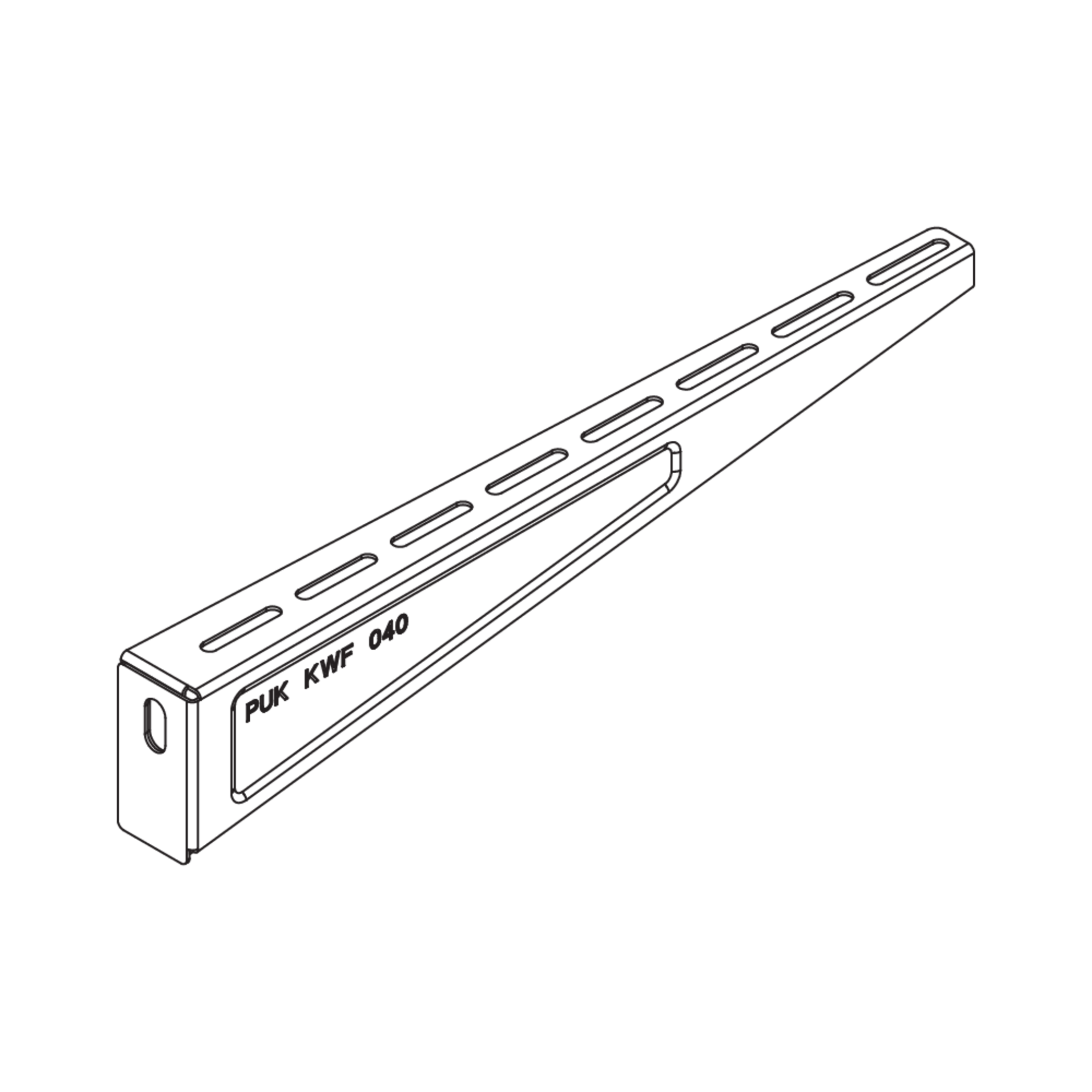

Wall/strut bracket, light-duty

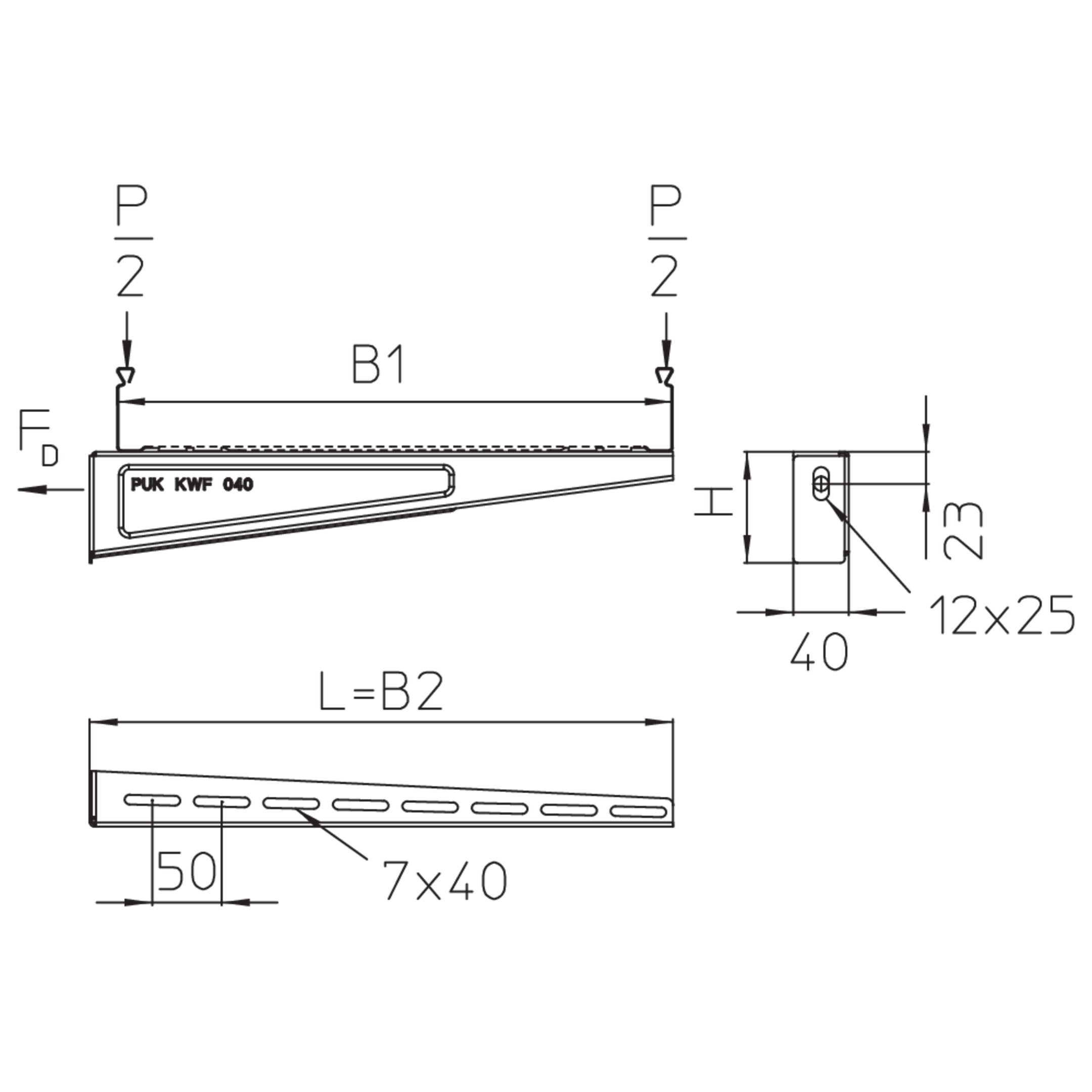

The wall/strut bracket KWF is intended for maximum loads of up to 1.2 kN and is ideal for mesh cable trays and cable trays up to 400 mm wide. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. The bracket KWF is also used as a strut bracket in the U support system. FD/P: factor for calculating the dowel load FD with the actual bracket load P or the sum of the actual bracket loads. The stated load values only apply if the product is adequately anchored to the force-absorbing substrate or is attached to suspension struts in accordance with the instructions. The washer is mandatory to achieve the maximum loads.

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

B1

Breite 1

B2

Breite 2

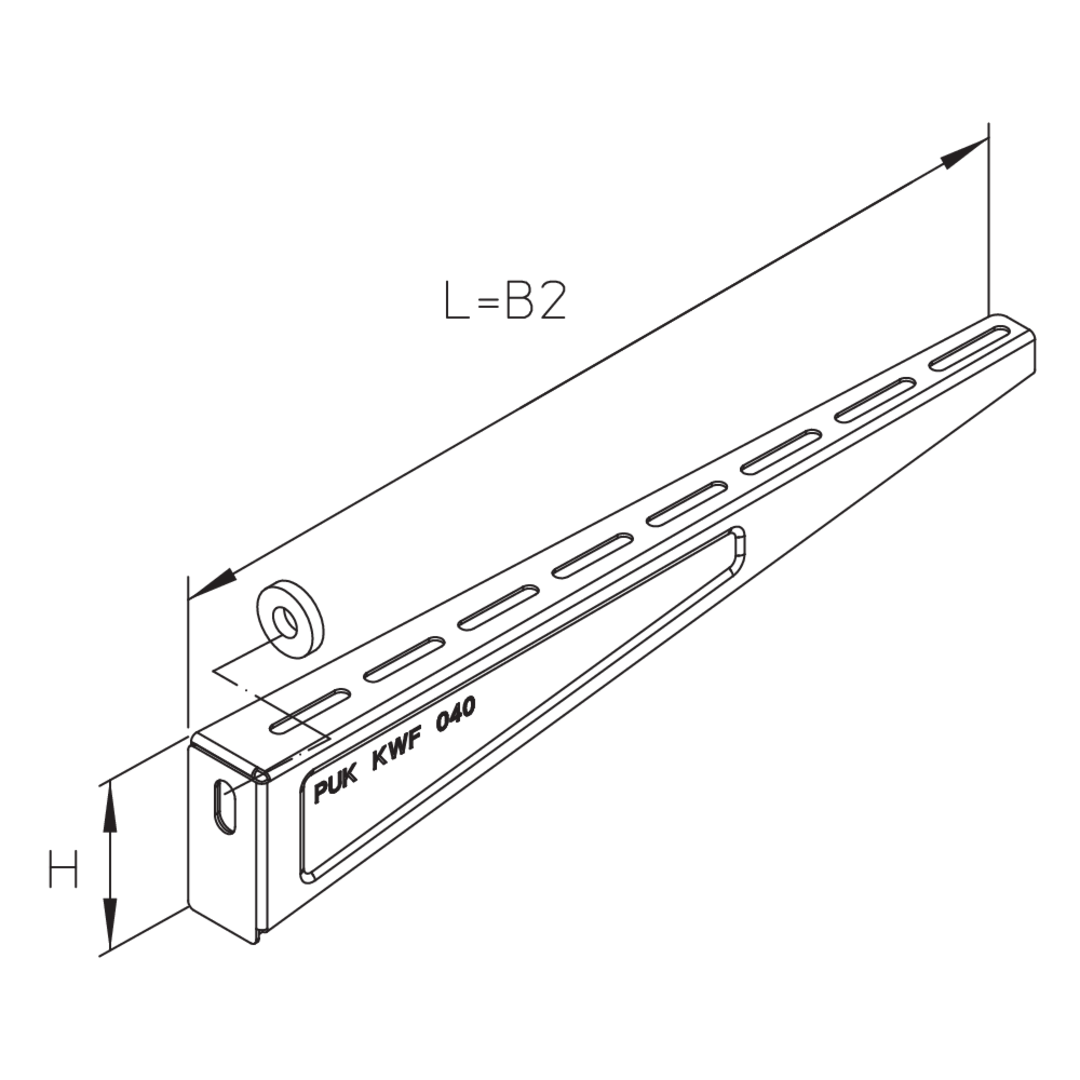

L

Länge

Pmax

max. Belastung

FD/P

Dübel-/Konsollast

G

Gewicht je Lagermengeneinheit

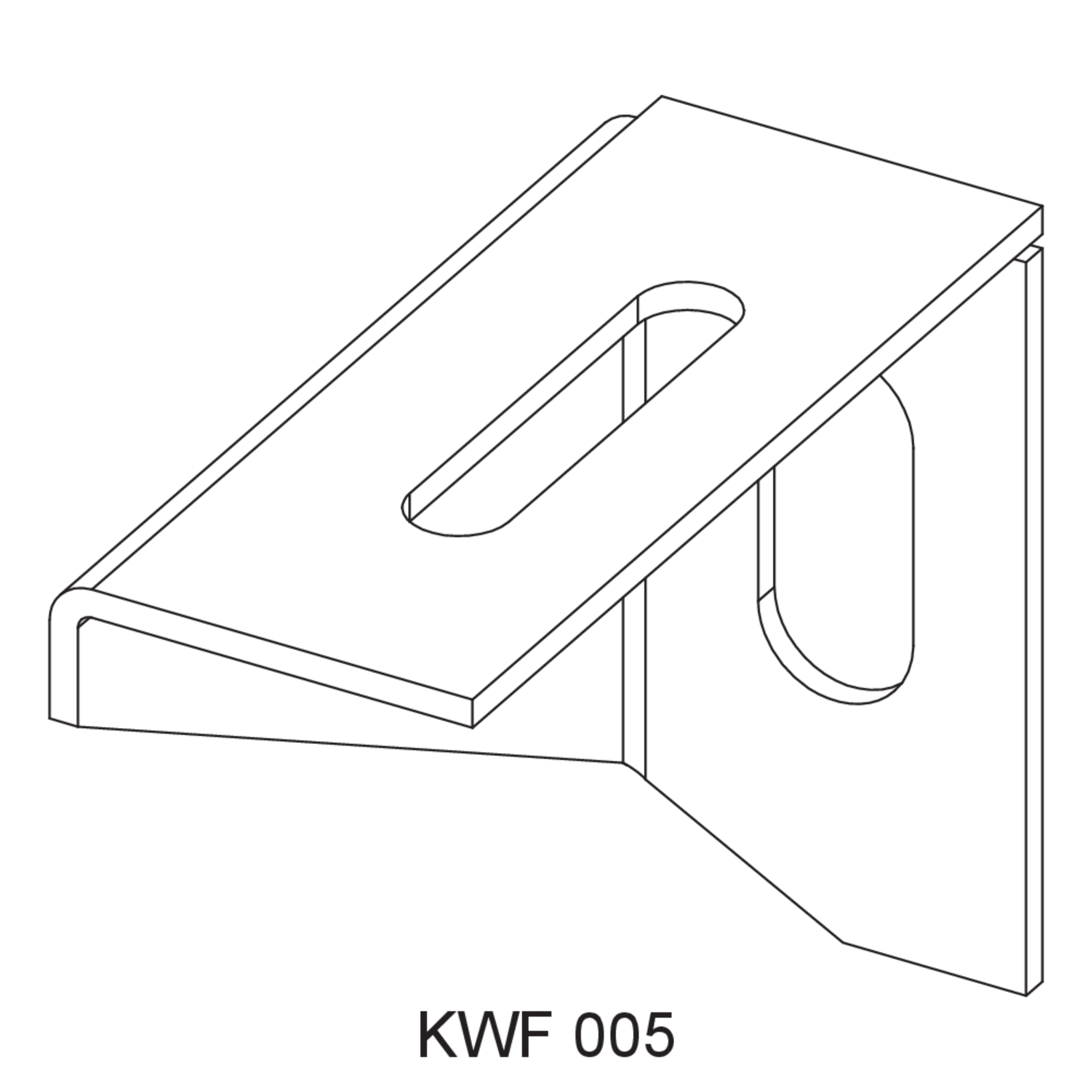

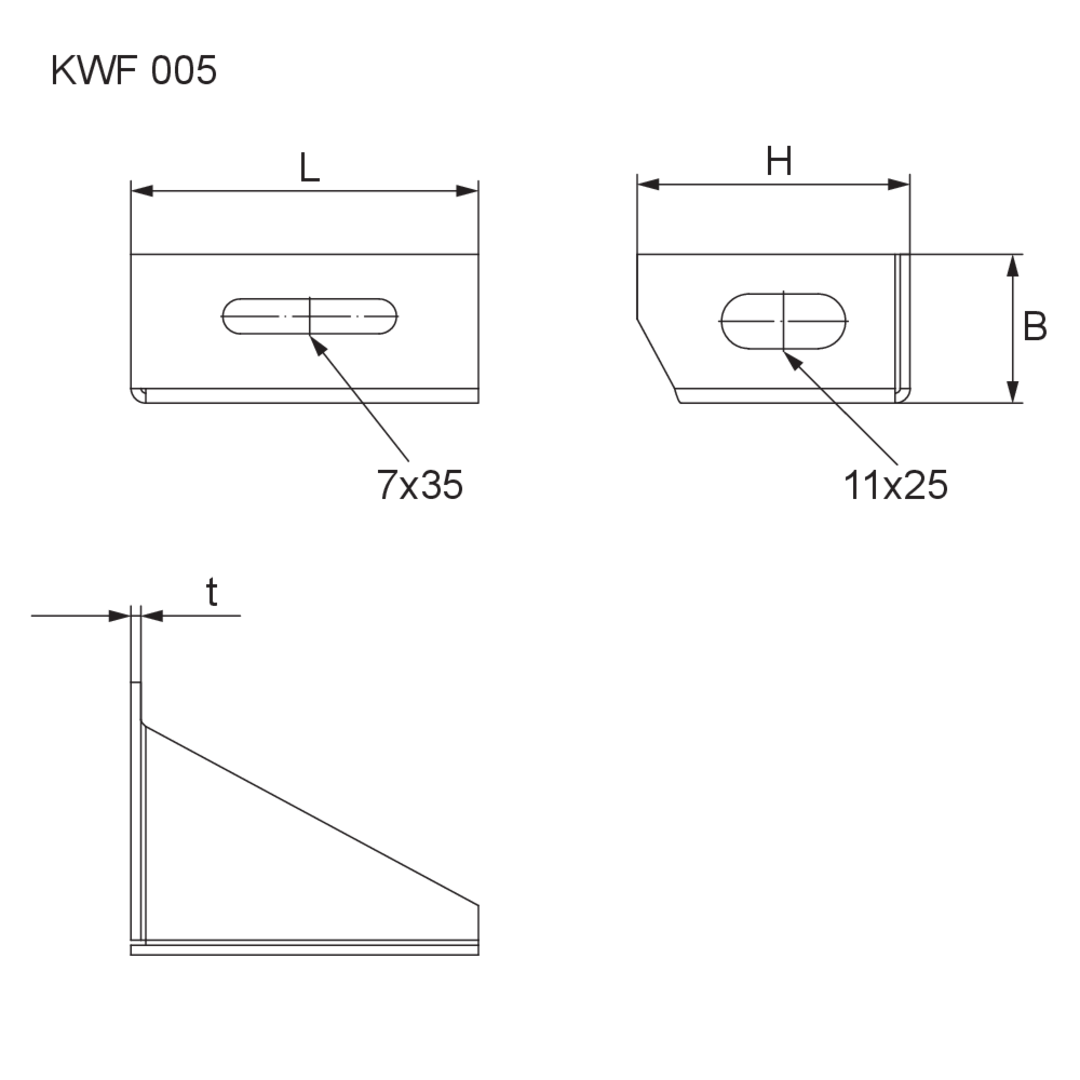

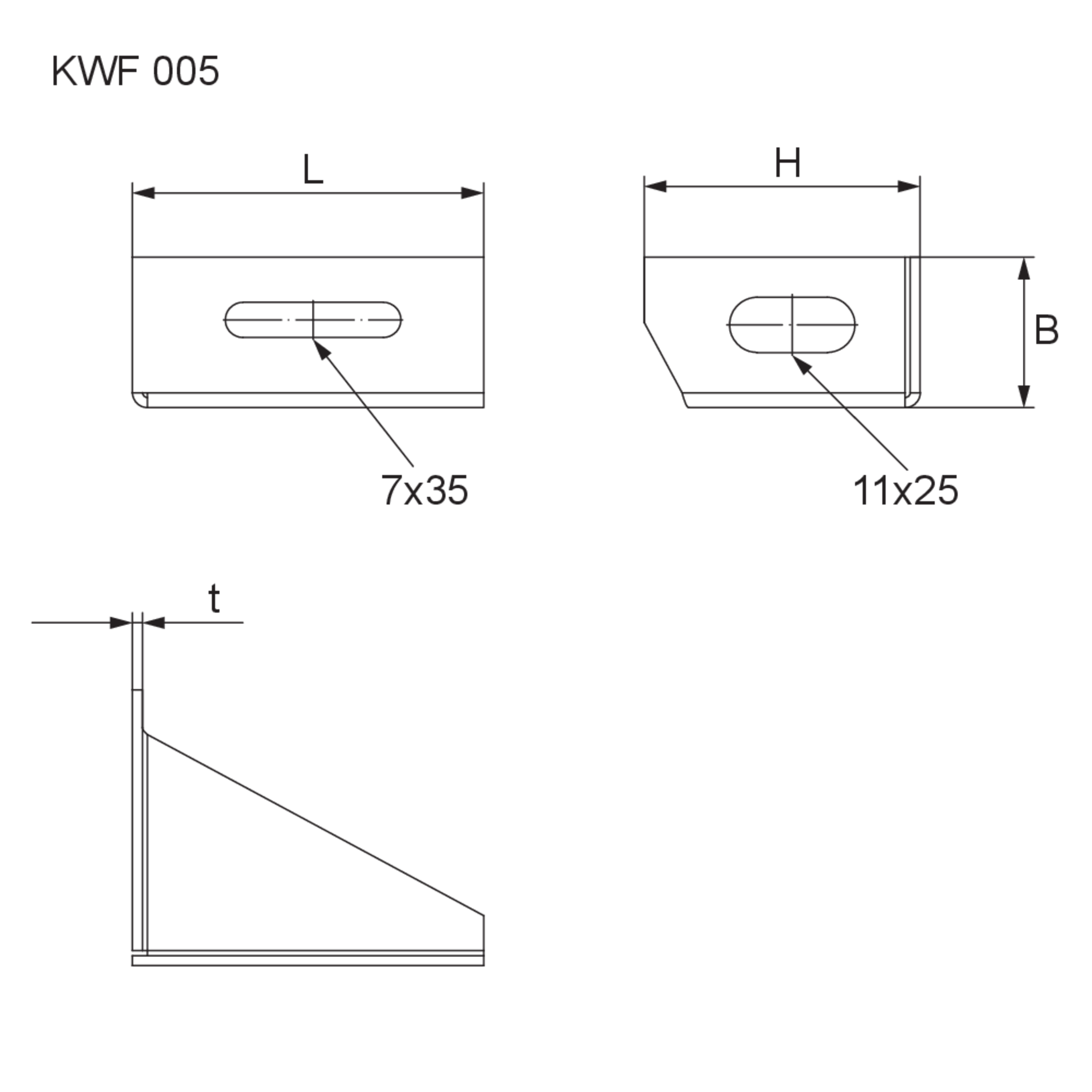

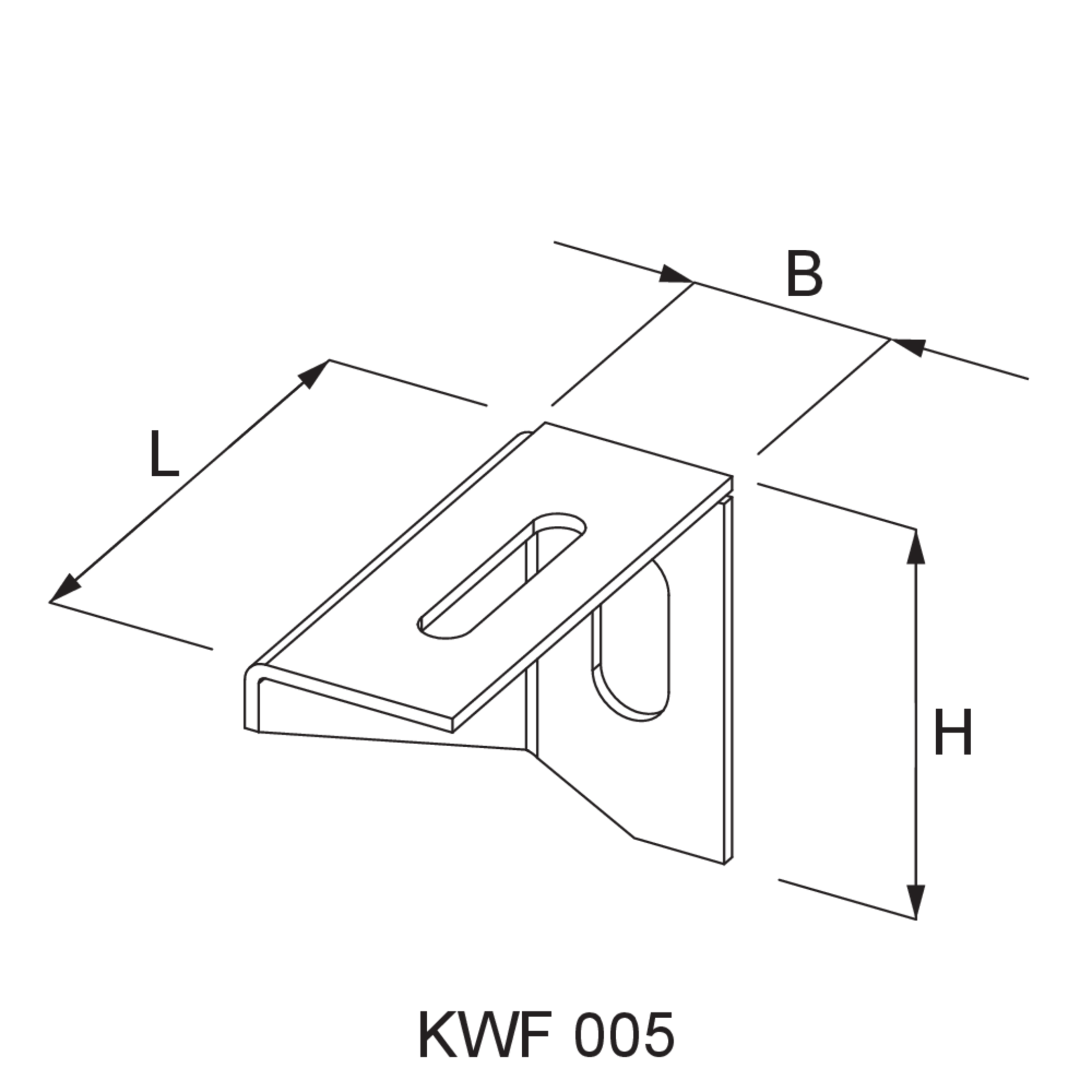

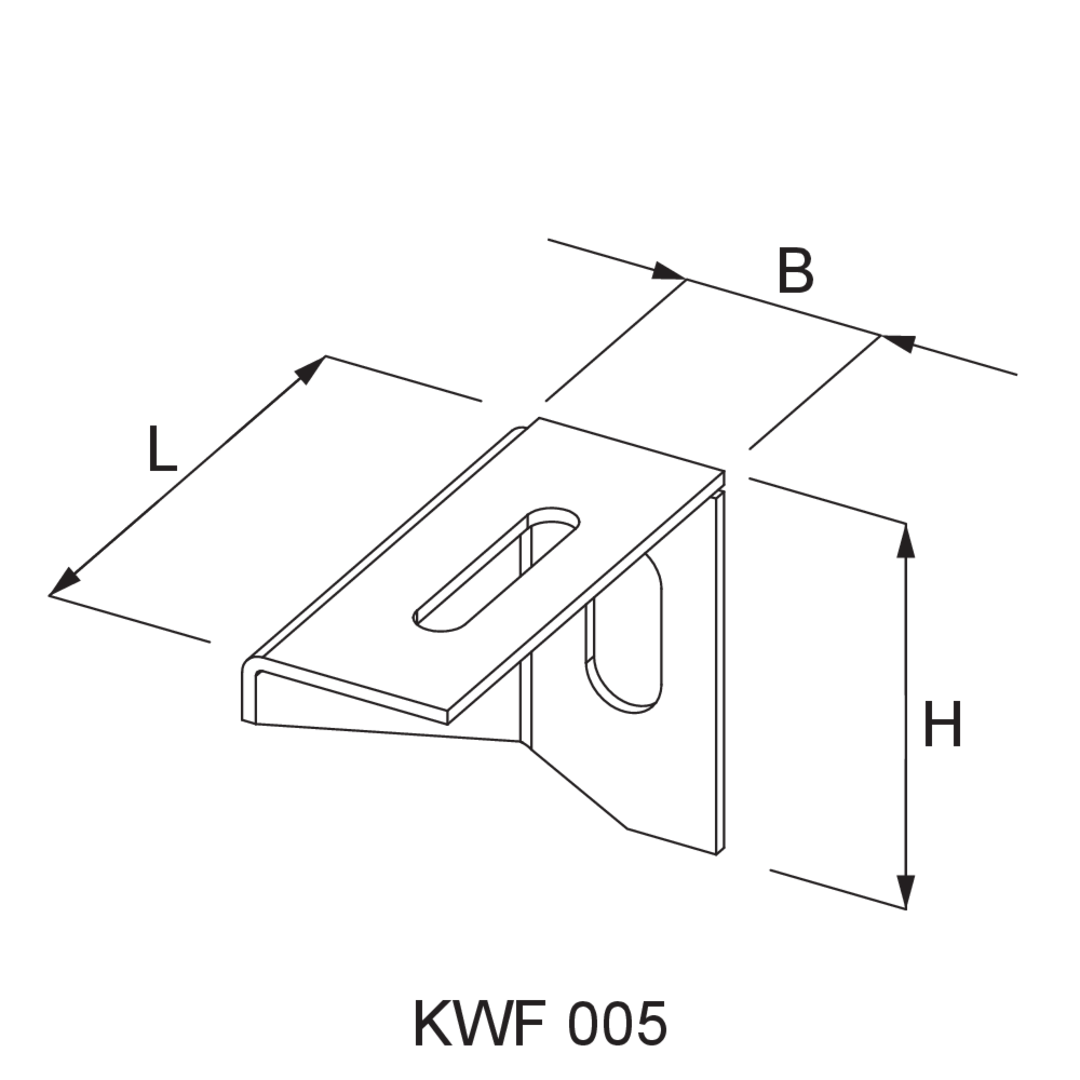

  • KWF 005S
    Wandkonsole gefaltet
    Höhe
    55 mm
    Breite 1
    50 mm
    Breite 2
    70 mm
    Länge
    70 mm
    max. Belastung
    1.20 kN
    Dübel-/Konsollast
    1.61
    Gewicht je Lagermengeneinheit
    0.086 kg
    Included accessories
  • KWF 010S
    Wandkonsole gefaltet
    Höhe
    80 mm
    Breite 1
    100 mm
    Breite 2
    120 mm
    Länge
    120 mm
    max. Belastung
    1.20 kN
    Dübel-/Konsollast
    1.58
    Gewicht je Lagermengeneinheit
    0.210 kg
    Included accessories
  • KWF 020S
    Wandkonsole gefaltet
    Höhe
    80 mm
    Breite 1
    200 mm
    Breite 2
    220 mm
    Länge
    220 mm
    max. Belastung
    1.20 kN
    Dübel-/Konsollast
    2.33
    Gewicht je Lagermengeneinheit
    0.286 kg
    Included accessories
  • KWF 030S
    Wandkonsole gefaltet
    Höhe
    80 mm
    Breite 1
    300 mm
    Breite 2
    320 mm
    Länge
    320 mm
    max. Belastung
    1.20 kN
    Dübel-/Konsollast
    3.15
    Gewicht je Lagermengeneinheit
    0.432 kg
    Included accessories
  • KWF 040S
    Wandkonsole gefaltet
    Höhe
    80 mm
    Breite 1
    400 mm
    Breite 2
    420 mm
    Länge
    420 mm
    max. Belastung
    1.20 kN
    Dübel-/Konsollast
    3.99
    Gewicht je Lagermengeneinheit
    0.497 kg
    Included accessories

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B1

Breite 1

B2

Breite 2

L

Länge

Pmax

max. Belastung

FD/P

Dübel-/Konsollast

G

Gewicht je Lagermengeneinheit

  • KWF 010F
    Wandkonsole gefaltet
    Höhe
    80 mm
    Breite 1
    100 mm
    Breite 2
    120 mm
    Länge
    120 mm
    max. Belastung
    1.20 kN
    Dübel-/Konsollast
    1.58
    Gewicht je Lagermengeneinheit
    0.224 kg
    Included accessories
  • KWF 020F
    Wandkonsole gefaltet
    Höhe
    80 mm
    Breite 1
    200 mm
    Breite 2
    220 mm
    Länge
    220 mm
    max. Belastung
    1.20 kN
    Dübel-/Konsollast
    2.33
    Gewicht je Lagermengeneinheit
    0.305 kg
    Included accessories
  • KWF 030F
    Wandkonsole gefaltet
    Höhe
    80 mm
    Breite 1
    300 mm
    Breite 2
    320 mm
    Länge
    320 mm
    max. Belastung
    1.20 kN
    Dübel-/Konsollast
    3.15
    Gewicht je Lagermengeneinheit
    0.461 kg
    Included accessories
  • KWF 040F
    Wandkonsole gefaltet
    Höhe
    80 mm
    Breite 1
    400 mm
    Breite 2
    420 mm
    Länge
    420 mm
    max. Belastung
    1.20 kN
    Dübel-/Konsollast
    3.99
    Gewicht je Lagermengeneinheit
    0.531 kg
    Included accessories
