KDU 40

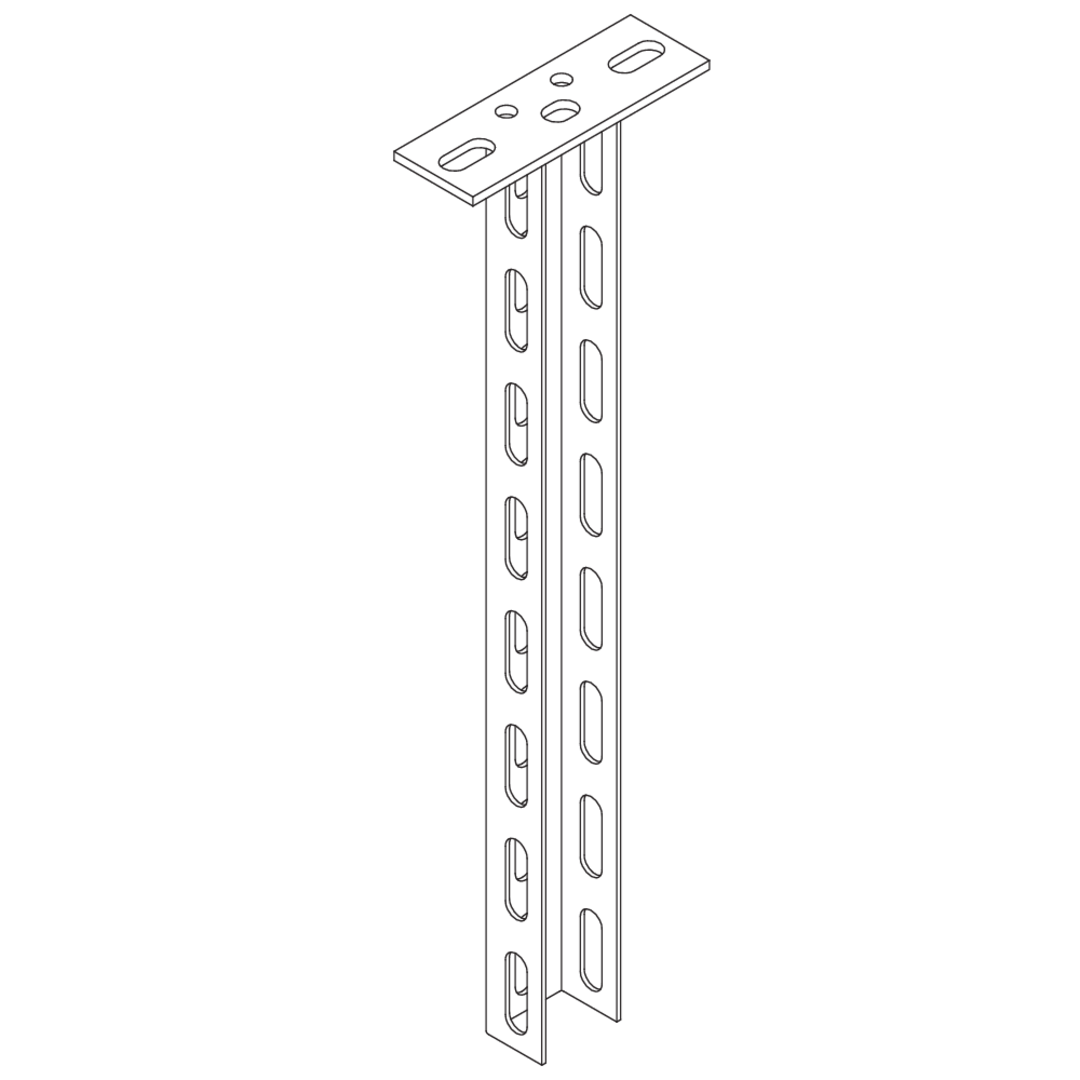

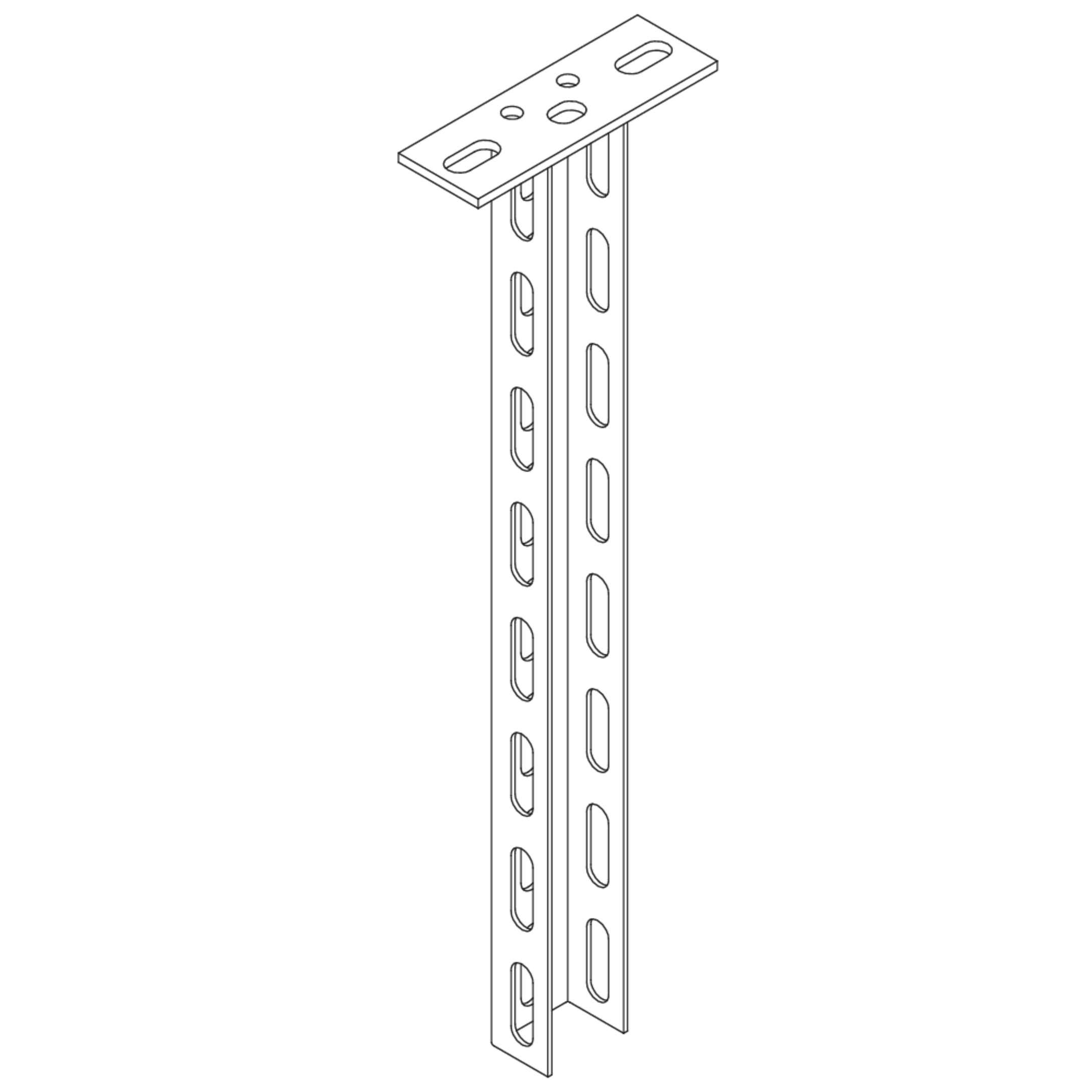

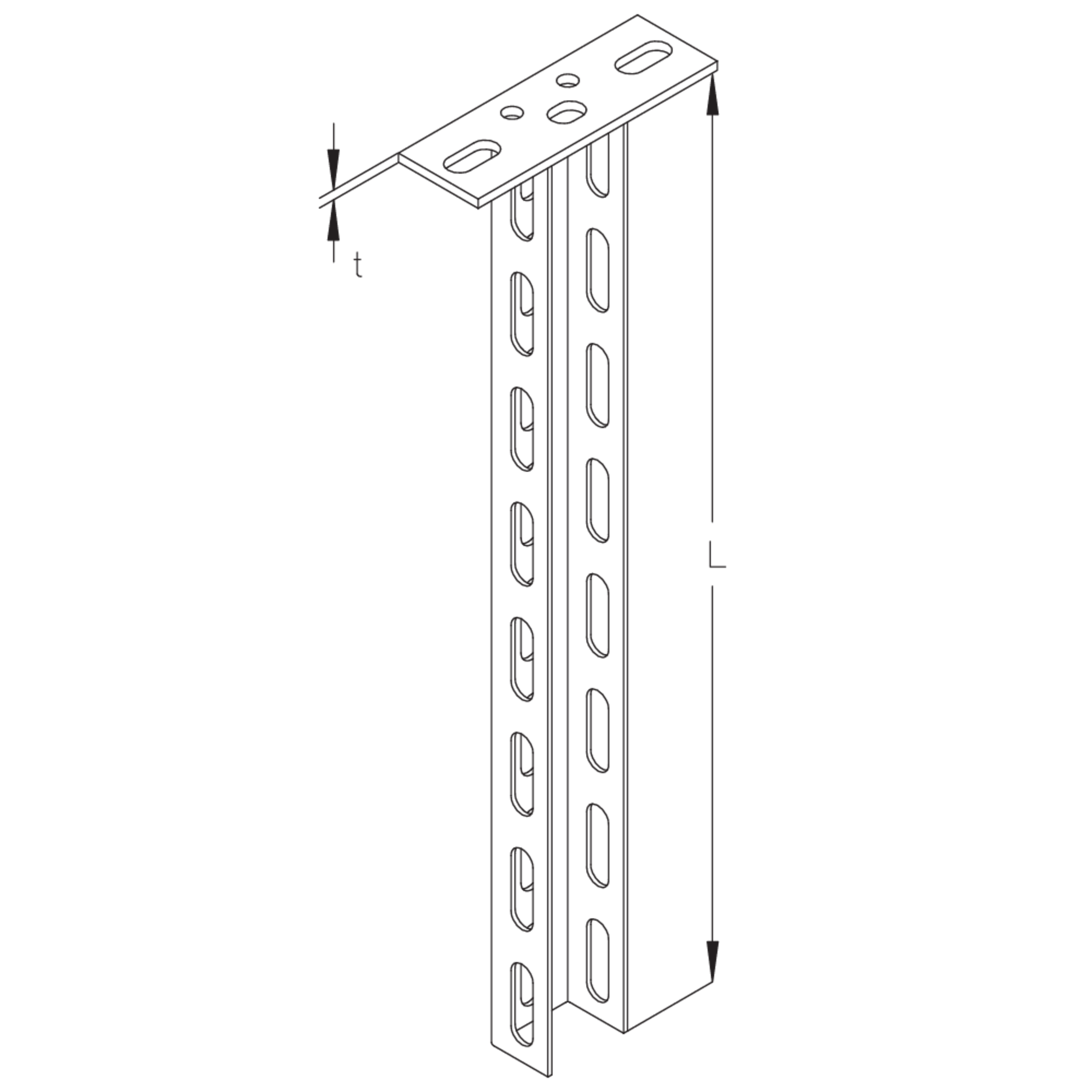

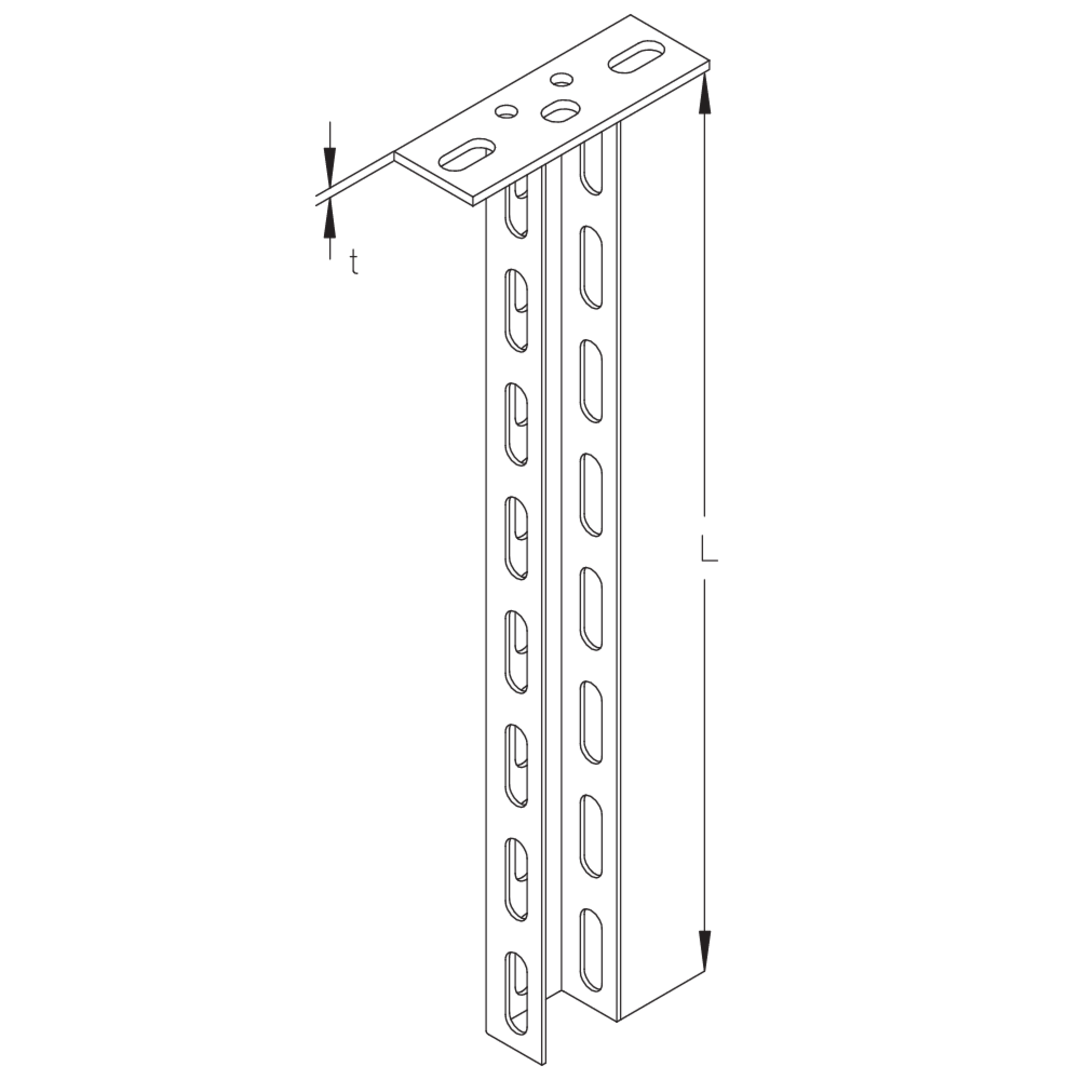

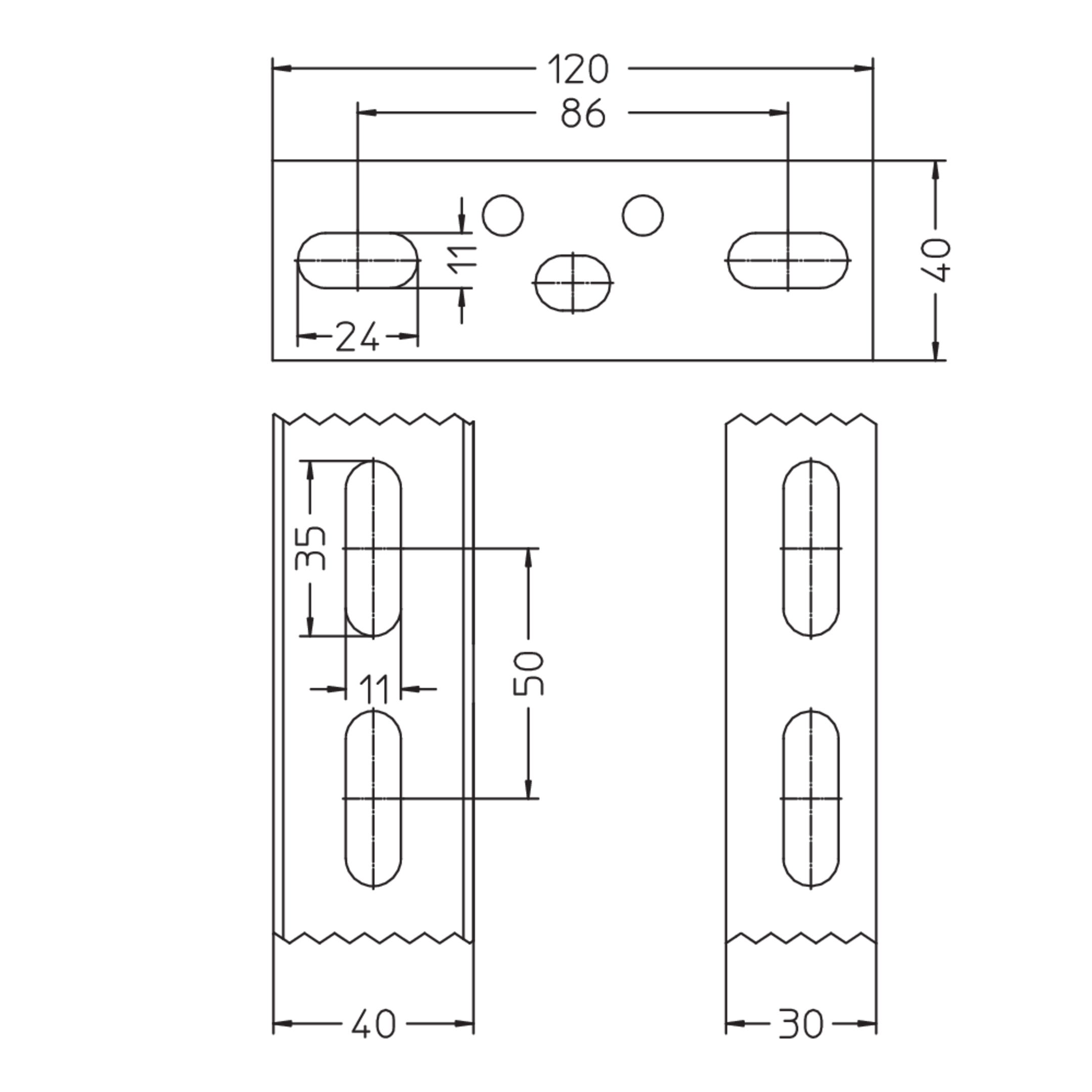

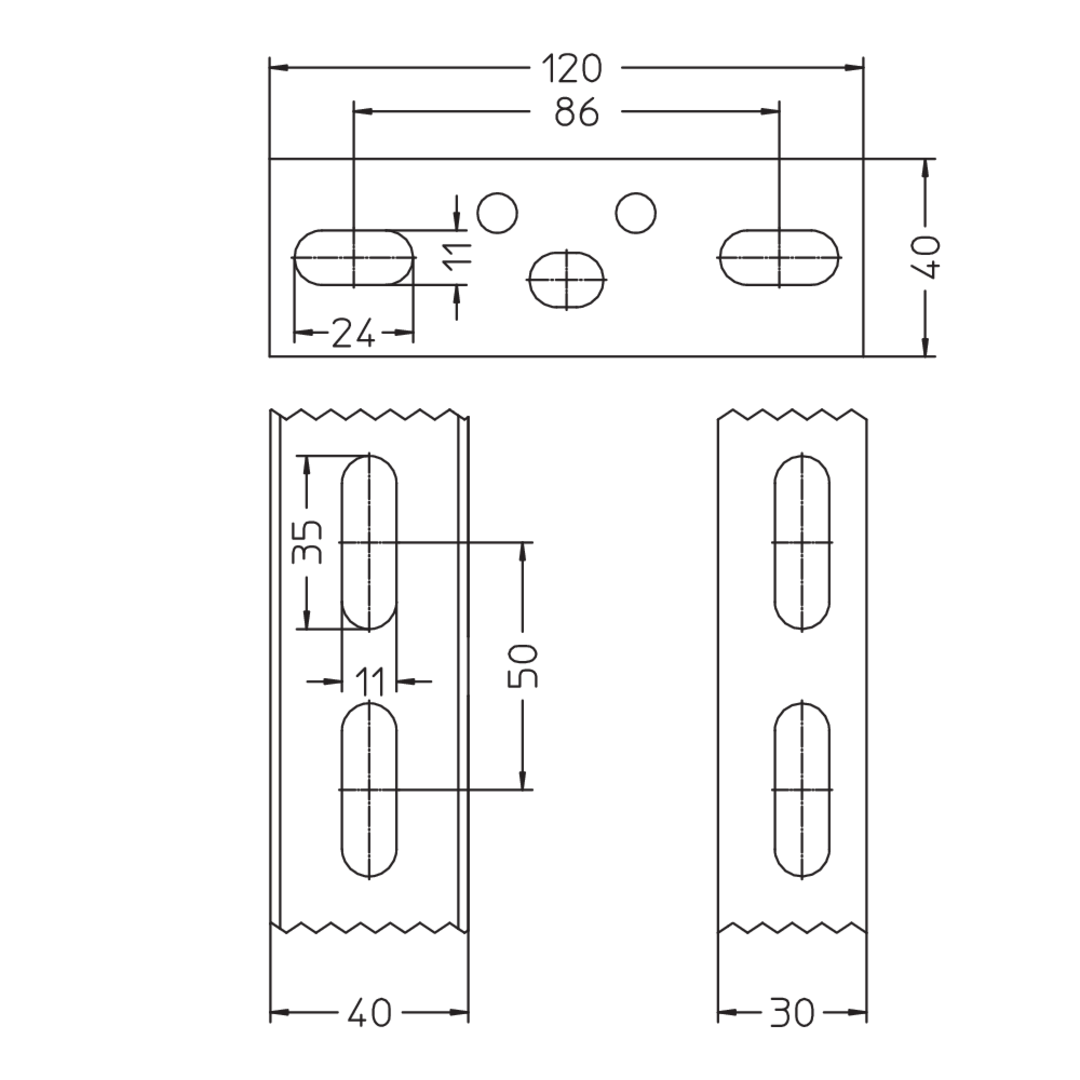

The bracket holder KDU 40 with welded-on top plate (material thickness t) is easy to use as a construction profile due to its continuous, three-sided perforation. It consists of a U profile 40 x 30 mm. A support piece must be used if the bracket is 400 mm long or if the bracket is being mounted in the end zone of the ceiling strut. If no support piece is used, the permissible loads must be reduced by 30%. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. FD/P: Factor for calculating the dowel load FD with actual console load P. The permissible loads are achieved using a support piece.
