JTA W 50/30

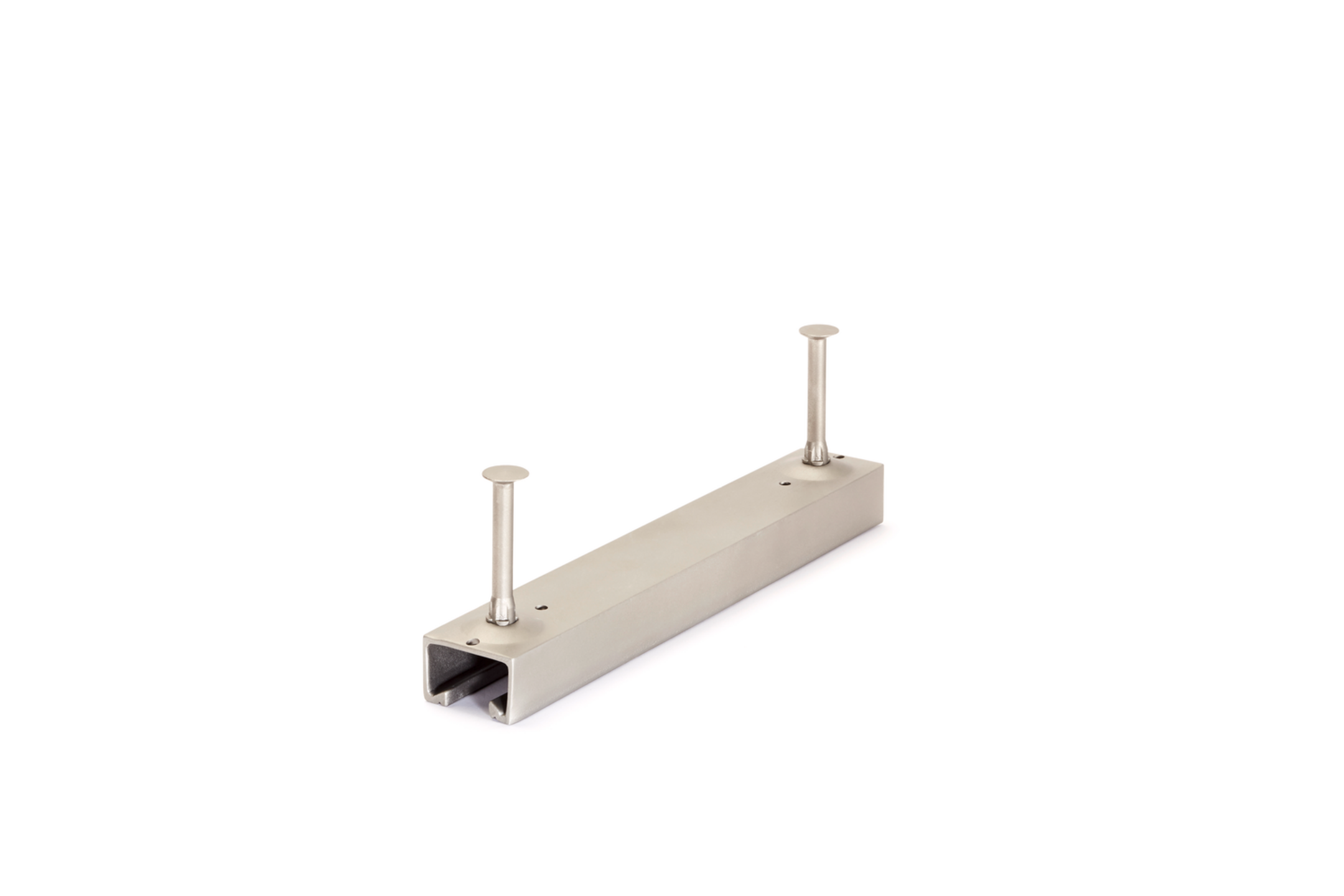

Anchor channel, hot-rolled, with round or I anchor

The anchor channel JTA W 50/30 is approved throughout Europe by ETA-09/0338 and almost worldwide by ICC-ES ESR‐2854. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). It can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JB M10 - JB M20. The profile is 50 mm wide and 30 mm high. The filling is made of polyethylene (PE).

Fire protection
Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
European Technical Assessment: ETA-09/0338
Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

H

installation height

HP

profile height

BP

profile width

L

length

t

Material strength

Number of anchors

G

Weight per storage unit
  • JTAW5030-0150-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    150 mm
    Material strength
    2.75 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.684 kg
    More information
  • JTAW5030-0200-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    200 mm
    Material strength
    2.75 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.864 kg
    More information
  • JTAW5030-0250-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    250 mm
    Material strength
    2.75 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    1.043 kg
    More information
  • JTAW5030-0300-3A-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    300 mm
    Material strength
    2.75 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    1.296 kg
    More information
  • JTAW5030-0300-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    300 mm
    Material strength
    2.75 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    1.223 kg
    More information
  • JTAW5030-0350-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    350 mm
    Material strength
    2.75 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    1.475 kg
    More information
  • JTAW5030-0400-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    400 mm
    Material strength
    2.75 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    1.655 kg
    More information
  • JTAW5030-0550-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    550 mm
    Material strength
    2.75 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    2.193 kg
    More information
  • JTAW5030-0800-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    800 mm
    Material strength
    2.75 mm
    Number of anchors
    4 pcs
    Weight per storage unit
    3.164 kg
    More information
  • JTAW5030-1050-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    1050 mm
    Material strength
    2.75 mm
    Number of anchors
    5 pcs
    Weight per storage unit
    4.135 kg
    More information
  • JTAW5030-3000-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    3000 mm
    Material strength
    2.75 mm
    Number of anchors
    13 pcs
    Weight per storage unit
    11.720 kg
    More information
  • JTAW5030-6000-FVKCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    6000 mm
    Material strength
    2.75 mm
    Number of anchors
    25 pcs
    Weight per storage unit
    3.895 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

installation height

HP

profile height

BP

profile width

L

length

t

Material strength

Number of anchors

G

Weight per storage unit
  • JTAW5030-0150-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    150 mm
    Material strength
    2.75 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.607 kg
    More information
  • JTAW5030-0200-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    200 mm
    Material strength
    2.75 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.772 kg
    More information
  • JTAW5030-0250-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    250 mm
    Material strength
    2.75 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.936 kg
    More information
  • JTAW5030-0300-3A-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    300 mm
    Material strength
    2.75 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    1.108 kg
    More information
  • JTAW5030-0300-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    300 mm
    Material strength
    2.75 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    1.102 kg
    More information
  • JTAW5030-0350-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    350 mm
    Material strength
    2.75 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    1.322 kg
    More information
  • JTAW5030-0400-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    400 mm
    Material strength
    2.75 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    1.487 kg
    More information
  • JTAW5030-0550-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    550 mm
    Material strength
    2.75 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    1.982 kg
    More information
  • JTAW5030-0800-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    800 mm
    Material strength
    2.75 mm
    Number of anchors
    4 pcs
    Weight per storage unit
    2.862 kg
    More information
  • JTAW5030-1050-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    1050 mm
    Material strength
    2.75 mm
    Number of anchors
    5 pcs
    Weight per storage unit
    3.741 kg
    More information
  • JTAW5030-3000-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    3000 mm
    Material strength
    2.75 mm
    Number of anchors
    13 pcs
    Weight per storage unit
    10.616 kg
    More information
  • JTAW5030-6000-A4KCE
    JORDAHL anchor channel W50/30
    installation height
    100 mm
    profile height
    30 mm
    profile width
    50 mm
    length
    6000 mm
    Material strength
    2.75 mm
    Number of anchors
    25 pcs
    Weight per storage unit
    3.529 kg
    More information

Details

  • Fire protection
  • Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
  • European Technical Assessment: ETA-09/0338
