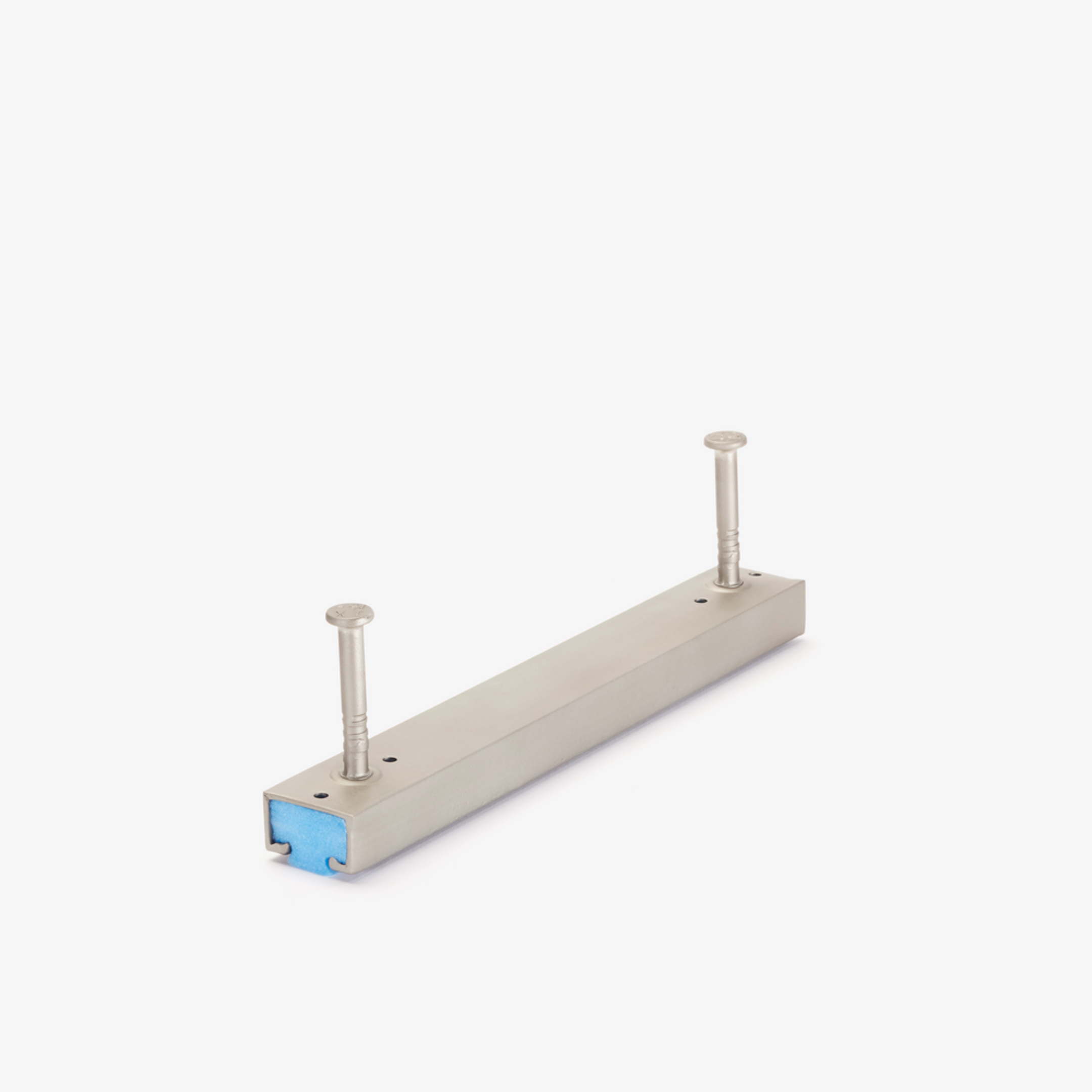

JTA W 40/22

Anchor channel, hot-rolled, with round or I anchor

The anchor channel JTA W 40/22 is approved throughout Europe by ETA-09/0338 and almost worldwide by ICC-ES ESR‐2854. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). It can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JC M10 - JC M16. The profile is 40 mm wide and 22 mm high. The filling is made of polyethylene (PE).

Brandschutz
Umweltproduktdeklaration (EPD): EPD-JDL-20200260-IBB1-DE
Europäische Technische Bewertung: ETA-09/0338
Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

H

HP

BP

L

t

Anzahl der Anker

W

  • JTAW4022-0150-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    150 mm
    2.4 mm
    2 pcs
    0.441 kg
    More information
  • JTAW4022-0200-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    200 mm
    2.4 mm
    2 pcs
    0.558 kg
    More information
  • JTAW4022-0250-3A-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    250 mm
    2.4 mm
    3 pcs
    0.720 kg
    More information
  • JTAW4022-0250-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    250 mm
    2.4 mm
    2 pcs
    0.675 kg
    More information
  • JTAW4022-0300-3A-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    300 mm
    2.4 mm
    3 pcs
    0.837 kg
    More information
  • JTAW4022-0300-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    300 mm
    2.4 mm
    2 pcs
    0.792 kg
    More information
  • JTAW4022-0350-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    350 mm
    2.4 mm
    3 pcs
    0.954 kg
    More information
  • JTAW4022-0400-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    400 mm
    2.4 mm
    3 pcs
    1.071 kg
    More information
  • JTAW4022-0550-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    550 mm
    2.4 mm
    3 pcs
    1.422 kg
    More information
  • JTAW4022-0800-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    800 mm
    2.4 mm
    4 pcs
    2.052 kg
    More information
  • JTAW4022-1050-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    1050 mm
    2.4 mm
    5 pcs
    2.682 kg
    More information
  • JTAW4022-3000-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    3000 mm
    2.4 mm
    13 pcs
    7.607 kg
    More information
  • JTAW4022-6000-FVKCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    6000 mm
    2.4 mm
    25 pcs
    2.528 kg
    More information

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Article

H

HP

BP

L

t

Anzahl der Anker

W

  • JTAW4022-0150-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    150 mm
    2.4 mm
    2 pcs
    0.403 kg
    More information
  • JTAW4022-0200-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    200 mm
    2.4 mm
    2 pcs
    0.511 kg
    More information
  • JTAW4022-0250-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    250 mm
    2.4 mm
    2 pcs
    0.618 kg
    More information
  • JTAW4022-0300-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    300 mm
    2.4 mm
    2 pcs
    0.726 kg
    More information
  • JTAW4022-0350-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    350 mm
    2.4 mm
    3 pcs
    0.874 kg
    More information
  • JTAW4022-0400-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    400 mm
    2.4 mm
    3 pcs
    0.982 kg
    More information
  • JTAW4022-0550-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    550 mm
    2.4 mm
    3 pcs
    1.304 kg
    More information
  • JTAW4022-0800-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    800 mm
    2.4 mm
    4 pcs
    1.883 kg
    More information
  • JTAW4022-1050-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    1050 mm
    2.4 mm
    5 pcs
    2.461 kg
    More information
  • JTAW4022-3000-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    3000 mm
    2.4 mm
    13 pcs
    6.981 kg
    More information
  • JTAW4022-6000-A4KCE
    JORDAHL anchor channel W40/22
    90 mm
    22 mm
    40 mm
    6000 mm
    2.4 mm
    25 pcs
    2.320 kg
    More information

Details

  • Brandschutz
  • Umweltproduktdeklaration (EPD): EPD-JDL-20200260-IBB1-DE
  • Europäische Technische Bewertung: ETA-09/0338

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

  • CABR certificate anchor channels JTA, JZA and JXA

    Zertifikat

    PDF, 6 MB

    en
    Download
  • EXPERT Software Anchor channels

    EXPERT Software Anchor channels

    ZIP, 186 MB

    de en

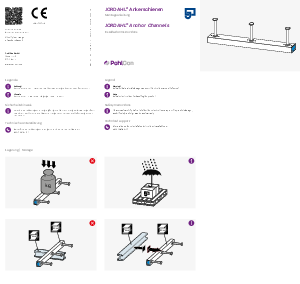

  • Installation instructions Anchor Channels JTA

    Montageanleitung

    PDF, 1 MB

    de en

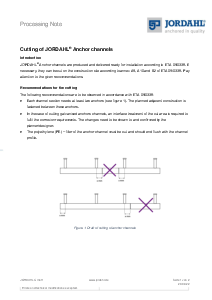

  • Processing note cutting of anchor channels JTA and JXA

    Erklärung

    PDF, 90 KB

    de en

  • EPD Environmental Product Declaration Channel Systems

    Erklärung

    PDF, 2 MB

    de en

  • Declaration of Performance Anchor Channels JTA JXA JZA

    Erklärung

    PDF, 28 KB

    de en

  • ETA 09/0338 Anchor Channels JTA JXA JZA

    Zulassung

    PDF, 2 MB

    de en

  • Technische Information Channels and Accessories

    Technische Information

    PDF, 14 MB

    de en

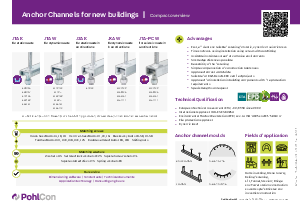

  • Anchor Channels for new buildings

    Compact overview

    PDF, 797 KB

    de en

BIM- and CAD-Data

  • BIM Data Anchor Channels JTA (IFC)

    BIM Data Anchor Channels JTA (IFC)

    ZIP, 2 MB

    de en
  • CAD Details Anchor Channels JTA

    CAD Details Anchor Channels JTA

    ZIP, 19 MB

    de en
  • BIM Data Connection Straps JVB

    BIM Data Connection Straps JVB

    ZIP, 715 KB

    de en
  • Assembly instruction für device cup UG45

    Assembly instruction für device cup UG45

    ZIP, 15 MB

    de en
