JGM C

Hook-head locking plate, threaded plate for spaced mounting

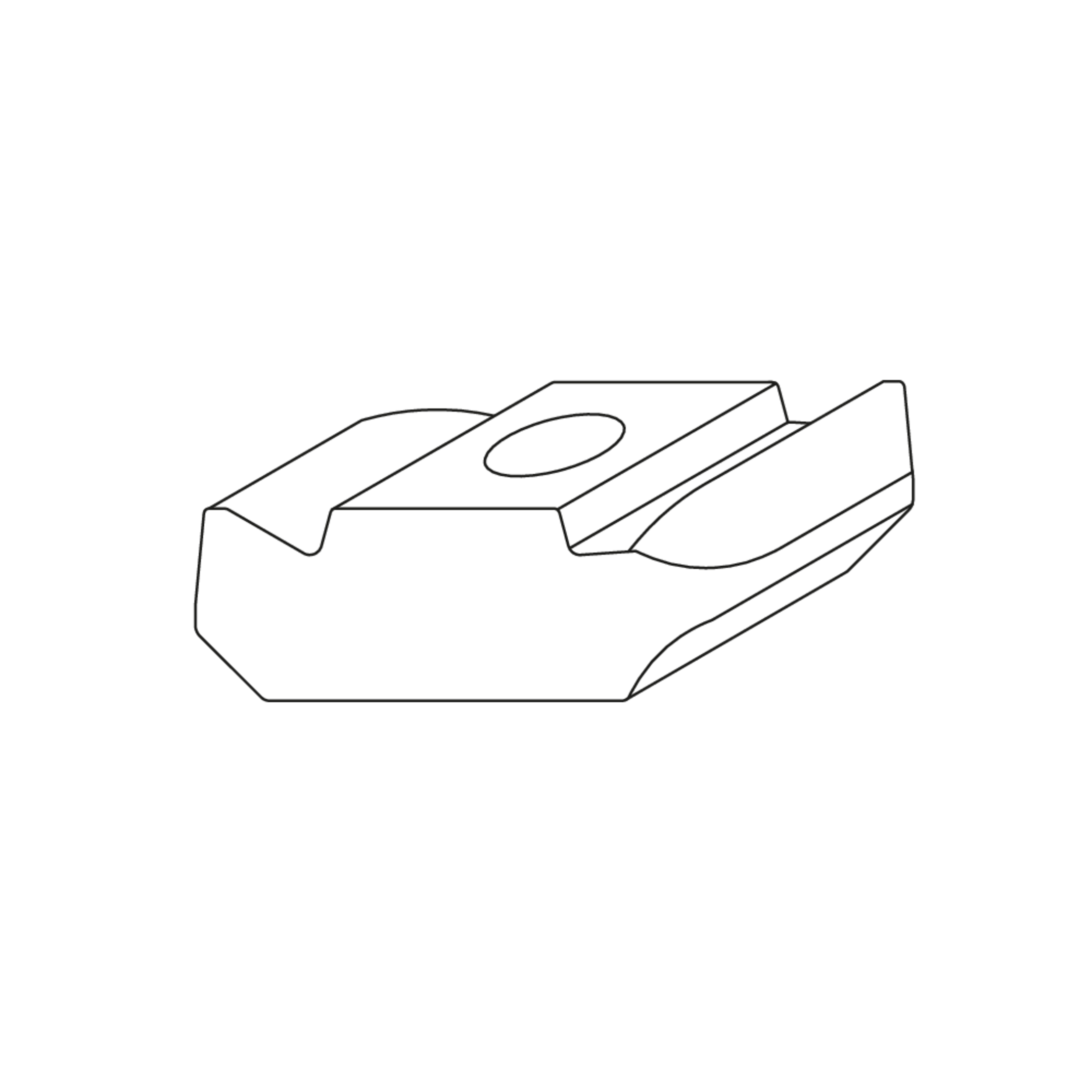

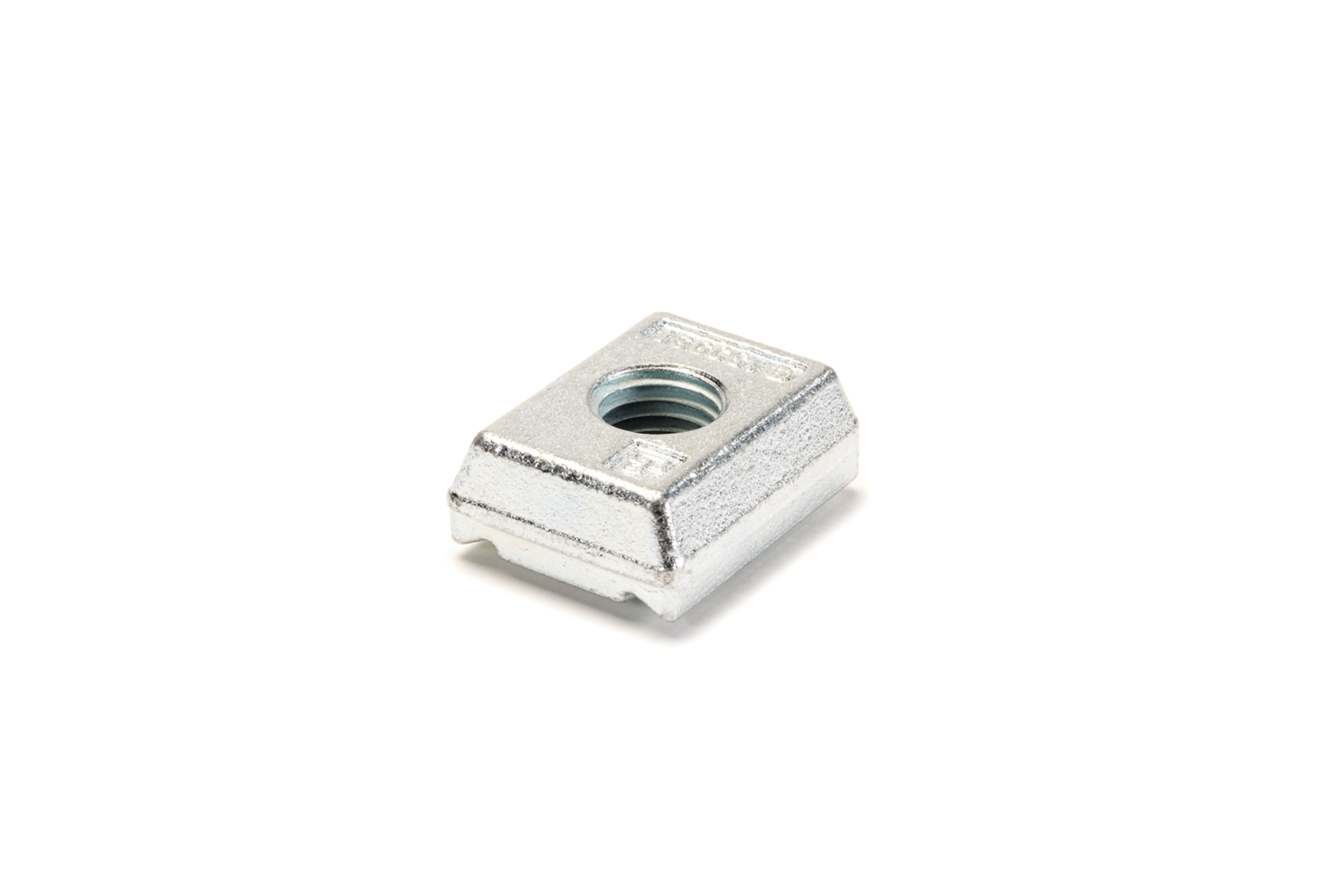

JGM C hook-head locking plates are threaded plates that are inserted at any point of the corresponding anchor or mounting channel. The threaded hole is centred by turning the nut 90° after inserting or tipping in the nut. Locking plates are used for spaced mounting with long bolts or threaded rods. When screwing in the threaded rod, the locking plates tilt and create an efficient connection without requiring additional locking. The JGM C hook-head locking plates are forged to an exact shape and therefore cannot turn back. They are available in galvanised steel or stainless steel (A4) and in various threads to fit numerous rails.

Variants

Article

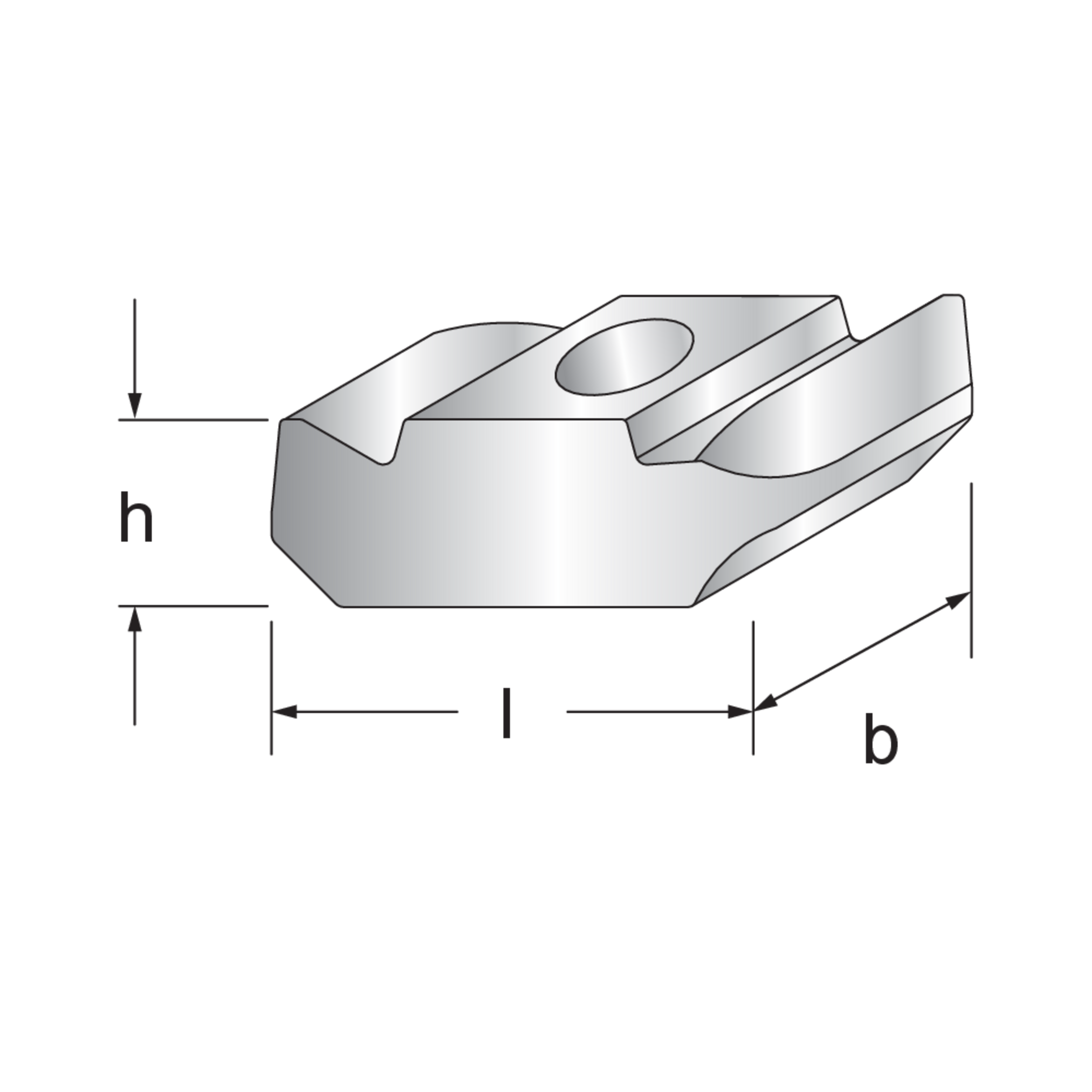

H

Höhe

B

Breite

L

Länge

MG

Gewindemaß (metrisch)

G

Gewicht je Lagermengeneinheit

  • GGC10 A4
    JORDAHL Gleitmutter JGM C M10
    Höhe
    11 mm
    Breite
    17 mm
    Länge
    32 mm
    Gewindemaß (metrisch)
    M10
    Gewicht je Lagermengeneinheit
    0.035 kg
  • GGC10 GV
    JORDAHL Gleitmutter JGM C M10
    Höhe
    11 mm
    Breite
    17 mm
    Länge
    32 mm
    Gewindemaß (metrisch)
    Gewicht je Lagermengeneinheit
    0.035 kg
  • GGC12 A4
    JORDAHL Gleitmutter JGM C M12
    Höhe
    11 mm
    Breite
    17 mm
    Länge
    32 mm
    Gewindemaß (metrisch)
    M12
    Gewicht je Lagermengeneinheit
    0.033 kg
  • GGC12 GV
    JORDAHL Gleitmutter JGM C M12
    Höhe
    11 mm
    Breite
    17 mm
    Länge
    32 mm
    Gewindemaß (metrisch)
    Gewicht je Lagermengeneinheit
    0.033 kg
  • GGC16 A4
    JORDAHL Gleitmutter JGM C M16
    Höhe
    13 mm
    Breite
    23 mm
    Länge
    32 mm
    Gewindemaß (metrisch)
    M16
    Gewicht je Lagermengeneinheit
    0.039 kg
  • GGC16 GV
    JORDAHL Gleitmutter JGM C M16
    Höhe
    13 mm
    Breite
    23 mm
    Länge
    32 mm
    Gewindemaß (metrisch)
    M16
    Gewicht je Lagermengeneinheit
    0.039 kg
  • GGC6 A4
    JORDAHL Gleitmutter JGM C M6
    Höhe
    11 mm
    Breite
    17 mm
    Länge
    32 mm
    Gewindemaß (metrisch)
    M6
    Gewicht je Lagermengeneinheit
    0.040 kg
  • GGC6 GV
    JORDAHL Gleitmutter JGM C M6
    Höhe
    11 mm
    Breite
    17 mm
    Länge
    32 mm
    Gewindemaß (metrisch)
    M6
    Gewicht je Lagermengeneinheit
    0.040 kg
  • GGC8 A4
    JORDAHL Gleitmutter JGM C M8
    Höhe
    11 mm
    Breite
    17 mm
    Länge
    32 mm
    Gewindemaß (metrisch)
    M8
    Gewicht je Lagermengeneinheit
    0.038 kg
  • GGC8 GV
    JORDAHL Gleitmutter JGM C M8
    Höhe
    11 mm
    Breite
    17 mm
    Länge
    32 mm
    Gewindemaß (metrisch)
    M8
    Gewicht je Lagermengeneinheit
    0.038 kg
