JTA W 40+

Anchor channel, hot-rolled, with round or I anchor

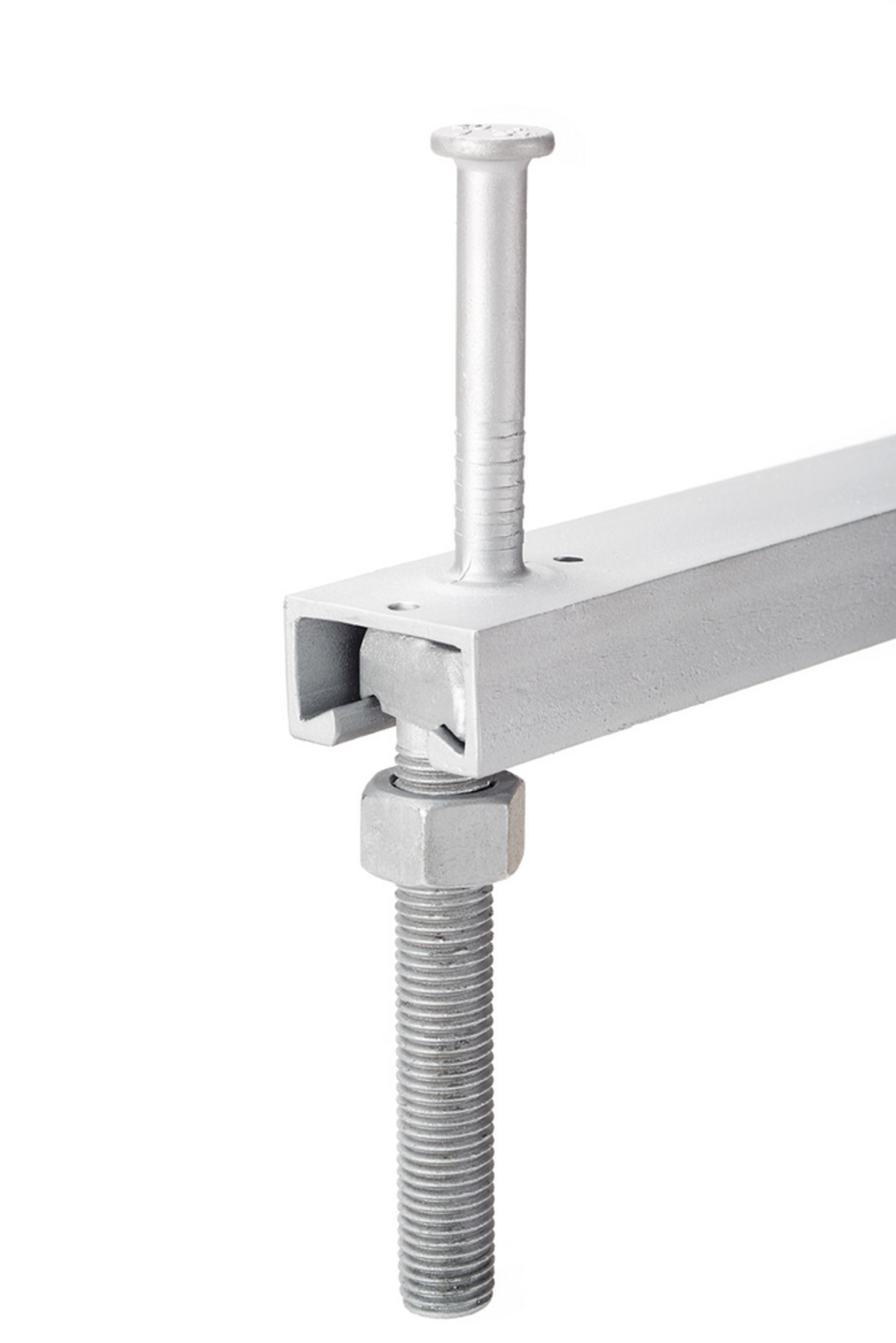

The anchor channel JTA W 40+ is approved throughout Europe by ETA-09/0338 and almost worldwide by ICC-ES ESR‐2854. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). It can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JC M10 - JC M16. The profile is 40 mm wide and 22 mm high. The filling is made of polyethylene (PE).

Brandschutz
Umweltproduktdeklaration (EPD): EPD-JDL-20200260-IBB1-DE
Europäische Technische Bewertung: ETA-09/0338
Get in touch Download datasheet

Variants

steel, batch/hot-dip galvanized

Article

H

HP

BP

L

t

Anzahl der Anker

W

  • JTAW40+0150-FVKCE
    JORDAHL anchor channel W40+
    100 mm
    22 mm
    40 mm
    150 mm
    2.4 mm
    2 pcs
    0.488 kg
