JAI-A

Elevator insulation

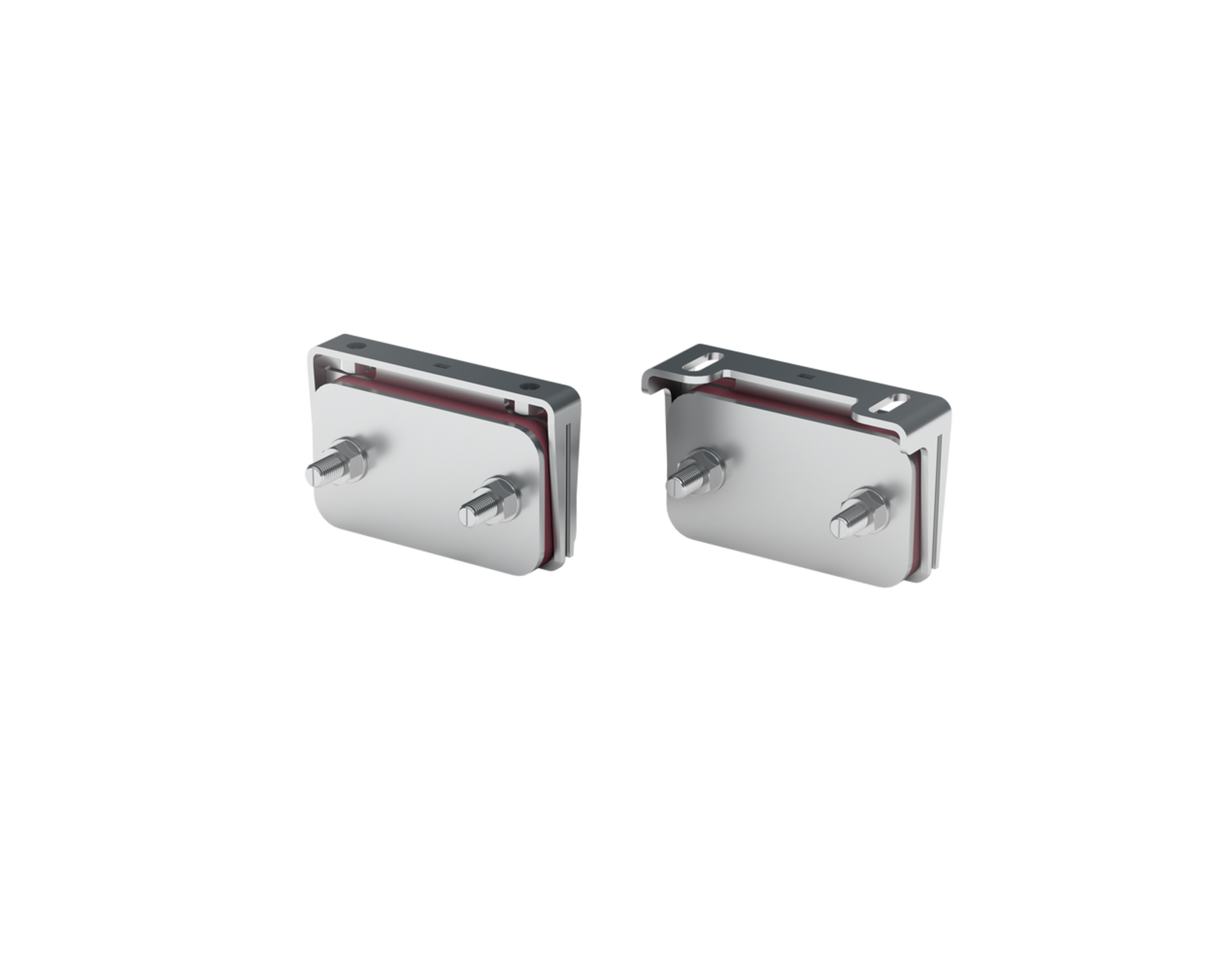

The standard elevator insulation JAI-A consists of several layers of steel and elastomer plates and the associated hook-head t-bolts. It is usually attached to the JTA W anchor channel. Mounting is flexible either using a round hole connection or, in the adjustable version, via a slotted connection. The load-bearing capacity of JAI-A elevator insulation is determined in accordance with the TÜV certification, taking into account the deformation criterion for guide rails according to EN 81-20.

Bauart geprüft: 01/208/FB/19/7077
Get in touch Download datasheet

Variants

Article

H

height

B

width

L

length

G

Weight per storage unit
  • JAI-A1-JB16 GV
    JORDAHL Elevator insulation A1, JB M16
    120 mm
    95 mm
    192 mm
    3.671 kg
    More information
  • JAI-A1-JC16 GV
    JORDAHL Elevator Insulation A1, JC M16
    120 mm
    92 mm
    192 mm
    3.569 kg
    More information
  • JAI-A1J-JB16 GV
    JORDAHL Elevator Insulation A1J, JB M16
    120 mm
    95 mm
    192 mm
    3.742 kg
    More information
  • JAI-A1J-JC16 GV
    JORDAHL Elevator Insulation A1J, JC M16
    120 mm
    92 mm
    192 mm
    3.640 kg
    More information

Details

  • Bauart geprüft: 01/208/FB/19/7077

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en

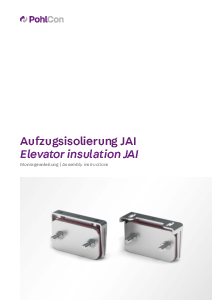

  • Installation Instruction Elevator Insulation JAI

    Montageanleitung

    PDF, 437 KB

    de en

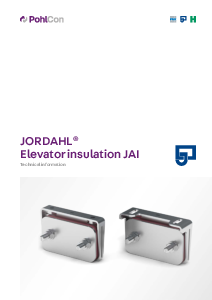

  • Elevator Insulation JAI - Technical Information

    Technische Information

    PDF, 1 MB

    de en

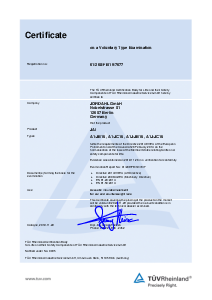

  • TÜV Voluntary Type Test JAI

    Zertifikat

    PDF, 238 KB

    de en

BIM- and CAD-Data

  • BIM Data Elevator Insulation JAI (IFC)

    BIM Data Elevator Insulation JAI (IFC)

    ZIP, 1 MB

    de en
  • CAD Details Elevator Insulation JAI (DWG)

    CAD Details Elevator Insulation JAI (DWG)

    DWG Format JORDAHL® Elevator insulation JAI-A, JAI-R and JAI-L

    ZIP, 4 MB

    de en
  • BIM Data Elevator Insulation JAI (RFA)

    BIM Data Elevator Insulation JAI (RFA)

    ZIP, 813 KB

    de en
