DKSL

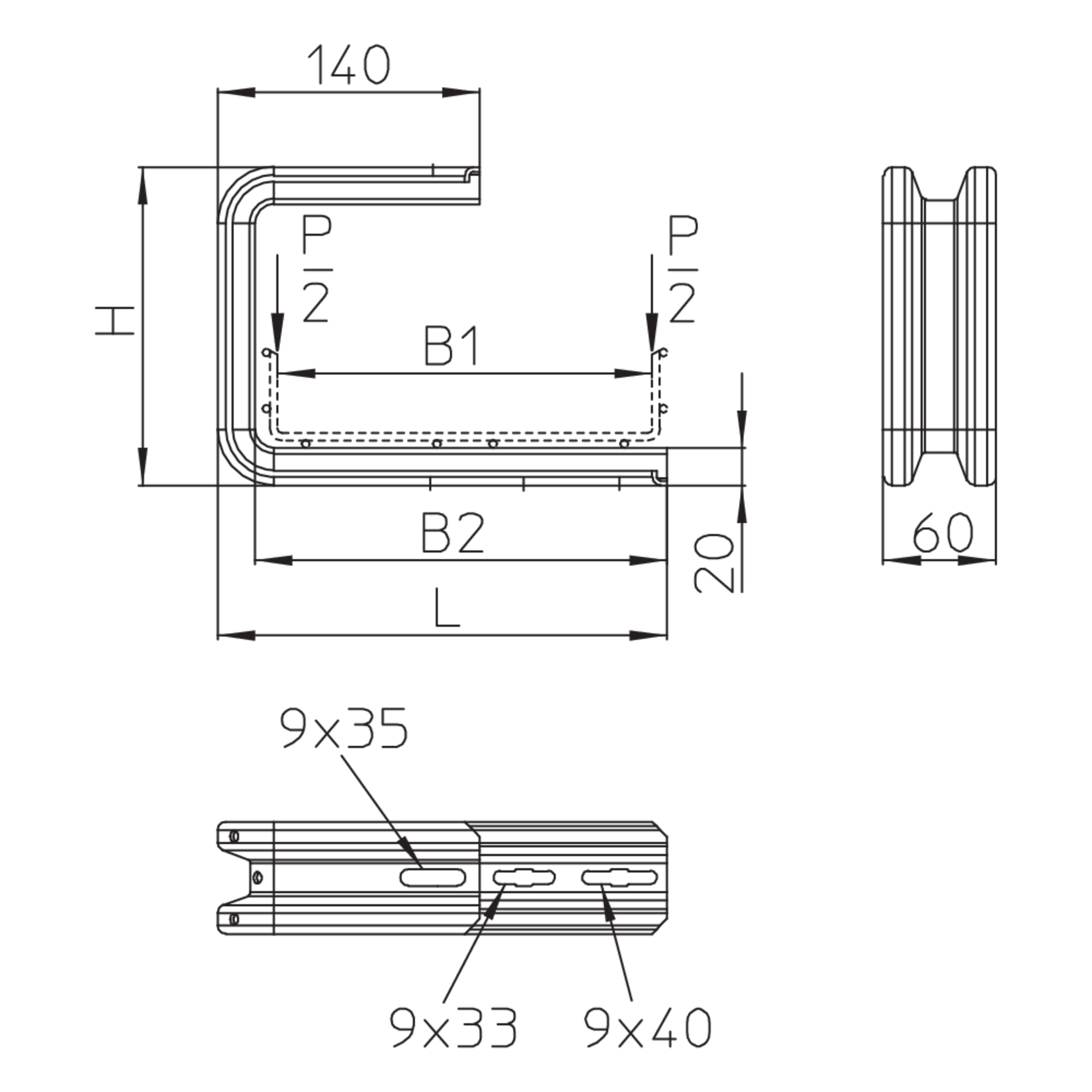

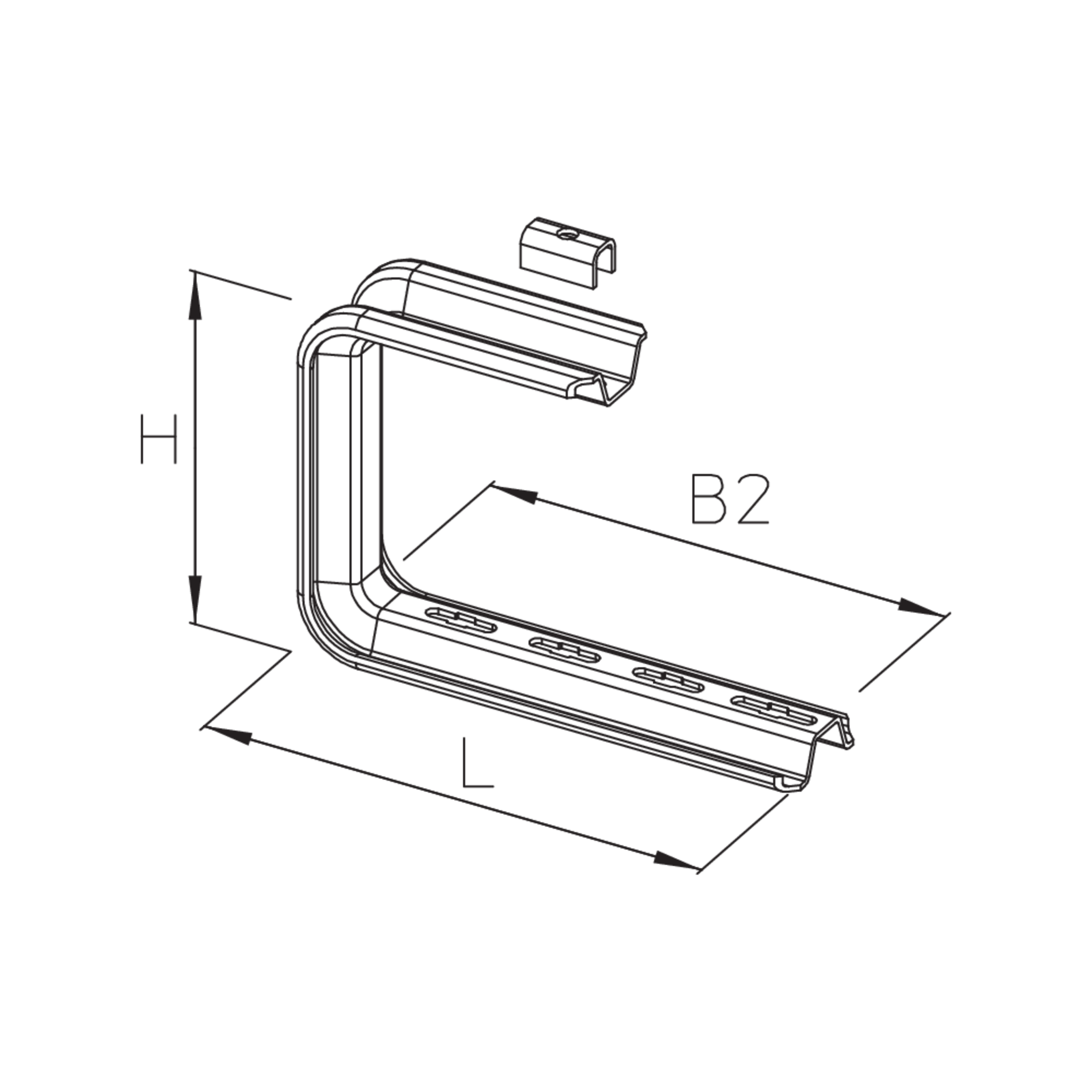

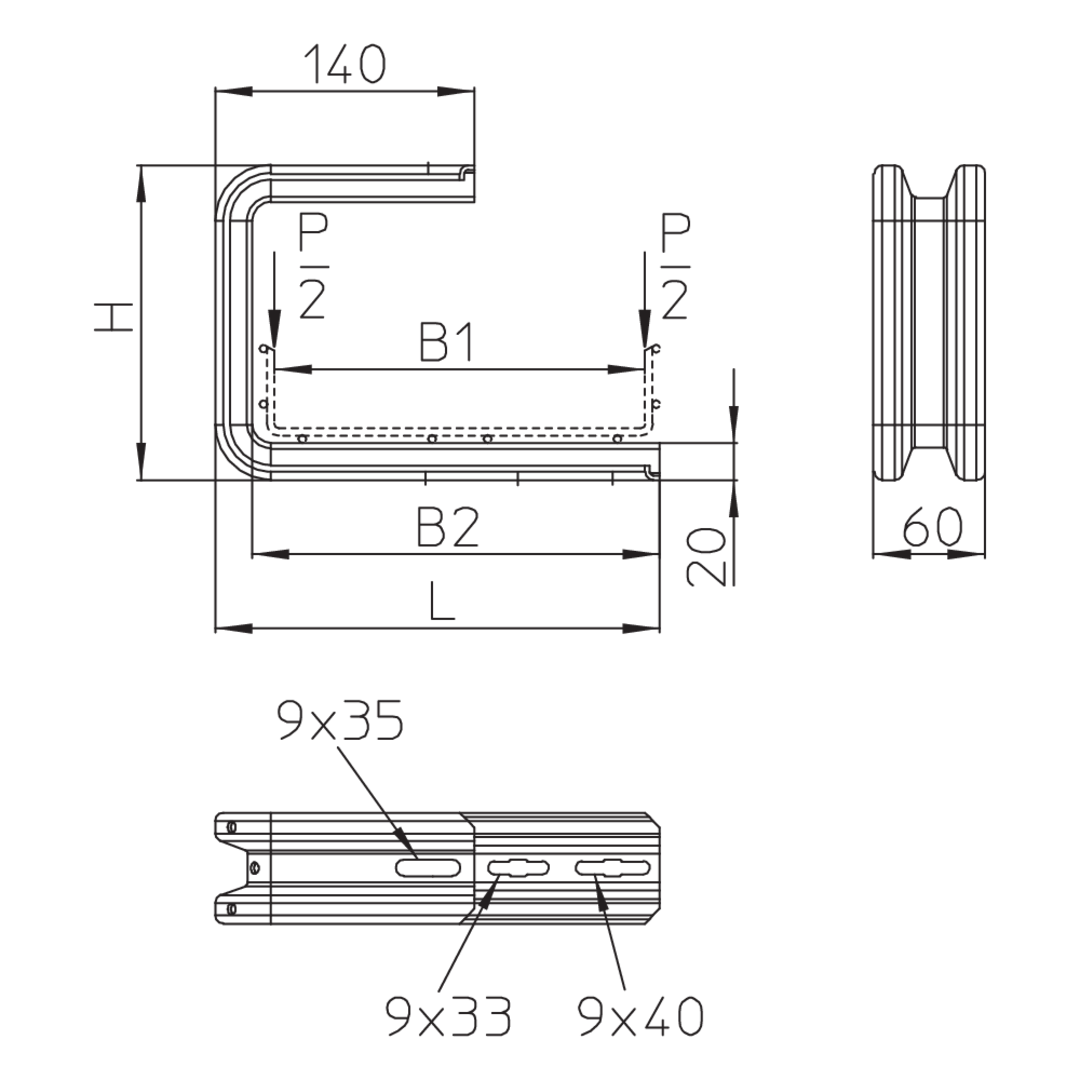

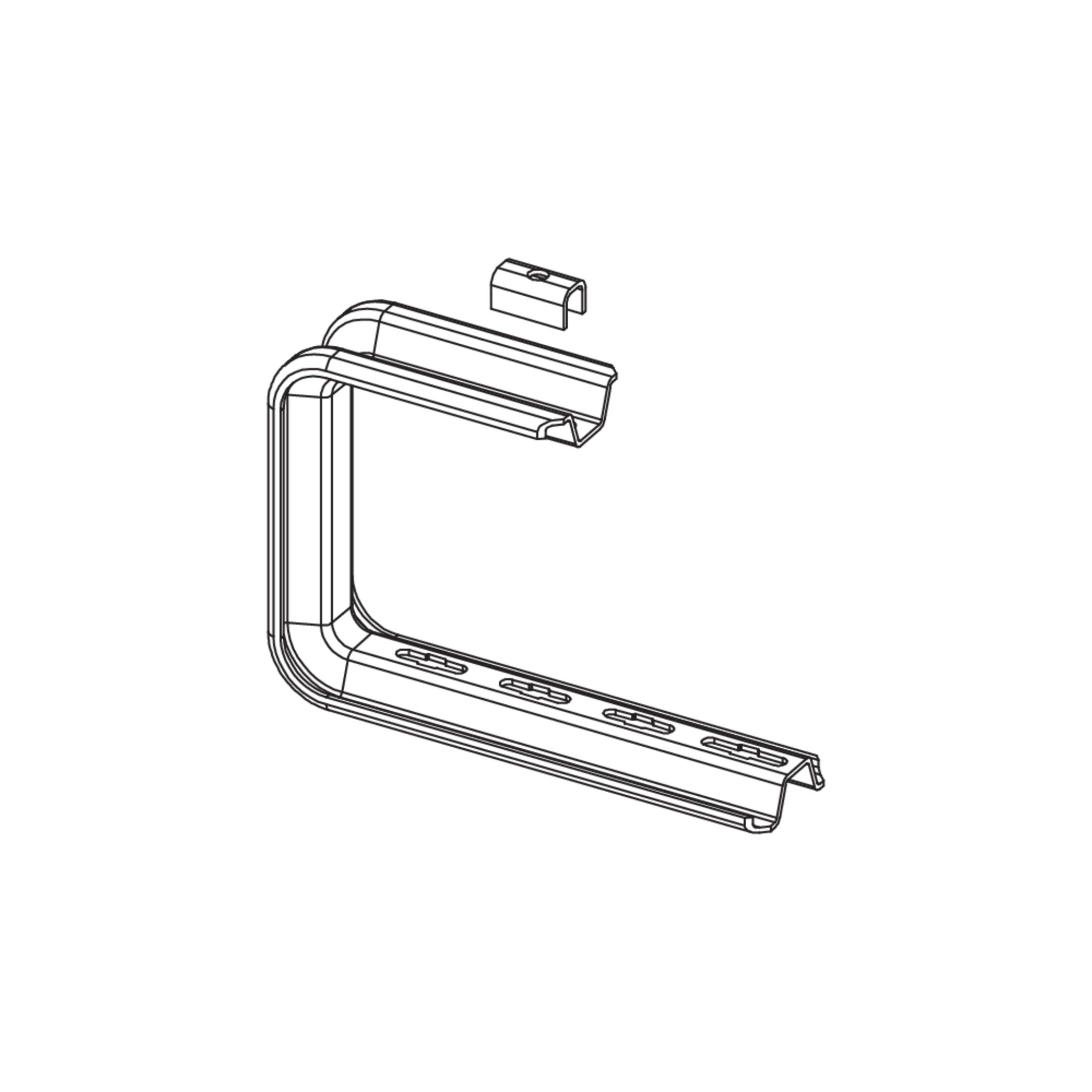

The ceiling bracket DKSL consists of a centrally perforated W/trapezoidal profile 60 x 20 x 2.5 mm and is intended for loads of up to 1.28 kN. The system is ideal for suspending mesh cable trays and cable trays up to 400 mm wide. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. The KSL-SP spacer must be installed to prevent deformation of the profile due to the preload force of the fastening element. FD/P: factor for calculating the dowel load FD with the actual bracket load P or the sum of the actual bracket loads. The stated load values only apply when the product is being mounted as a fixed ceiling bracket.
