BKA 100

Floor duct branch, height = 100 mm

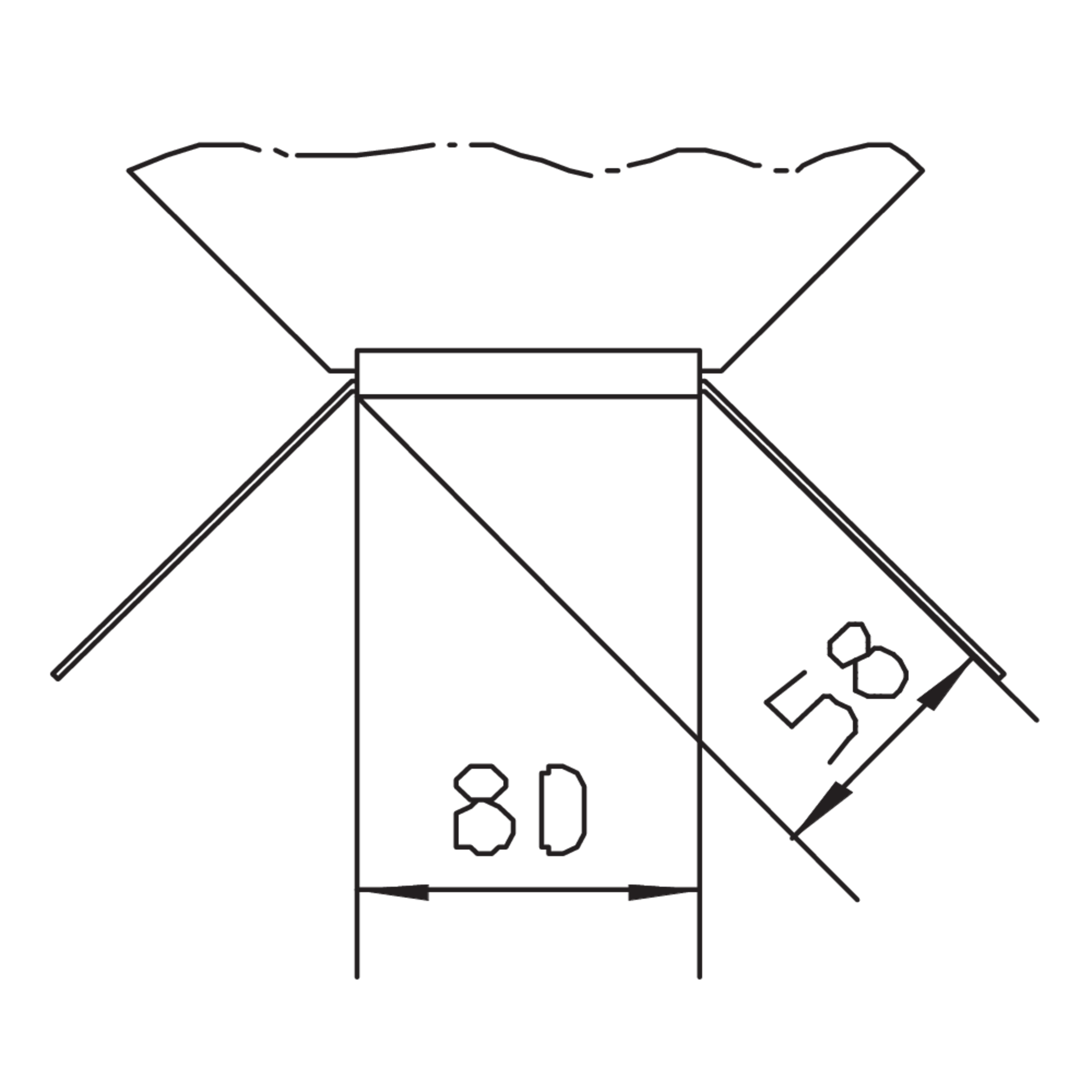

The floor duct branch BKA 100 with integrated connectors allows the direction of cable routing to be changed horizontally by 90°. It is 100 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The branch is inserted between two floor ducts. The branching floor duct can then be pushed in.

Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

B

t

W

W

Included accessories

  • BKA 100-10S
    Floor duct branch, 90° T piece,
    100 mm
    100 mm
    2.00 mm
    90°
    2.924 kg
    Included accessories
    More information
  • BKA 100-15S
    Floor duct branch, 90° T piece,
    100 mm
    150 mm
    2.00 mm
    90°
    3.324 kg
    Included accessories
    More information
  • BKA 100-20S
    Floor duct branch, 90° T piece,
    100 mm
    200 mm
    2.00 mm
    90°
    3.824 kg
    Included accessories
    More information
  • BKA 100-30S
    Floor duct branch, 90° T piece,
    100 mm
    300 mm
    2.00 mm
    90°
    5.064 kg
    Included accessories
    More information
  • BKA 100-40S
    Floor duct branch, 90° T piece,
    100 mm
    400 mm
    2.00 mm
    90°
    6.654 kg
    Included accessories
    More information
  • BKA 100-50S
    Floor duct branch, 90° T piece,
    100 mm
    500 mm
    2.00 mm
    90°
    8.504 kg
    Included accessories
    More information
  • BKA 100-60S
    Floor duct branch, 90° T piece,
    100 mm
    600 mm
    2.00 mm
    90°
    10.714 kg
    Included accessories
    More information

Details

    Advantages

    • Changes the cable routing direction horizontally in the form of a branch of 90°.
    • Cable-friendly guide
