BK 100

Floor duct, height = 100 mm

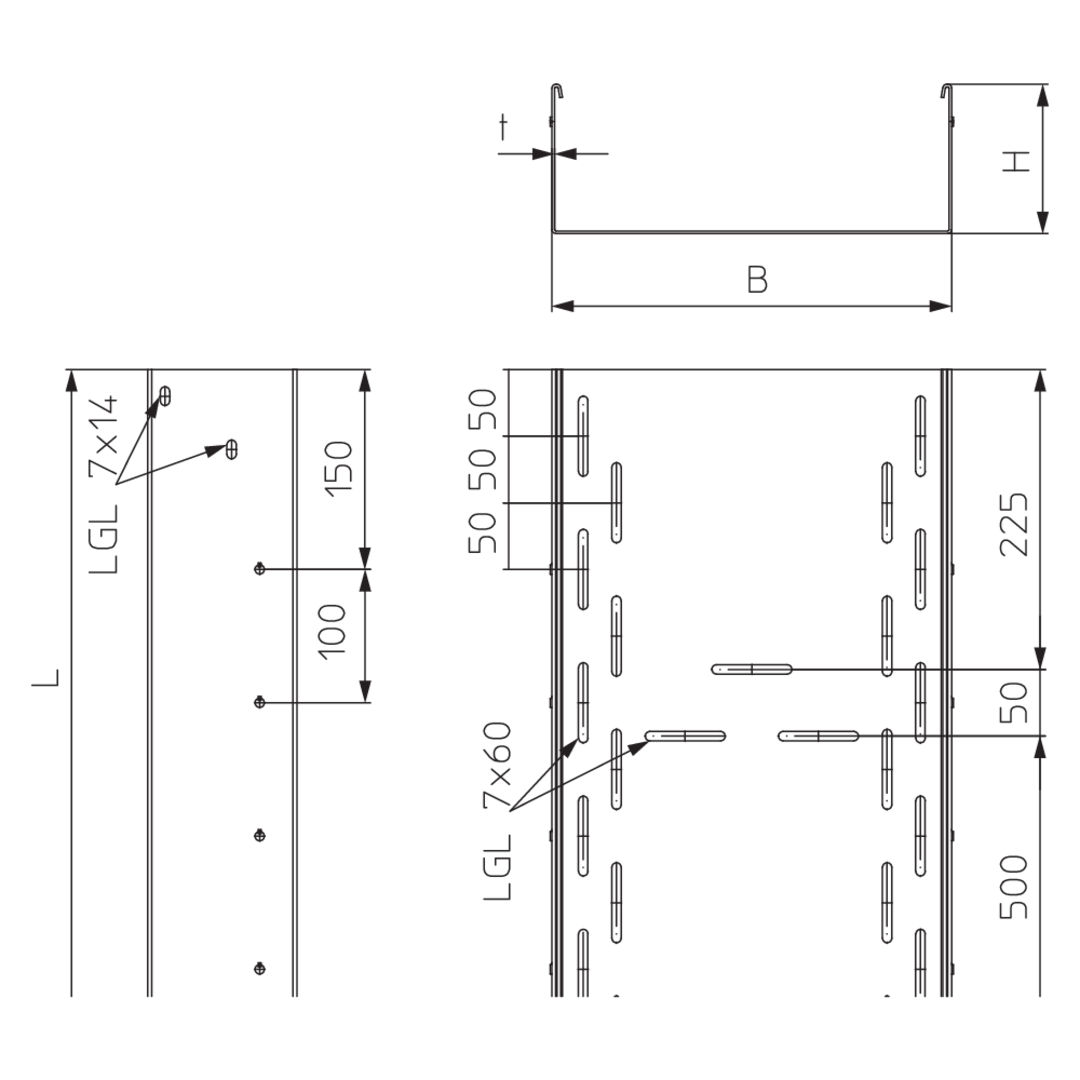

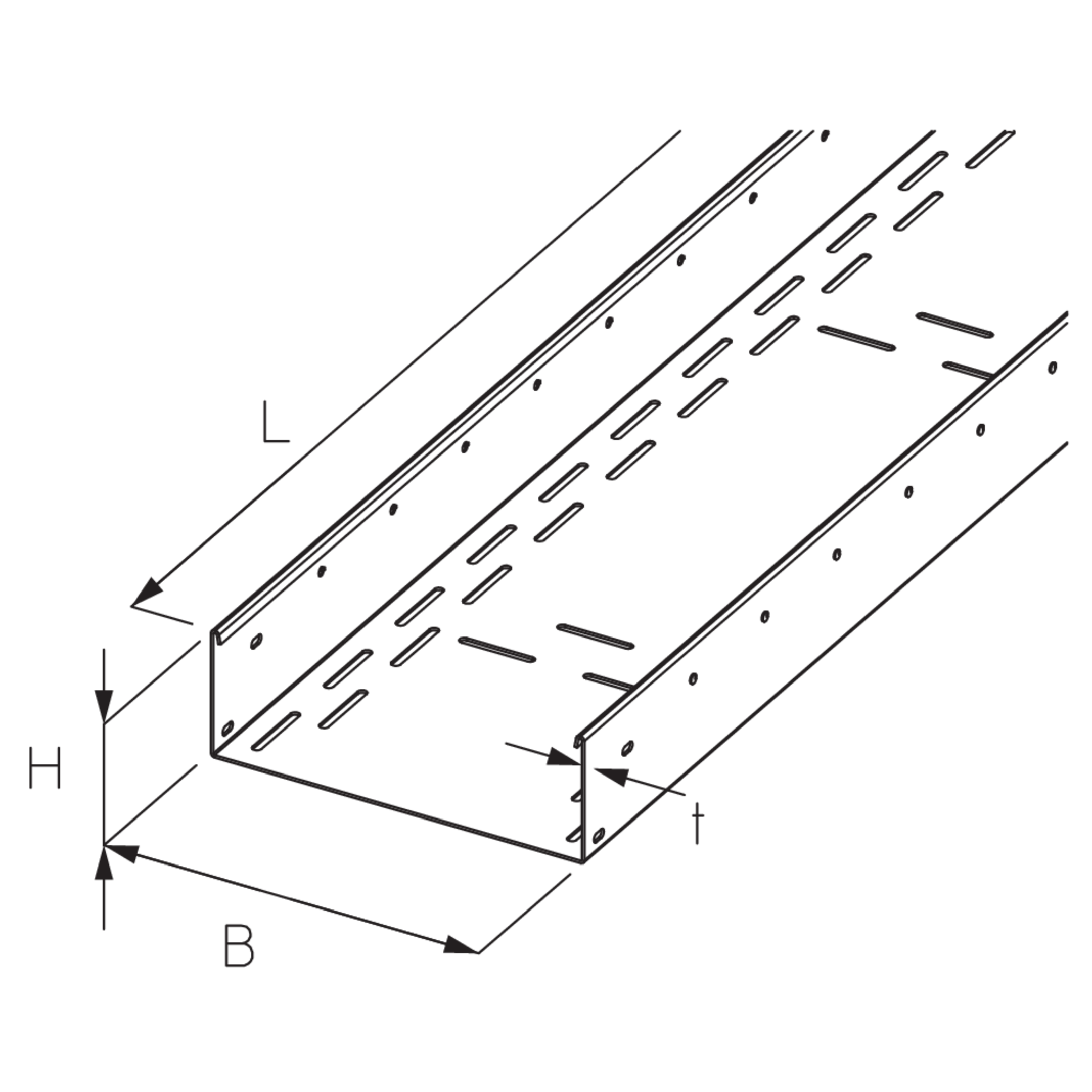

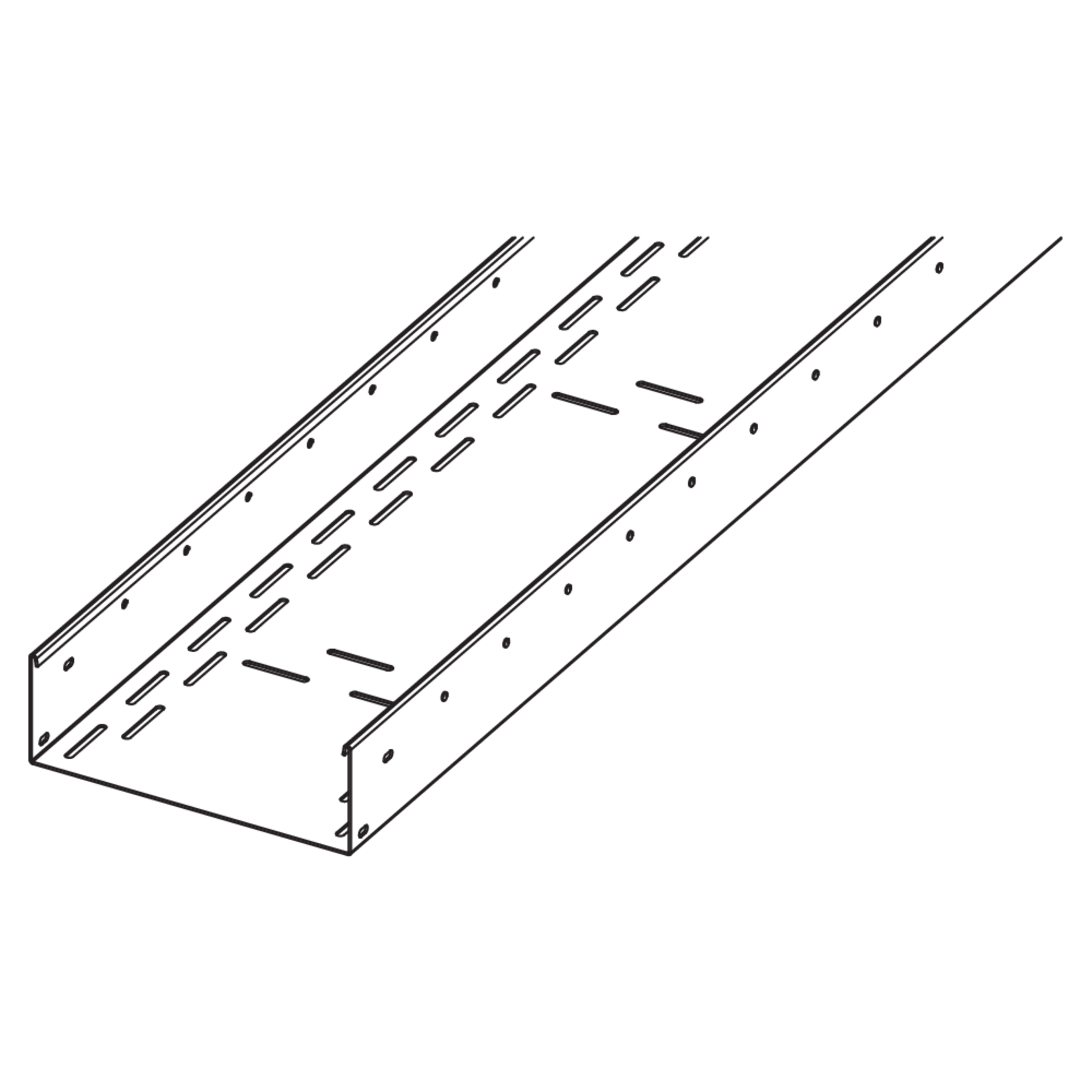

BK 100 floor ducts are made from sendzimir hot-dip galvanised steel and have sides 100 mm high and 100 to 600 mm wide. They are 3000, 1500 or 1000 mm long. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. A maximum compartment size of 200 mm must not be exceeded. BK 100 floor ducts have pre-stamped knock-out slugs on the sides spaced at 100 mm intervals for individual fastening of e.g. a potential equalisation terminal block.

Load requirements according to: DIN EN 50085
Slip resistance and slip resistance according to: DGUV 108-003 (BGR 181)
Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

H

Höhe

B

Breite

L

Länge

t

Materialstärke

G

Gewicht je Lagermengeneinheit

Rutschhemmung und Rutschsicherheit gemäß

  • BK 1-100-10S
    Bodenkanal,
    100 mm
    100 mm
    1000 mm
    2.00 mm
    4.880 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1-100-15S
    Bodenkanal,
    100 mm
    150 mm
    1000 mm
    2.00 mm
    5.647 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1-100-20S
    Bodenkanal,
    100 mm
    200 mm
    1000 mm
    2.00 mm
    6.316 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1-100-30S
    Bodenkanal,
    100 mm
    300 mm
    1000 mm
    2.00 mm
    7.874 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1-100-40S
    Bodenkanal,
    100 mm
    400 mm
    1000 mm
    2.00 mm
    9.418 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1-100-50S
    Bodenkanal,
    100 mm
    500 mm
    1000 mm
    2.00 mm
    10.962 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1-100-60S
    Bodenkanal,
    100 mm
    600 mm
    1000 mm
    2.00 mm
    12.506 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1.5-100-10S
    Bodenkanal,
    100 mm
    100 mm
    1500 mm
    2.00 mm
    7.325 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1.5-100-15S
    Bodenkanal,
    100 mm
    150 mm
    1500 mm
    2.00 mm
    8.477 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1.5-100-20S
    Bodenkanal,
    100 mm
    200 mm
    1500 mm
    2.00 mm
    9.574 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1.5-100-30S
    Bodenkanal,
    100 mm
    300 mm
    1500 mm
    2.00 mm
    11.809 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1.5-100-40S
    Bodenkanal,
    100 mm
    400 mm
    1500 mm
    2.00 mm
    14.126 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1.5-100-50S
    Bodenkanal,
    100 mm
    500 mm
    1500 mm
    2.00 mm
    16.442 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 1.5-100-60S
    Bodenkanal,
    100 mm
    600 mm
    1500 mm
    2.00 mm
    18.759 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 100-10S
    Bodenkanal,
    100 mm
    100 mm
    3000 mm
    2.00 mm
    14.661 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 100-15S
    Bodenkanal,
    100 mm
    150 mm
    3000 mm
    2.00 mm
    16.864 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 100-20S
    Bodenkanal,
    100 mm
    200 mm
    3000 mm
    2.00 mm
    18.946 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 100-30S
    Bodenkanal,
    100 mm
    300 mm
    3000 mm
    2.00 mm
    23.617 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 100-40S
    Bodenkanal,
    100 mm
    400 mm
    3000 mm
    2.00 mm
    28.250 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 100-50S
    Bodenkanal,
    100 mm
    500 mm
    3000 mm
    2.00 mm
    32.883 kg
    DGUV 108-003 (BGR 181)
    More information
  • BK 100-60S
    Bodenkanal,
    100 mm
    600 mm
    3000 mm
    2.00 mm
    37.516 kg
    DGUV 108-003 (BGR 181)
    More information

Details

  • Load requirements according to: DIN EN 50085
  • Slip resistance and slip resistance according to: DGUV 108-003 (BGR 181)
