B

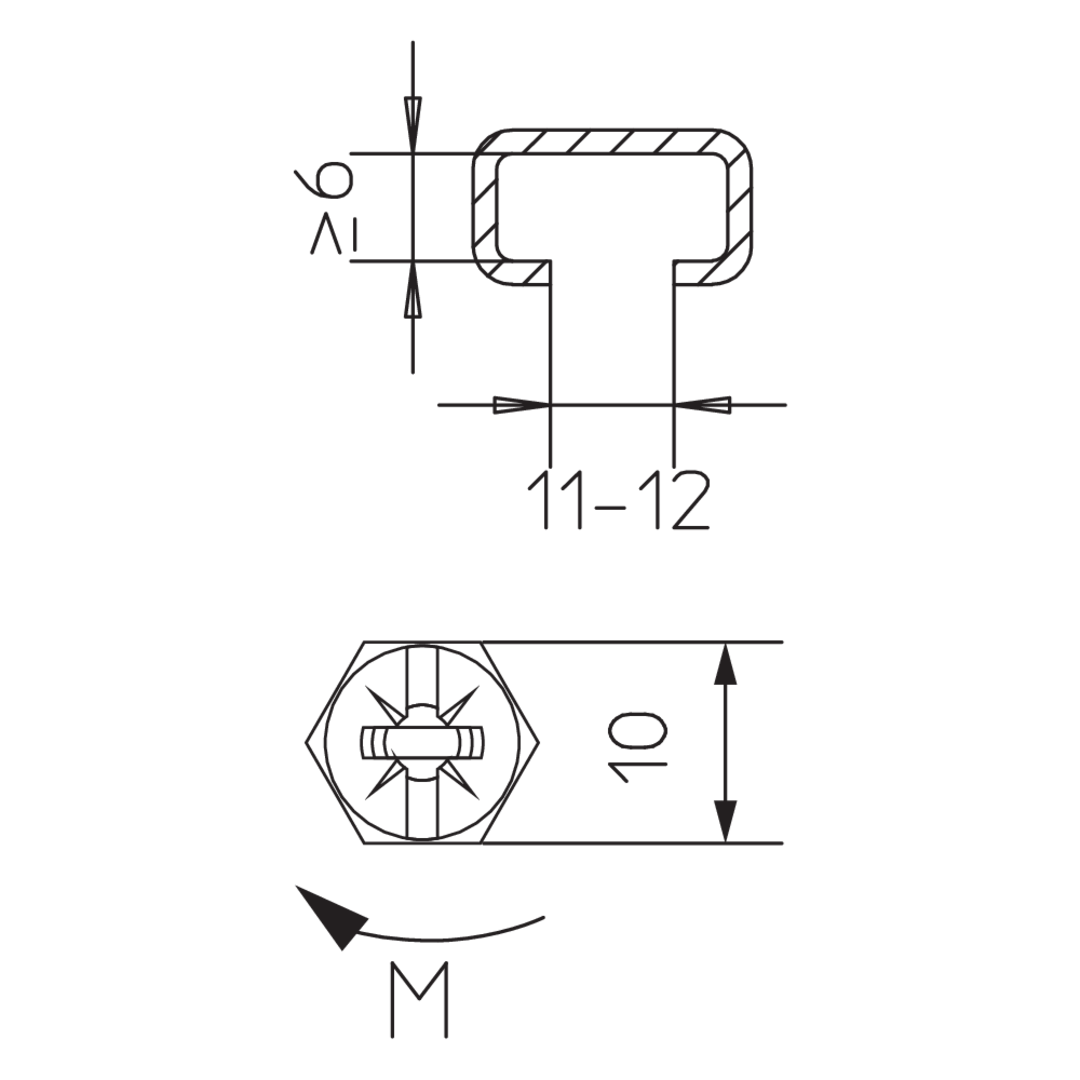

Cable clamp for fastening to C profile rails

The B cable clamp with full-surface pressure trough can guide cables with a maximum diameter of 70 mm. It is suitable for attachment to C profile rails with a slot width of 11-12 mm. On request, a GW counter trough can be fitted for improved cable support. Different materials and surfaces ensure that the corresponding requirements for different areas of application are fulfilled.

The article is also available with lock nuts. This prevents the clamp from unintentionally coming loose. Lock nuts must be specified separately when ordering.

Get in touchDownload datasheet

Variants

steel, zinc plated

Article

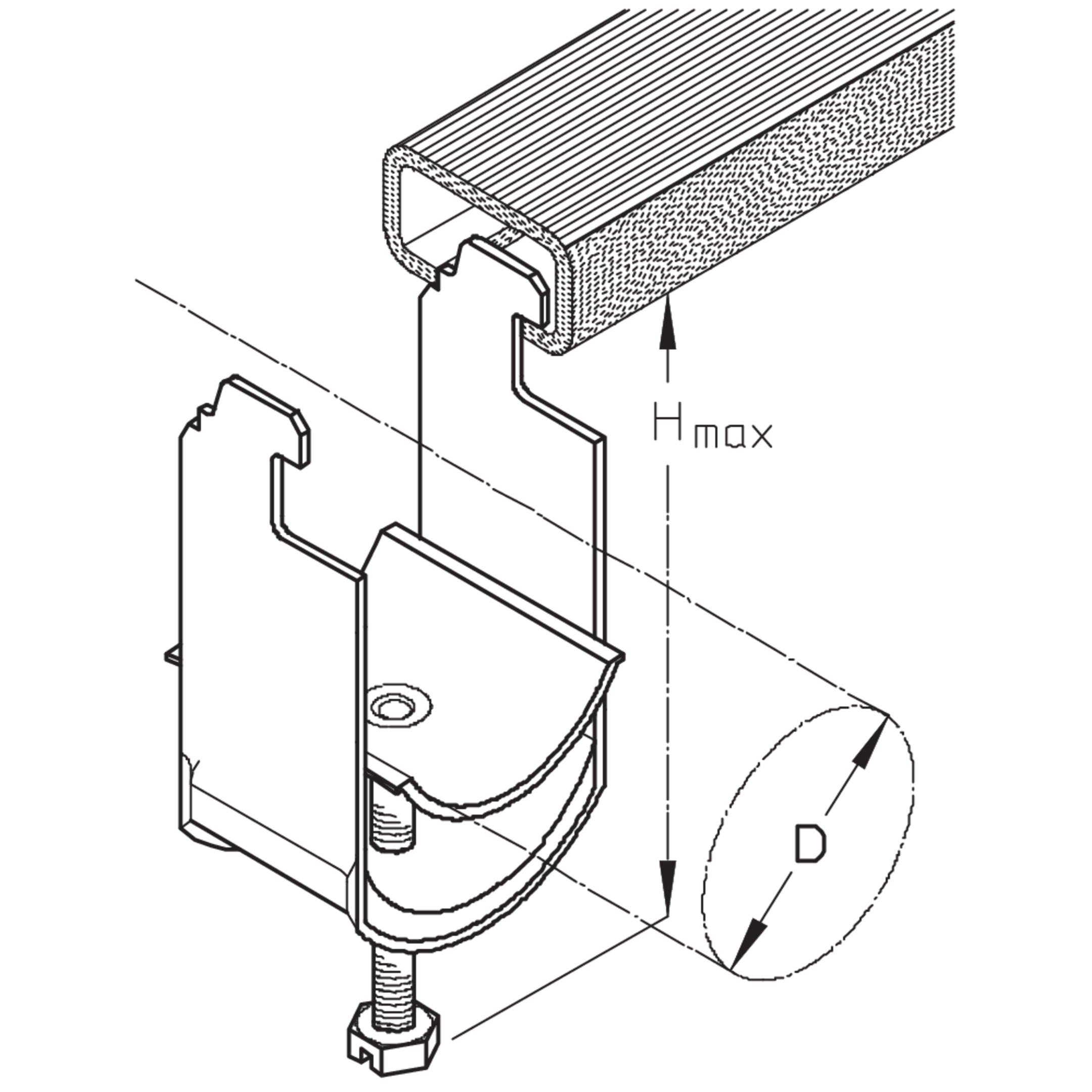

Hmax

maximum height

D

clamping range

M

torque

cables

max. number of cables

G

Weight per storage unit

  • 12 B
    Cable clamp 12 B
    maximum height
    41 mm
    clamping range
    8 - 12 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.023 kg
    More information
  • 16 B
    Cable clamp 16 B
    maximum height
    46 mm
    clamping range
    12 - 16 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.027 kg
    More information
  • 20 B
    Cable clamp 20 B
    maximum height
    50 mm
    clamping range
    16 - 20 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.031 kg
    More information
  • 24 B
    Cable clamp 24 B
    maximum height
    54 mm
    clamping range
    20 - 24 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.034 kg
    More information
  • 28 B
    Cable clamp 28 B
    maximum height
    58 mm
    clamping range
    24 - 28 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.039 kg
    More information
  • 32 B
    Cable clamp 32 B
    maximum height
    63 mm
    clamping range
    28 - 32 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.048 kg
    More information
  • 36 B
    Cable clamp 36 B
    maximum height
    67 mm
    clamping range
    32 - 36 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.052 kg
    More information
  • 40 B
    Cable clamp 40 B
    maximum height
    71 mm
    clamping range
    36 - 40 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.057 kg
    More information
  • 44 B
    Cable clamp 44 B
    maximum height
    81 mm
    clamping range
    40 - 44 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.086 kg
    More information
  • 48 B
    Cable clamp 48 B
    maximum height
    85 mm
    clamping range
    44 - 48 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.088 kg
    More information
  • 52 B
    Cable clamp 52 B
    maximum height
    90 mm
    clamping range
    48 - 52 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.098 kg
    More information
  • 56 B
    Cable clamp 56 B
    maximum height
    94 mm
    clamping range
    52 - 56 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.108 kg
    More information
  • 60 B
    Cable clamp 60 B
    maximum height
    98 mm
    clamping range
    56 - 60 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.139 kg
    More information
  • 64 B
    Cable clamp 64 B
    maximum height
    102 mm
    clamping range
    60 - 64 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.142 kg
    More information
  • 70 B
    Cable clamp 70 B
    maximum height
    109 mm
    clamping range
    64 - 70 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.153 kg
    More information
  • 12/2 B
    Cable clamp 12/2 B
    maximum height
    58 mm
    clamping range
    8 - 12 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.032 kg
    More information
  • 16/2 B
    Cable clamp 16/2 B
    maximum height
    67 mm
    clamping range
    12 - 16 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.037 kg
    More information
  • 20/2 B
    Cable clamp 20/2 B
    maximum height
    75 mm
    clamping range
    16 - 20 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.043 kg
    More information
  • 24/2 B
    Cable clamp 24/2 B
    maximum height
    84 mm
    clamping range
    20 - 24 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.049 kg
    More information
  • 28/2 B
    Cable clamp 28/2 B
    maximum height
    92 mm
    clamping range
    24 - 28 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.056 kg
    More information
  • 32/2 B
    Cable clamp 32/2 B
    maximum height
    101 mm
    clamping range
    28 - 32 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.064 kg
    More information
  • 36/2 B
    Cable clamp 36/2 B
    maximum height
    109 mm
    clamping range
    32 - 36 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.071 kg
    More information
  • 40/2 B
    Cable clamp 40/2 B
    maximum height
    117 mm
    clamping range
    36 - 40 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.077 kg
    More information
  • 44/2 B
    Cable clamp 44/2 B
    maximum height
    127 mm
    clamping range
    40 - 44 mm
    torque
    4 Nm
    max. number of cables
    2
    Weight per storage unit
    0.122 kg
    More information
  • 48/2 B
    Cable clamp 48/2 B
    maximum height
    135 mm
    clamping range
    44 - 48 mm
    torque
    4 Nm
    max. number of cables
    2
    Weight per storage unit
    0.133 kg
    More information
  • 52/2 B
    Cable clamp 52/2 B
    maximum height
    144 mm
    clamping range
    48 - 52 mm
    torque
    4 Nm
    max. number of cables
    2
    Weight per storage unit
    0.139 kg
    More information
  • 56/2 B
    Cable clamp 56/2 B
    maximum height
    152 mm
    clamping range
    52 - 56 mm
    torque
    4 Nm
    max. number of cables
    2
    Weight per storage unit
    0.152 kg
    More information

aluminium

Article

Hmax

maximum height

D

clamping range

M

torque

cables

max. number of cables

G

Weight per storage unit

  • 12 B-AL
    PUK cable clamp
    maximum height
    41 mm
    clamping range
    8 - 12 mm
    torque
    1.5 Nm
    max. number of cables
    1
    Weight per storage unit
    0.010 kg
    More information
  • 16 B-AL
    PUK cable clamp
    maximum height
    46 mm
    clamping range
    12 - 16 mm
    torque
    1.5 Nm
    max. number of cables
    1
    Weight per storage unit
    0.012 kg
    More information
  • 20 B-AL
    PUK cable clamp
    maximum height
    50 mm
    clamping range
    16 - 20 mm
    torque
    1.5 Nm
    max. number of cables
    1
    Weight per storage unit
    0.015 kg
    More information
  • 24 B-AL
    PUK cable clamp
    maximum height
    54 mm
    clamping range
    20 - 24 mm
    torque
    1.5 Nm
    max. number of cables
    1
    Weight per storage unit
    0.017 kg
    More information
  • 28 B-AL
    PUK cable clamp
    maximum height
    58 mm
    clamping range
    24 - 28 mm
    torque
    1.5 Nm
    max. number of cables
    1
    Weight per storage unit
    0.019 kg
    More information
  • 32 B-AL
    PUK cable clamp
    maximum height
    63 mm
    clamping range
    28 - 32 mm
    torque
    1.5 Nm
    max. number of cables
    1
    Weight per storage unit
    0.032 kg
    More information
  • 36 B-AL
    PUK cable clamp
    maximum height
    67 mm
    clamping range
    32 - 36 mm
    torque
    1.5 Nm
    max. number of cables
    1
    Weight per storage unit
    0.040 kg
    More information
  • 40 B-AL
    PUK cable clamp
    maximum height
    71 mm
    clamping range
    36 - 40 mm
    torque
    1.5 Nm
    max. number of cables
    1
    Weight per storage unit
    0.038 kg
    More information
  • 44 B-AL
    PUK cable clamp
    maximum height
    81 mm
    clamping range
    40 - 44 mm
    torque
    3 Nm
    max. number of cables
    1
    Weight per storage unit
    0.042 kg
    More information
  • 48 B-AL
    PUK cable clamp
    maximum height
    85 mm
    clamping range
    44 - 48 mm
    torque
    3 Nm
    max. number of cables
    1
    Weight per storage unit
    0.046 kg
    More information
  • 52 B-AL
    PUK cable clamp
    maximum height
    90 mm
    clamping range
    48 - 52 mm
    torque
    3 Nm
    max. number of cables
    1
    Weight per storage unit
    0.051 kg
    More information
  • 56 B-AL
    PUK cable clamp
    maximum height
    94 mm
    clamping range
    52 - 56 mm
    torque
    3 Nm
    max. number of cables
    1
    Weight per storage unit
    0.054 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

Hmax

maximum height

D

clamping range

M

torque

cables

max. number of cables

G

Weight per storage unit

  • 12 B-E
    PUK cable clamp
    maximum height
    41 mm
    clamping range
    8 - 12 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.023 kg
    More information
  • 16 B-E
    PUK cable clamp
    maximum height
    46 mm
    clamping range
    12 - 16 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.026 kg
    More information
  • 20 B-E
    PUK cable clamp
    maximum height
    50 mm
    clamping range
    16 - 20 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.028 kg
    More information
  • 24 B-E
    PUK cable clamp
    maximum height
    54 mm
    clamping range
    20 - 24 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.033 kg
    More information
  • 28 B-E
    PUK cable clamp
    maximum height
    58 mm
    clamping range
    24 - 28 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.036 kg
    More information
  • 32 B-E
    PUK cable clamp
    maximum height
    63 mm
    clamping range
    28 - 32 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.045 kg
    More information
  • 36 B-E
    PUK cable clamp
    maximum height
    67 mm
    clamping range
    32 - 36 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.049 kg
    More information
  • 40 B-E
    PUK cable clamp
    maximum height
    71 mm
    clamping range
    36 - 40 mm
    torque
    2 Nm
    max. number of cables
    1
    Weight per storage unit
    0.054 kg
    More information
  • 44 B-E
    PUK cable clamp
    maximum height
    81 mm
    clamping range
    40 - 44 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.074 kg
    More information
  • 48 B-E
    PUK cable clamp
    maximum height
    85 mm
    clamping range
    44 - 48 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.078 kg
    More information
  • 52 B-E
    PUK cable clamp
    maximum height
    90 mm
    clamping range
    48 - 52 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.086 kg
    More information
  • 56 B-E
    PUK cable clamp
    maximum height
    94 mm
    clamping range
    52 - 56 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.092 kg
    More information
  • 60 B-E
    PUK cable clamp
    maximum height
    98 mm
    clamping range
    56 - 60 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.133 kg
    More information
  • 64 B-E
    PUK cable clamp
    maximum height
    102 mm
    clamping range
    60 - 64 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.140 kg
    More information
  • 70 B-E
    PUK cable clamp
    maximum height
    109 mm
    clamping range
    64 - 70 mm
    torque
    4 Nm
    max. number of cables
    1
    Weight per storage unit
    0.152 kg
    More information
  • 12/2 B-E
    PUK cable clamp
    maximum height
    58 mm
    clamping range
    8 - 12 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.031 kg
    More information
  • 16/2 B-E
    PUK cable clamp
    maximum height
    67 mm
    clamping range
    12 - 16 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.036 kg
    More information
  • 20/2 B-E
    PUK cable clamp
    maximum height
    75 mm
    clamping range
    16 - 20 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.041 kg
    More information
  • 24/2 B-E
    PUK cable clamp
    maximum height
    84 mm
    clamping range
    20 - 24 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.047 kg
    More information
  • 28/2 B-E
    PUK cable clamp
    maximum height
    92 mm
    clamping range
    24 - 28 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.052 kg
    More information
  • 32/2 B-E
    PUK cable clamp
    maximum height
    101 mm
    clamping range
    28 - 32 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.061 kg
    More information
  • 36/2 B-E
    PUK cable clamp
    maximum height
    109 mm
    clamping range
    32 - 36 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.067 kg
    More information
  • 40/2 B-E
    PUK cable clamp
    maximum height
    117 mm
    clamping range
    36 - 40 mm
    torque
    2 Nm
    max. number of cables
    2
    Weight per storage unit
    0.073 kg
    More information
  • 44/2 B-E
    PUK cable clamp
    maximum height
    127 mm
    clamping range
    40 - 44 mm
    torque
    4 Nm
    max. number of cables
    2
    Weight per storage unit
    0.105 kg
    More information
  • 48/2 B-E
    PUK cable clamp
    maximum height
    135 mm
    clamping range
    44 - 48 mm
    torque
    4 Nm
    max. number of cables
    2
    Weight per storage unit
    0.112 kg
    More information
  • 52/2 B-E
    PUK cable clamp
    maximum height
    144 mm
    clamping range
    48 - 52 mm
    torque
    4 Nm
    max. number of cables
    2
    Weight per storage unit
    0.123 kg
    More information
  • 56/2 B-E
    PUK cable clamp
    maximum height
    152 mm
    clamping range
    52 - 56 mm
    torque
    4 Nm
    max. number of cables
    2
    Weight per storage unit
    0.131 kg
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    • de

    • en

    Cable Clamps - Compact overview

    Compact overview of Cable Clamps and accessories: AC, AC-IW, H, H-IW, B, B-IW, S, S-IW, U, U-IW, RU

    • de

    • en

Included accessories

    Our finishing services

    Whether apartment blocks, office complexes or industrial plants: as your reliable partner for numerous applications and construction phases, we support you in every project with expert advice and support services. This allows you to concentrate fully on your core business.

    Consulting, planning, design

    Installation services

    Individualised solutions
