B 3

28x12 mm profile rail, unperforated

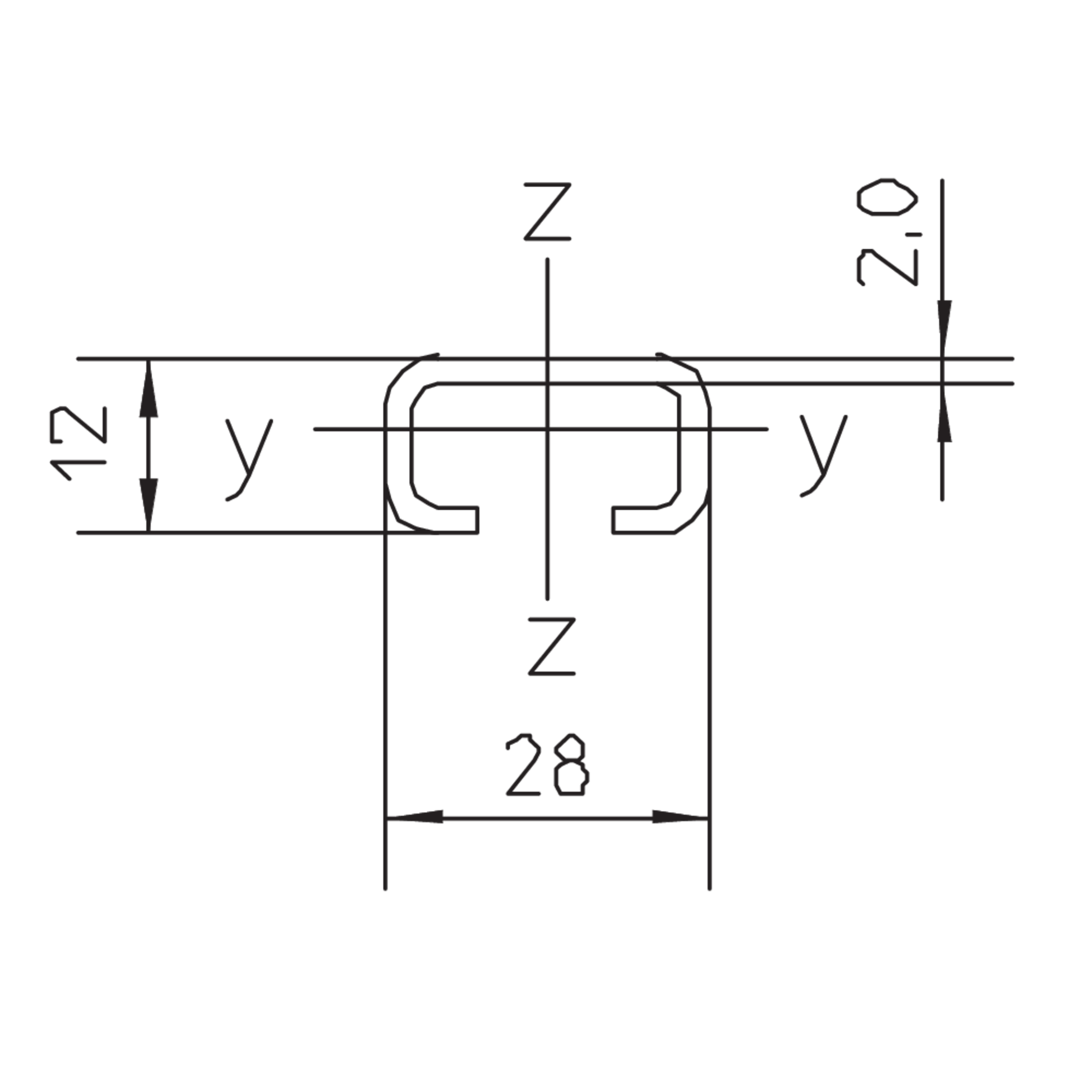

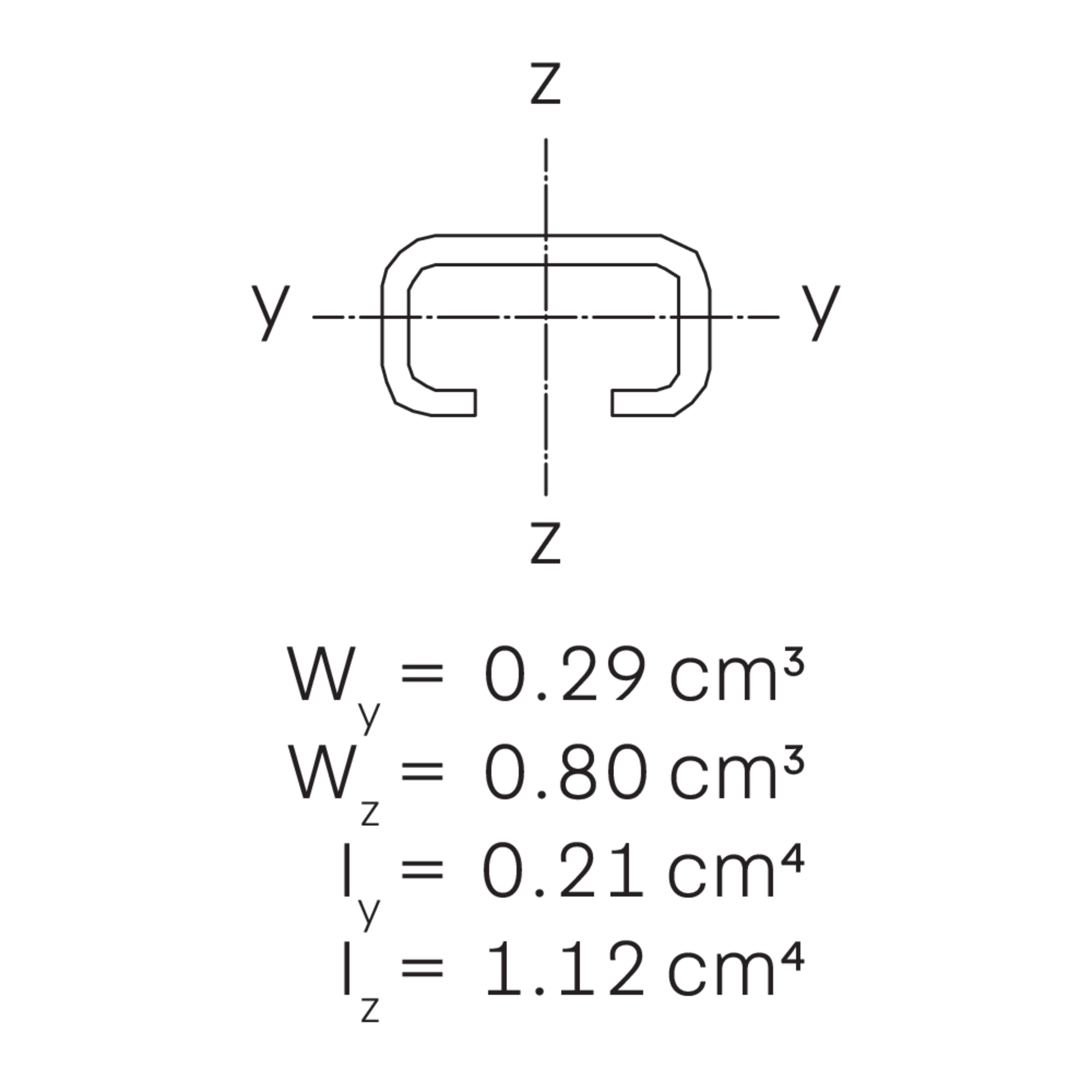

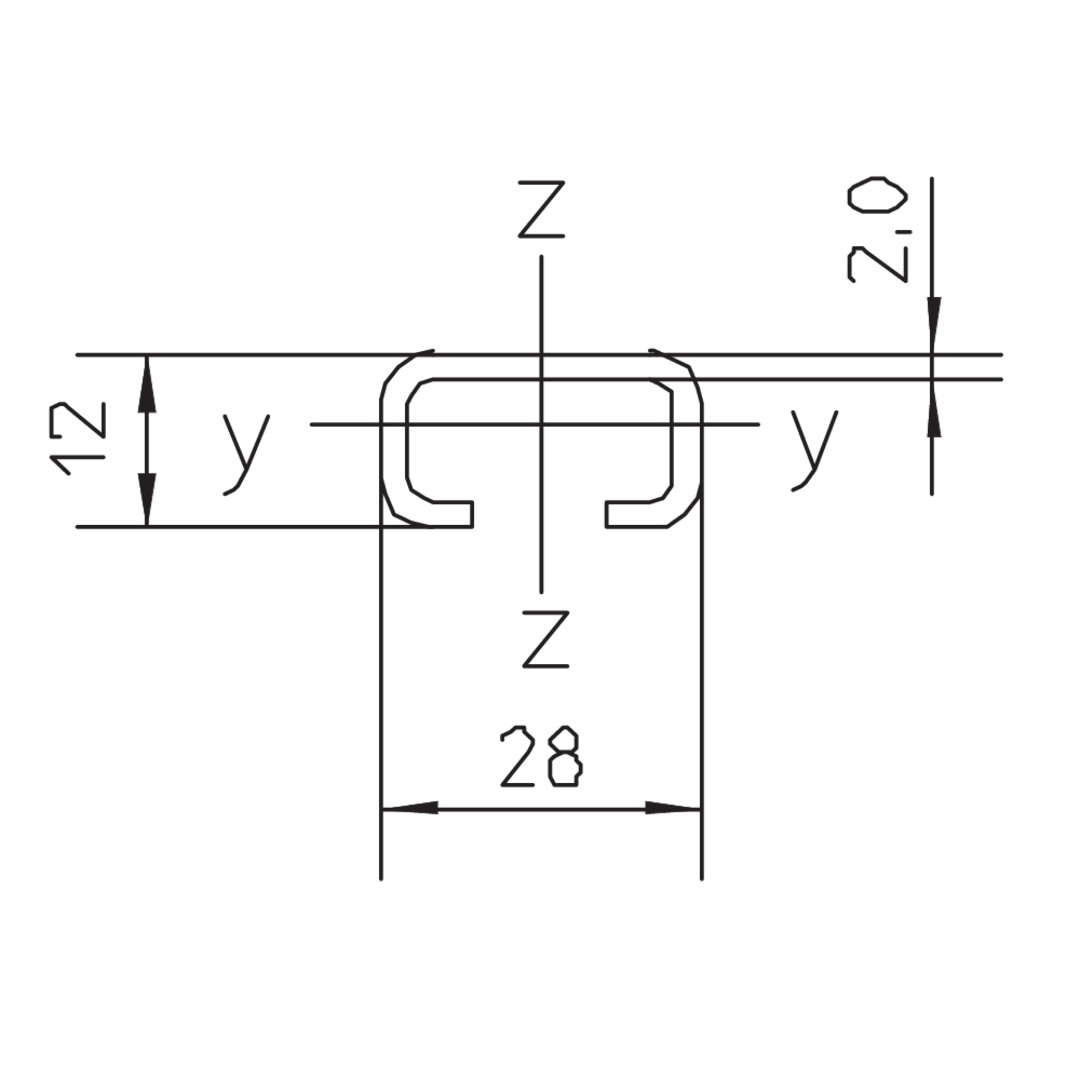

The profile rail B 3 is unperforated and consists of a C profile 28 x 12 mm with a slot width of 12 mm (material thickness = 2 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. It is available in lengths of 3000 or 6000 mm.

Get in touch Download datasheet

Variants

steel, bright

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • B 3-30B
    Channel B 3-30B
    profile height
    12 mm
    profile width
    28 mm
    length
    3000 mm
    material thickness
    2.00 mm
    Weight per storage unit
    2.500 kg
    More information
  • B 3-60B
    Channel B 3-60B
    profile height
    12 mm
    profile width
    28 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Weight per storage unit
    5.328 kg
    More information

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • B 3-30F
    Channel B 3-30F
    profile height
    12 mm
    profile width
    28 mm
    length
    3000 mm
    material thickness
    2.00 mm
    Weight per storage unit
    2.700 kg
    More information
  • B 3-60F
    Channel B 3-60F
    profile height
    12 mm
    profile width
    28 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Weight per storage unit
    5.300 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

HP

profile height

BP

profile width

L

length

t

material thickness

G

Weight per storage unit
  • B 3-30E4
    Channel B 3-30E4
    profile height
    12 mm
    profile width
    28 mm
    length
    3000 mm
    material thickness
    2.00 mm
    Weight per storage unit
    2.500 kg
    More information
  • B 3-60E4
    Channel B 3-60E4
    profile height
    12 mm
    profile width
    28 mm
    length
    6000 mm
    material thickness
    2.00 mm
    Weight per storage unit
    5.430 kg
    More information
