WPRS 150

Wide-span cable tray riser, height = 150 mm

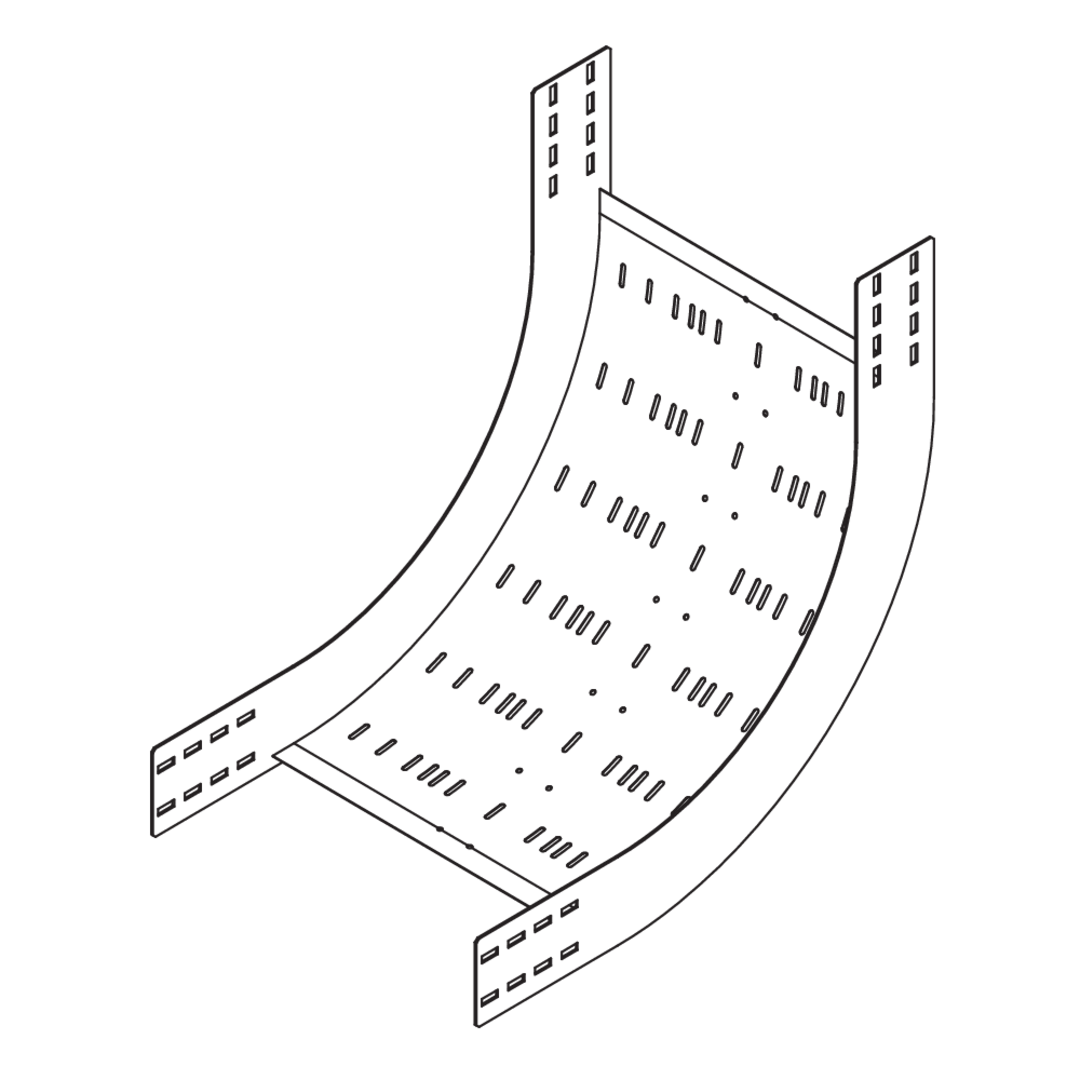

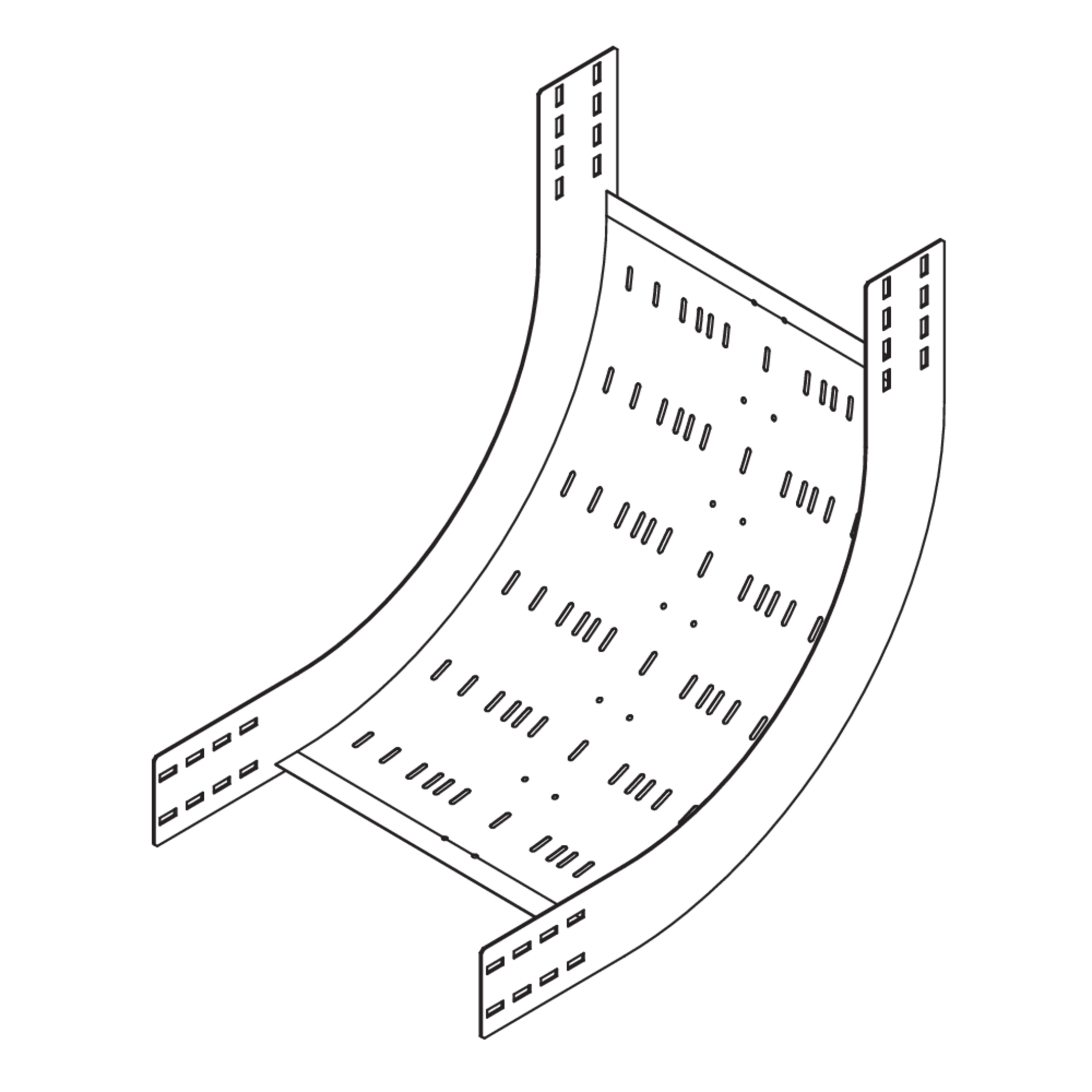

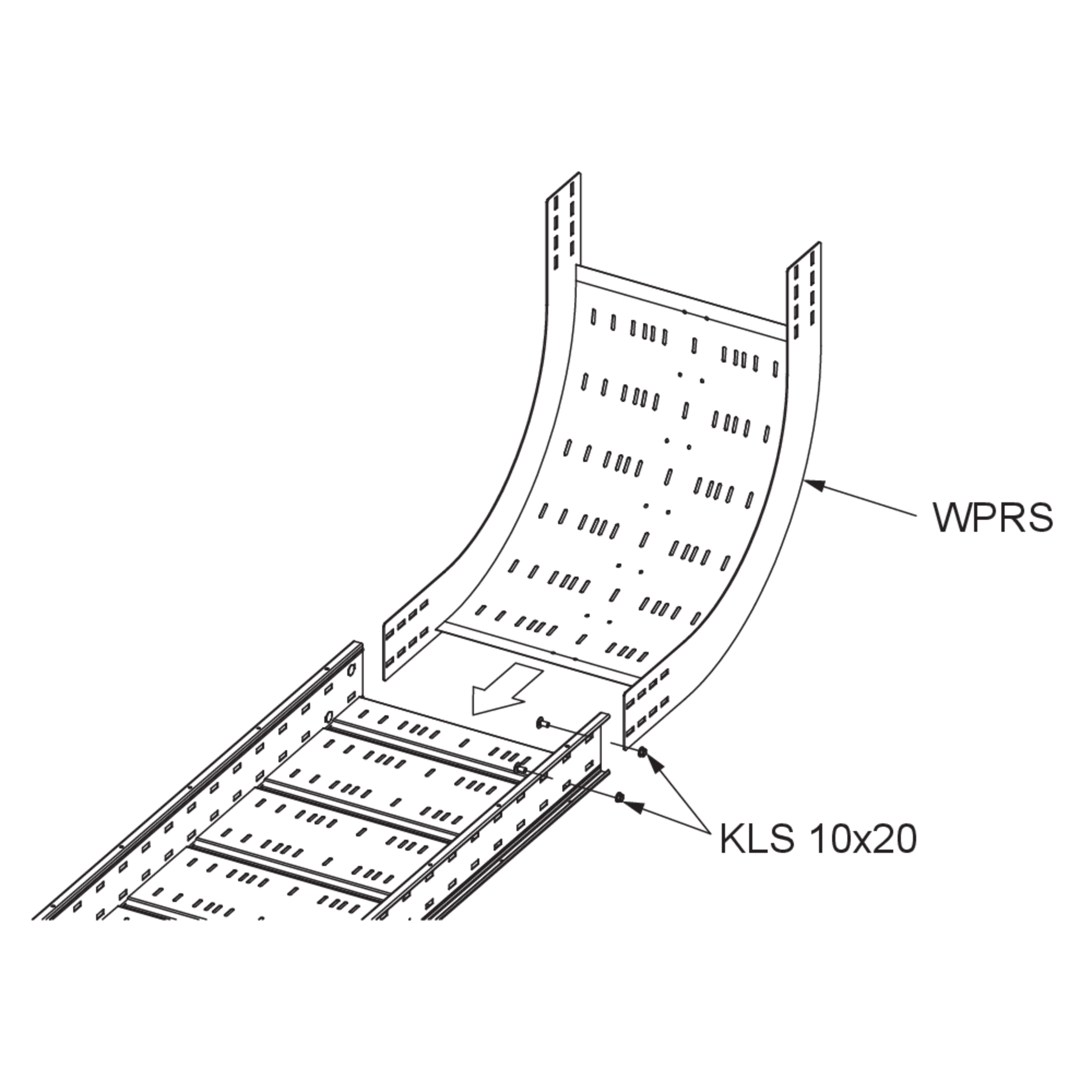

The wide-span cable tray riser WPRS 150 with integrated connectors allows the direction of cable routing to be changed vertically by 90° upwards. It is suitable for wide-span cable trays with rails 150 mm high and is 200 to 600 mm wide. The riser is pushed into the wide-span cable tray and then bolted in place. The connecting cable tray is then mounted on the riser. It has a radius of 576 mm.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

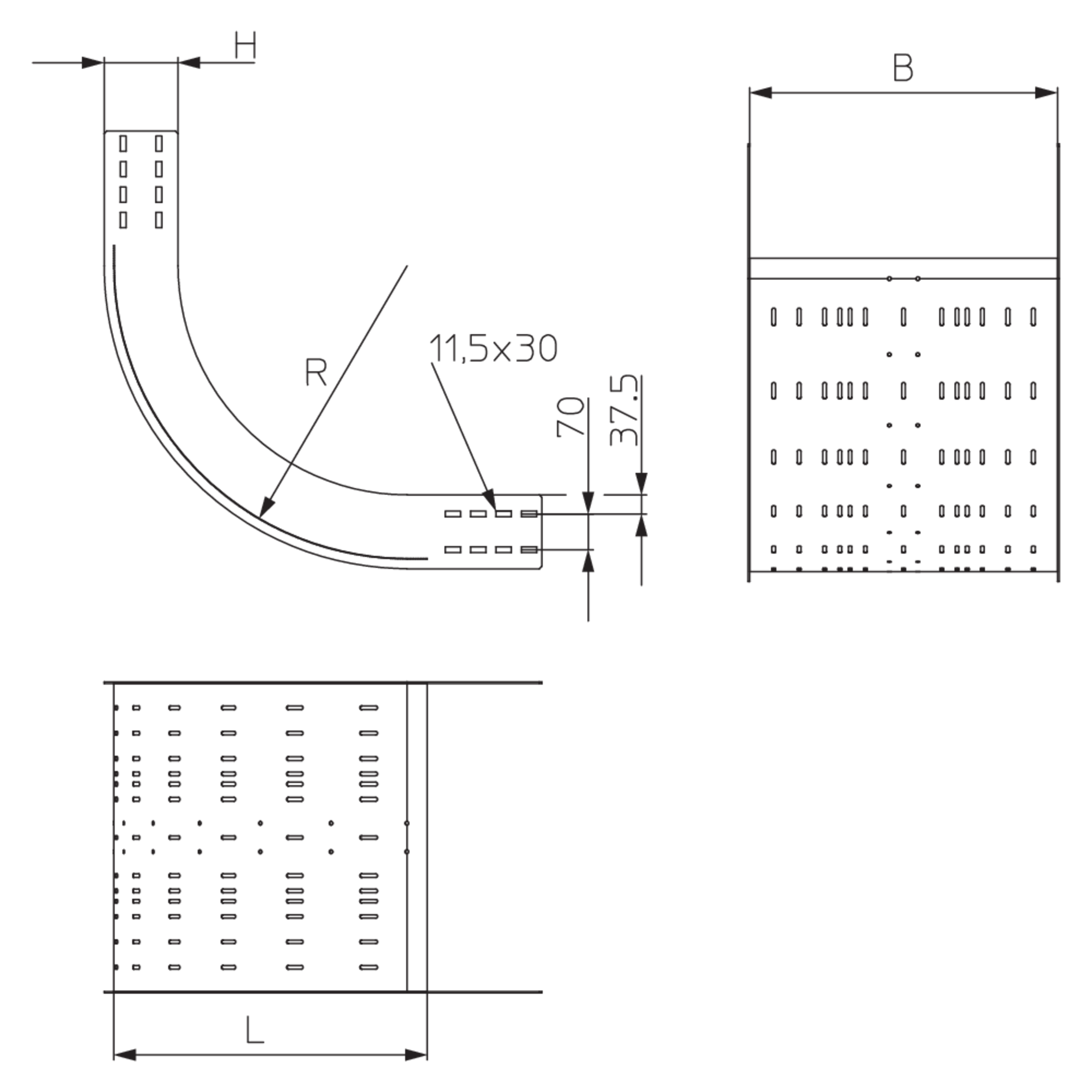

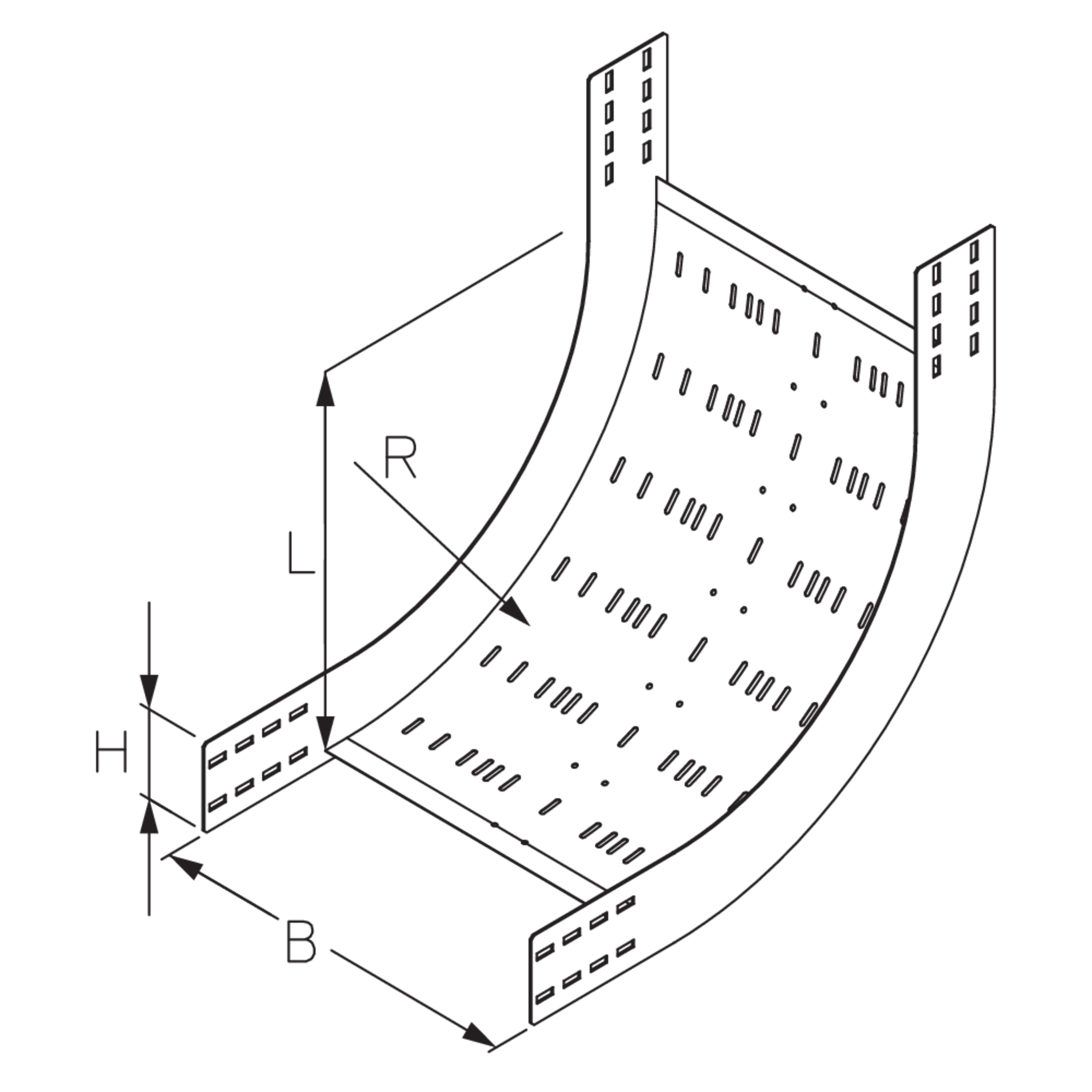

H

height

HH

Height

B

width

L

length

R

radius

direction

Richtungsänderung

W

Winkel

G

Weight per storage unit
  • WPRS 150-20F
    wide-span cable tray bend WPRB 150-20F
    150 mm
    150 mm
    200 mm
    616 mm
    576 mm
    vertically rising
    90°
    11.800 kg
    Included accessories
    More information
  • WPRS 150-30F
    wide-span cable tray bend WPRB 150-20F
    150 mm
    150 mm
    300 mm
    616 mm
    576 mm
    vertically rising
    90°
    12.580 kg
    Included accessories
    More information
  • WPRS 150-40F
    wide-span cable tray bend WPRB 150-20F
    150 mm
    150 mm
    400 mm
    616 mm
    576 mm
    vertically rising
    90°
    13.390 kg
    Included accessories
    More information
  • WPRS 150-50F
    wide-span cable tray bend WPRB 150-20F
    150 mm
    150 mm
    500 mm
    616 mm
    576 mm
    vertically rising
    90°
    14.190 kg
    Included accessories
    More information
  • WPRS 150-60F
    wide-span cable tray bend WPRB 150-20F
    150 mm
    150 mm
    600 mm
    616 mm
    576 mm
    vertically rising
    90°
    15.000 kg
    Included accessories
    More information

Stainless steel, according to ASTM 304 / BS 304 S 3

Article

H

height

HH

Height

B

width

L

length

R

radius

direction

Richtungsänderung

W

Winkel

G

Weight per storage unit
  • WPRS 150-20E
    wide-span cable tray bend WPRB 150-20F
    150 mm
    150 mm
    200 mm
    616 mm
    576 mm
    vertically rising
    90°
    11.108 kg
    Included accessories
    More information
  • WPRS 150-30E
    wide-span cable tray bend WPRB 150-20F
    150 mm
    150 mm
    300 mm
    616 mm
    576 mm
    vertically rising
    90°
    11.838 kg
    Included accessories
    More information
  • WPRS 150-40E
    wide-span cable tray bend WPRB 150-20F
    150 mm
    150 mm
    400 mm
    616 mm
    576 mm
    vertically rising
    90°
    12.598 kg
    Included accessories
    More information
  • WPRS 150-50E
    wide-span cable tray bend WPRB 150-20F
    150 mm
    150 mm
    500 mm
    616 mm
    576 mm
    vertically rising
    90°
    13.348 kg
    Included accessories
    More information
  • WPRS 150-60E
    wide-span cable tray bend WPRB 150-20F
    150 mm
    150 mm
    600 mm
    616 mm
    576 mm
    vertically rising
    90°
    14.108 kg
    Included accessories
    More information
