WPRS 120

Wide-span cable tray riser, height = 120 mm

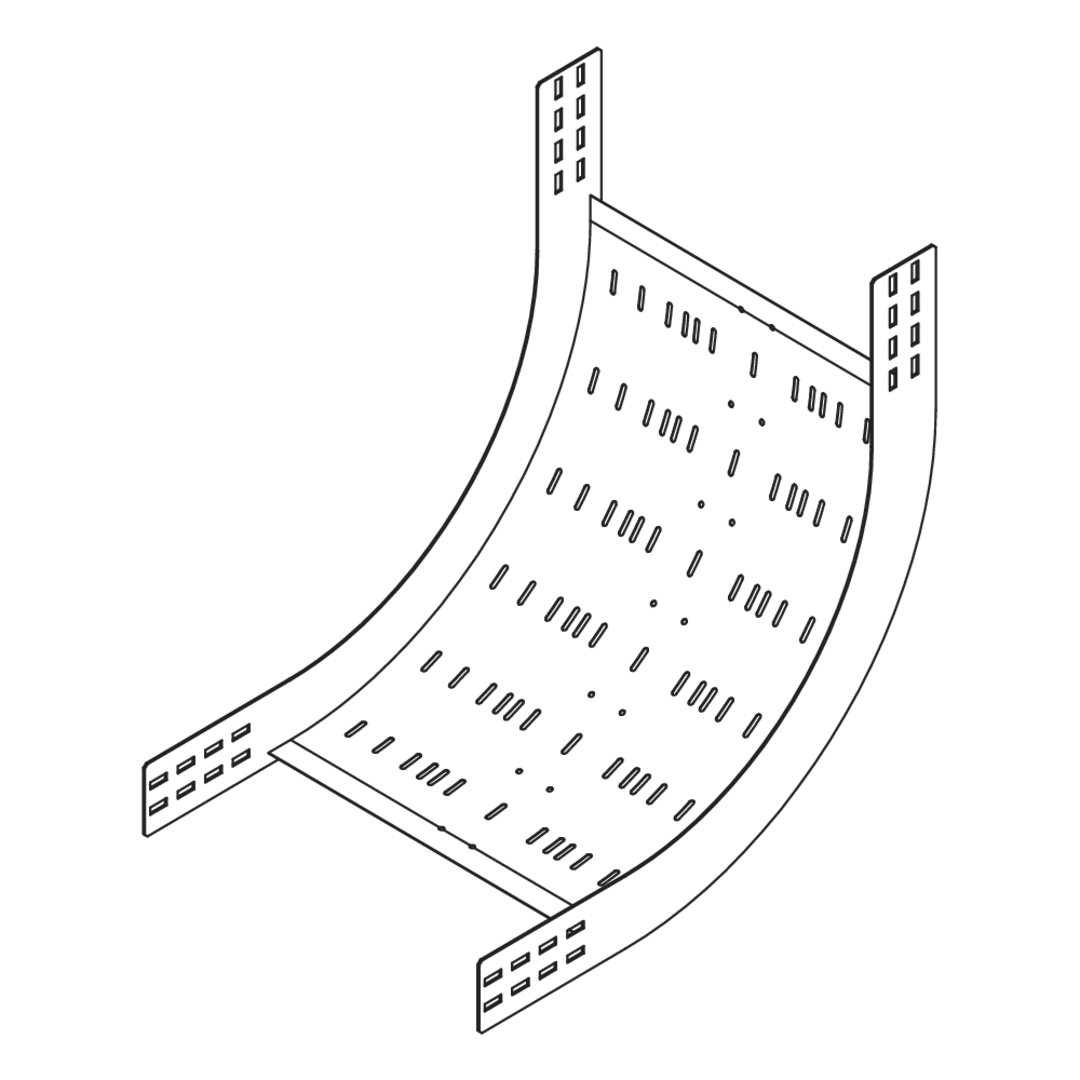

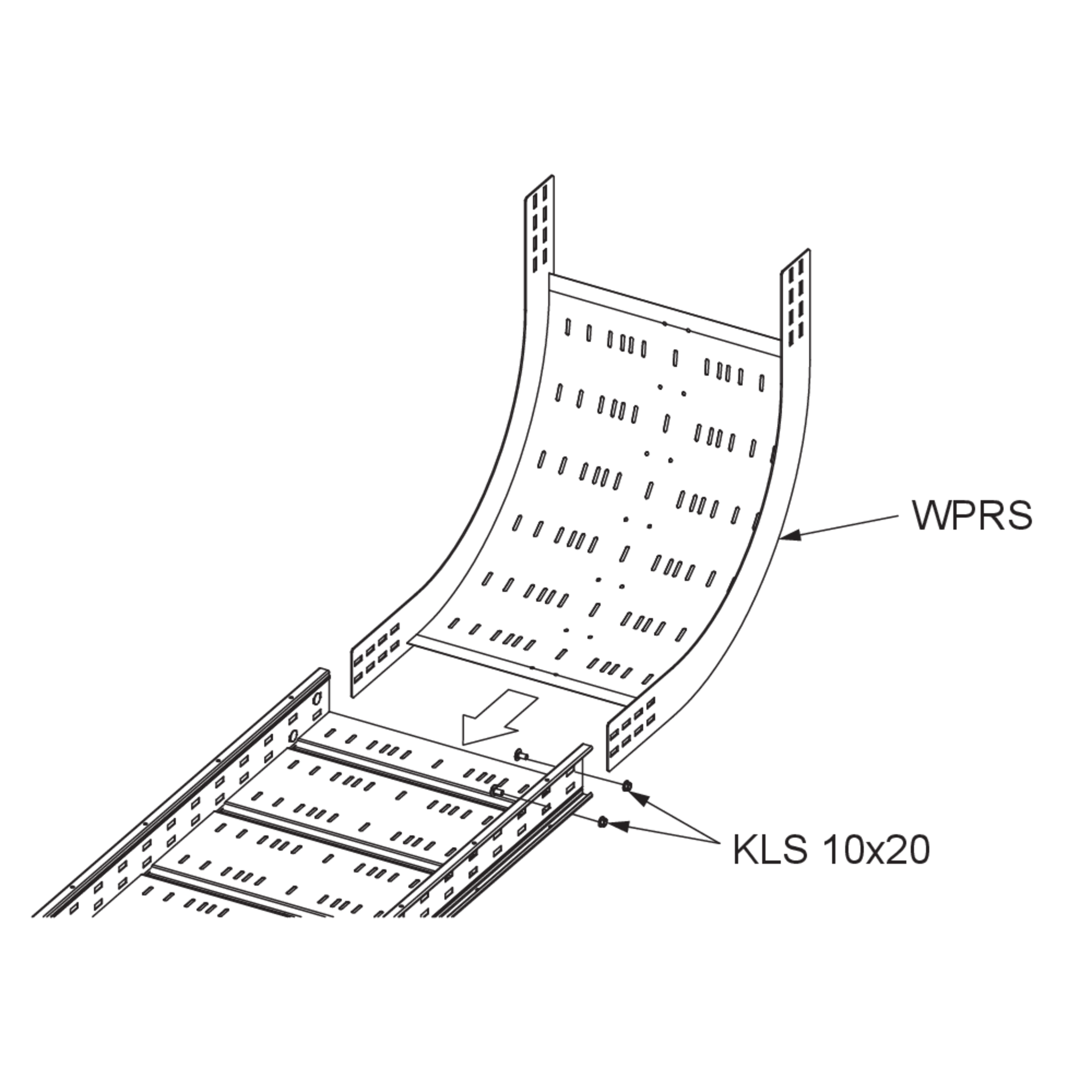

The wide-span cable tray riser WPRS 120 with integrated connectors allows the direction of cable routing to be changed vertically by 90° upwards. It is suitable for wide-span cable trays with rails 120 mm high and is 200 to 600 mm wide. The riser is pushed into the wide-span cable tray and then bolted in place. The connecting cable tray is then mounted on the riser. It has a radius of 545 mm.

Get in touch Download datasheet

Variants

Steel, hot-dip galvanised

Article

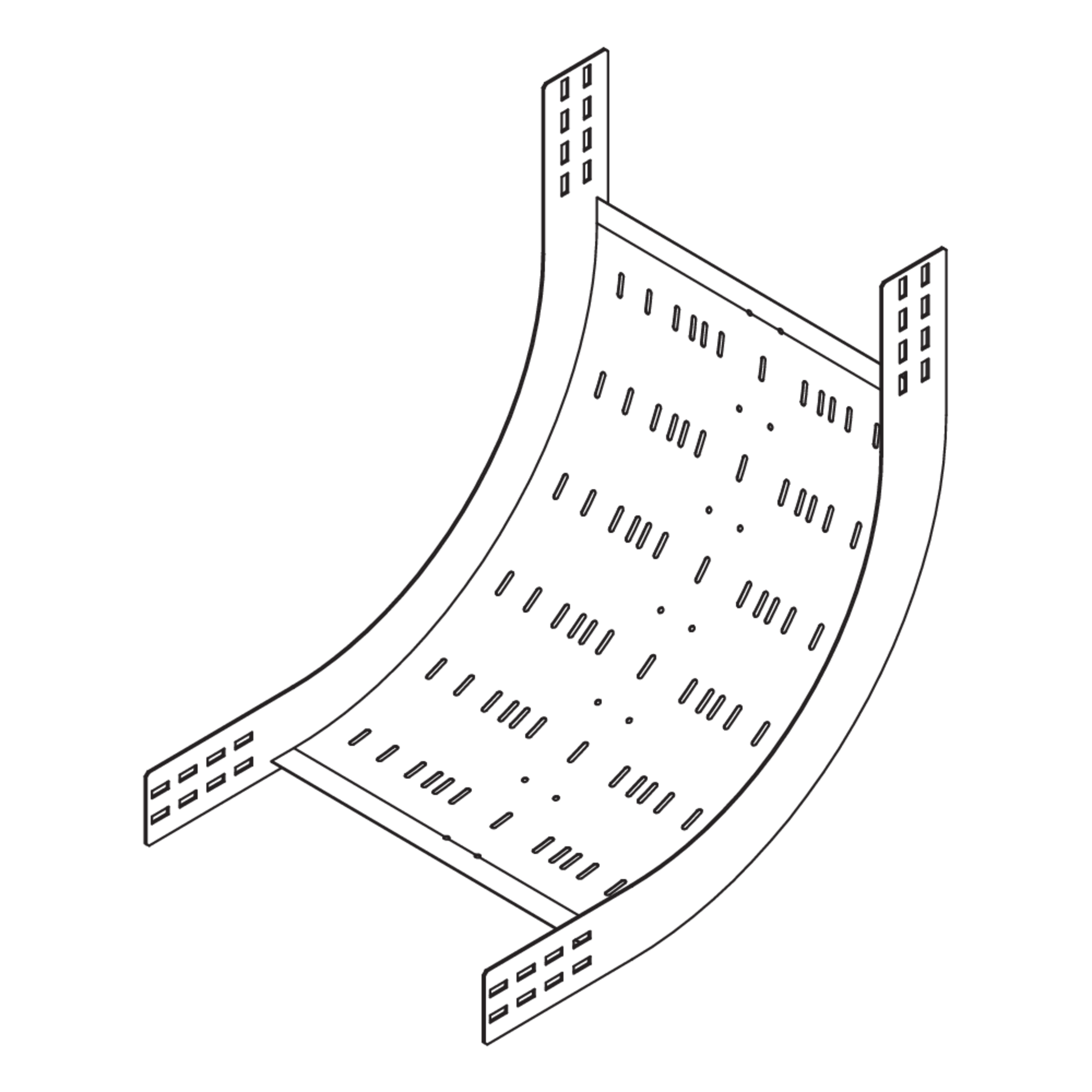

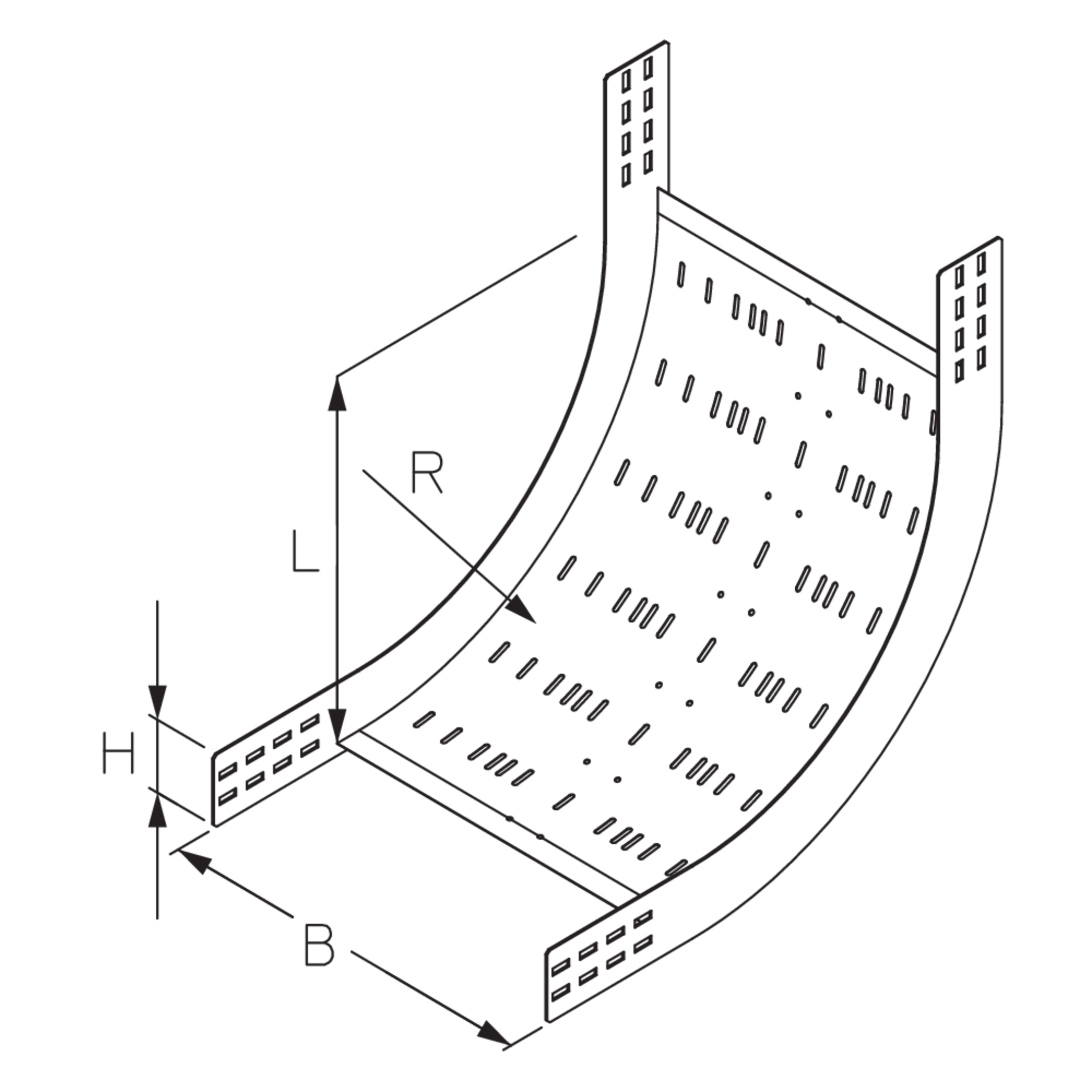

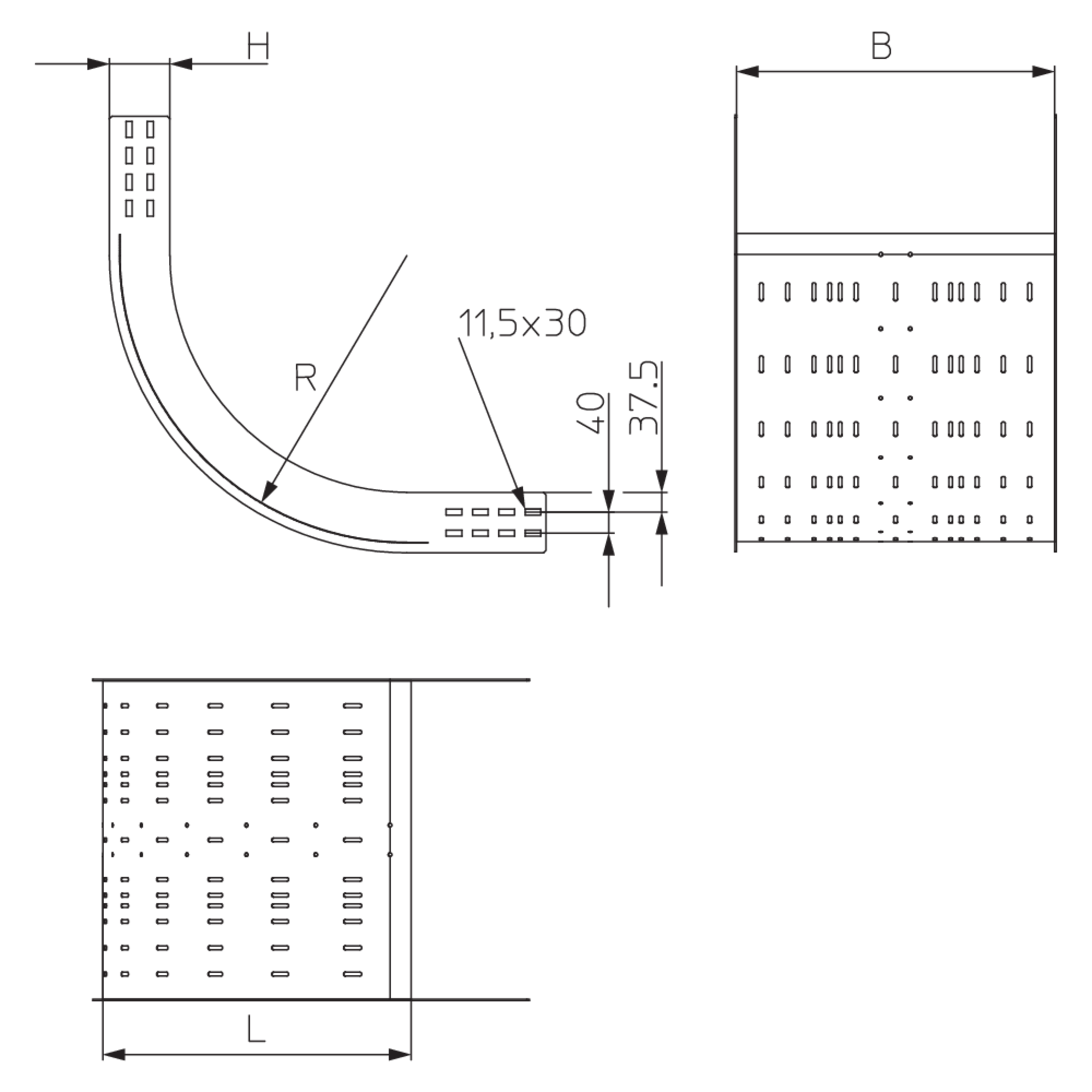

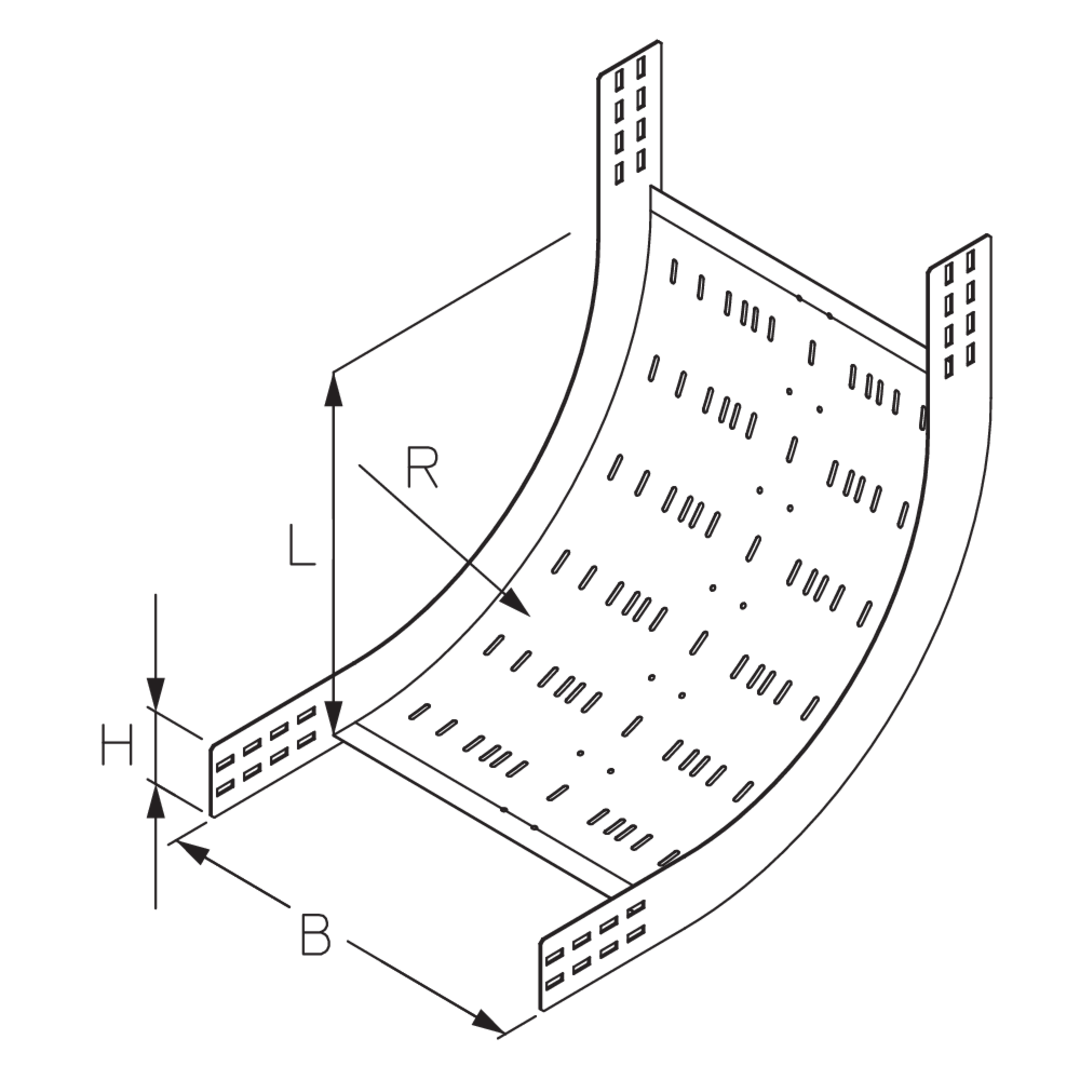

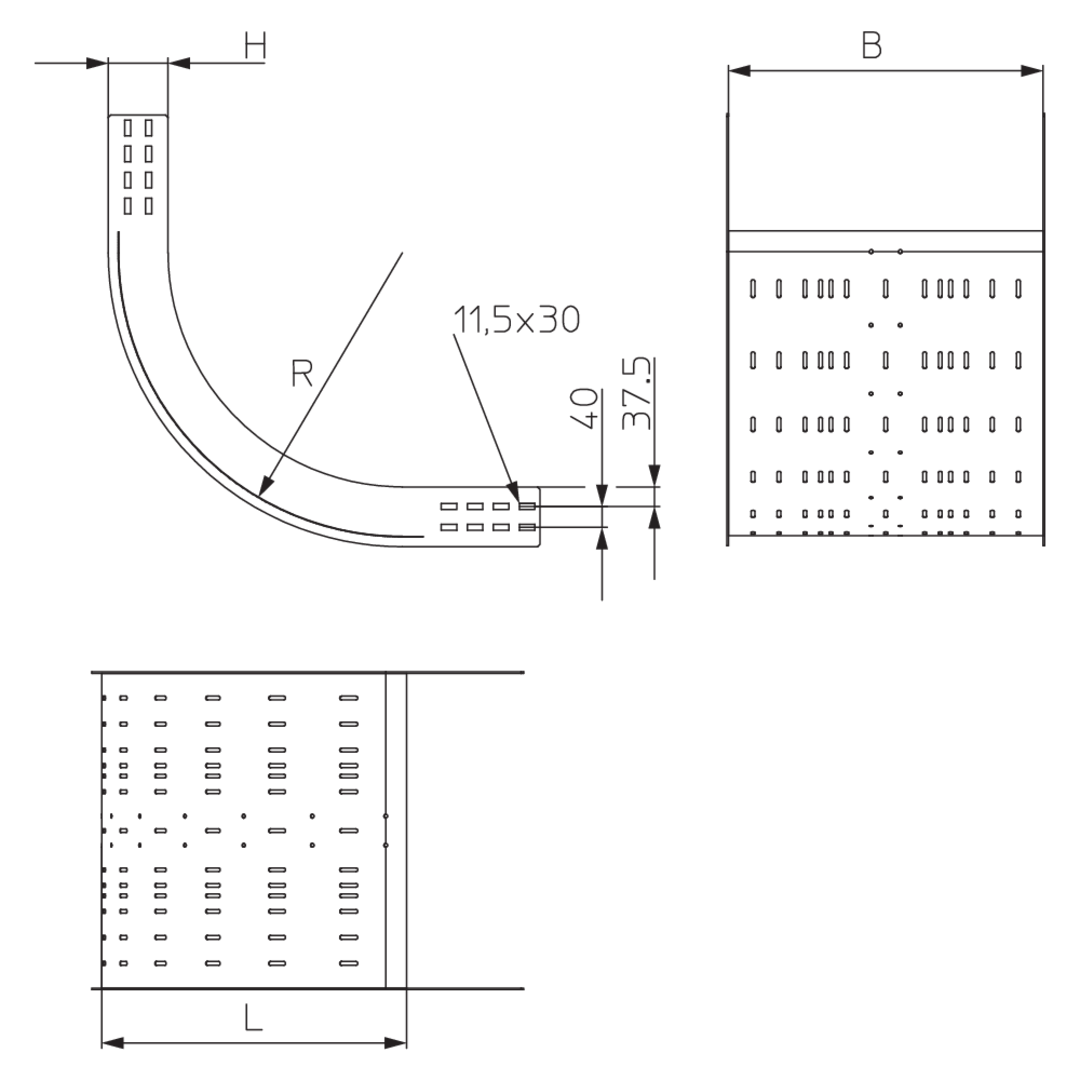

H

height

HH

Height

B

width

L

length

R

radius

direction

Direction change

W

Angle

G

Weight per storage unit
  • WPRS 120-20F
    Wide-span cable tray riser
    height
    120 mm
    Height
    120 mm
    width
    200 mm
    length
    585 mm
    radius
    545 mm
    Direction change
    vertically rising
    Angle
    90°
    Weight per storage unit
    9.540 kg
    Included accessories
    More information
  • WPRS 120-30F
    Wide-span cable tray riser
    height
    120 mm
    Height
    120 mm
    width
    300 mm
    length
    585 mm
    radius
    545 mm
    Direction change
    vertically rising
    Angle
    90°
    Weight per storage unit
    10.290 kg
    Included accessories
    More information
  • WPRS 120-40F
    Wide-span cable tray riser
    height
    120 mm
    Height
    120 mm
    width
    400 mm
    length
    585 mm
    radius
    545 mm
    Direction change
    vertically rising
    Angle
    90°
    Weight per storage unit
    11.050 kg
    Included accessories
    More information
  • WPRS 120-50F
    Wide-span cable tray riser
    height
    120 mm
    Height
    120 mm
    width
    500 mm
    length
    585 mm
    radius
    545 mm
    Direction change
    vertically rising
    Angle
    90°
    Weight per storage unit
    11.810 kg
    Included accessories
    More information
  • WPRS 120-60F
    Wide-span cable tray riser
    height
    120 mm
    Height
    120 mm
    width
    600 mm
    length
    585 mm
    radius
    545 mm
    Direction change
    vertically rising
    Angle
    90°
    Weight per storage unit
    12.580 kg
    Included accessories
    More information
