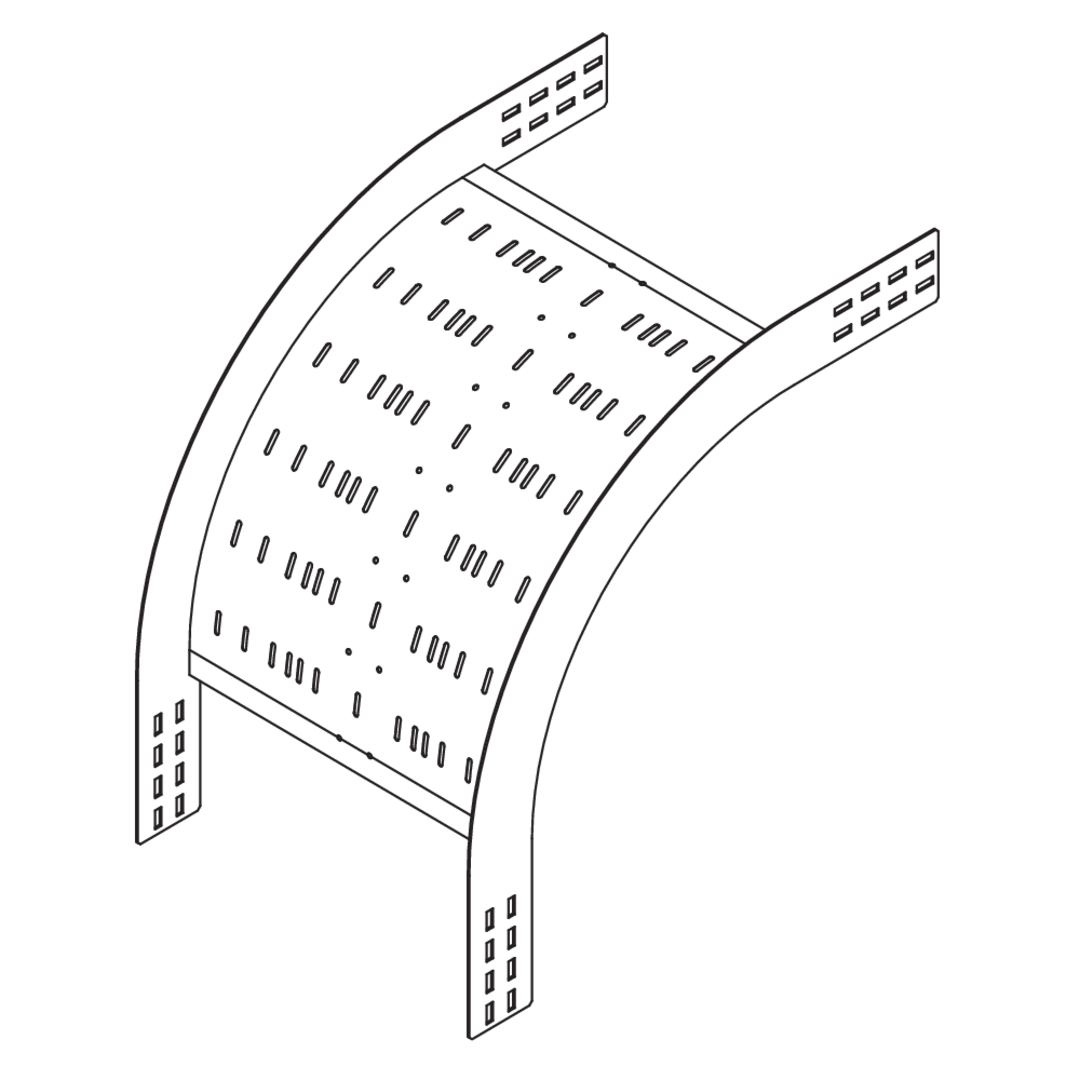

WPRF 120

Wide-span cable tray riser, height = 120 mm

The wide-span cable tray riser WPRF 120 with integrated connectors allows the direction of cable routing to be changed vertically by 90° downwards. It is suitable for wide-span cable trays with rails 120 mm high and is 200 to 600 mm wide. The riser is pushed into the wide-span cable tray and then bolted in place. The connecting cable tray is then mounted on the riser. It has a radius of 500 mm.

Get in touch Download datasheet

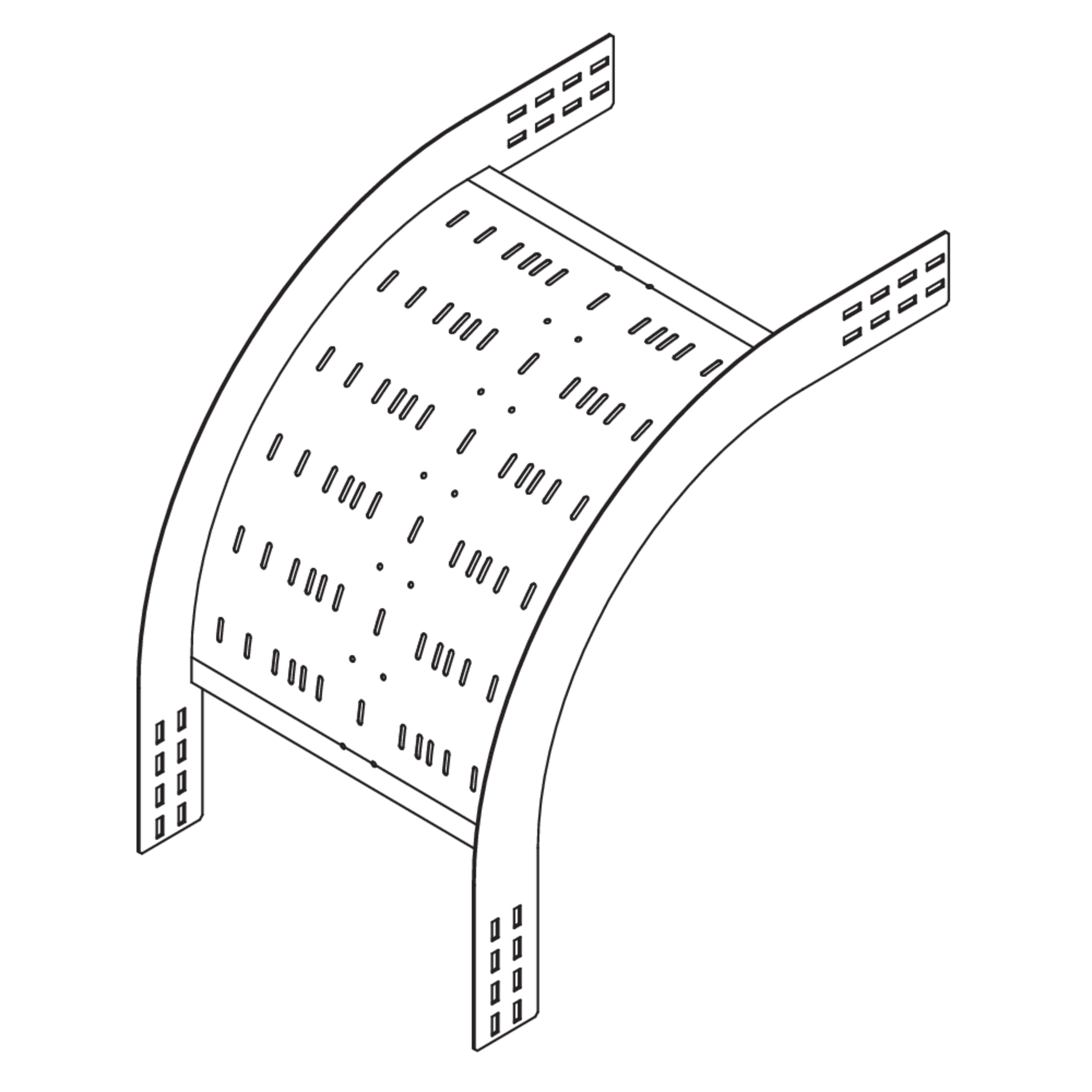

Variants

steel, batch/hot-dip galvanized

Article

H

height

HH

Height

B

width

L

length

R

radius

direction

Richtungsänderung

W

Winkel

G

Weight per storage unit
  • WPRF 120-20F
    Wide-span cable tray drop section
    120 mm
    120 mm
    200 mm
    540 mm
    500 mm
    vertically falling
    90°
    9.690 kg
    Included accessories
    More information
  • WPRF 120-30F
    Wide-span cable tray drop section
    120 mm
    120 mm
    300 mm
    540 mm
    500 mm
    vertically falling
    90°
    10.370 kg
    Included accessories
    More information
  • WPRF 120-40F
    Wide-span cable tray drop section
    120 mm
    120 mm
    400 mm
    540 mm
    500 mm
    vertically falling
    90°
    11.080 kg
    Included accessories
    More information
  • WPRF 120-50F
    Wide-span cable tray drop section
    120 mm
    120 mm
    500 mm
    540 mm
    500 mm
    vertically falling
    90°
    11.780 kg
    Included accessories
    More information
  • WPRF 120-60F
    Wide-span cable tray drop section
    120 mm
    120 mm
    600 mm
    540 mm
    500 mm
    vertically falling
    90°
    12.480 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Wide-Span Cable Tray WPR, Installation Guide

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • Wide-Span Systems, Technical Information

    Technische Information

    PDF, 4 MB

    de en

BIM- and CAD-Data

  • BIM for Wide-span Systems

    BIM for Wide-span Systems

    ZIP, 12 MB

    de
    Download
