WPLA 100

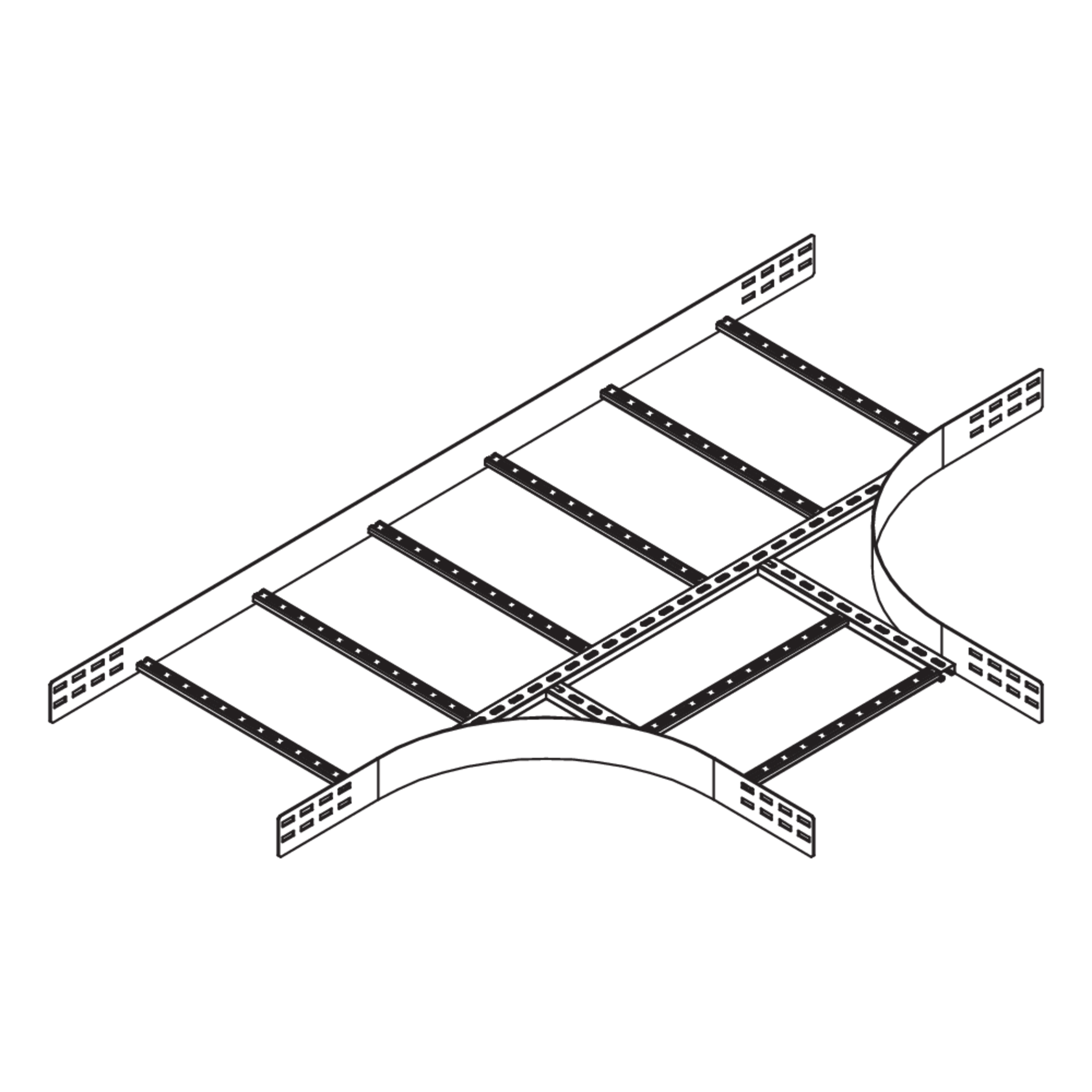

Wide-span cable ladder tee, height = 100 mm

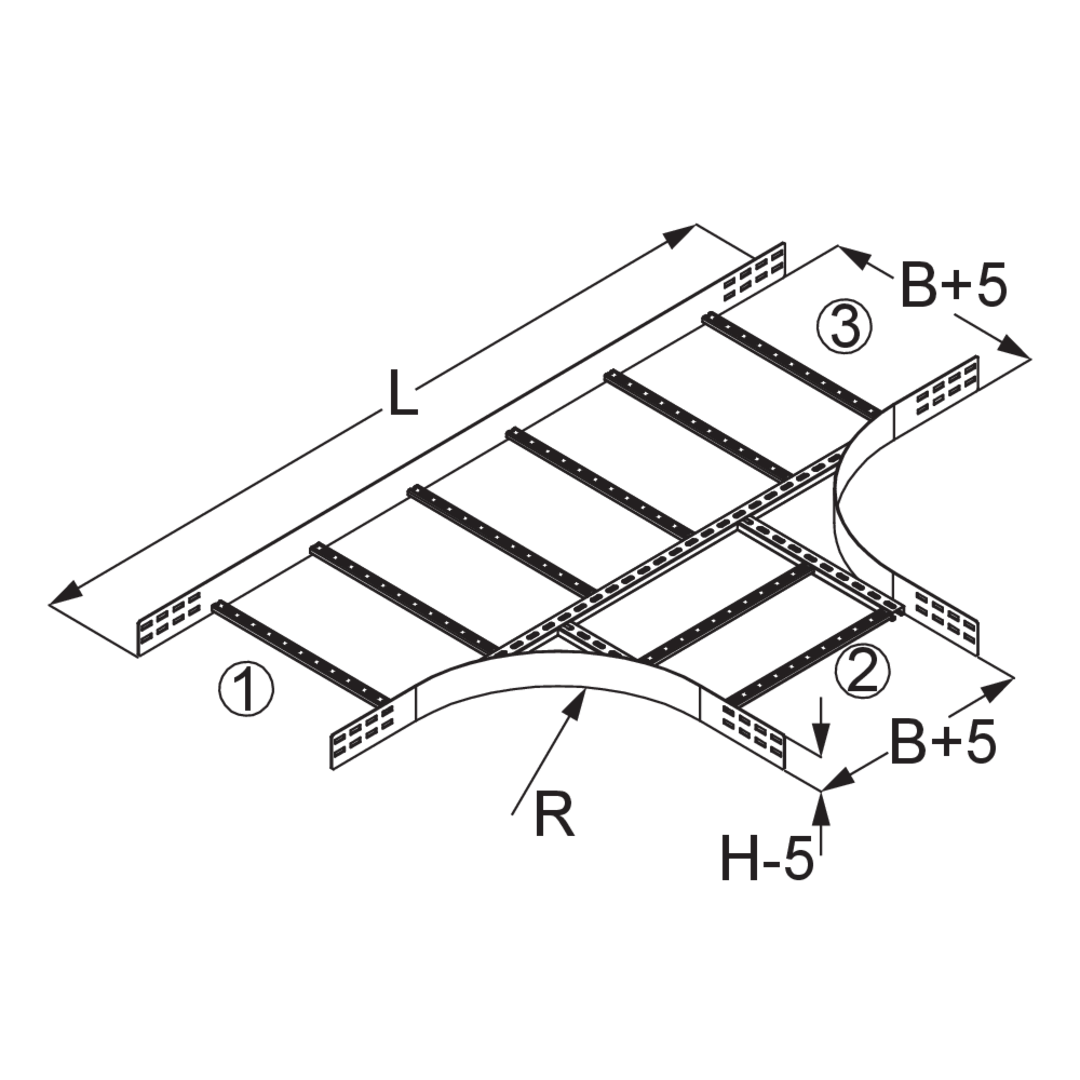

The T-shaped wide-span cable ladder branch WPLA 100 with integrated connectors allows the direction of the cable routing to be changed in the form of a branch. It is suitable for wide-span cable ladders with rails 100 mm high and is 200 to 600 mm wide. The branch is inserted between two wide-span cable ladders. The connecting rack can then be pushed in. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met. Special designs with different connection widths ①, ②, ③ or different radii R can be requested.

Get in touch Download datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

WPLA 100-20E
Wide-span cable ladder branch-piece WPLA
height
100 mm
width
200 mm
length
1635 mm
radius
450 mm
Weight per storage unit
13.650 kg
Included accessories
More information
WPLA 100-30E
Wide-span cable ladder branch-piece WPLA
height
100 mm
width
300 mm
length
1735 mm
radius
450 mm
Weight per storage unit
14.630 kg
Included accessories
More information
WPLA 100-40E
Wide-span cable ladder branch-piece WPLA
height
100 mm
width
400 mm
length
1835 mm
radius
450 mm
Weight per storage unit
15.480 kg
Included accessories
More information
WPLA 100-50E
Wide-span cable ladder branch-piece WPLA
height
100 mm
width
500 mm
length
1935 mm
radius
450 mm
Weight per storage unit
16.340 kg
Included accessories
More information
WPLA 100-60E
Wide-span cable ladder branch-piece WPLA
height
100 mm
width
600 mm
length
2035 mm
radius
450 mm
Weight per storage unit
17.590 kg
Included accessories
More information

Details

Creates horizontal changes of the cable routing direction in the form of a branch
Cable-friendly guide

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link

Heinze.de

Tender texts for this product

Open Link

Accessories

Downloads
