WPL 120

Wide-span cable ladder, height = 120 mm

The wide-span cable ladders WPL 120 have rails 120 mm high and are available in widths of 200 to 600 mm. The standard length is 6000 mm. The rungs consist of perforated profile rails. The wide-span spar supports are to be used for fastening to the substructure. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

No stepping
Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QLK

Line load power cable

A

cross section area

G

Weight per storage unit
  • WPL 120-20S
    Wide-span cable ladder WPL 120-20S
    height
    120 mm
    width
    200 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Line load power cable
    0.55 kN/m
    cross section area
    196 cm2
    Weight per storage unit
    27.350 kg
    More information
  • WPL 120-30S
    Wide-span cable ladder WPL 120-30S
    height
    120 mm
    width
    300 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Line load power cable
    0.82 kN/m
    cross section area
    294 cm2
    Weight per storage unit
    28.720 kg
    More information
  • WPL 120-40S
    Wide-span cable ladder WPL 120-40S
    height
    120 mm
    width
    400 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Line load power cable
    1.10 kN/m
    cross section area
    392 cm2
    Weight per storage unit
    30.090 kg
    More information
  • WPL 120-50S
    Wide-span cable ladder WPL 120-50S
    height
    120 mm
    width
    500 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Line load power cable
    1.37 kN/m
    cross section area
    490 cm2
    Weight per storage unit
    31.470 kg
    More information
  • WPL 120-60S
    Wide-span cable ladder WPL 120-60S
    height
    120 mm
    width
    600 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Line load power cable
    1.65 kN/m
    cross section area
    588 cm2
    Weight per storage unit
    32.840 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

QLK

Line load power cable

A

cross section area

G

Weight per storage unit
  • WPL 120-20F
    Wide-span cable ladder WPL 120-20F
    height
    120 mm
    width
    200 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Line load power cable
    0.55 kN/m
    cross section area
    196 cm2
    Weight per storage unit
    29.260 kg
    More information
  • WPL 120-30F
    Wide-span cable ladder WPL 120-30F
    height
    120 mm
    width
    300 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Line load power cable
    0.82 kN/m
    cross section area
    294 cm2
    Weight per storage unit
    30.730 kg
    More information
  • WPL 120-40F
    Wide-span cable ladder WPL 120-40F
    height
    120 mm
    width
    400 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Line load power cable
    1.10 kN/m
    cross section area
    392 cm2
    Weight per storage unit
    32.200 kg
    More information
  • WPL 120-50F
    Wide-span cable ladder WPL 120-50F
    height
    120 mm
    width
    500 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Line load power cable
    1.37 kN/m
    cross section area
    490 cm2
    Weight per storage unit
    33.670 kg
    More information
  • WPL 120-60F
    Wide-span cable ladder WPL 120-60F
    height
    120 mm
    width
    600 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Line load power cable
    1.65 kN/m
    cross section area
    588 cm2
    Weight per storage unit
    35.140 kg
    More information

Details

  • No stepping

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Cable trays - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders and more.

    PDF, 29 MB

    de
    Download

  • Wide-Span Cable Ladder WPL, Installation Guide

    Montageanleitung

    PDF, 2 MB

    de
    Download

  • Wide-Span Systems, Technical Information

    Technische Information

    PDF, 4 MB

    de en

  • Wide-Span Cable Ladder WPL 100, 120, 150

    Kompaktübersicht

    PDF, 1 MB

    de
    Download

  • Electrical conductivity (WP/WPL 100)

    Certificate, tested according to DIN EN 61537 Pt. 11.1

    PDF, 263 KB

    de en

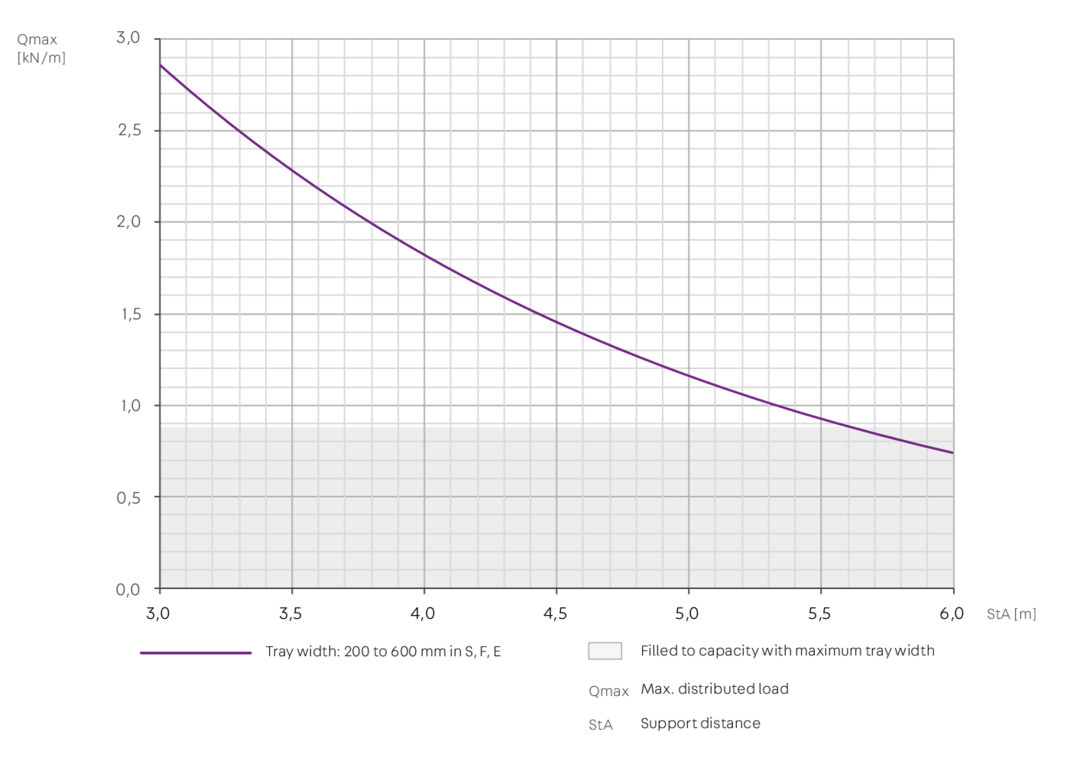

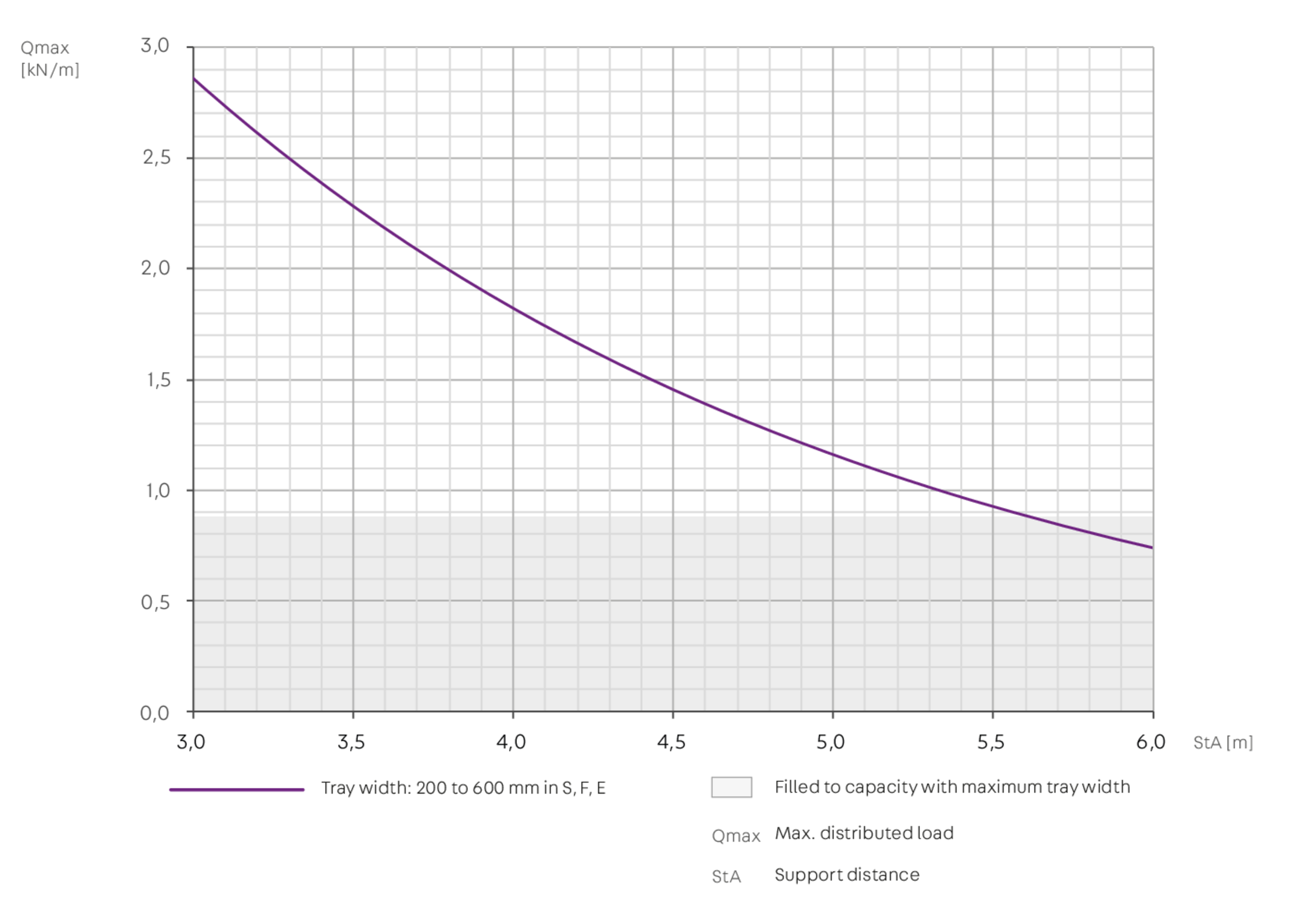

Load diagram
