UST45FR 2

Installation socket with earthing pin, 2x

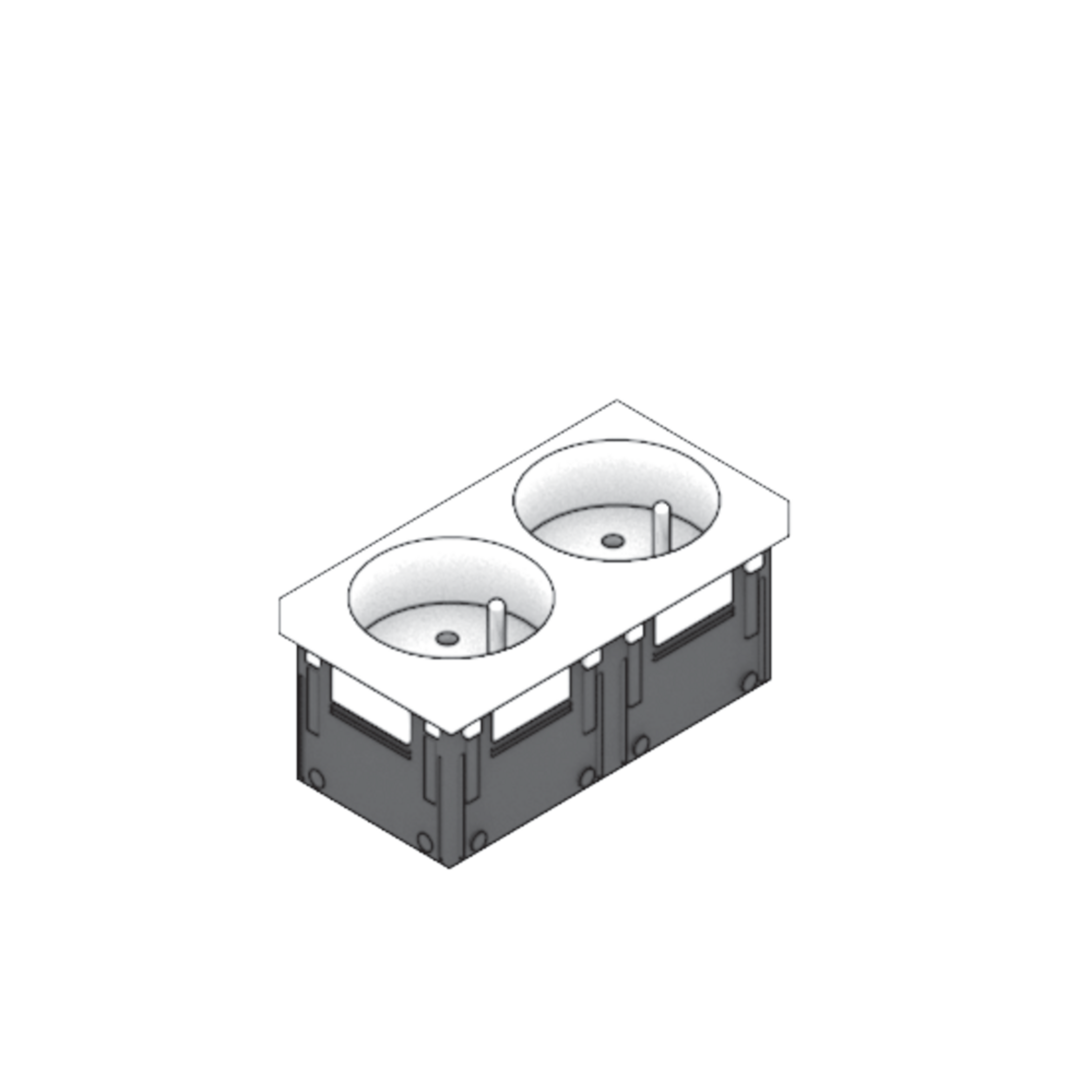

The UST45FR 2 components are one-piece, 2-way flush-type socket outlets with earthing pin in a 45x45 mm design. They can be inserted into the appropriate UAM cover plates using plug-in terminals. The sockets are made of high-quality polycarbonate and are available in different colours. The 2-pole protective sockets have increased protection against accidental contact and are suitable for a rated voltage/current of AC 250 V, 10/16 A.

Get in touch Download datasheet

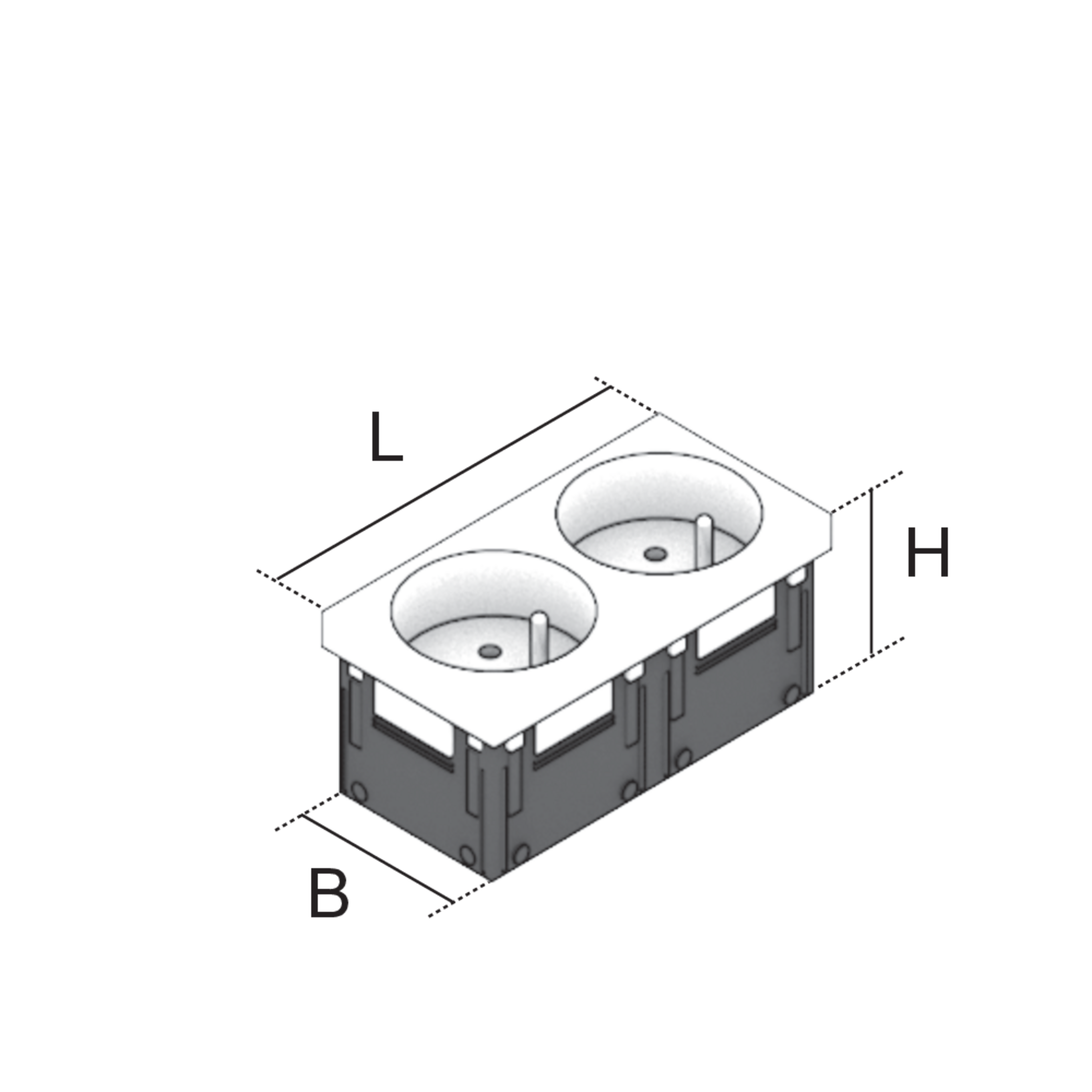

Variants

Article

H

height

B

width

L

length

colour

color

plug angle

G

Weight per storage unit
  • UST45FR-R 2
    Installation socket,
    height
    42 mm
    width
    40 mm
    length
    90 mm
    color
    red (similar to RAL 3003)
    plug angle
    33 °
    Weight per storage unit
    0.072 kg
    More information
  • UST45FR-W 2
    Installation socket,
    height
    42 mm
    width
    40 mm
    length
    90 mm
    color
    white (similar to RAL 9010)
    plug angle
    33 °
    Weight per storage unit
    0.072 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Assembly instruction for device installation cups and installation devices

    Montageanleitung

    PDF, 562 KB

    de en

  • Technical Information Device Sockets and Installation Devices

    Technische Information

    PDF, 14 MB

    de en
