UST45FR 1

Installation socket with earthing pin, 1x

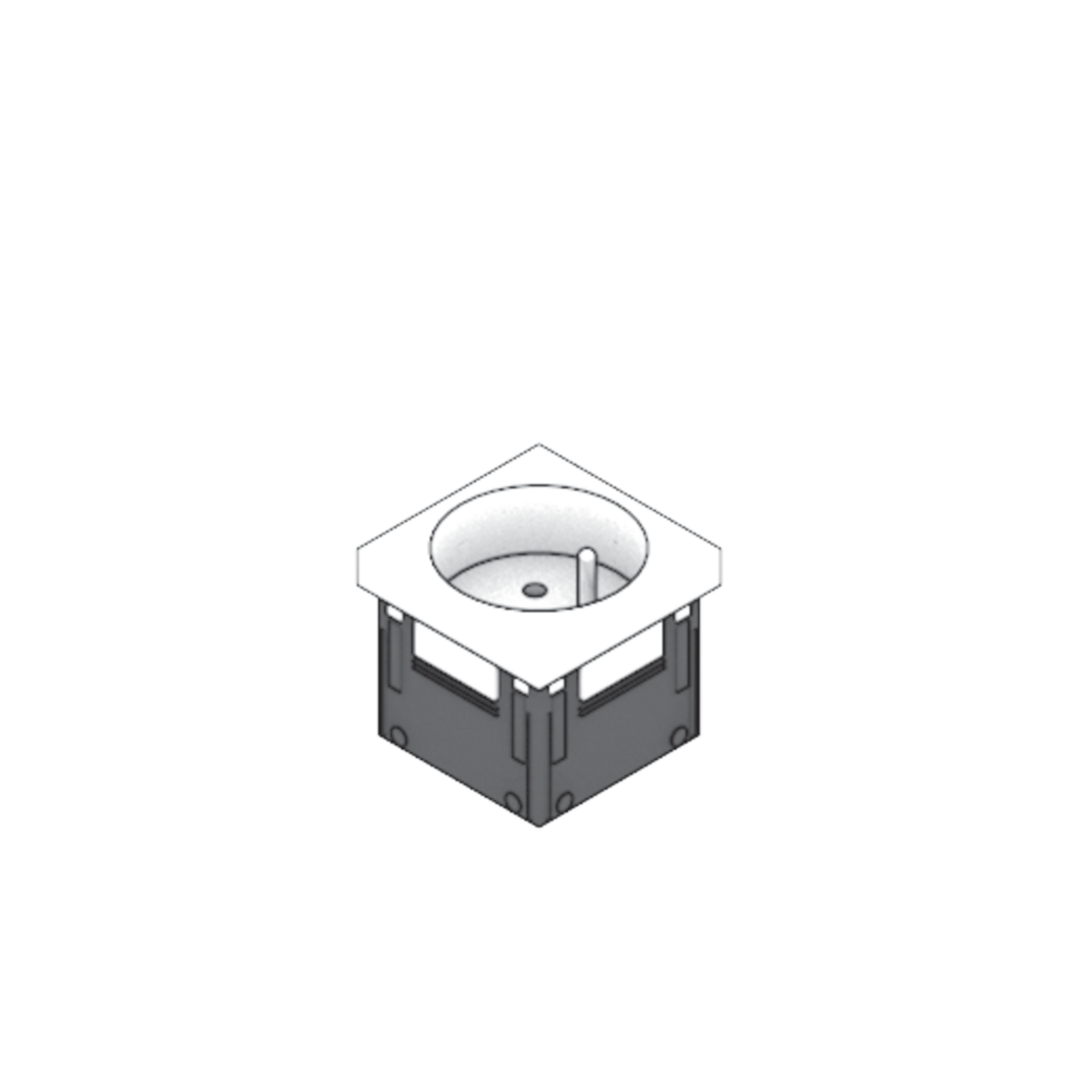

The UST45FR 1 components are one-piece, 1-way flush-type socket outlets with earthing pin in a 45x45 mm design. They can be inserted into the appropriate UAM cover plates using plug-in terminals. The sockets are made of high-quality polycarbonate and are available in different colours. The 2-pole protective sockets have increased protection against accidental contact and are suitable for a rated voltage/current of AC 250 V, 10/16 A.

Get in touch Download datasheet

Variants

Article

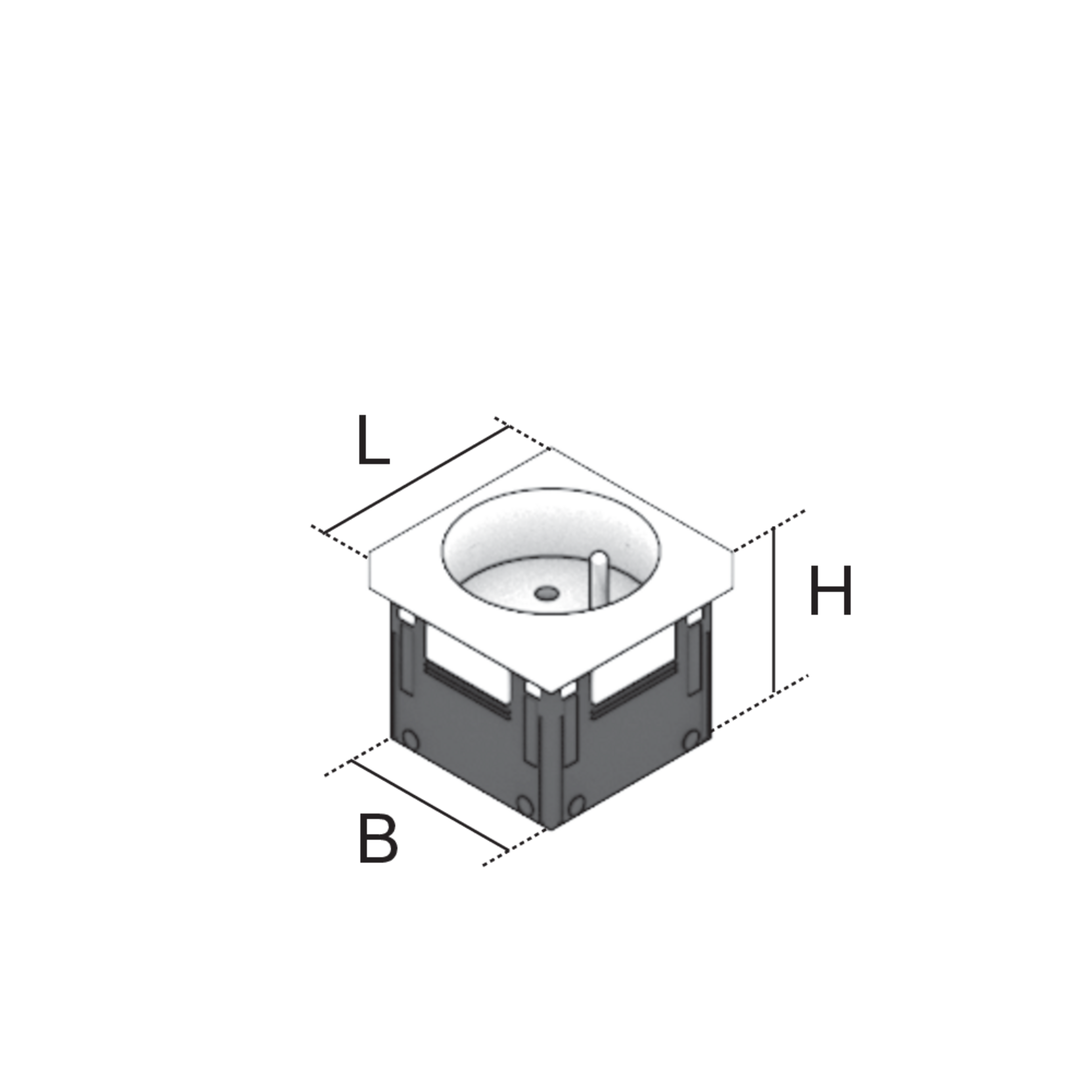

H

B

L

colour

plug angle

W

  • UST45FR-R 1
    Installation socket,
    42 mm
    40 mm
    45 mm
    red (similar to RAL 3003)
    33 °
    0.036 kg
    More information
  • UST45FR-W 1
    Installation socket,
    42 mm
    40 mm
    45 mm
    white (similar to RAL 9010)
    33 °
    0.036 kg
    More information
