UST45 4

Socket, 4x

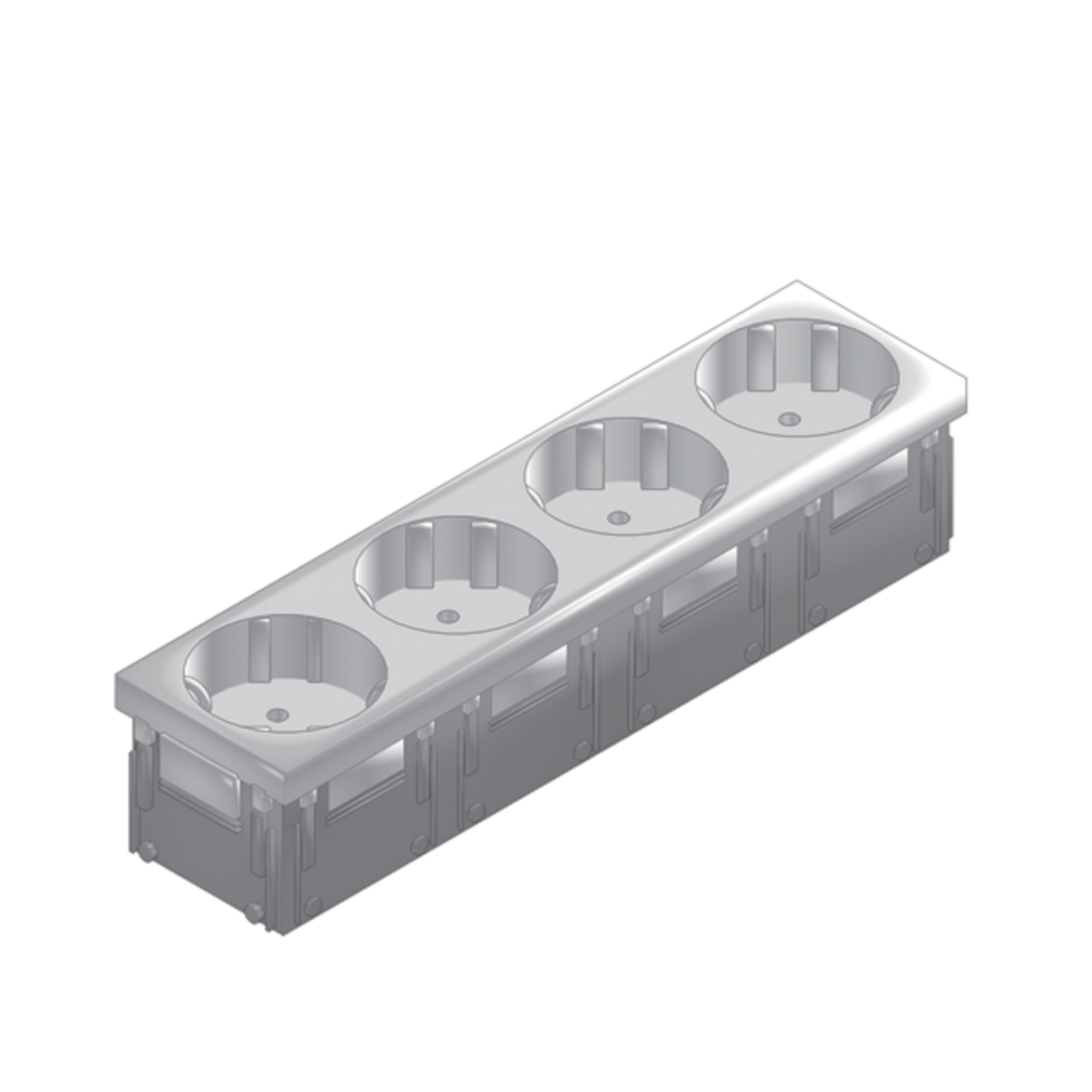

The UST45 4 components are one-piece, 4-way protective sockets in a 45x45 mm design. They can be inserted into the appropriate UAM cover plates using plug-in terminals. The sockets are made of high-quality polycarbonate and are available in different colours. The protective sockets have increased protection against accidental contact and are suitable for a rated voltage/current of AC 250 V, 10/16 A.

Get in touch Download datasheet

Variants

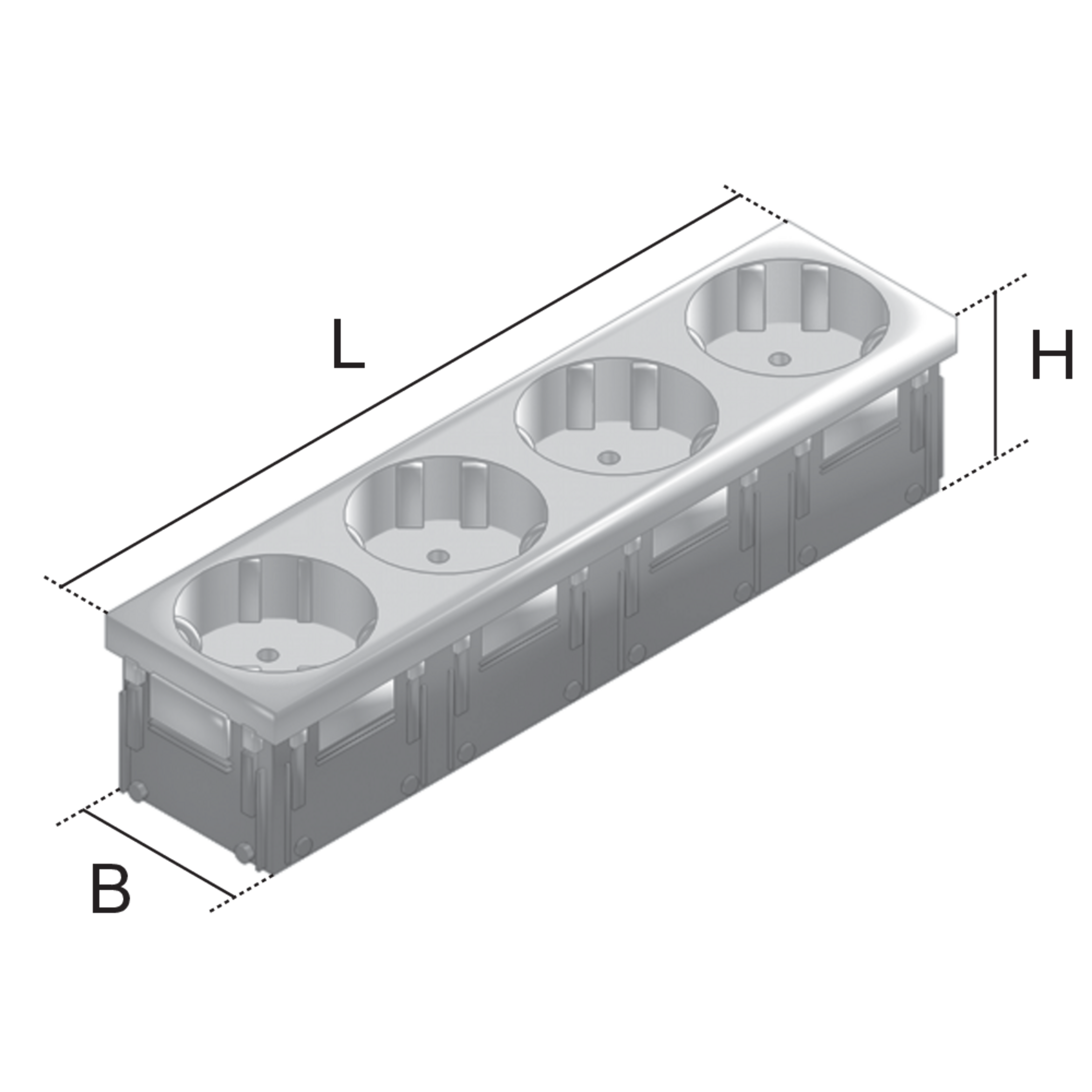

Article

H

B

L

colour

plug angle

W

  • UST45-R 4
    shockproof socket,
    40 mm
    40 mm
    180 mm
    red (similar to RAL 3000)
    45 °
    0.132 kg
    More information
  • UST45-W 4
    shockproof socket,
    40 mm
    40 mm
    180 mm
    white (similar to RAL 9003)
    45 °
    0.132 kg
    More information
