UST45 3

Socket, 3x

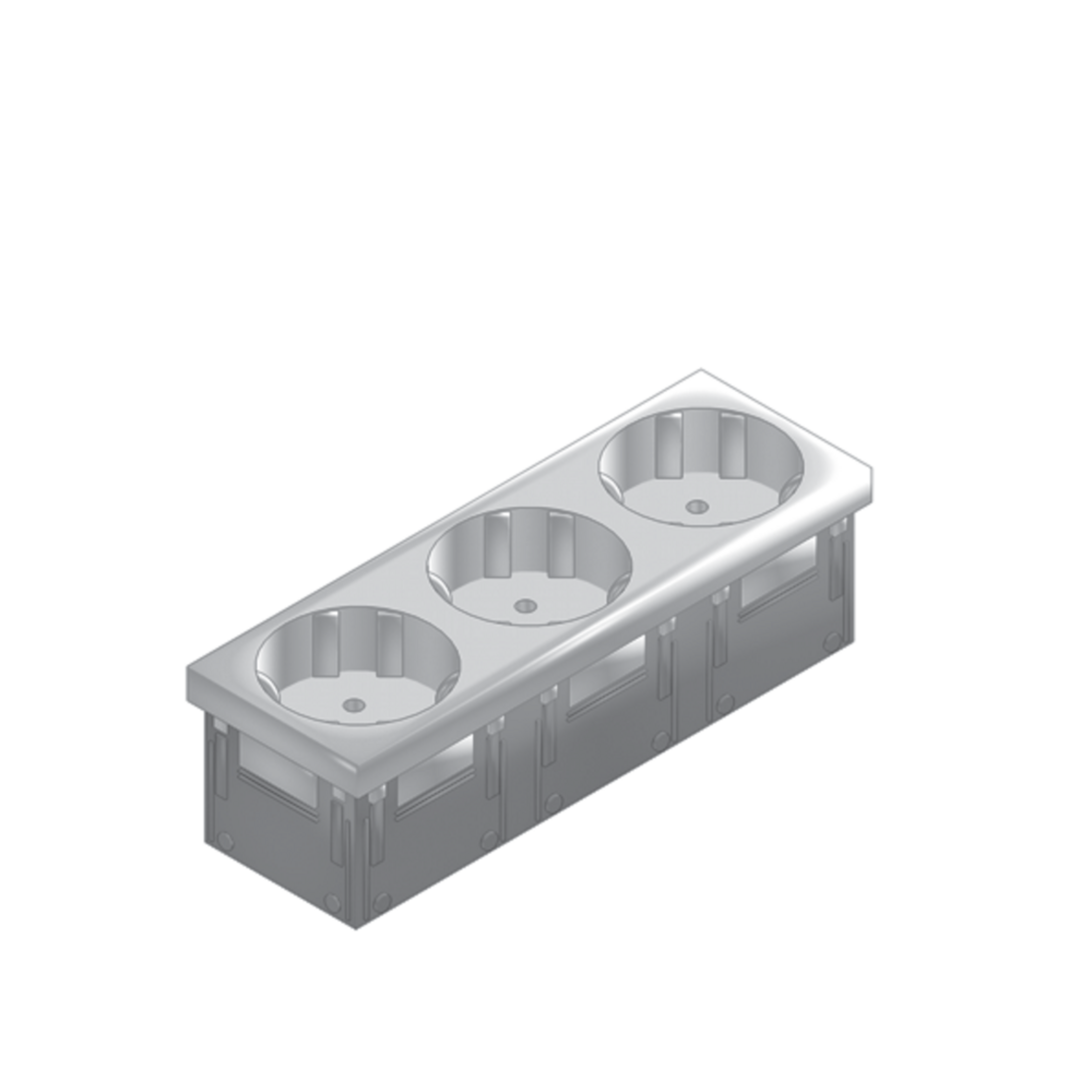

The UST45 3 components are one-piece, 3-way protective sockets in a 45x45 mm design. They can be inserted into the appropriate UAM cover plates using plug-in terminals. The sockets are made of high-quality polycarbonate and are available in different colours. The protective sockets have increased protection against accidental contact and are suitable for a rated voltage/current of AC 250 V, 10/16 A.

Get in touch Download datasheet

Variants

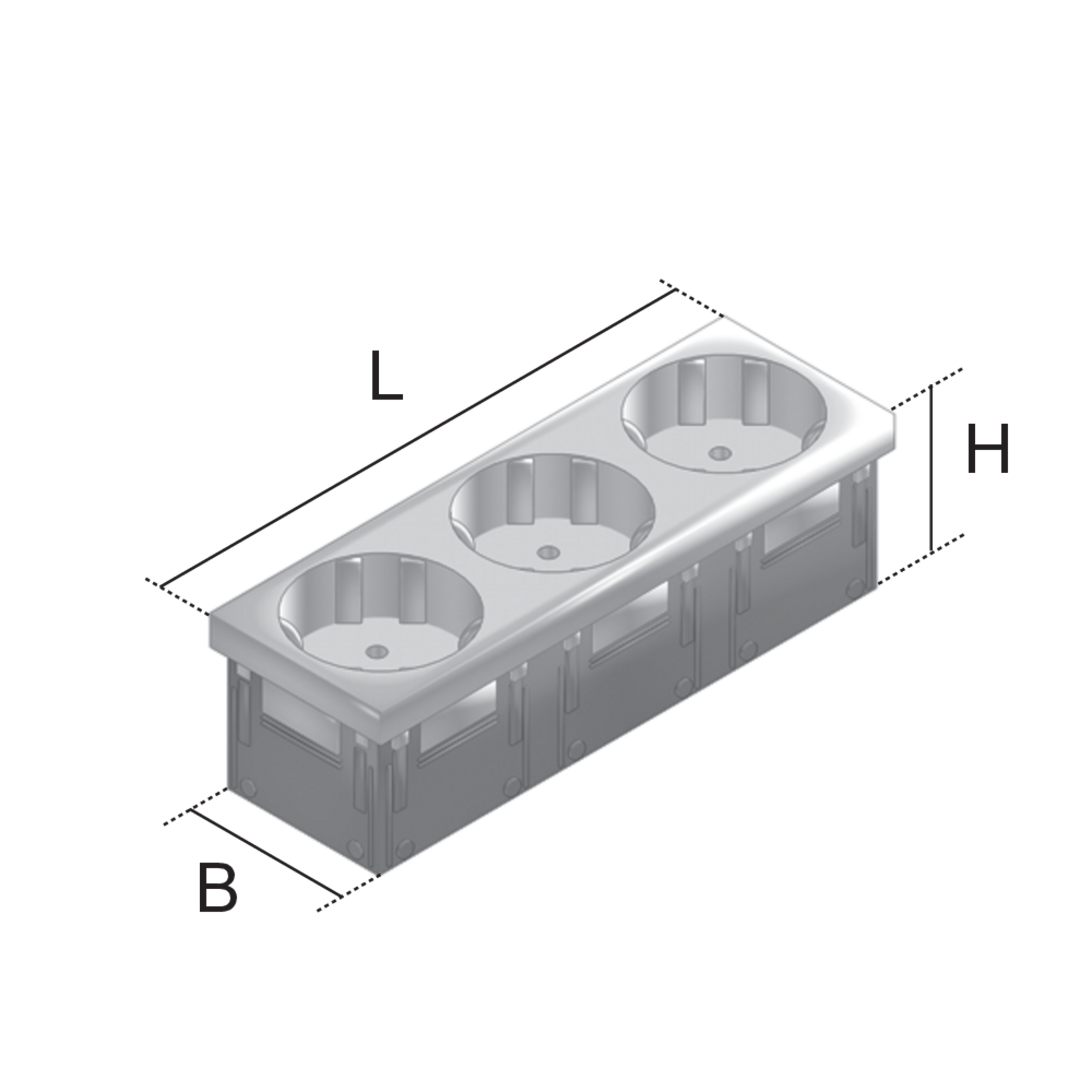

Article

H

Höhe

B

Breite

L

Länge

Farbe

Farbe

Steckwinkel

G

Gewicht je Lagermengeneinheit
  • UST45-G 3
    Schutzkontaktsteckdose,
    Höhe
    42 mm
    Breite
    40 mm
    Länge
    135 mm
    Farbe
    Grün (ähnlich RAL 6029)
    Steckwinkel
    33 °
    Gewicht je Lagermengeneinheit
    0.110 kg
    More information
  • UST45-O 3
    Schutzkontaktsteckdose,
    Höhe
    42 mm
    Breite
    40 mm
    Länge
    135 mm
    Farbe
    Orange (ähnlich RAL 2004)
    Steckwinkel
    33 °
    Gewicht je Lagermengeneinheit
    0.110 kg
    More information
  • UST45-R 3
    Schutzkontaktsteckdose,
    Höhe
    42 mm
    Breite
    40 mm
    Länge
    135 mm
    Farbe
    Rot (ähnlich RAL 3003)
    Steckwinkel
    33 °
    Gewicht je Lagermengeneinheit
    0.110 kg
    More information
  • UST45-W 3
    Schutzkontaktsteckdose,
    Höhe
    42 mm
    Breite
    40 mm
    Länge
    135 mm
    Farbe
    Weiß (ähnlich RAL 9010)
    Steckwinkel
    33 °
    Gewicht je Lagermengeneinheit
    0.110 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Assembly instruction for device installation cups and installation devices

    Montageanleitung

    PDF, 562 KB

    de en

  • Technical Information Device Sockets and Installation Devices

    Technische Information

    PDF, 14 MB

    de en
