UNSKH R

Heat-resistant formwork unit, height-adjustable, round

UNSKH R products are round formwork units. These are inserted into the floor sockets or cable duct assembly covers of screed-covered underfloor ducts and used as lost formwork for round installation units. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346, can be sanded, are heat-resistant and have internal level adjusters with levelling bases and covers. The formwork bodies are suitable for use in asphalt and terrazzo and are mounted on the raw concrete slab. They have VDE/TÜV approval and are 307 mm in diameter.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

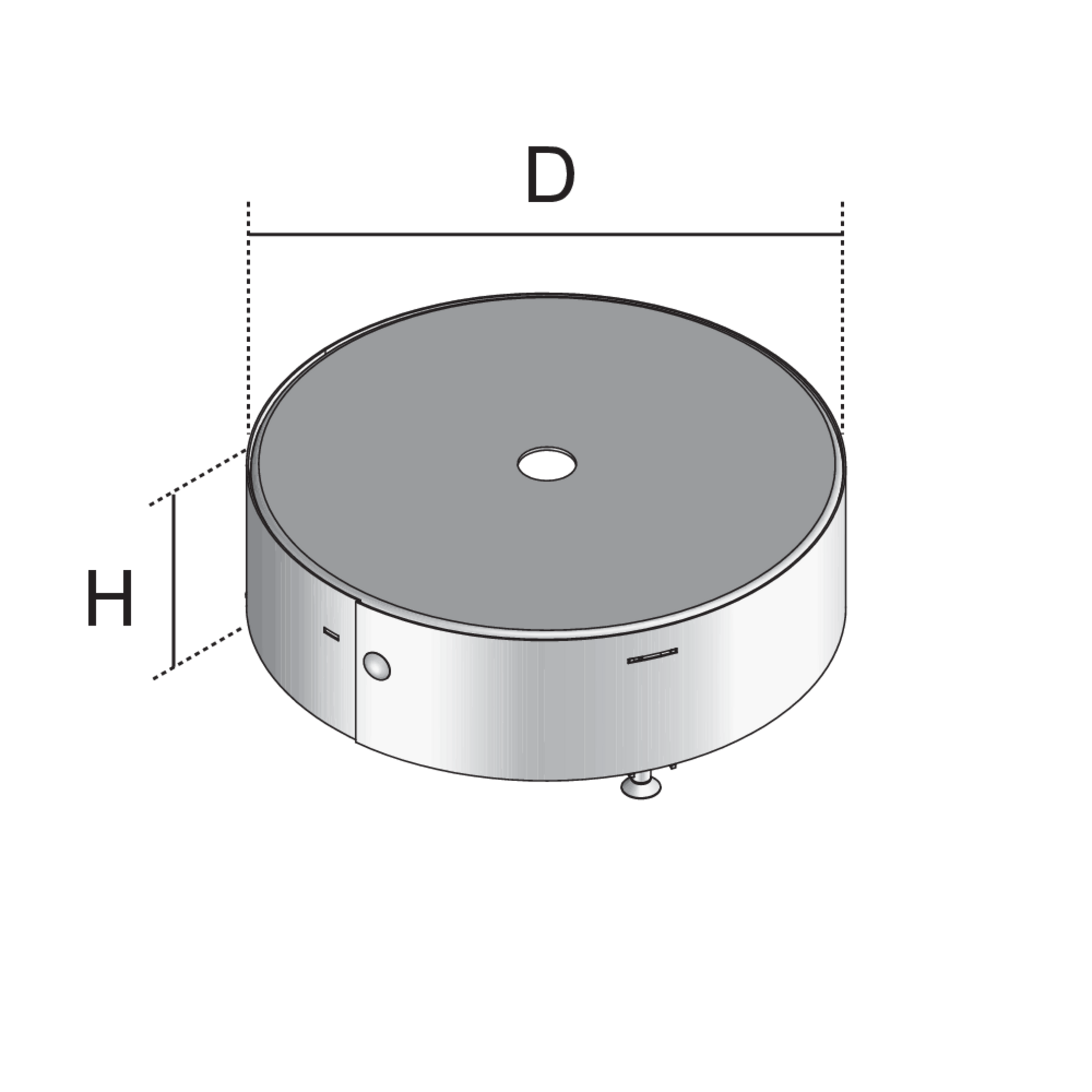

Variants

Article

H

height

Hmin

minimum installation height

N

levelling range

D

diameter

G

Weight per storage unit

  • UNSKH 308R-100S
    Shuttering unit, height-adjustable,
    height
    88 mm
    minimum installation height
    100 mm
    levelling range
    55 mm
    diameter
    307 mm
    Weight per storage unit
    2.222 kg
    More information
  • UNSKH 308R-155S
    Shuttering unit, height-adjustable,
    height
    88 mm
    minimum installation height
    155 mm
    levelling range
    70 mm
    diameter
    307 mm
    Weight per storage unit
    2.279 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Declaration

    PDF, 106.06 KB

    • de

    Download

    EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    • de

    • en

    Underfloor Systems - Catalogue

    Catalogue

    • de

    • en

    Technical Information Screed-Covered Duct Systems

    Technical Information

    • de

    • en

    Grindable shuttering unit - Assembly instruction

    Assembly Instructions

    • de

    • en

BIM- und CAD-Data

    BIM Data Screed-Covered Duct Systems

    BIM Data

    • de

    • en
