UG R

Mounting boxes, round

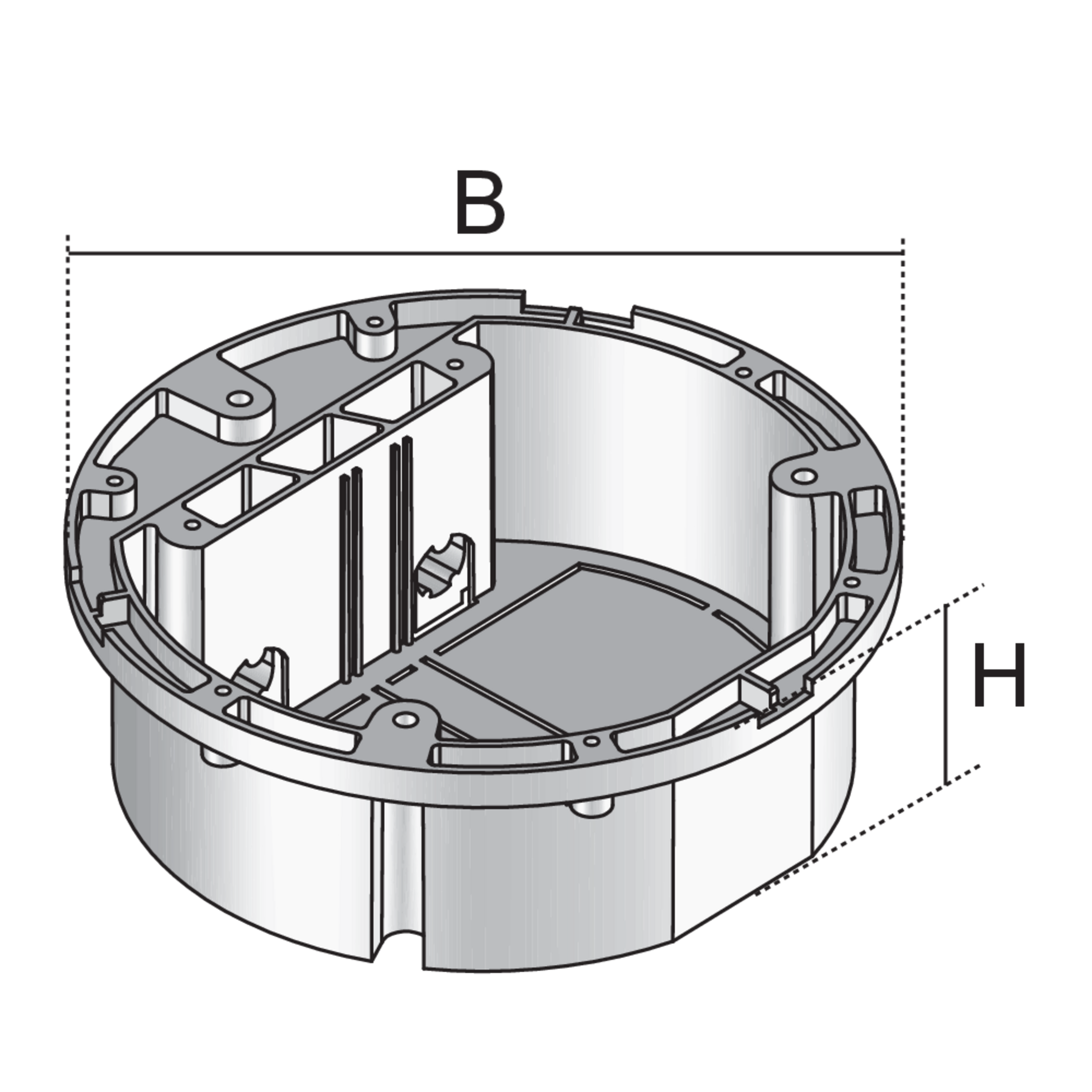

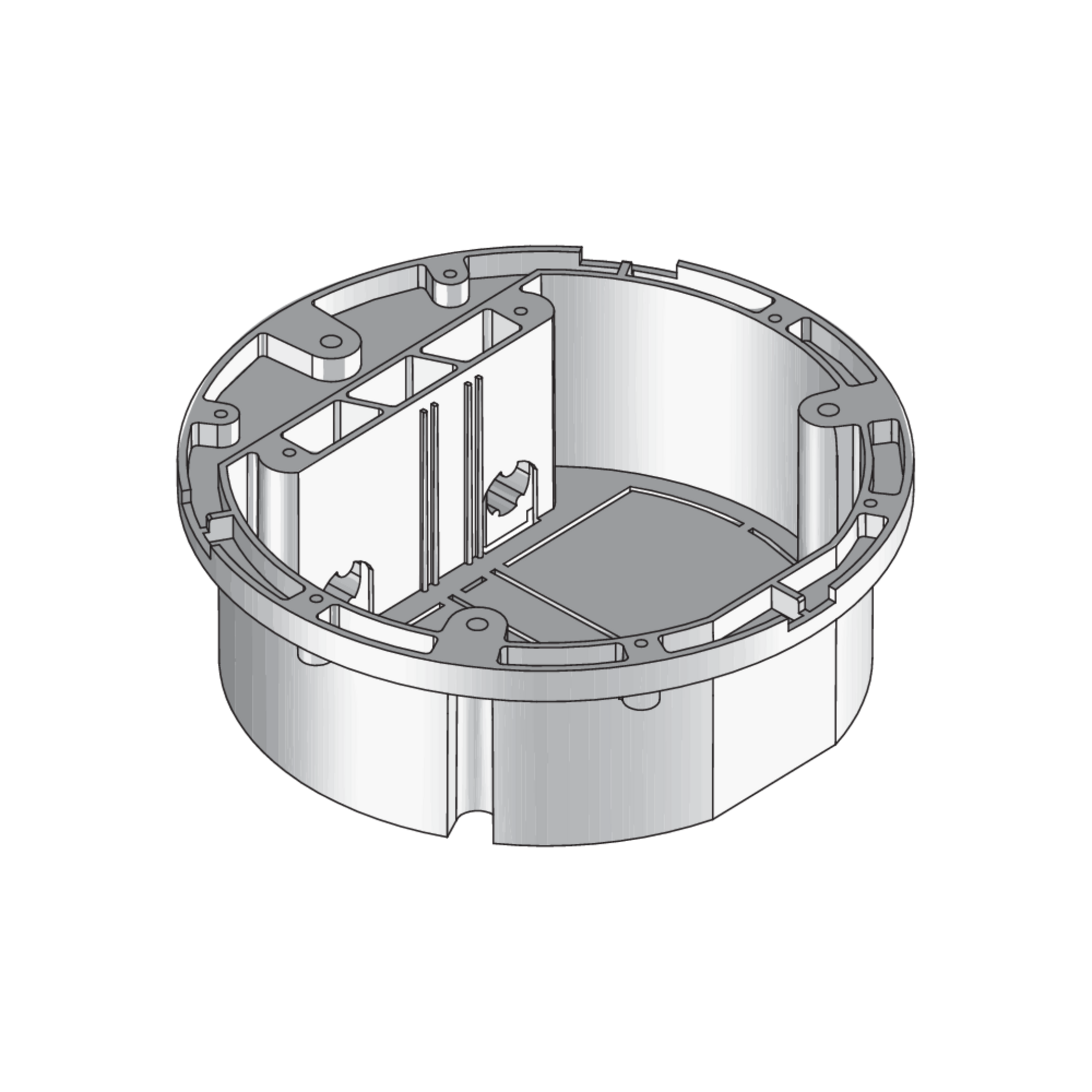

UG R components are round mounting boxes from the underfloor systems range that are used to accommodate installation devices. They are composed of a one-piece shell with a perforated base, two strain relief elements and two sheet metal screws. The mounting boxes can be bolted to BODO installation units or to angular, double single outlets and then fitted with single or double sockets. The mounting boxes are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They are 118 mm wide and 39 mm high.

Variants

Article

H

Höhe

B

Breite

Farbe

Farbe

G

Gewicht je Lagermengeneinheit

  • UG-R
    Gerätebecher,
    Höhe
    39 mm
    Breite
    118 mm
    Farbe
    RAL 9011 (Graphitschwarz)
    Gewicht je Lagermengeneinheit
    0.070 kg
    Included accessories

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
