UG45

Mounting box, angular, open

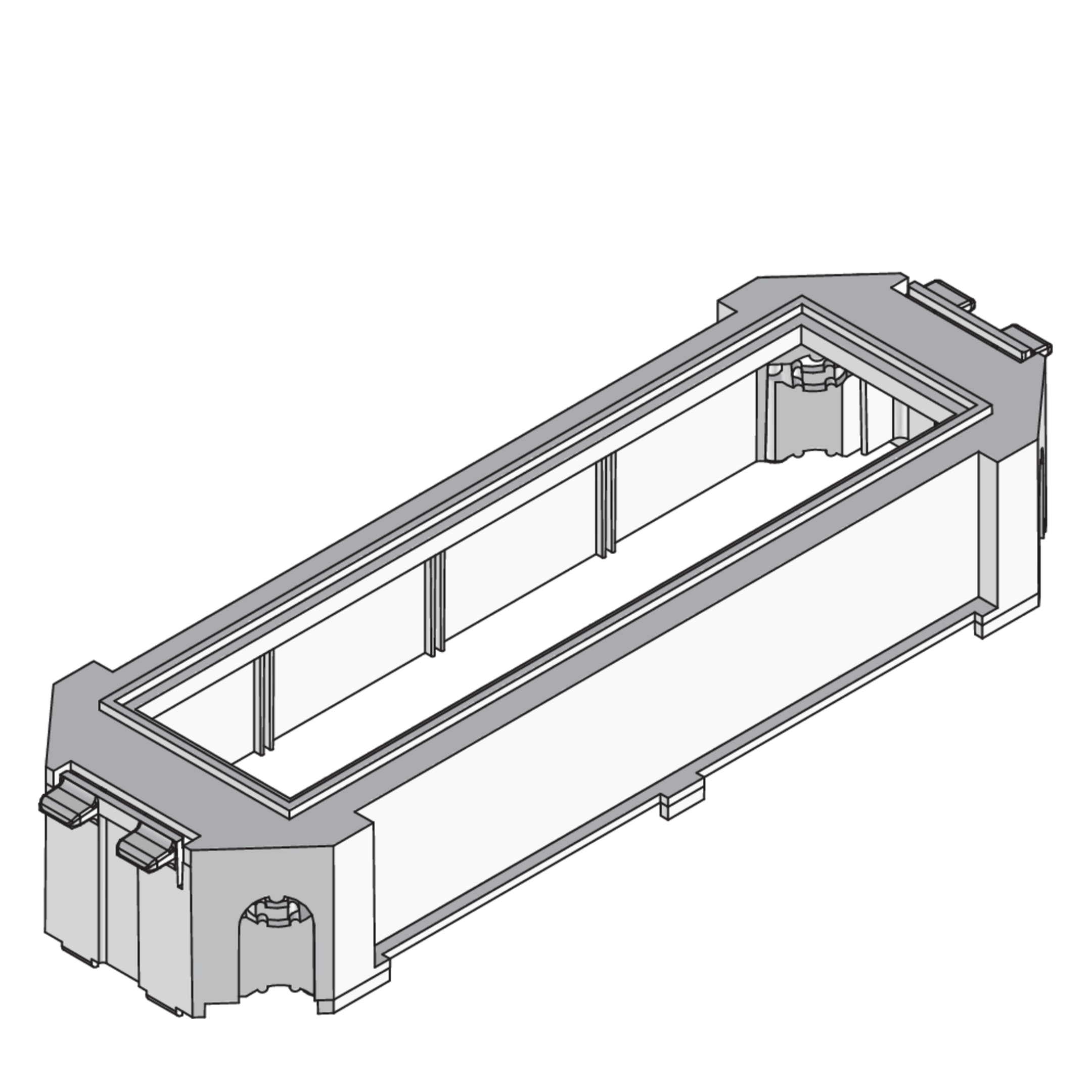

UG45 components are square mounting boxes consisting of a one-piece shell with an open base and a strain relief device for incoming cables. The base can optionally be closed using a dummy cover. The mounting boxes are snapped into installation units and can be equipped with up to four 45x45 mm installation devices. The mounting boxes are made of ABS copolymer in graphite black (RAL 9011).

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

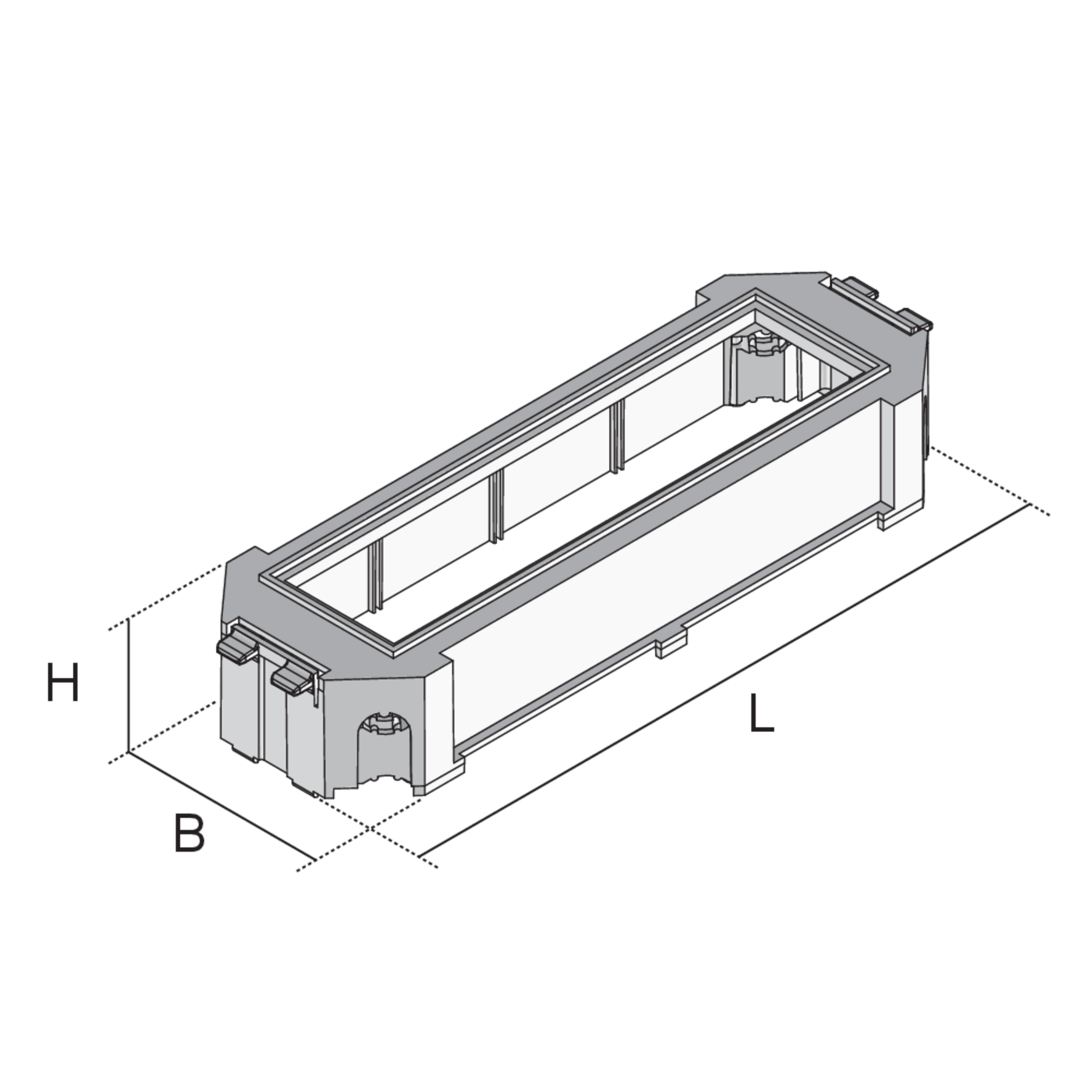

H

height

Hmin

minimum installation height

B

width

L

length

colour

color

G

Weight per storage unit

Strain relief

Installation devices

Max. number of installation devices
  • UG45-4
    device cup,
    height
    40 mm
    minimum installation height
    81 mm
    width
    74 mm
    length
    225 mm
    color
    RAL 9011 (graphite black)
    Weight per storage unit
    0.092 kg
    Strain relief
    4x for cable Ø 6 to 12 mm
    Max. number of installation devices
    4
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
