UAVS 113

Cover plate, snap-in

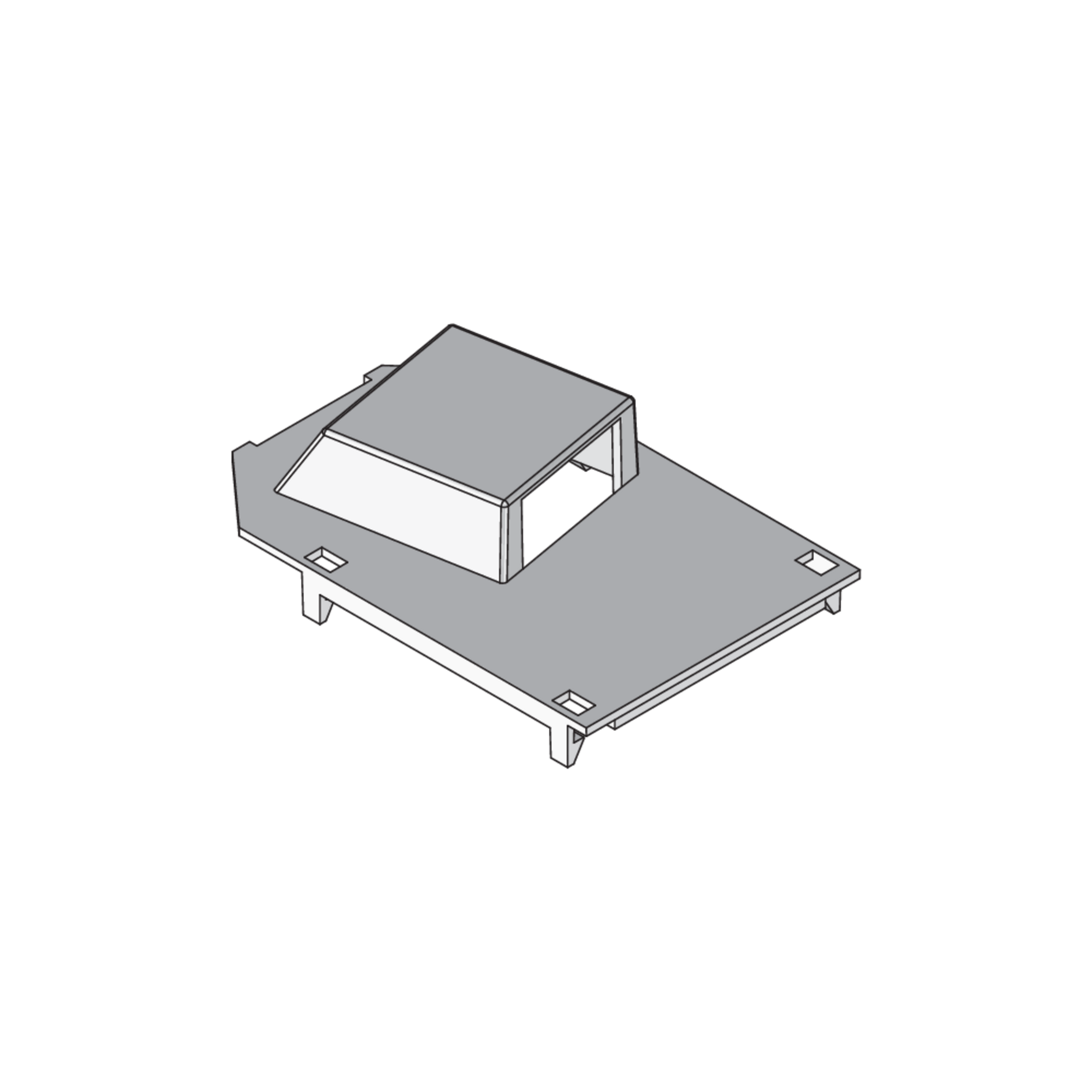

UAVS 113 components from the underfloor systems range are one-piece cover plates that are system-related accessories for UG45-4 mounting boxes. The square boards are used for screwless installation of snap-in connectors. They are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011) and have a matt surface. The cover plates are 113 mm long and have the installation dimensions of E1 33 mm and E2 16 mm.

Load requirements according to: DIN EN 50085

Variants

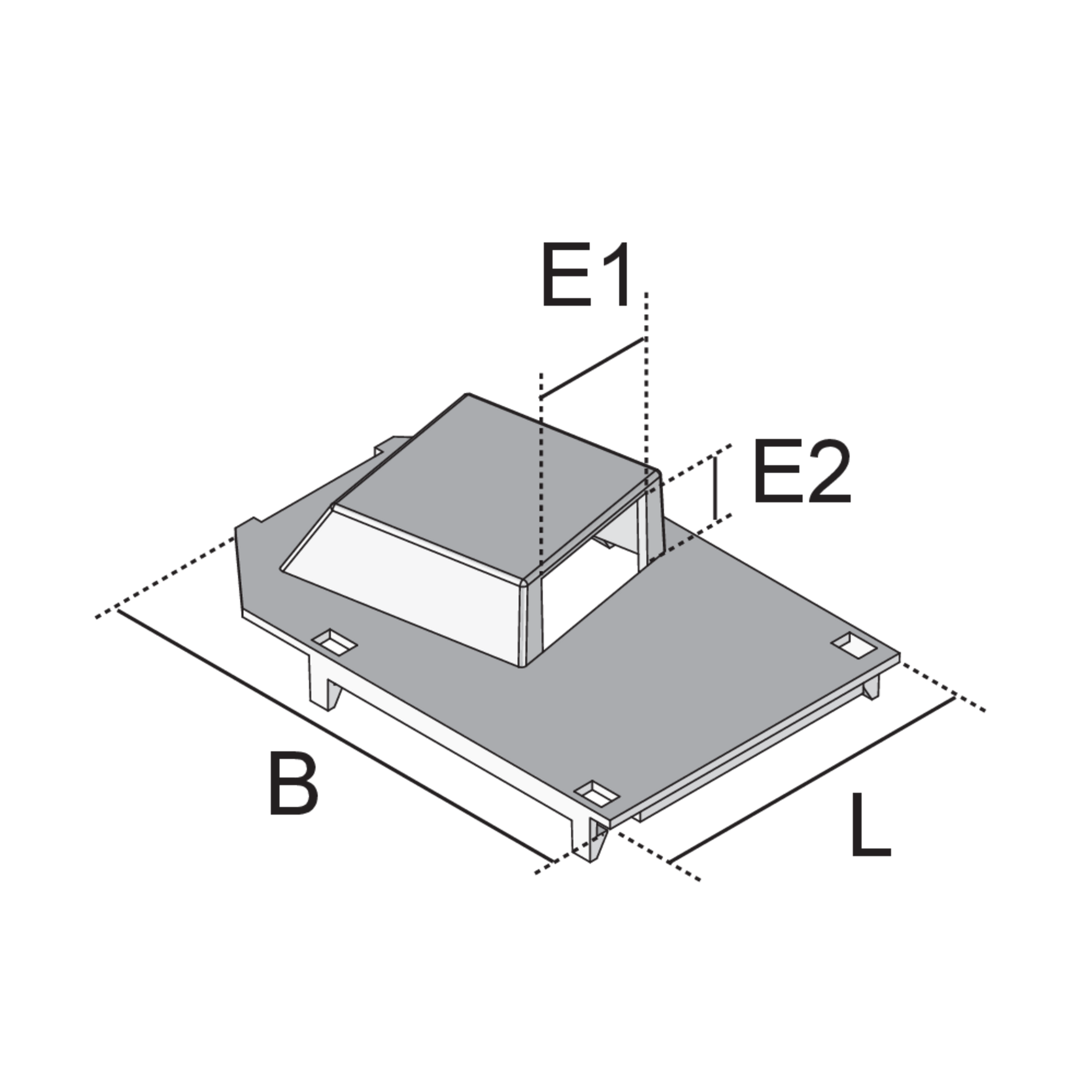

Article

B

Breite

L

Länge

E1

Einbaumaß E1

E2

Einbaumaß E2

Farbe

Farbe

G

Gewicht je Lagermengeneinheit

  • UAVS-1-1 113
    Abdeckplatte
    Breite
    74 mm
    Länge
    113 mm
    Einbaumaß E1
    33 mm
    Einbaumaß E2
    16 mm
    Farbe
    RAL 9011 (Graphitschwarz)
    Gewicht je Lagermengeneinheit
    0.028 kg

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
