UEBDM V WD

Stainless steel tube cover unit, 3x, angular

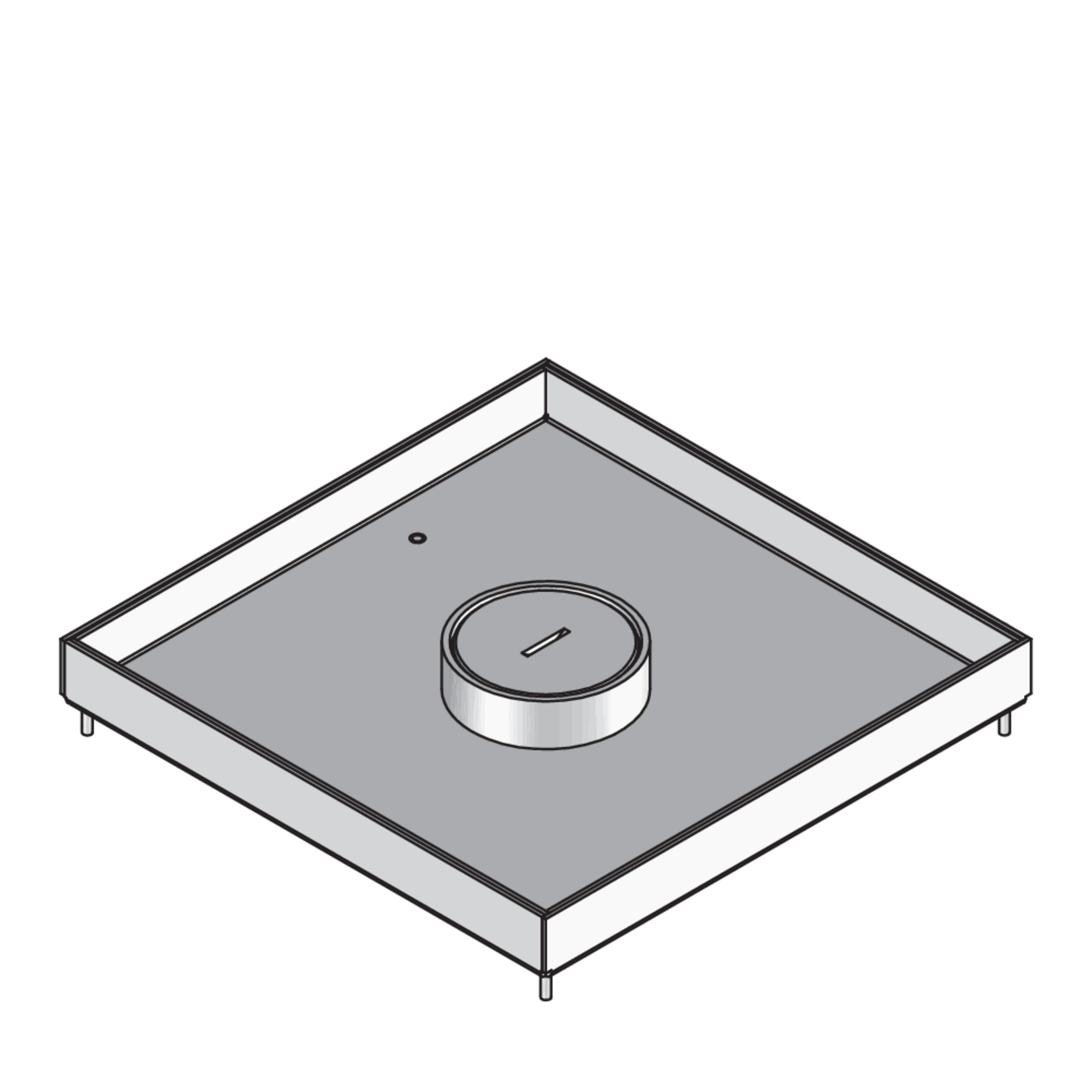

UEBDM V WD components are square tube cover units. They consist of a cartridge mounting frame with tube outlet, bolted tube mounting kit and rubber seal and are mounted using Phillips screws in floor sockets, assembly covers and raised or false floor openings in wet-cleaned rooms with office traffic loads. They can accommodate a maximum of 3 mounting boxes equipped with installation devices. The units are made of aluminium with an IP protection rating of IP 54 in an unused condition, an IP protection rating of IP 22 when used and a max. load of 2 kN. They are available with installation dimensions of 261 x 261 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

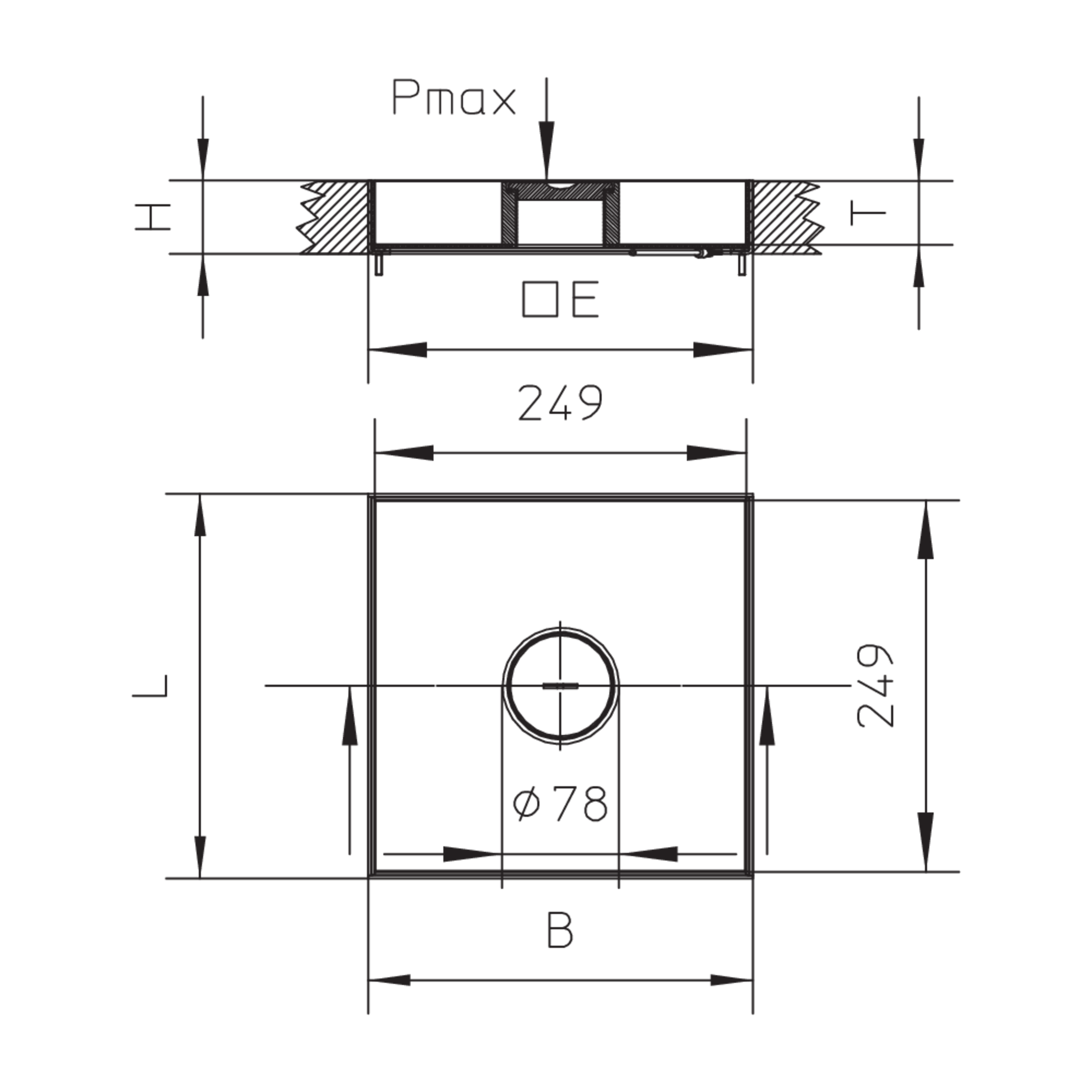

Variants

Messing

Article

H

Höhe

Hmin

min. Einbauhöhe

B

Breite

L

Länge

Pmax

max. Belastung

Gerätebecher

max. Anzahl installierbarer Gerätebecher

E

Einbaumaß

IPg

IP-Schutzgrad im genutzten Zustand

IPn

IP-Schutzgrad im nicht genutzten Zustand

T

Tiefe der Bodenbelagaussparung

G

Gewicht je Lagermengeneinheit
  • UEBDM 25-V-WD MS
    Kassetteneinheit,
    29 mm
    95 mm
    258 mm
    258 mm
    2.00 kN
    3
    261 x 261 mm
    IP 22
    IP 54
    16.5 mm
    5.324 kg
    Included accessories
    More information
  • UEBDM 35-V-WD MS
    Kassetteneinheit,
    39 mm
    105 mm
    258 mm
    258 mm
    2.00 kN
    3
    261 x 261 mm
    IP 22
    IP 54
    26.5 mm
    5.847 kg
    Included accessories
    More information

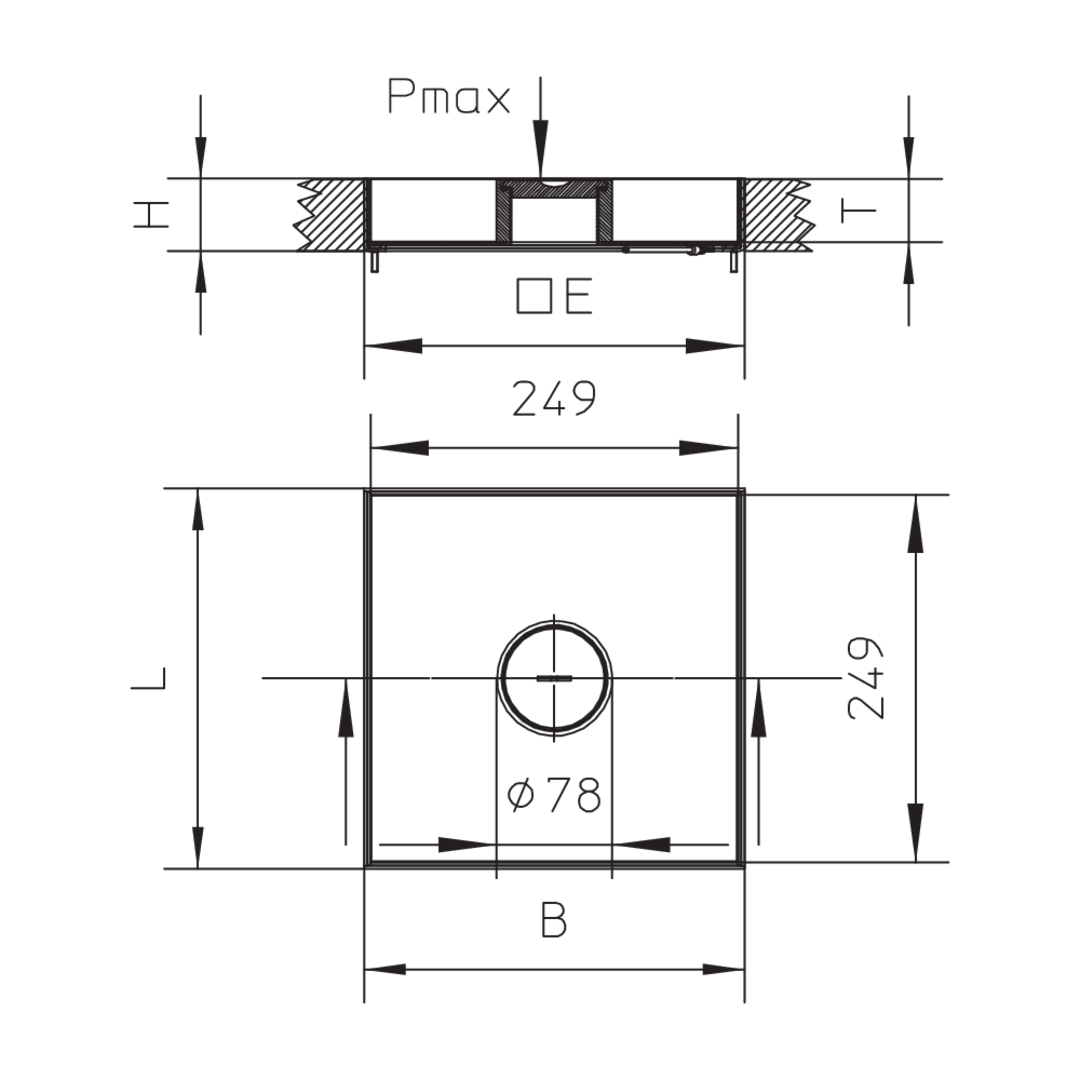

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

Hmin

min. Einbauhöhe

B

Breite

L

Länge

Pmax

max. Belastung

Gerätebecher

max. Anzahl installierbarer Gerätebecher

E

Einbaumaß

IPg

IP-Schutzgrad im genutzten Zustand

IPn

IP-Schutzgrad im nicht genutzten Zustand

T

Tiefe der Bodenbelagaussparung

G

Gewicht je Lagermengeneinheit
  • UEBDM 15-V-WD
    Kassetteneinheit,
    19 mm
    85 mm
    258 mm
    258 mm
    2.00 kN
    3
    261 x 261 mm
    IP 22
    IP 54
    12.5 mm
    1.817 kg
    Included accessories
    More information
  • UEBDM 25-V-WD
    Kassetteneinheit,
    29 mm
    95 mm
    258 mm
    258 mm
    2.00 kN
    3
    261 x 261 mm
    IP 22
    IP 54
    22.5 mm
    2.184 kg
    Included accessories
    More information
  • UEBDM 35-V-WD
    Kassetteneinheit,
    39 mm
    105 mm
    258 mm
    258 mm
    2.00 kN
    3
    261 x 261 mm
    IP 22
    IP 54
    32.5 mm
    2.562 kg
    Included accessories
    More information
  • UEBDM 45-V-WD
    Kassetteneinheit,
    49 mm
    115 mm
    258 mm
    258 mm
    2.00 kN
    3
    261 x 261 mm
    IP 22
    IP 54
    42.5 mm
    2.939 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
