Variants
H
Höhe
B
Breite
Datenjacks
max. Anzahl installierbarer Datenjacks
E1
Einbaumaß E1
Farbe
Farbe
G
Gewicht je Lagermengeneinheit
-
UDEP-XLR 2

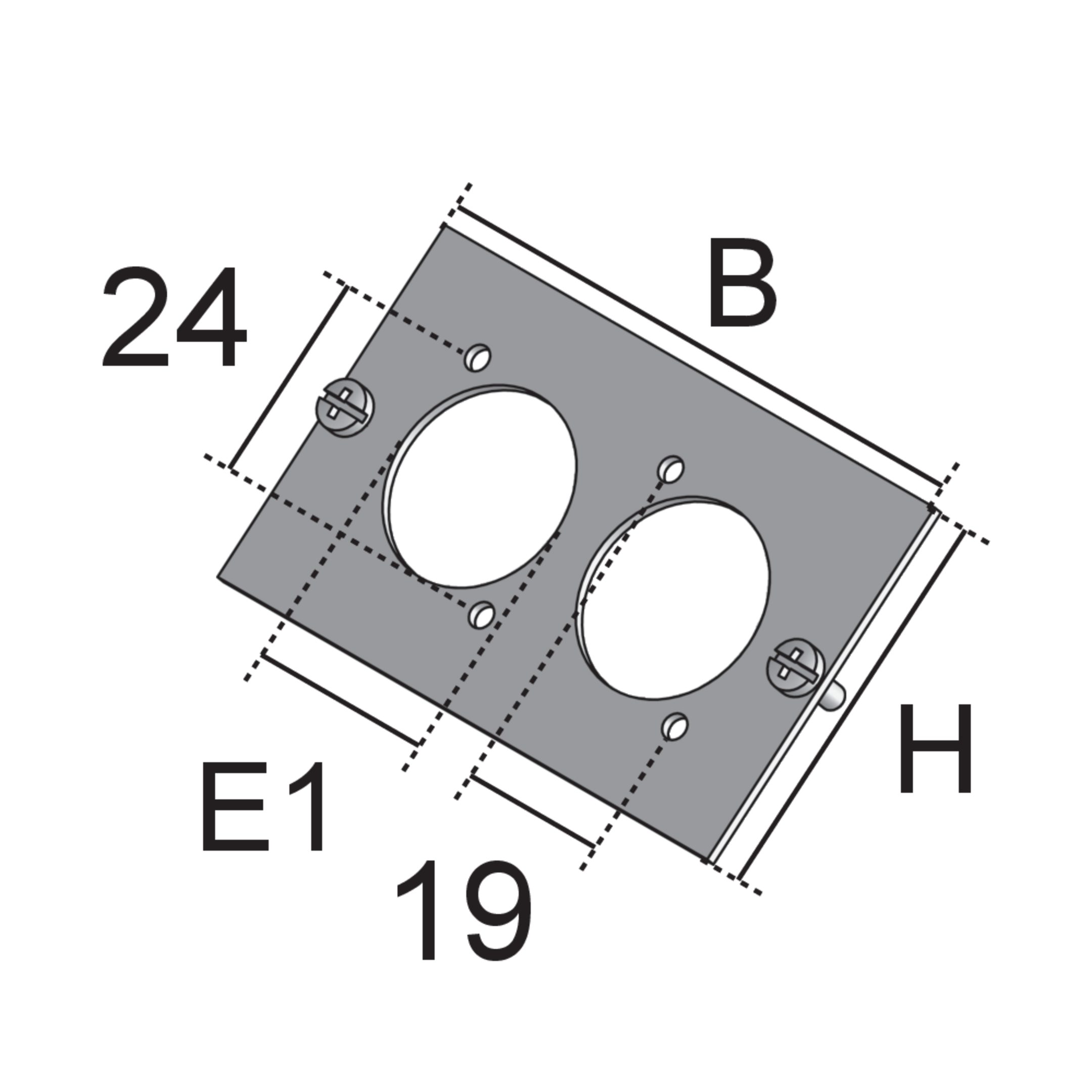

Einbauplatine,46 mm75 mm223.6 mmSchwarz0.014 kg

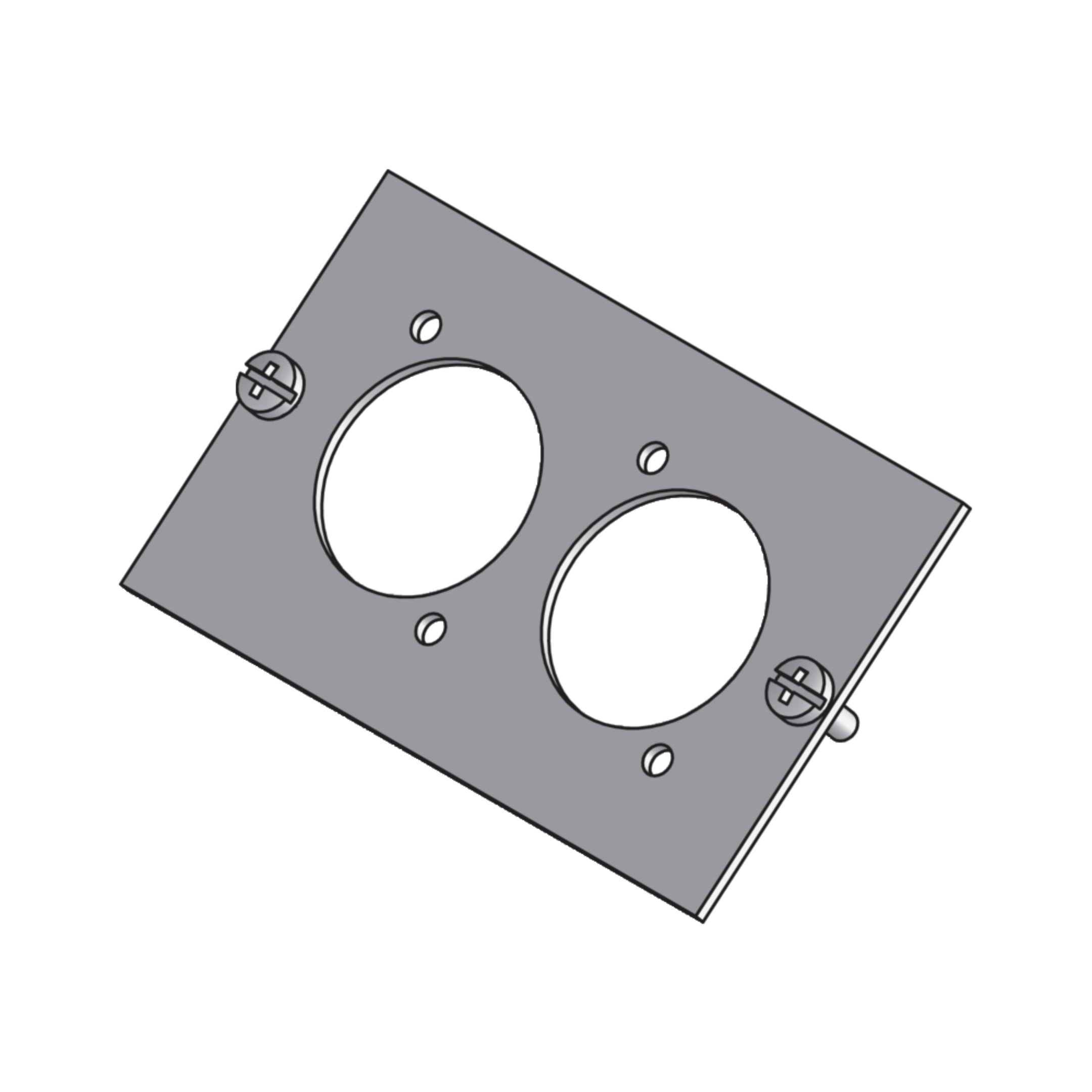

Mounting board, audio/video technology
UDEP XLR components are installation boards from the underfloor system range. The boards are bolted into data device carriers where they are used to accommodate up to 2 SC duplex fibre-optic single installation devices. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 23.6 mm.
H
Höhe
B
Breite
Datenjacks
max. Anzahl installierbarer Datenjacks
E1
Einbaumaß E1
Farbe
Farbe
G
Gewicht je Lagermengeneinheit
