UDEP SYS

Mounting board, data technology

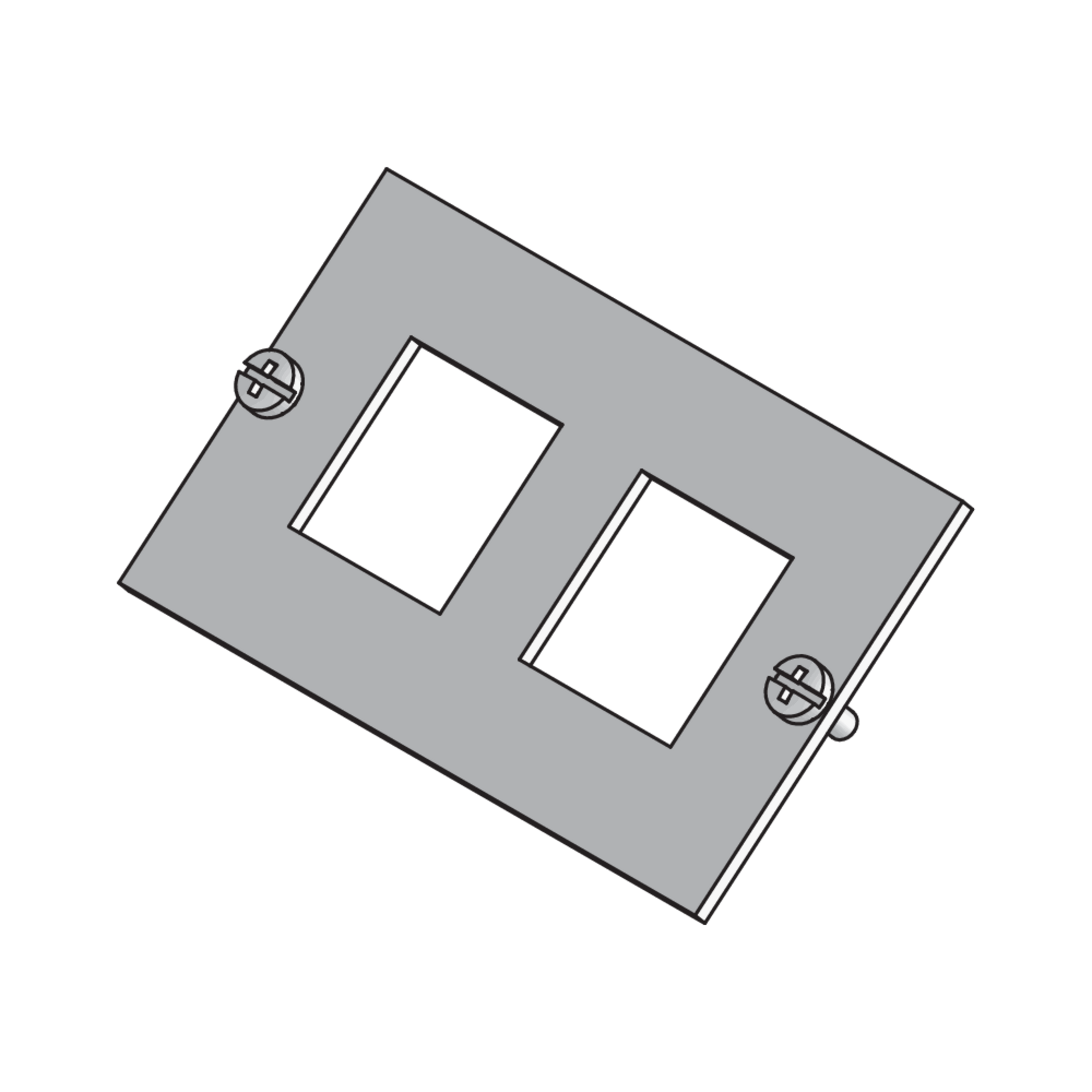

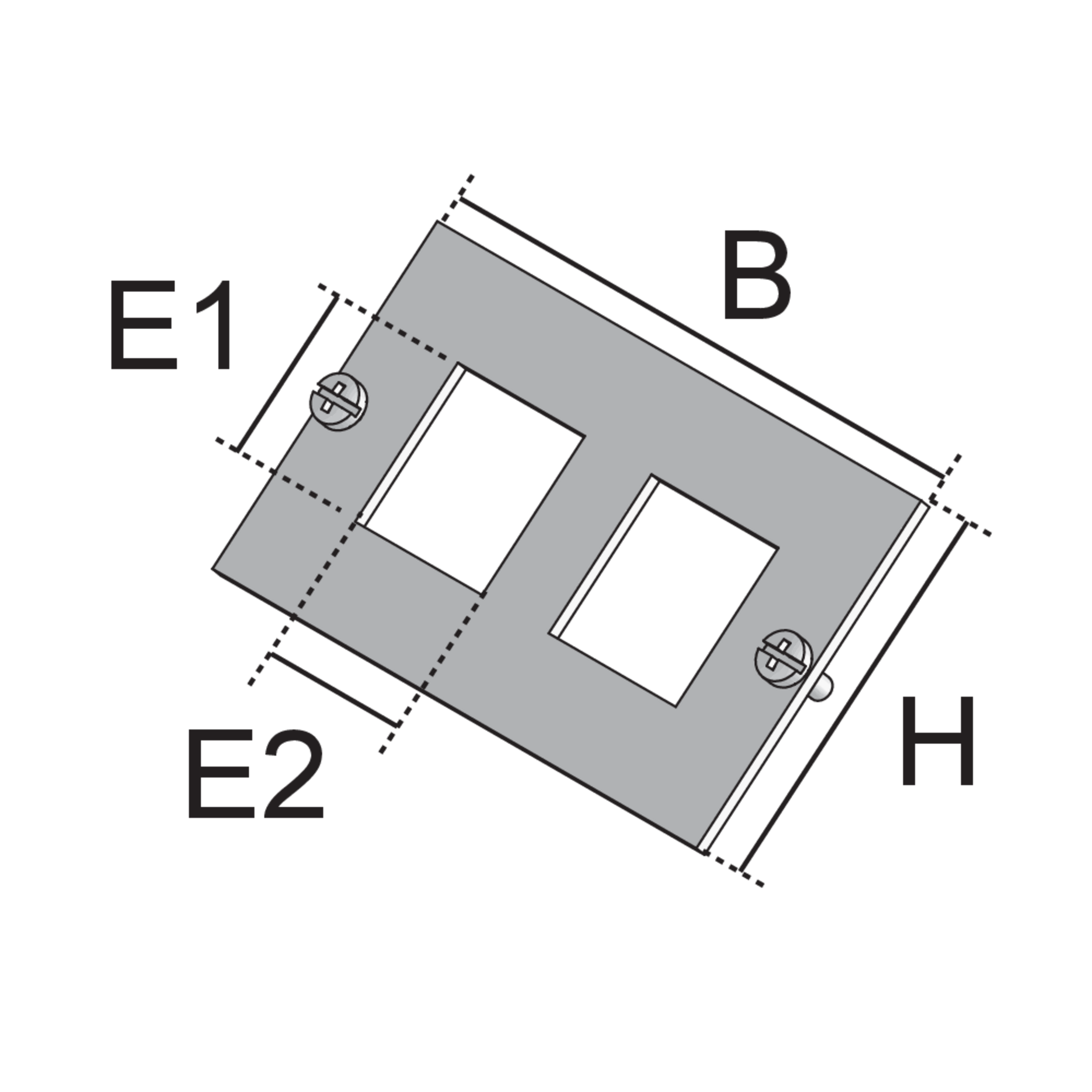

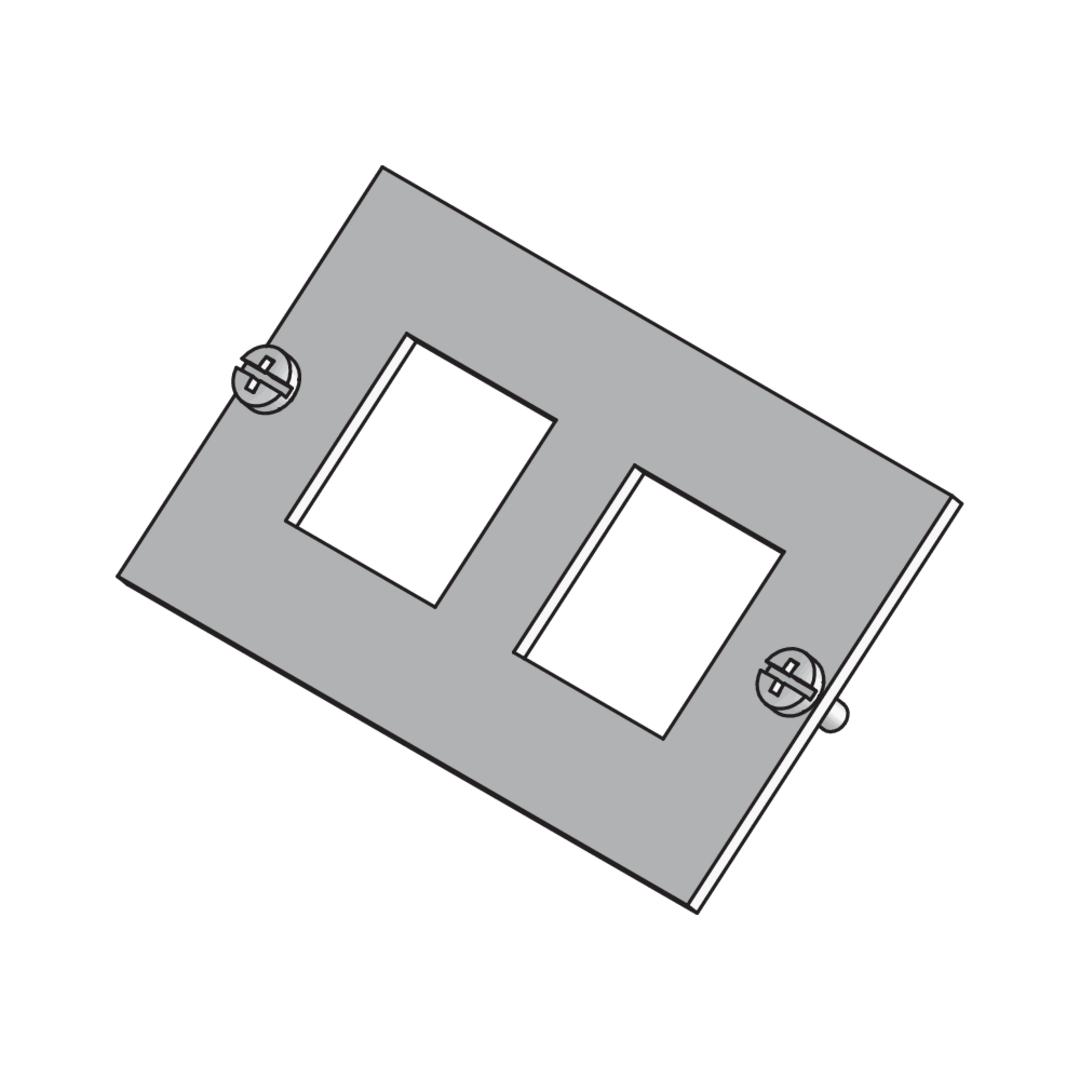

UDEP SYS components are installation boards from the underfloor system range. The boards are bolted into data device carriers and are used to accommodate up to 2 data jacks made by Systimax. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 20.8 mm and E2 19.7 mm. The M30MC mounting frame can be obtained separately from the manufacturer for mounting data jacks.

Get in touch Download datasheet

Variants

Article

H

B

Datenjacks

E1

E2

Farbe

G

  • UDEP-SYS 2
    Einbauplatine UDEP-SYS 2, zur Aufnahme
    46 mm
    75 mm
    2
    20.8 mm
    19.7 mm
    Schwarz
    0.018 kg
