UDEP SCS

Mounting board, fibre-optic technology

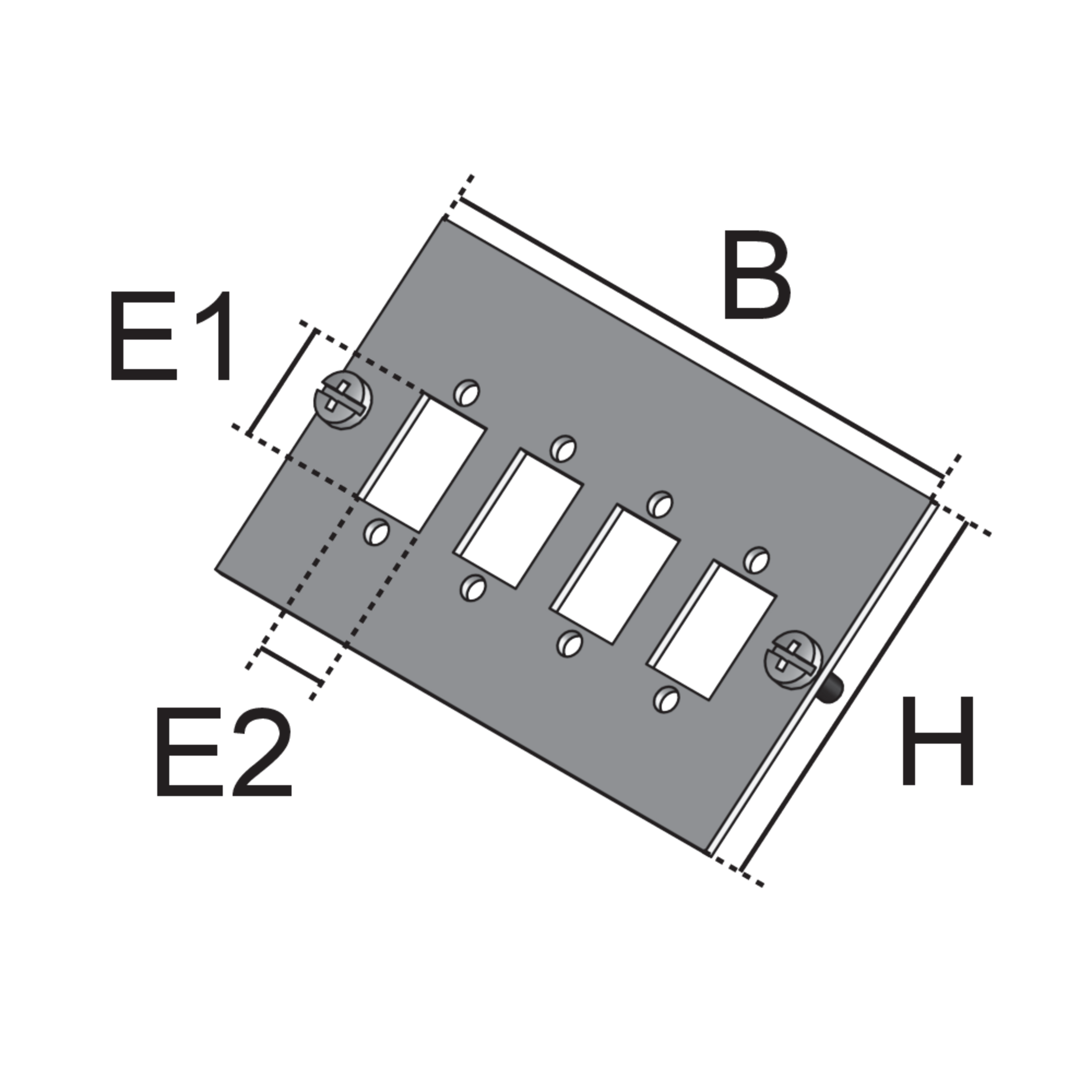

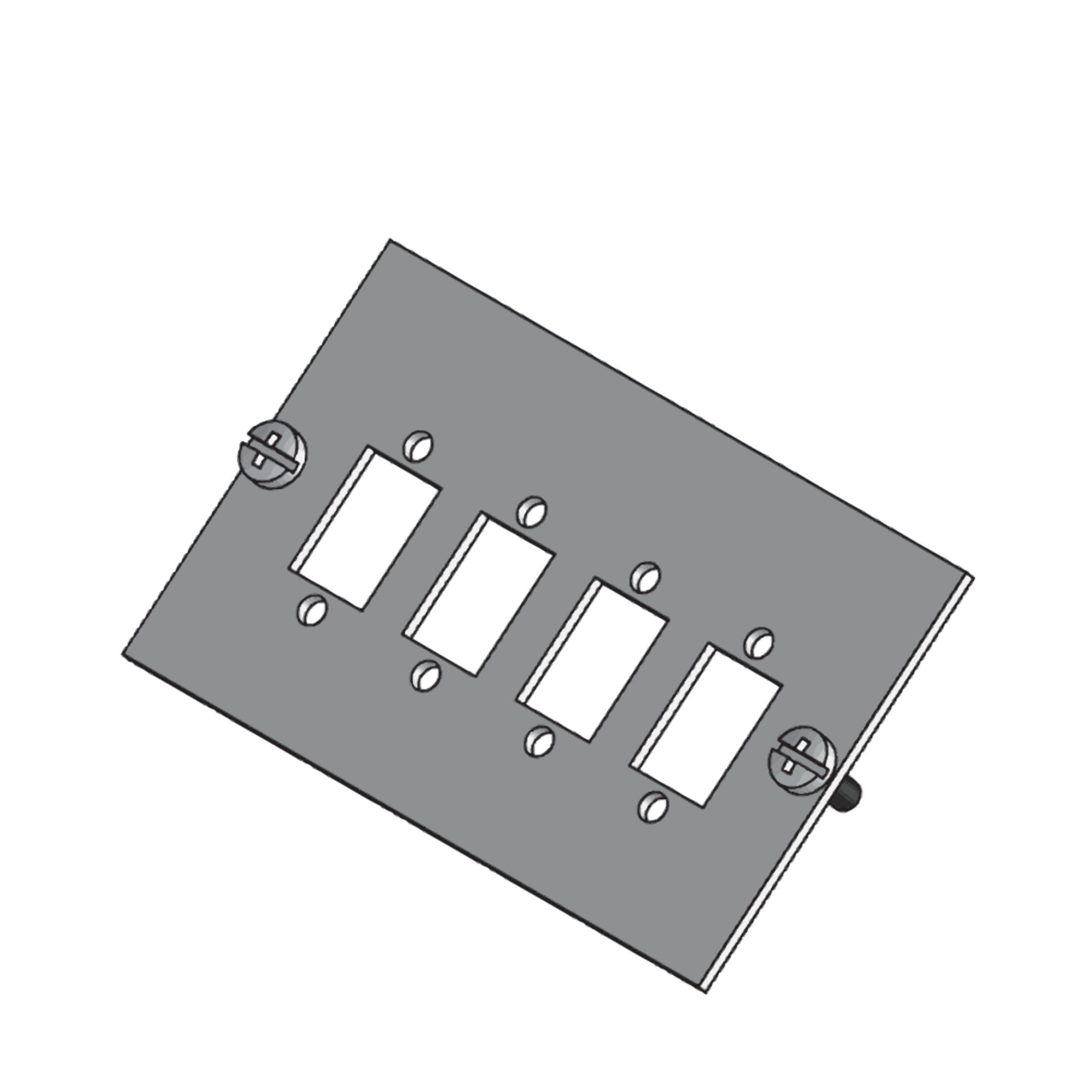

UDEP SCS components are installation boards from the underfloor system range. The boards are bolted into data device carriers where they are used to accommodate up to 4 SC simplex and SC duplex fibre-optic single installation devices. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 13.5 mm and E2 9.6 mm.

Get in touch Download datasheet

Variants

Article

H

B

data jacks

E1

E2

colour

W

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
